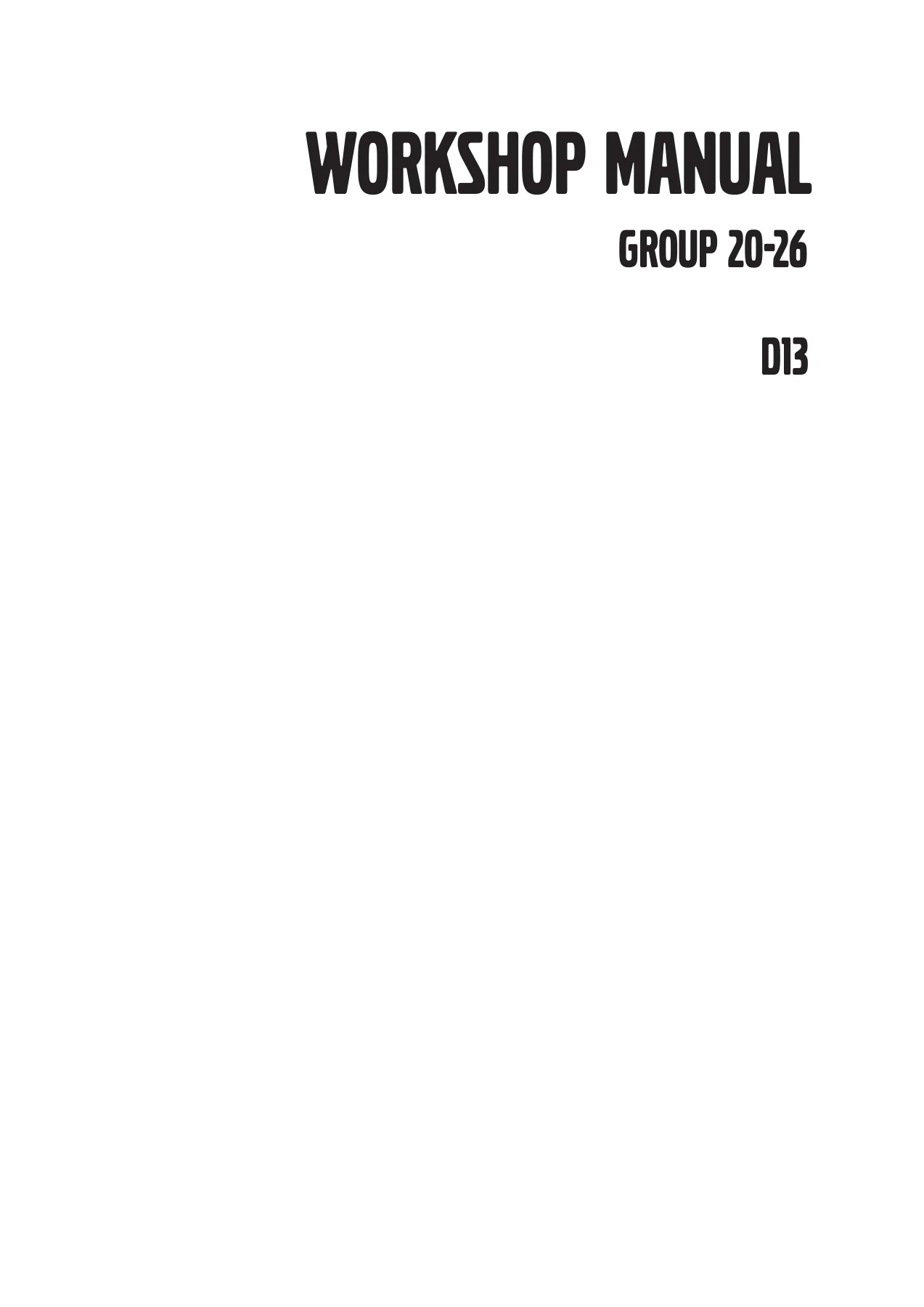

Volvo Penta D13 Group 20-26 Workshop Manual – Service Repair PDF
Original price was: $44.95.$26.95Current price is: $26.95.
432-page Volvo Penta D13 Group 20-26 workshop manual covering specifications, troubleshooting, engine disassembly and assembly, cylinder head, pistons and liners, valve mechanism, crankshaft, lubrication, fuel injection, turbocharging, cooling, seawater system and related electrical service procedures.
Description
Volvo Penta D13 Group 20-26 Workshop Manual – Service Repair PDF
A comprehensive 432-page workshop reference for Volvo Penta D13 engines. This manual combines engine specifications, tightening data, troubleshooting, test procedures, complete-engine disassembly and assembly, component replacement instructions, inspection criteria, system checks and illustrated repair sequences across the engine, lubrication, fuel, inlet and exhaust, turbocharging, cooling and related electrical equipment covered by the manual.
Built around workshop working methods, this manual repeatedly links repair operations to required measurements, tightening sequences and special tools. It is particularly useful when a job moves beyond routine maintenance into cylinder head work, liner and piston inspection, crankshaft and bearing work, fuel-system service, turbocharger replacement, heat-exchanger work, seawater-pump overhaul or electrical component replacement.
File Details
- Manual type: Workshop Manual, Group 20-26
- Brand / model: Volvo Penta D13
- Language: English
- Page count: 432 pages
- File format: PDF
- Publication number: 47701522
- Issue shown: 01-2022
D13 Engine Coverage
This workshop manual identifies the following D13 type designations in its engine specification section:
D13B-A MP, D13B-B MP, D13B-C MP, D13B-D MP, D13B-G MP, D13B-H MP, D13B-E MH, D13B-F MG, D13B-J MP, D13B-K MP, D13B-L MP, D13B-M MP, D13B-N MH, D13C1-A MP, D13C2-A MP, D13C3-A MP and D13C4-A MP. Individual procedures also distinguish between relevant engine configurations, including single- and twin-turbo arrangements, so the variant notes printed beside each operation should be followed carefully.
The technical data section establishes core D13 dimensions and reference values used during service. The engine is shown as a six-cylinder unit with a 131 mm cylinder diameter, 158 mm stroke and 12.78 liter cylinder volume, with an injection sequence of 1-5-3-6-2-4. The same specification area provides variant-specific compression ratios, compression pressures, idle-speed data and dry weights. Separate technical-data pages cover cylinder head, liner, piston, valve mechanism, camshaft, crankshaft and bearing dimensions as well as wear limits and clearances.
Repair, Inspection and Diagnostic Scope

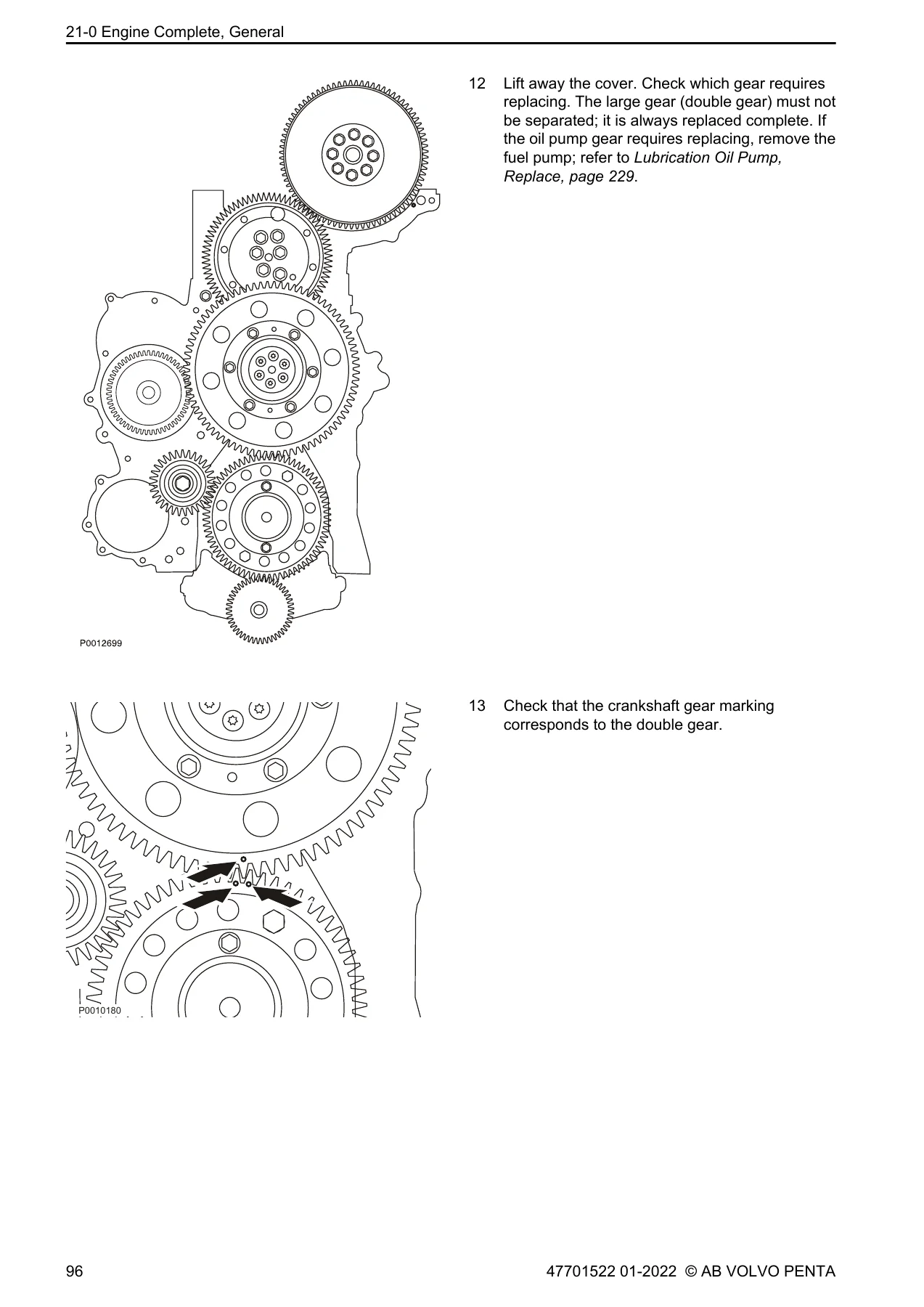

The Volvo Penta D13 Group 20-26 Workshop Manual – Service Repair PDF is not limited to component identification. It gives step-by-step working sequences for exposing the engine, mounting it in a fixture, stripping major assemblies and rebuilding the engine. The engine-complete section follows timing gear removal, lubrication-oil-pump removal, piston and cylinder-liner removal, crankshaft removal, crankshaft installation, liner and piston installation, timing gear installation and full engine reassembly. Illustrations identify fasteners, component positions, special tools and installation orientation throughout these operations.
Cylinder-head work is treated in its own extensive section. The manual covers cylinder-head removal and installation, camshaft and rocker-arm bridge handling, unit-injector removal and protection, timing alignment, gear-lash adjustment, injector installation, valve and injector adjustment, valve-guide inspection and replacement, valve removal and installation, valve-seat grinding and replacement, valve-stem sealing and related checks. The cylinder-liner and piston section includes liner wear measurement, crack inspection, piston checks and connecting-rod checks. Timing and crank-mechanism chapters add camshaft wear inspection, flywheel indication, flywheel gear-ring replacement, sensor adjustment, crankshaft-seal replacement, crankshaft inspection and main-bearing replacement.
Troubleshooting is organized around practical symptoms such as an engine that will not start, starts and stops, loses power, produces black or blue/white exhaust smoke, vibrates, overheats, fails to reach normal operating temperature, loses coolant, shows low oil pressure or has high oil consumption. Cooling-system fault tracing and charge-pressure troubleshooting give additional checks for coolant circulation, seawater restrictions, heat-exchanger condition, thermostat operation, charge-air leakage, turbocharger condition and boost-pressure sensing. Test and adjustment material includes compression testing and charge-air-pressure checking with the specified tools and comparison points.
Specifications and Service Data
A large early portion of the manual is devoted to tightening torques and technical measurements. General tightening torques are followed by special tightening sequences for engine mounts, main and big-end bearing caps, timing components, flywheel and crankshaft-seal covers, vibration damper, cylinder head, camshaft and rocker-arm shaft, valve adjustment, lubrication-system parts, fuel-system components, manifolds and turbocharger hardware. These pages are supported by diagrams showing bolt numbering and tightening order rather than leaving the technician to infer sequence from a torque value alone.
IMAGES PREVIEW
Service-data pages include cylinder-head flatness, cylinder-liner position, piston and piston-ring measurements, valve dimensions and clearances, valve-seat and guide data, rocker-arm wear values, timing-gear lash, camshaft journal dimensions and wear limits, crankshaft and bearing dimensions, connecting-rod measurements and flywheel runout. Lubrication data includes a 45-liter oil change volume, oil-pressure ranges, piston-cooling pressure and maximum oil-sump temperature. Fuel-system data includes feed-pump pressure checks and unit-injector preload information. Cooling-system data includes pressure-cap and thermostat information, coolant specifications and a 60-liter refill quantity for the engine, radiator and hoses.
Chapters Covered
- 00-0 General
- Workshop manual information and safety information
- 03-0 General Specifications
- General tightening torques
- 03-2 Specifications, Engine
- Special tightening torques
- Engine, lubrication, fuel, inlet/exhaust and cooling technical data
- 03-3 Specifications, Electrical
- Sensor and electrical specification data
- 08-2 Special Service Tools
- Special tools and other workshop equipment
- 18-0 General
- Chemical products used in service work
- 20-0 Engine Information, General
- Troubleshooting
- Test and adjustments
- 21-0 Engine Complete, General
- Exposing the engine and fitting the fixture
- Engine disassembly and engine assembly
- 21-1 Cylinder Head
- Cylinder head removal, installation and associated components
- 21-3 Cylinder Liner, Pistons
- Cylinder liner, piston and connecting-rod inspection
- 21-4 Valve Mechanism
- Valves and unit injectors adjustment
- Valve guides, valves, seats and stem seals
- 21-5 Timing Gears and Shaft
- Camshaft, flywheel and sensor procedures
- 21-6 Crank Mechanism
- Crankshaft seals, crankshaft inspection and main bearings
- 22-1 Oil Pump and Line
- Lubrication oil pump replacement
- 22-2 Oil Filter
- Oil filter, pressure checks, filter bracket, valves and piston-cooling pressure
- 22-3 Oil Cooler
- Oil-cooler thermostat replacement
- 23-0 Fuel System, General
- Fuel-system bleeding, draining and bypass-valve work
- 23-3 Fuel Feed Pump and Filter
- Fuel filters, pressure checks, filter housing, feed pump and hand pump
- 23-7 Injectors and Delivery Pipes
- Unit injector and injector-sleeve procedures
- 25-1 Inlet and Exhaust Manifolds
- Exhaust and intake manifold service
- 25-5 Turbo and Supercharger
- Low-pressure and high-pressure turbocharger procedures
- 25-6 Air Cleaner, Throttle Housing
- Air-cleaner and related intake components
- 26-0 Cooling System, General
- Cooling-system service, draining and checks
- 26-1 Radiator, Heat Exchanger
- Heat-exchanger replacement and cleaning
- 26-2 Coolant Pump, Thermostat
- Coolant-pump and thermostat procedures
- 26-5 Charge Air Cooler with Connections
- Front and rear charge-air-cooler work and connections
- 26-6 Sea Water System, Sea Water Pump
- Impeller change, seawater-pump replacement and overhaul
- 32-1 Alternator
- Alternator and belt service
- 33-1 Starter Motor
- Starter-motor replacement
- 36-6 Monitoring and Control Systems
- Control and monitoring component replacement
- 37-1 Cables
- Cable and harness procedures
Taken as a whole, these chapters provide a connected workshop path from diagnosis and measurement through dismantling, inspection, replacement, adjustment and final reassembly. Cross-references within the manual direct the technician from a procedure to the relevant torque chart, specification page or related component operation, while the special-tool section identifies the tools referenced in many of the repair sequences.
Illustrated Workshop Procedures

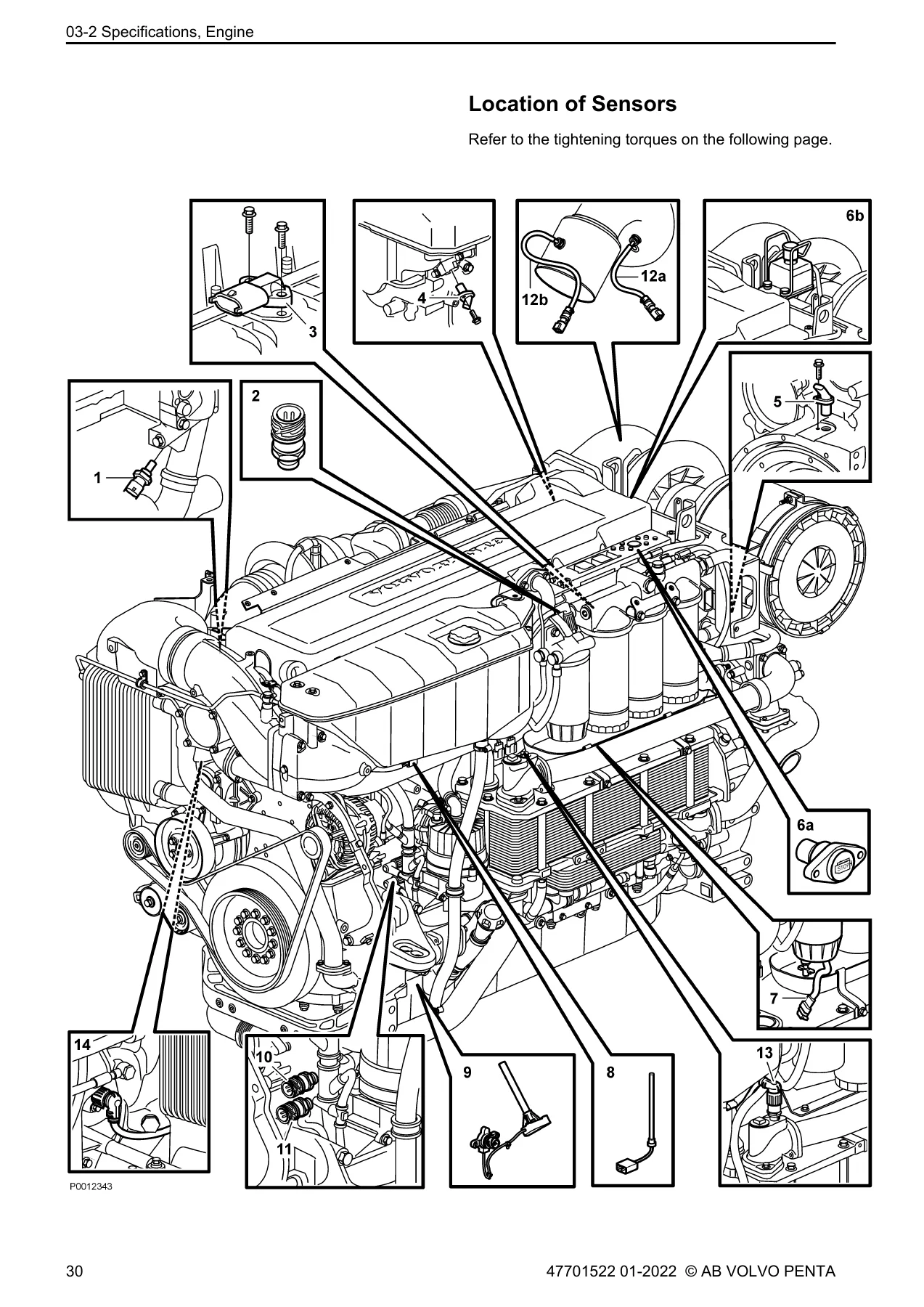

Much of the service work is shown with component drawings, highlighted installation views and numbered fastener sequences. Examples include engine sensor locations, timing-gear relationships, cylinder-head lifting and installation, valve-train work, injector handling, oil-system components, turbocharger and charge-air plumbing, heat-exchanger parts, cooling-system connections and wiring-harness routing. The manual also explains the color conventions used in its illustrations so highlighted components, fasteners, special tools and seals can be distinguished during a procedure.
Variant-specific notes are important throughout this D13 workshop manual. Some operations apply only to named D13B or D13C versions, while turbocharger, charge-air, cooling and electrical arrangements can differ between configurations. The manual places those applicability notes alongside the relevant steps, which helps the reader follow the procedure intended for the engine designation being serviced rather than assuming every illustration applies identically to every D13 version.
Complete D13 Workshop Reference in PDF Format
The Volvo Penta D13 Group 20-26 Workshop Manual – Service Repair PDF supports detailed fault tracing, engine teardown and rebuild work, cylinder-head and valve service, liner and piston inspection, crankshaft and bearing work, lubrication and fuel-system diagnosis, injector service, manifold and turbocharger repairs, cooling-system and seawater-pump work, plus the electrical components included in the manual. Having the stated procedures, measurements, wear limits, tightening values and illustrated sequences together is especially valuable when a repair depends on performing each stage in the correct order and checking components against the specified limits.
Delivery is instant as a PDF after purchase, with no shipping or waiting for a printed book. The manual can be opened on compatible computers, tablets and phones and pages can be printed when a paper reference is useful at the workbench.
