Volvo Penta TAD164X-167X TWD164X-168X Groups 21-26 Workshop Manual
Original price was: $39.95.$23.95Current price is: $23.95.
242-page Volvo Penta Workshop Manual covering TAD164X through TAD167X and TWD164X through TWD1682-3 engine families. Includes engine specifications, tightening torques, disassembly and assembly, cylinder head and valve mechanism work, lubrication, fuel injection and common rail service, turbocharger procedures, cooling system repairs, alternator and starter procedures, special tools, fault checks and illustrated repair instructions.
Description
Volvo Penta TAD164X-167X TWD164X-168X Groups 21-26 Workshop Manual
The Volvo Penta TAD164X-167X TWD164X-168X Groups 21-26 Workshop Manual is a detailed engine service reference for the TAD164X, TAD165X, TAD166X, TAD167X and TWD164X through TWD1682-3 families identified in the manual. It combines engine specifications and service data with illustrated workshop procedures for major mechanical systems, fuel equipment, turbocharging, lubrication and cooling. The publication also includes electrical component locations, special service tools, fault-check procedures and extensive tightening data used during component removal, inspection, overhaul and installation.
File Details
- Manual type: Workshop Manual, Groups 21-26
- Brand: Volvo Penta
- Models: TAD164X GE/VE/VE-B/C, TAD165X GE/VE/VE-B, TAD166X VE, TAD167X VE, TWD164X GE, TWD165X GE, TWD166X GE, TWD167X GE, TWD1682-3 VE/GE
- Language: English
- Pages: 242
- Format: PDF
- Publication number: 47702612
- Date: 09-2024
Engine Specifications and Service Data

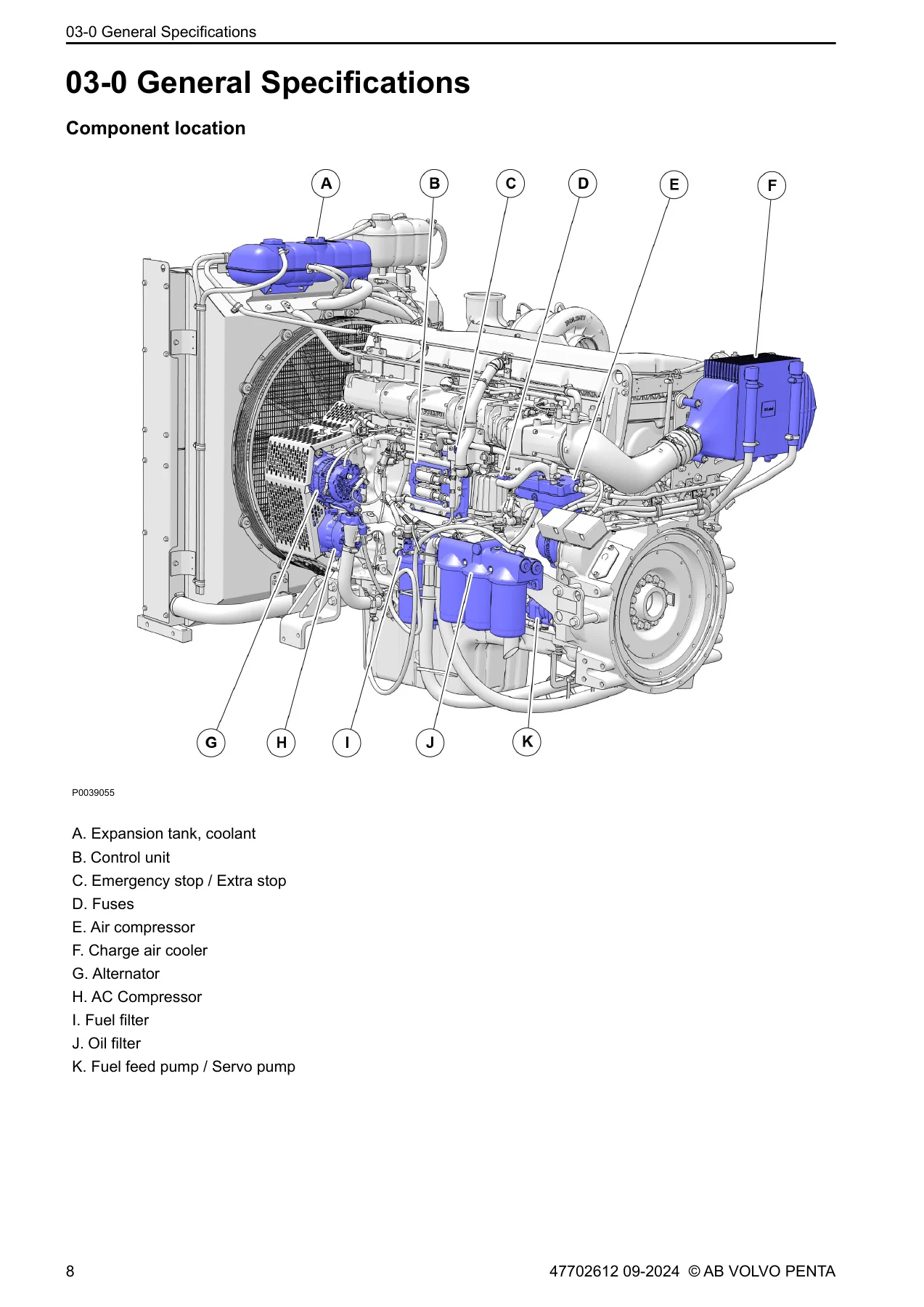

The manual opens with component-location illustrations and detailed engine specifications for numerous covered type designations. Service data includes cylinder count, 144 mm bore, 165 mm stroke, 16.12-liter cylinder volume, dry or wet engine weights for listed variants, firing order, compression ratios, idle speeds and model-specific operating information. General and special tightening torques are supplied for engine fasteners and assemblies including main bearing caps, timing gear components, flywheel, vibration damper, connecting-rod caps, cylinder head, camshaft bearing caps, valve mechanism, oil system components, fuel system parts, turbochargers and cooling components.
Dimensional inspection data covers the cylinder head, cylinder liners, pistons, piston rings, crankshaft, main and big-end bearing journals, connecting rods, flywheel, camshaft, valves, valve seats and valve springs. The lubrication specifications include oil volume, minimum warm-engine oil pressures, maximum loaded oil temperatures and oil-cooler thermostat opening temperature. Fuel feed pressure data and cooling-system specifications are also provided, including model-dependent coolant volumes and thermostat opening temperatures.
Illustrated Workshop Procedures

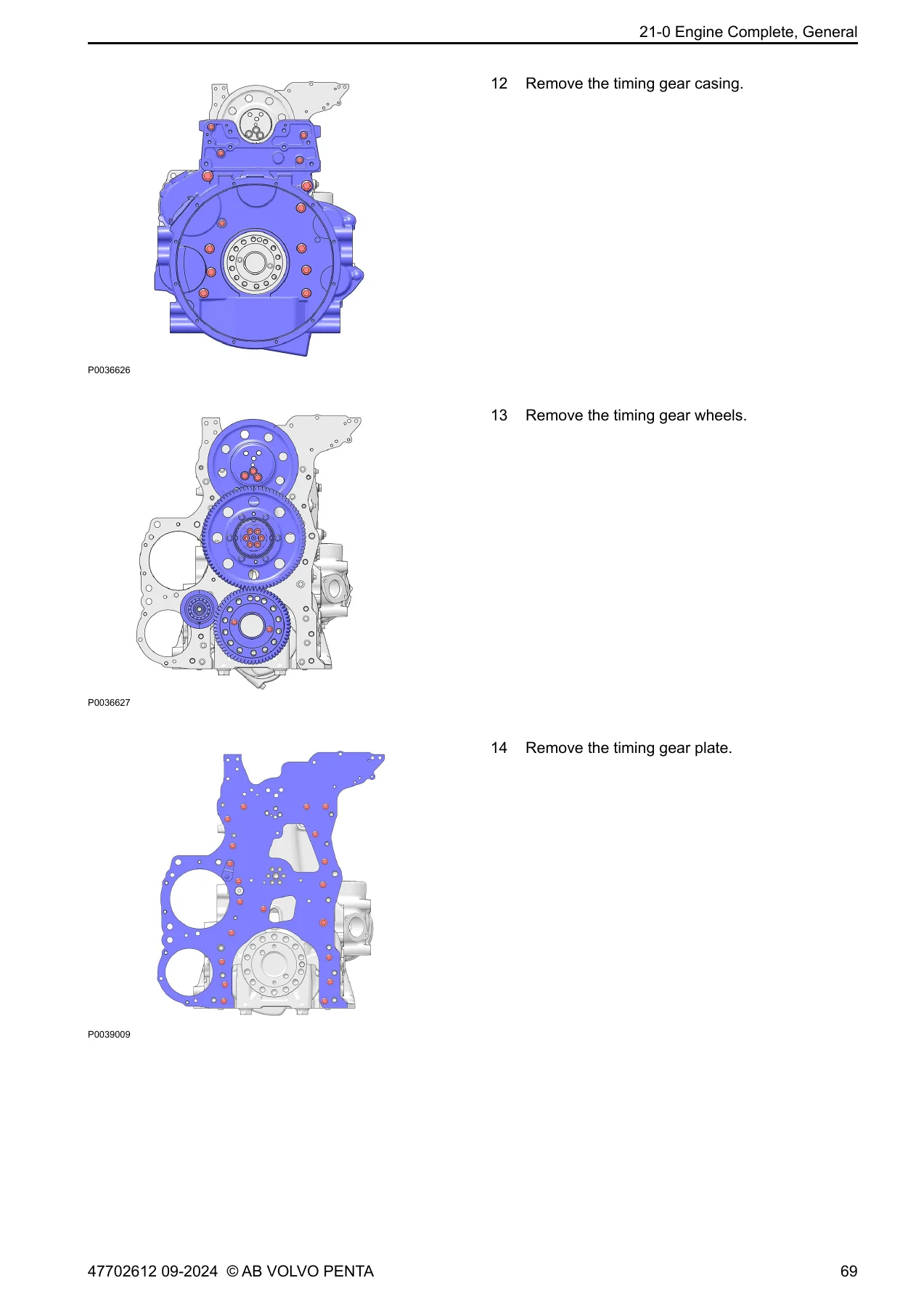

This Volvo Penta engine workshop manual is heavily illustrated with component highlights, tool references and step-by-step sequences. Procedures begin with engine positioning at TDC, cylinder-head checks, compression testing, camshaft wear inspection and connecting-rod inspection. Complete engine work includes mounting the engine on a fixture, engine disassembly and subsequent assembly with crankshaft, bearings, timing gears, cylinder liners, pistons, connecting rods, oil pump and related components.
The cylinder-head section goes beyond simple removal. It explains cylinder-head replacement, camshaft and timing alignment, gear-backlash checks, gasket and sealant placement, injector removal and reinstallation, and cylinder-head overhaul procedures involving valves, valve seats, guides and stem seals. Separate valve-mechanism procedures identify different systems and provide adjustment sequences for standard, VCB and iEGR arrangements, including model-specific instructions such as the VCB procedure for TWD1683VE.
Chapters Covered
- General Information
- About this Workshop Manual
- Safety information and image-symbol conventions
- Specifications
- General specifications and component locations
- Engine specifications and tightening torques
- Engine dimensions and service limits
- Lubrication system specifications
- Fuel system specifications
- Inlet and exhaust system specifications
- Cooling system specifications
- Electrical cable descriptions and locations
- Safety and Other Instructions
- Cleanliness requirements
- Special Service Tools
- Volvo Penta tool numbers and illustrations
- 21-0 Engine Complete, General
- Engine TDC setting
- Check and fault trace
- Compression test
- Camshaft and connecting-rod checks
- Engine fixture installation
- Engine disassembly
- Engine assembly
- 21-1 Cylinder Head
- Cylinder head replacement
- Cylinder head overhaul
- 21-4 Valve Mechanism
- Valve mechanism identification
- Standard valve adjustment
- VCB valve adjustment
- iEGR valve adjustment
- Valves and injectors adjustment
- 21-5 Timing Gears and Shaft
- Camshaft bearing housing replacement
- Flywheel gear ring replacement
- Drive belt replacement
- 21-6 Crank Mechanism
- Front crankshaft seal replacement
- Rear crankshaft seal replacement
- 22-0 Lubricating and Oil System, General
- Engine oil pressure check
- 22-1 Oil Pump and Line
- Lube oil pump replacement
- 22-3 Oil Cooler
- Oil cooler replacement
- 23-0 Fuel System, General
- Fuel-system bleeding
- Fuel duct draining
- Fuel-feed pressure checking
- 23-3 Fuel Feed Pump and Filter
- Fuel feed pump replacement
- 23-7 Injectors and Delivery Pipes
- Injector replacement
- Unit injector sleeve replacement
- Common rail replacement
- Rail pressure sensor replacement
- 23-8 Control System, ECM, Data Sets
- Control unit replacement
- Engine control unit identification
- 25-0 Inlet and Exhaust System, General
- Turbocharger check and fault trace
- 25-1 Inlet and Exhaust Manifolds
- Exhaust manifold replacement
- Intake manifold replacement
- 25-5 Turbo and Supercharger
- Turbo replacement
- Low-pressure turbo replacement
- High-pressure turbo replacement
- Wastegate valve replacement
- Wastegate valve adjustment
- 26-0 Cooling System, General
- Coolant replacement
- Cooling-system cleaning
- Cooling-system pressure testing
- 26-1 Radiator, Heat Exchanger
- Radiator assembly change
- 26-2 Coolant Pump, Thermostat
- Coolant pump replacement
- Electric coolant pump replacement
- Thermostat replacement
- 26-3 Fan, Fan Shroud
- Visco fan replacement
- 26-5 Charge Air Cooler with Connections
- Lower charge air cooler replacement
- Upper charge air cooler replacement
- 32-1 Alternator
- Alternator replacement
- 33-1 Starter Motor
- Starter motor replacement
Taken together, these sections make the manual useful for work ranging from checks and adjustments through major engine teardown and rebuilding. The procedures frequently identify required special tools, tightening sequences, sealant application, cleanliness precautions, inspection limits and variant-specific differences. The fuel chapters cover both mechanical service and procedures involving injector coding or control-system work, while the turbocharger and cooling chapters address complete component replacement and supporting checks.
Fuel, Turbocharging and Cooling System Service
Fuel-system coverage includes bleeding, pressure checking, fuel feed pump service, injector removal and installation, unit injector sleeve replacement, common rail work and rail-pressure sensor replacement. The manual emphasizes cleanliness and pressure precautions where the fuel system is opened. Injector replacement information also notes that a new injector code must be programmed into the control unit when an injector is changed.
IMAGES PREVIEW
For air handling and exhaust work, the Volvo Penta TAD164X-167X TWD164X-168X Groups 21-26 Workshop Manual contains turbocharger inspection guidance, exhaust and intake manifold procedures, conventional turbo replacement, low-pressure and high-pressure turbo procedures, plus wastegate replacement and adjustment where applicable. Cooling-system chapters explain coolant replacement and bleeding, internal cleaning, pressure testing, radiator assembly work, water-pump and thermostat replacement, fan service and charge-air-cooler procedures.
Special Tools and Workshop Accuracy
A dedicated special-service-tools section identifies a large range of Volvo Penta tools by part number, with illustrations for fixtures, pullers, press tools, hydraulic equipment, lifting tools, measuring tools, cleaning kits, adapters and installation tools. Throughout the repair chapters, these tool numbers are tied directly to the procedures where they are required. This makes the manual especially valuable when preparing for extensive mechanical work and determining the correct tooling before disassembly begins.
Repair and Diagnose with the Correct Procedures
The Volvo Penta TAD164X-167X TWD164X-168X Groups 21-26 Workshop Manual supports technicians and owners carrying out engine inspection, cylinder-head work, valve adjustment, major disassembly and assembly, crankshaft-seal replacement, lubrication-system repairs, fuel-system service, injector and common-rail work, turbocharger replacement, cooling-system repairs, alternator replacement and starter-motor service. Using the specified sequences, measurements, clearances, tightening values and special-tool guidance helps keep repair work aligned with the procedures documented for these engine variants. This manual is supplied as an instant PDF download after payment, with no shipping required. It can be opened on compatible computers, tablets and phones and pages may be printed when a paper reference is useful at the workbench.
