Volvo Penta D4 D6 Marine Diesel Engine Workshop Manual Groups 20-26 – PDF

Description

Volvo Penta D4 D6 Marine Diesel Engine Workshop Manual Groups 20-26

The Volvo Penta D4 D6 Marine Diesel Engine Workshop Manual Groups 20-26 is the comprehensive technical service publication covering the complete range of D4 and D6 marine diesel engines. Published by AB Volvo Penta under document number 47700149 (English edition, 09-2018), this workshop manual provides the technical data, descriptions, and maintenance and repair instructions needed to service these engines to professional standards. Whether you are performing routine maintenance, diagnosing a fault, or undertaking a full engine overhaul, this Volvo Penta D4 D6 workshop manual is the essential reference for getting the job done correctly.

File Details

• Manual Type: Workshop Manual
• Brand: Volvo Penta
• Models Covered: D4, D6 (including reverse gear, DPH drive, IPS, and Aquamatic variants)
• Language: English
• Page Count: 310
• File Format: PDF
• Document Number: 47700149
• Edition/Date: 09-2018

Chapters Covered

• General Information (00-0): General information, spare parts, certified engines, about this workshop manual
• Specifications (03-0): General specifications, engine specifications, lubrication system, fuel system, inlet and exhaust system, cooling system, electrical system, steering
• Safety and Other Instructions (05-1): Safety information and instructions
• Special tools (08-2): Special service tools and other special equipment
• Chemical Products (18-0): General chemical products reference
• General (20-0): Engine information, troubleshooting, miscellaneous
• Engine (21-0 to 21-9): Engine complete general, engine disassembly, engine assembly, cylinder head, cylinder block, cylinder liner and pistons, valve mechanism, timing gears and shaft, crank mechanism, miscellaneous
• Lubricating and Oil System (22-0 to 22-3): General, oil pump and line, oil cooler
• Fuel System (23-3 to 23-9): Fuel feed pump and filter, fuel tank and fuel lines, injectors and delivery pipes, miscellaneous
• Inlet and Exhaust System (25-5 to 25-9): Turbo and supercharger, miscellaneous
• Cooling System (26-1 to 26-9): Radiator and heat exchanger, coolant pump and thermostat, charge air cooler with connections, sea water system and sea water pump, miscellaneous
• Index and References to Service Bulletins

What This Workshop Manual Provides

This Volvo Penta D4 D6 workshop manual is built around the complete engine service lifecycle. It opens with general information, safety instructions, and a comprehensive special tools section that lists the Volvo Penta special service tools required for each procedure, complete with part numbers. From there, it moves into detailed specifications covering every major engine system: general engine data, lubrication system, fuel system, inlet and exhaust, cooling system, electrical system, and steering.

The troubleshooting chapter is structured by symptom, covering start and stop problems, performance and comfort issues, cooling system faults, and lubrication system faults. Each symptom is paired with a checklist of items to inspect, making this Volvo Penta D4 D6 repair manual a practical diagnostic tool as well as a repair guide.

The engine disassembly and assembly sections are the largest part of the manual. They walk through the complete teardown and rebuild of both the D4 and D6 engines, including the supercharged engine variants. Step-by-step procedures are accompanied by photographs and illustrations showing bolt locations, tightening sequences, and component orientation. The assembly section includes detailed tightening torque specifications, angle tightening values, and sealant application instructions.

Component-level chapters cover the cylinder head (removal, inspection, valve guides, valve seats, copper sleeve replacement, pipe connection sizing), cylinder block inspection, cylinder liner and piston inspection, piston ring measurement, valve mechanism service, camshaft checking and adjustment, timing gears and balance shaft housing overhaul, and the complete crank mechanism including connecting rod inspection, crankshaft inspection and overhaul, polygon hub replacement, and flywheel service.

The lubrication and oil system chapter covers engine oil pressure checks, oil pump inspection, and oil cooler service including oil valve housing inspection. The fuel system chapter covers fuel pressure checks on the high-pressure pump, high-pressure pump replacement, fuel hose and suction line checks, injector return flow testing, injector replacement, pressure limiting valve replacement, rail pressure sensor replacement, and fuel system bleeding.

The inlet and exhaust system chapter covers turbocharger removal, installation, and inspection, compressor housing cleaning, mechanical supercharger fault tracing, and magnetic coupling replacement for both the D4-260 and the D4-300/D6 variants. The cooling system chapter covers heat exchanger and oil cooler overhaul and pressure testing, circulation pump overhaul, thermostat function checks, thermostat housing overhaul, charge air cooler removal and installation, charge air cooler overhaul for both the standard and D6-435 variants, charge air cooler pressure testing, seawater pump impeller replacement, seawater pump overhaul for early and later models, complete seawater system pressure testing, and fresh water system pressure testing.

Models and Engines Covered

The Volvo Penta D4 D6 service manual covers the following engine designations:

D4 Series: D4-180, D4-210, D4-225, D4-260, D4-300 (including variants with suffixes A, B, C, and D as listed in the specifications section).

D6 Series: D6-280, D6-310, D6-330, D6-350, D6-370, D6-435 (including variants with suffixes A, B, C, and D as listed in the specifications section).

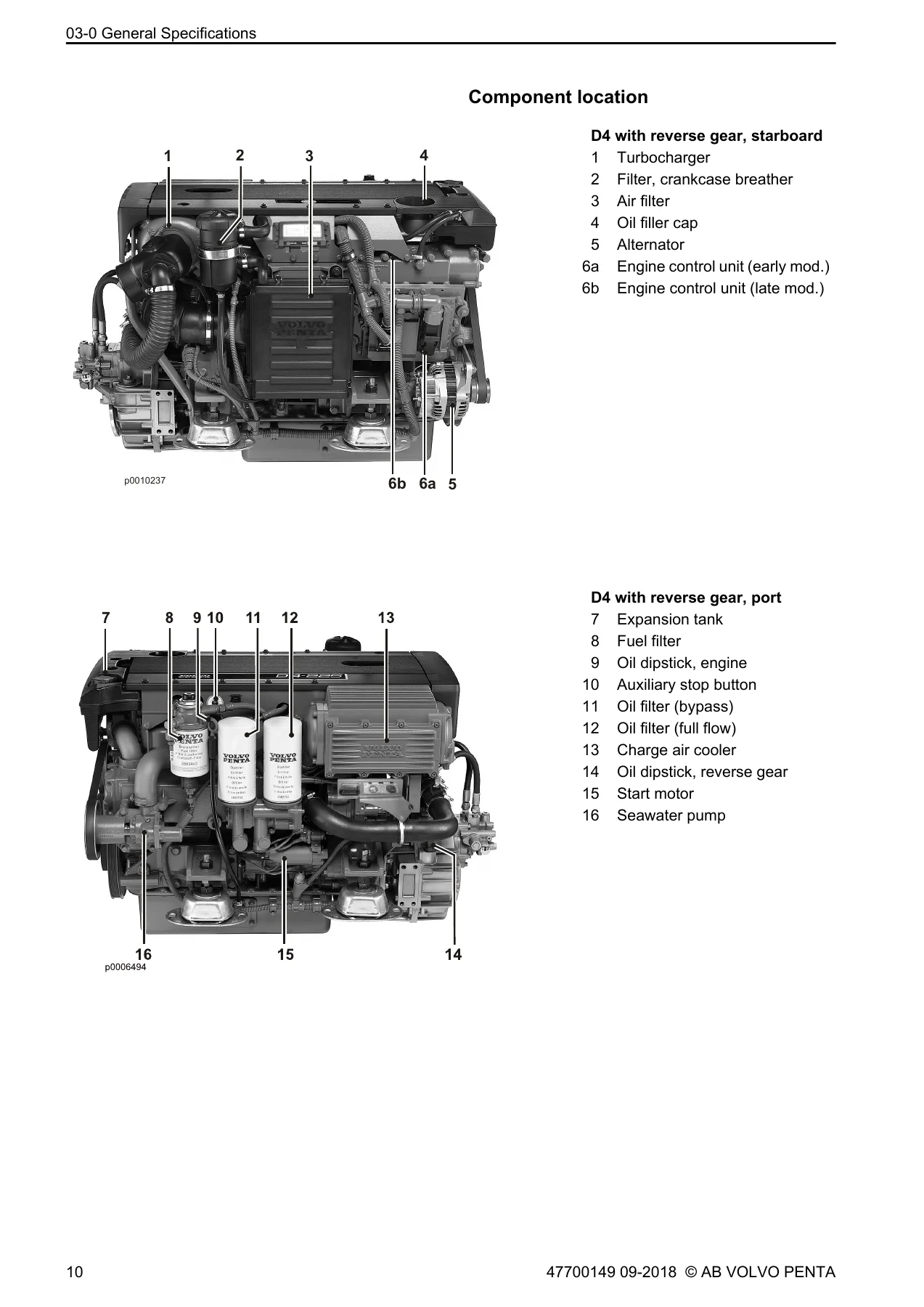

The manual covers these engines as installed with reverse gear (HS45AE, HS63AE, HS80AE, HS80VE, HS85AE), with DPH drive (with and without power steering), and in IPS and Aquamatic configurations. Component location illustrations are provided for D4 with reverse gear (starboard and port), D4 with drive (port), D6 with reverse gear (port), and D6-IPS (starboard and port).

Technical Specifications Included

This Volvo Penta D4 D6 workshop manual includes full technical data for both engine series. Key specifications covered include:

• Engine designations and firing sequences
• Cylinder block bore dimensions and height measurements
• Cylinder head type, height, and flatness tolerances
• Cylinder head bolt dimensions and quantities
• Piston dimensions, clearance, and installation height
• Piston ring types, heights, markings, and clearances
• Gudgeon pin clearances and diameters
• Crankshaft end float, main bearing clearances, big-end bearing clearances
• Main bearing journal diameters (standard and undersize)
• Big-end bearing journal diameters (standard and undersize)
• Connecting rod dimensions and end float
• Camshaft bearing journals, lift specifications, and end float
• Valve head diameters, stem diameters, seat angles, and clearances
• Valve spring specifications
• Lubricating oil grades, capacities, and pressure specifications
• Oil pump end float and gear lash
• Oil valve opening pressures and thermostat settings
• Fuel injection sequence, rail pressure, and pressure limiting valve settings
• Turbocharger models, radial play, and end float
• Exhaust back pressure limits
• Charge air pressure values across the rpm range
• Cooling system type, capacity, and filler cap pressure
• Thermostat opening temperatures
• Seawater pump capacity
• Electrical system voltage, battery capacity, and alternator output
• Starter motor power ratings
• Power steering pump pulley dimension

Special Tools and Safety Information

A complete special tools section lists the Volvo Penta special service tools referenced throughout the procedures, including drift tools, pullers, lock pins, fixtures, measurement equipment, and pressure testing kits. Each tool is identified by part number. The safety information section covers general safety precautions for working on engines, electrical safety, fuel system safety, cooling system safety, battery safety, and the proper handling of fluorocarbon rubber seals.

Who This Manual Is For

This Volvo Penta D4 D6 marine engine workshop manual is written for Volvo Penta workshops and their qualified personnel, and assumes a fundamental knowledge of the product and the ability to carry out mechanical and electrical work to trade standard. It is equally valuable for experienced marine technicians, boatyards, and mechanically capable owners who want access to the same procedures, specifications, and tightening torques used by professional workshops.

Why This Manual Matters

Correct service and repair of Volvo Penta D4 and D6 marine diesel engines requires adherence to specific wear tolerances, tightening torques, angle tightening sequences, sealant types, and component orientation. This Volvo Penta D4 D6 repair manual provides all of these values in one place, along with the procedures to apply them correctly. It enables you to:

• Perform a complete engine disassembly and reassembly
• Remove and install the cylinder head with the correct tightening sequence
• Inspect and replace pistons, piston rings, and cylinder liners
• Service the valve mechanism and adjust camshaft timing
• Overhaul the balance shaft housing (D4)
• Inspect and overhaul the crankshaft and connecting rods
• Replace the polygon hub and flywheel
• Diagnose fuel system faults and check high-pressure pump pressure
• Test injector return flow and replace injectors
• Replace the pressure limiting valve and rail pressure sensor
• Bleed the fuel system
• Remove, install, and inspect the turbocharger
• Replace magnetic couplings on supercharger-equipped engines
• Overhaul the heat exchanger and oil cooler
• Service the seawater pump and replace the impeller
• Pressure test the charge air cooler, seawater system, and fresh water system
• Measure exhaust back pressure and charge air pressure
• Perform compression testing with VODIA

The correct procedures and specifications contained in this Volvo Penta D4 D6 workshop manual help prevent costly errors, reduce downtime, and ensure the engine performs reliably and within its certified parameters.

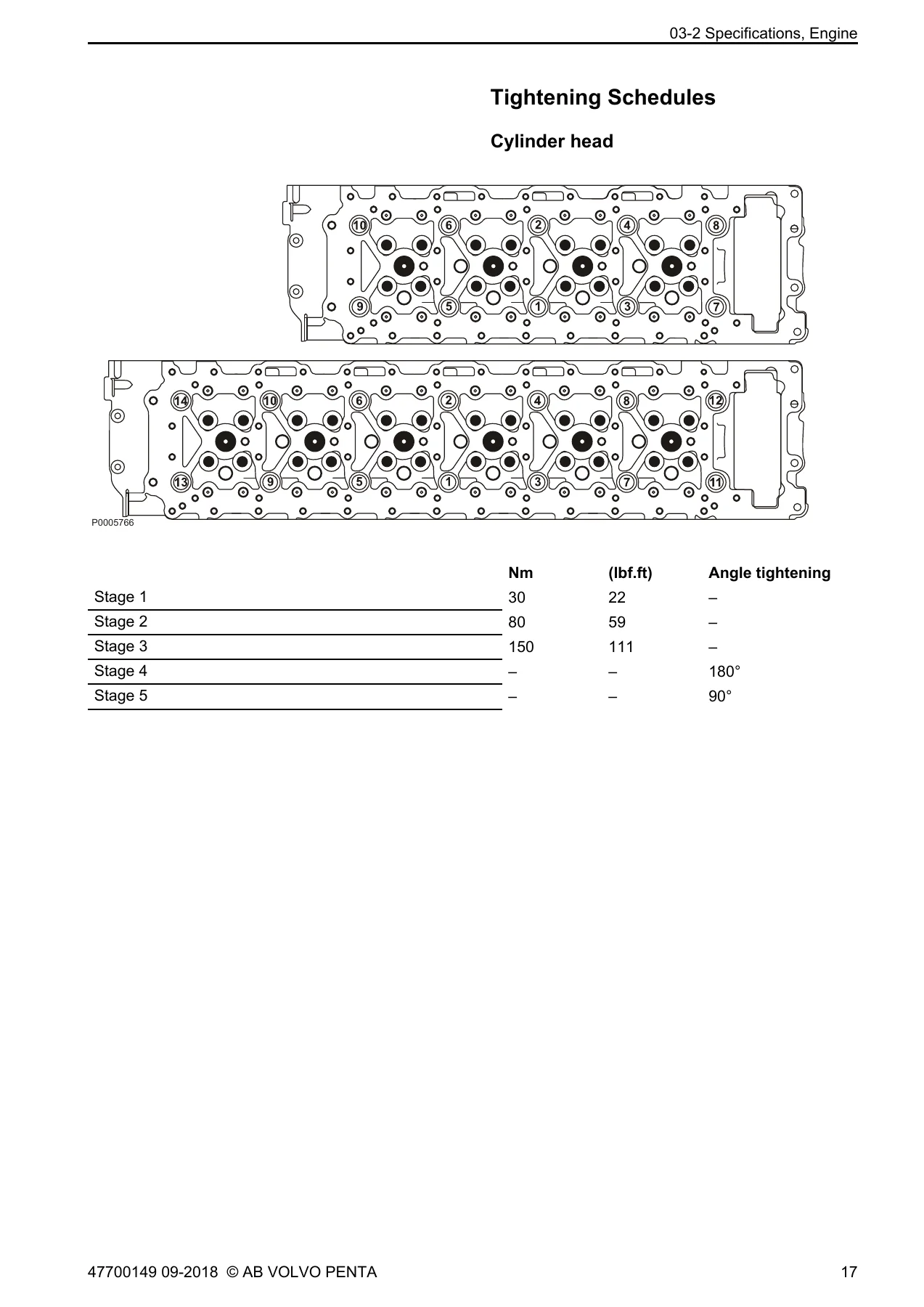

IMAGES PREVIEW

Instant PDF Delivery

This Volvo Penta D4 D6 marine diesel engine workshop manual is delivered as a PDF download immediately after purchase. There is no shipping, no waiting, and no physical product to handle. The PDF can be viewed on any device — computer, tablet, or smartphone — and relevant pages can be printed for use in the workshop. Keep the manual on hand for reference during every service, repair, and maintenance job on your D4 or D6 engine.
