Volvo Penta TAD1340VE-TAD1375VE Diesel Engine Workshop Manual Groups 21-26

Description

The Volvo Penta TAD1340VE-TAD1375VE Diesel Engine Workshop Manual Groups 21-26 is the complete workshop-level service and repair manual for the TAD13xx family of 6-cylinder industrial diesel engines. Published under document number 7748841 with an 02-2015 edition, this 336-page workshop manual covers the full TAD1340VE through TAD1375VE and TAD1341GE through TAD1355GE range using Volvo Penta’s own work methods, torque values and assembly sequences.

File Details

• Manual type: Workshop Manual — Groups 21 to 26
• Brand: Volvo Penta
• Engine family covered: TAD1340VE–TAD1375VE and TAD1341GE–TAD1355GE
• Document number: 7748841
• Edition / date: 02-2015
• Language: English
• Page count: 336 pages
• File format: PDF

Chapters Covered in This Volvo Penta TAD Workshop Manual

• General Information 00-0 — General, Miscellaneous
• Specifications 03-2 — Engine, Lubrication System, Fuel System, Inlet and Exhaust System, Cooling System, Electrical
• Safety and Other Instructions 05-1 — Safety Instructions
• Special Tools 08-2 — Special Service Tools
• General 20-0 — Engine Information, Troubleshooting, Test and Adjustments
• Engine 21-0 — Complete, Exposing the Engine, Fitting the Fixture, Disassembly, Assembly
• Cylinder Head 21-1
• Cylinder Liner and Pistons 21-3
• Valve Mechanism 21-4
• Timing Gears and Shaft 21-5
• Crank Mechanism 21-6
• Lubricating and Oil System 22 — Oil Pump and Line, Oil Filter, Oil Cooler
• Fuel System 23 — General, Fuel Feed Pump and Filter, Injectors and Delivery Pipes, Control System ECM / Data Sets
• Inlet and Exhaust System 25 — General, Manifolds, Emission Control and Catalytic Converter, Turbo and Supercharger, Air Cleaner and Throttle Housing, Emission After-Treatment
• Cooling System 26 — General, Coolant Pump and Thermostat, Fan and Fan Shroud
• Alternator and Charge Regulator 32-1 — Alternator

Read as a whole, the groups in this TAD diesel engine workshop manual build a continuous repair path: drain and expose the engine, mount it to the fixture, strip it down, measure and inspect, then rebuild it with the correct torques, gear lash values, valve clearances and injector preloads. Supporting chapters on specifications, special tools, safety and troubleshooting make sure every job starts from a known reference point rather than a guess.

What This Volvo Penta TAD Diesel Engine Repair Manual Covers

Because Groups 21 through 26 cover the engine, lubrication, fuel, air and cooling systems in full, the same document supports everything from a valve adjustment on a running TAD1360VE through to a complete bottom-end overhaul on a TAD1375VE. The main areas covered include:

• Complete engine removal and reassembly for the TAD13xx range — draining, exposing, fitting the fixture, disassembly and assembly with tightening sequences and angle-tightening stages.
• Cylinder head work — removal, cleaning, valve grinding, valve seat replacement, valve guide inspection and replacement, camshaft removal and installation.
• Cylinder liner, piston and connecting rod service — liner height measurement, O-ring installation, piston ring fitting, big-end bearing replacement, connecting rod checks.
• Valve mechanism adjustment for the standard mechanism, the VCB (Volvo Compression Brake) mechanism and the IEGR (Internal Exhaust Gas Recirculation) mechanism, with camshaft timing marks, valve clearances and unit injector preload.
• Timing gears and shafts — gear lash measurement and adjustment, camshaft wear check, flywheel indication, ring gear replacement.
• Crank mechanism — crankshaft removal and installation, main bearing and big-end bearing replacement with the crankshaft in place, crankshaft inspection, front and rear seal replacement.
• Lubrication system — oil pump change, oil filter bracket, oil cooler, safety valve, bypass valve and oil pressure sensor check.
• Fuel system — fuel feed pressure check, fuel filter housing, fuel feed pump, unit injector replacement, copper sleeve replacement, ECM control unit and data set handling.
• Inlet and exhaust system — intake manifold, exhaust manifold, turbocharger inspection and replacement, air throttle, EGR control valve, EGR mixing chamber, charge air pipe leak check.
• Emission after-treatment (AdBlue/DEF) — tank change and cleaning, pump filter, dosing unit, pump unit, temperature sensor, solenoid valve and combined tank unit service.
• Cooling system — draining and cleaning, coolant pump, thermostat, drive belts, belt tensioner, coolant filter and fan.

Torque Values, Clearances and Service Data Built Into the Procedure

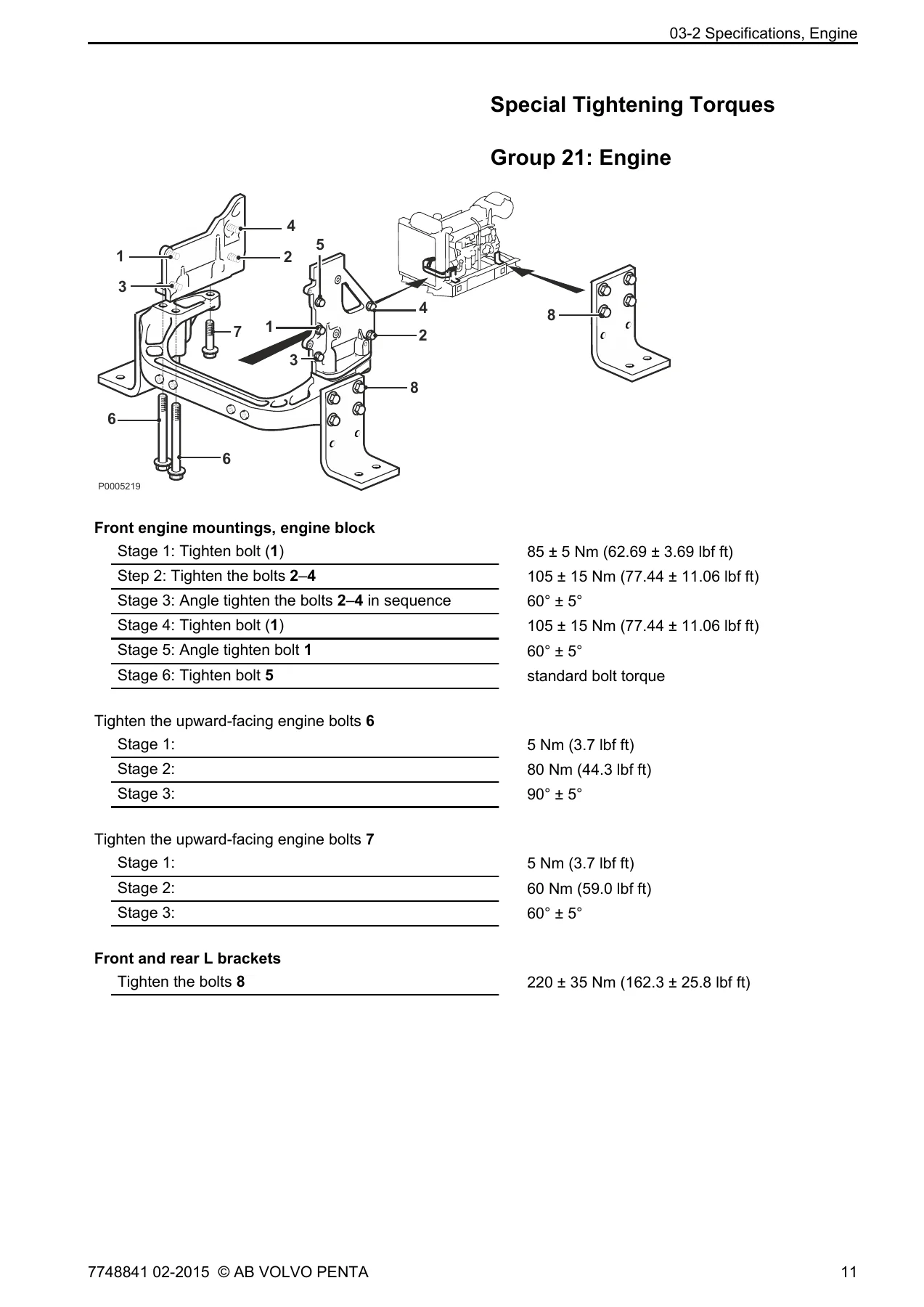

Unlike a generic engine guide, this TAD engine repair manual places the numbers directly inside the job description. Cylinder head bolts are tightened in a numbered sequence through three stages including two angle-tightening steps. Main bearing caps use a two-stage torque plus 120° angle. Big-end caps use 20 Nm, 60 Nm and then 90°. Frame reinforcement bolts must be renewed and tightened in a specific 1-24 order to 45 Nm plus 60°. Timing gear plate bolts torque to 28 Nm in sequence. Flywheel bolts torque to 60 Nm plus 120°. Camshaft caps, rocker arm shaft, valve cover, intake and exhaust manifolds, fuel line brackets and unit injector yokes all have their own staged values documented in the manual’s tightening-torque chapter.

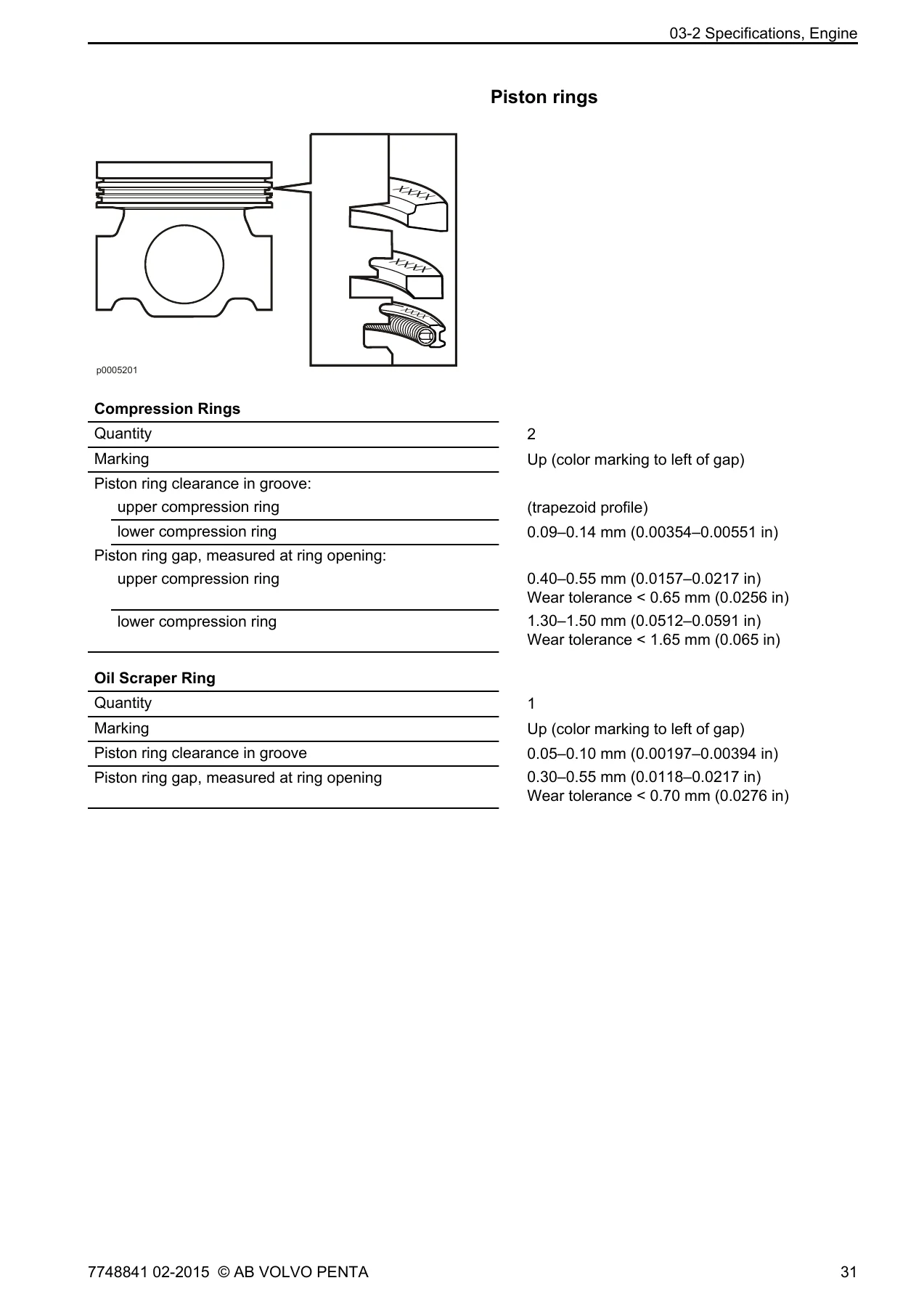

Specification chapters add the wider reference data a workshop needs: general tightening torques by bolt size, cylinder liner height above the block plane, valve head stand-out, valve seat and guide dimensions, crankshaft journal diameters including undersize options, main bearing and connecting rod shell thicknesses, crankshaft end float limits, big-end radial clearance limits, camshaft bearing journal tolerances and cam profile wear limits.

Engine Specifications Relevant to the TAD13xx Family

The manual’s engine specification section lists the common TAD13xx architecture: 6 cylinders, 131 mm cylinder bore, 158 mm stroke, 12.78-litre displacement, compression ratio 18.1:1 on most variants and 17.8:1 on the TAD1351-1353VE, TAD1360-1365VE and TAD1371-1375VE engines, injection sequence 1-5-3-6-2-4, low idle 900 rpm and high idle 1800 rpm. Dry engine weight is 1295 kg, wet weight 1325 kg, with generator-set versions heavier. Oil capacity is 36 litres on the plastic sump and 52 litres on the aluminium sump, coolant capacity is 44 litres (58 litres with the optional heavy-duty cooler).

Special Tools and Safe Working Method

Volvo Penta identifies the special tools required for particular procedures — pullers, lifting tools, dial indicators, hydraulic cylinders, drift and alignment tooling — so that jobs such as camshaft bearing replacement, valve guide replacement, crankshaft seal replacement and unit injector sleeve replacement can be carried out safely. The workshop manual also flags the fluorocarbon rubber seal handling warning, the correct RTV and anaerobic sealant use, and the cleanliness requirements around fuel and lubrication systems that will shorten an engine’s life if ignored.

Who This Workshop Manual Is For

This Volvo Penta TAD diesel engine workshop manual suits independent workshops, fleet maintenance engineers, marine and industrial engine technicians and owners who service their own TAD engine. It assumes the reader has a basic mechanical knowledge and access to normal workshop equipment; special tools are called out where they are needed and alternatives are noted where Volvo Penta has supplied them.

IMAGES PREVIEW

Instant PDF Delivery

The Volvo Penta TAD1340VE-TAD1375VE Diesel Engine Workshop Manual Groups 21-26 is supplied as an instant PDF download — no shipping, no waiting and no printed binder to keep clean in the workshop. Use it on a laptop, tablet or phone, print only the pages the current job needs, and keep the complete 336-page reference on file for the next TAD engine through the door. When torque, gear lash and injector preload all have to be right, having the Volvo Penta TAD workshop manual procedures to hand is what keeps the rebuild reliable.
