Official Xerox WorkCentre PE16 Service Manual covering copier/print/scan/fax MFP. Includes precautions, full specifications, disassembly & reassembly, alignment/adjustments, troubleshooting, exploded views/parts list, block and connection diagrams. Ideal for bench repair and field service.
Description
Xerox WorkCentre PE16 Service & Repair Manual – PDF Download
Description
Overview
This factory Service Manual for the Xerox WorkCentre PE16 gives you step-by-step procedures, specs, diagnostics, and schematics to service the engine, ADF, LSU, fuser, HVPS/SMPS, and control electronics. It’s the same level of detail used by authorized techs.
Models covered
WorkCentre PE16 (print/scan/copy/fax with ADF). Major features and dimensions included.

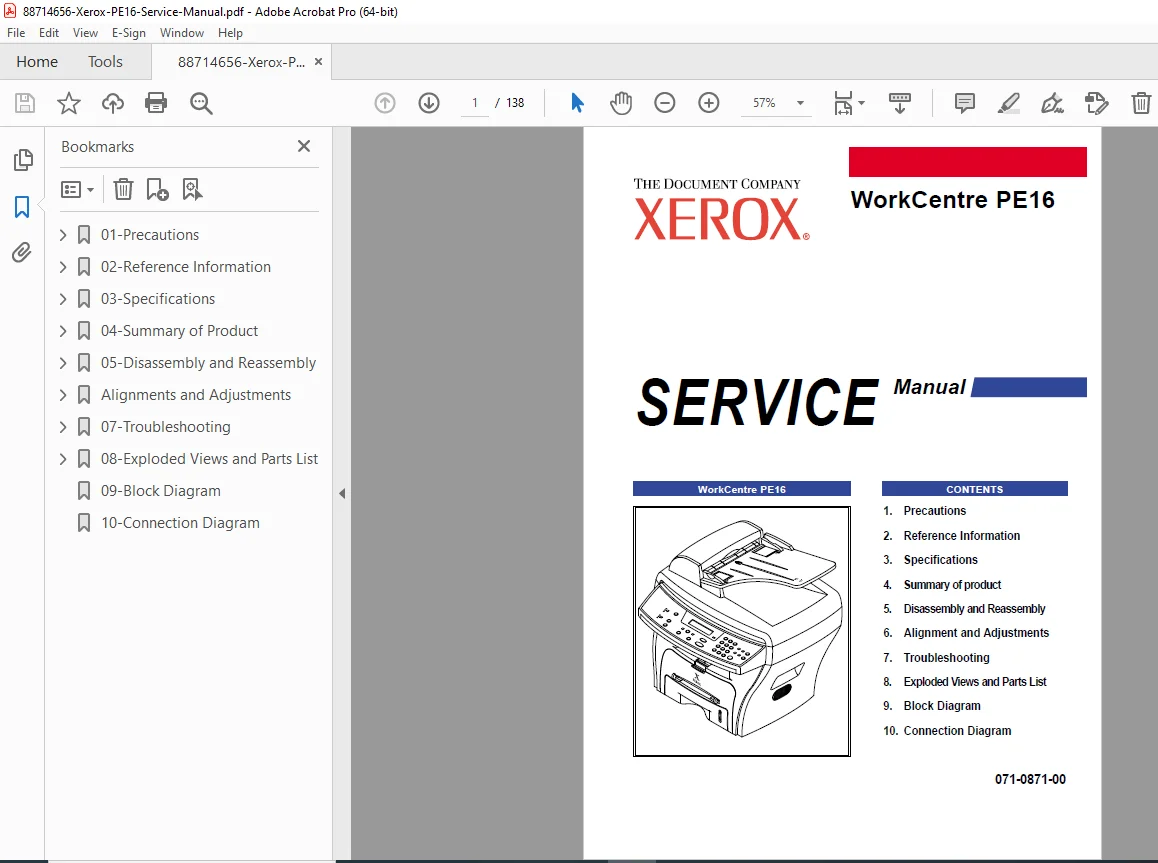

What’s inside (bookmarks / contents)
1. Precautions (ESD, laser safety)
2. Reference Information
3. Specifications
4. Summary of Product
5. Disassembly & Reassembly
6. Alignment & Adjustments
7. Troubleshooting
8. Exploded Views & Parts List
9. Block Diagram
10. Connection Diagram
Key specifications (service-relevant)
| Item | Detail |
|---|---|
| Print method / speed | Laser EP; 17 ppm Letter / 16 ppm A4, 600×600 dpi (SPL) |
| Memory (device) | 16 MB total (Printer 8M, Fax 4M, Scan 2M, System 2M) |
| ADF capacity | 30 sheets (80 gsm); doc width 148–216 mm, length 127–356 mm |
| Paper input / sizes | Main tray 250 sheets; bypass single; A4, Letter, Legal, Folio, Executive, B5; envelopes via bypass |
| Consumable | Single cartridge; life 2,000 pp initial / 3,500 pp running (IDC 5%) |
| I/O & OS | USB 1.1 & IEEE1284; Win 95/98/ME/NT4/2000/XP; Mac printer supported |
Diagnostics, adjustments & repair coverage

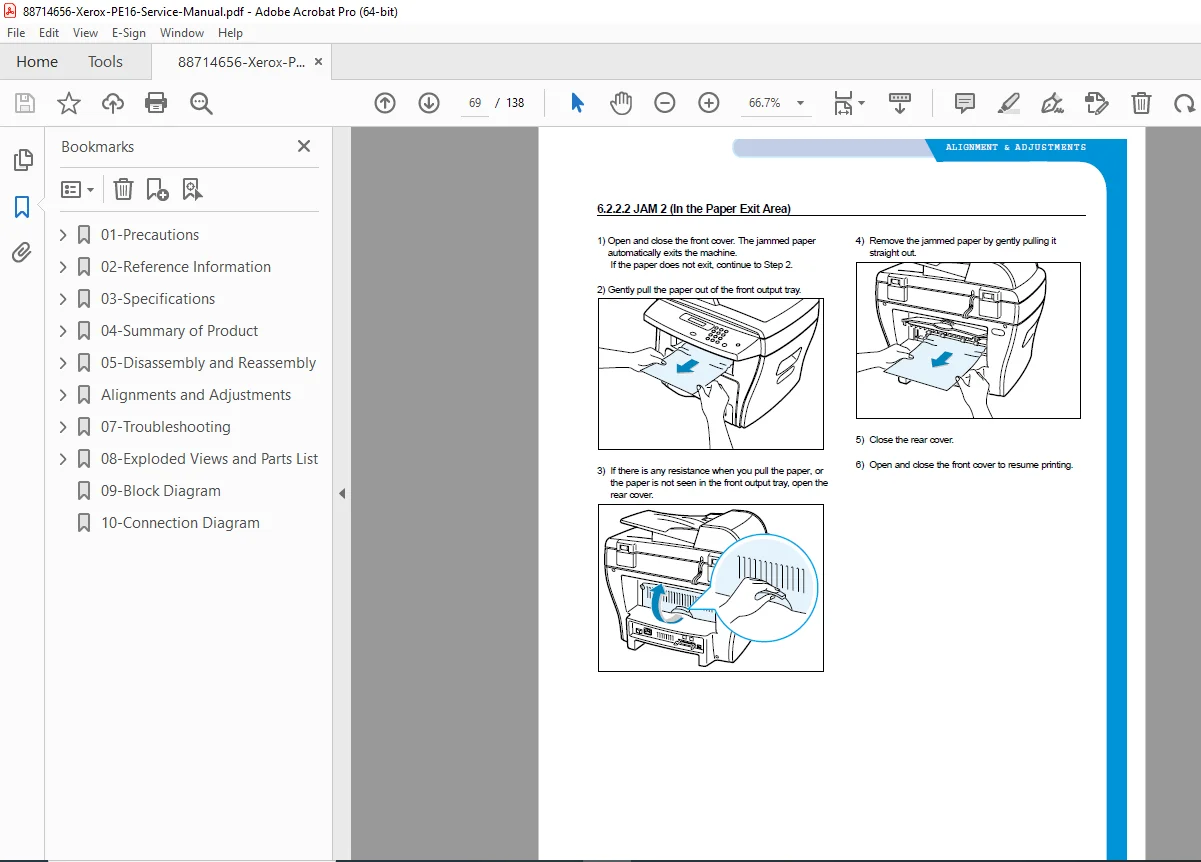

Paper jam logic & clearing: JAM 0/1/2 & BYPASS JAM conditions, location mapping, and stepwise clearing (feed, exit, fuser/toner, bypass).
Engine firmware logic: Jam detection timing for Jam 0 / Jam 1 and feed-path sensors.
Fuser AC power control: Phototriac/triac drive, heater ON/OFF control, component ratings.
HVPS outputs: THV+, MHV, THV-, DEV, SUP—functions, target voltages, and image-quality symptoms.
LSU diagnostics: Polygon motor & Hsync readiness; listed error conditions.
SMPS overview: DC rails (5 V/12 V/24 V), fan/solenoid and step-motor drive notes (A3977).
Disassembly & reassembly: ESD, cable routing, latch releases, and precautions.
Diagrams & parts
Exploded views & parts list, block diagram, and connection diagram for board-level & harness tracing—perfect for sourcing parts and verifying wiring.
File details
| Field | Info |
|---|---|
| Manual name | Xerox WorkCentre PE16 Service Manual (Publication dates: June/July 2003) |
| Models covered | WorkCentre PE16 |
| Year | 2003 (Specs: June 2003; Chapters marked July 2003) |
| PDF quality | Searchable text with diagrams (service-grade) |
| No. of pages | 138 pages |
Why this manual
Saves hours on fault isolation and reduces parts-swap guesswork.
Includes precise voltages, timing, and sensor logic for accurate diagnostics.
OEM sectioning and diagrams streamline board-level repairs and reassembly.
