Yamaha F40H / F50H / FT50J / F60F / FT60G Outboard Service Manual

This is the factory-prepared Yamaha service manual for the F40H, F50H, FT50J, F60F, and FT60G four-stroke outboard motor family — a 502-page, Spanish-language workshop reference covering the full scope of dealer-level repair and maintenance. Whether you are rebuilding the powerhead, diagnosing ECM faults with YDIS, overhauling the lower unit, or servicing the PTT system, this manual supplies the procedures, torque values, and specifications to do the job correctly.

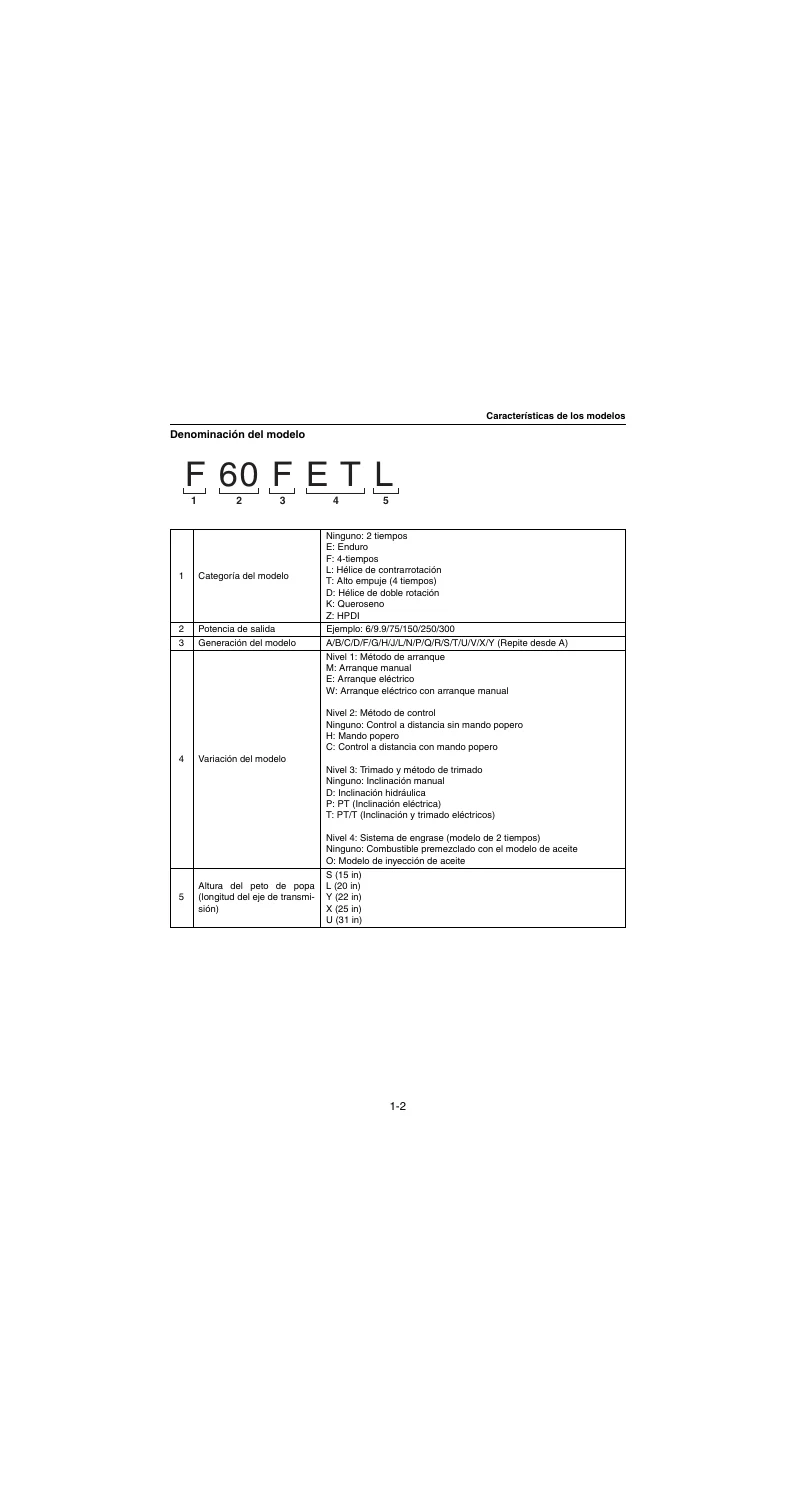

Models & Serial Numbers Covered

• F40HET — Approval code 6AK, serial from 1011126–
• F50HET, F50HED, F50HEHD, F50HEHT — Approval code 6C1, serial from 1049913–
• FT50JET — Approval code 6C2, serial from 1015568–
• F60FET, F60FEHT — Approval code 6C5, serial from 1056461–
• FT60GET, FT60GEHD, FT60GEHT — Approval code 6C6, serial from 1021687–

All variants across L (20 in) and X (25 in) shaft lengths, remote-control and tiller-handle configurations, and PTT or hydraulic-tilt trim systems are addressed throughout the manual.

Main Systems & Chapters Included

• Chapter 0 — Información general: Safety, special service tools, lubricants, sealants, torque conventions
• Chapter 1 — Especificaciones: Full model data, dimensions, weights, electrical technical data, fuel system data, engine technical data, lower unit data, bracket data, specified torque values
• Chapter 2 — Característica técnica y descripción: Electronic control system, ECM, fuel system diagram, lubrication diagram, cooling diagram, intake/exhaust diagram, PTT unit operation
• Chapter 3 — Información de montaje: Assembly/installation information
• Chapter 4 — Localización de averías: Fault diagnosis and troubleshooting
• Chapter 5 — Sistemas eléctricos: Complete electrical systems
• Chapter 6 — Sistema de combustible: Fuel system service
• Chapter 7 — Motor: Powerhead / engine overhaul
• Chapter 8 — Cola: Lower unit overhaul
• Chapter 9 — Soporte: Bracket assembly service
• Chapter 10 — Mantenimiento: Scheduled maintenance
• Appendix A

Repair, Diagnostic & Maintenance Coverage

• Electronic fuel injection (EFI) diagnosis and service — TPS, pulser coil, air pressure/temperature sensor, ISC valve, injectors, high-pressure fuel pump
• ECM identification and replacement — ECM ID codes for International, EU/Russia, and Brazil markets
• YDIS (Yamaha Diagnostic Interface System) procedures referenced throughout
• Y-COP anti-theft system service
• Ignition system — TCI/microprosessor advance, ignition coil, spark plug (NGK DPR6EB-9) specifications
• Charging system — stator coil output, regulator/rectifier voltage (13 V at 1500 and 3500 rpm), 20 A fuse
• Electric starter motor — 1.40 kW, gear-reduction type, commutator and brush service limits
• Cylinder head — valve clearances (IN: 0.15–0.25 mm, EX: 0.25–0.35 mm), valve seat reconditioning, camshaft lobe height limits, head warpage limit
• Crankcase / short block — piston diameter, ring gap, pin clearances, cylinder bore limits, oversize piston specifications
• Lower unit (F40H/F50H/F60F) — spiral bevel gear, shift dog clutch, gear ratio 1.85:1
• Lower unit (FT50J/FT60G) — gear ratio 2.33:1
• PTT system — fluid type (Yamalube Marine PTT fluid or ATF Dexron II), trim sensor resistance values
• Fuel system pressure specifications — 300 kPa at key-on, 240 kPa at idle; fuel filter check valve pressures
• Engine oil capacity: 2.5 L total; periodic change: 1.9 L (without filter), 2.1 L (with filter)

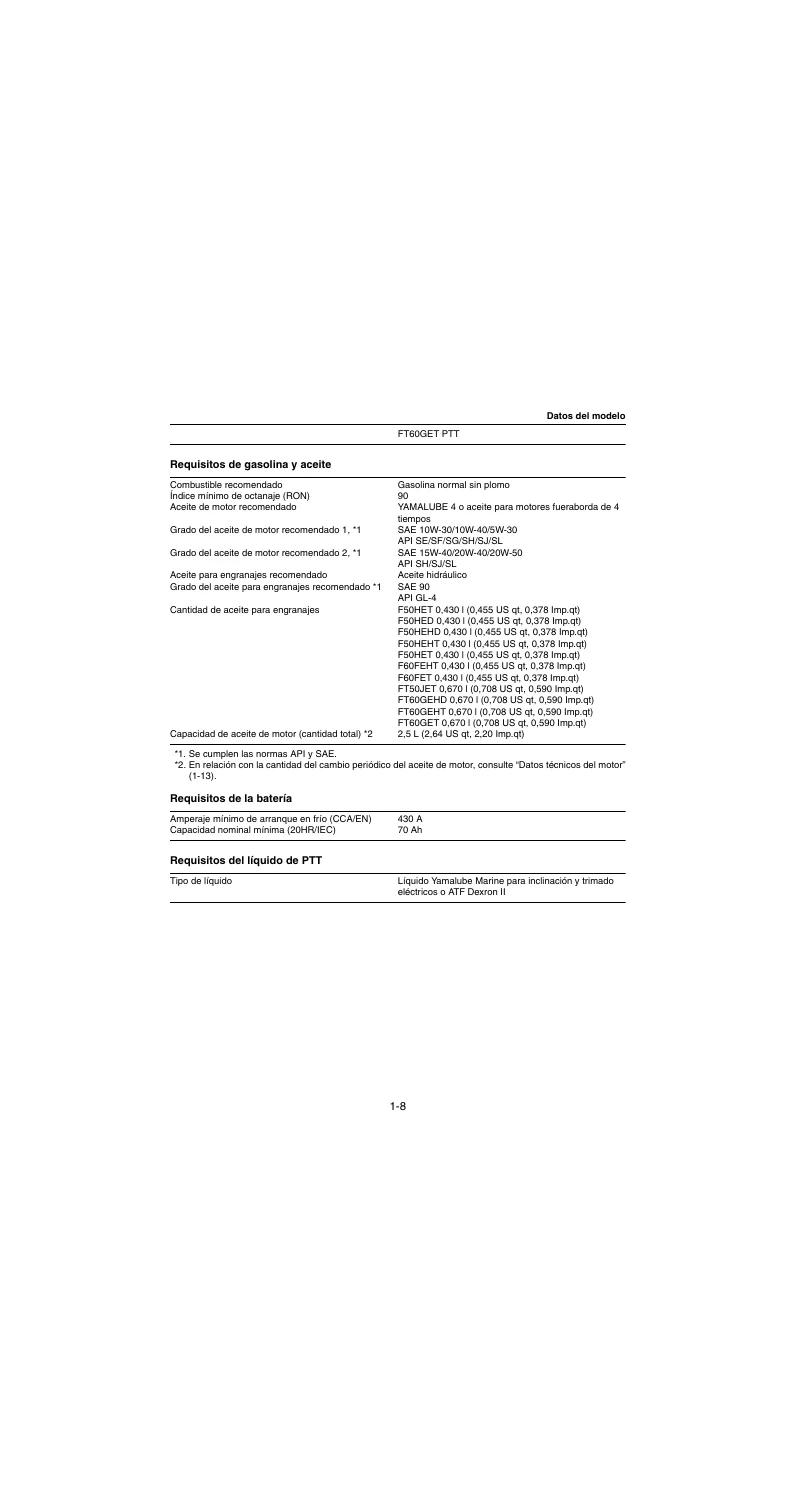

• Gearcase oil: 0.430 L (F40H/F50H/F60F), 0.670 L (FT50J/FT60G); SAE 90 API GL-4
• Battery requirement: minimum 430 CCA/EN, 70 Ah capacity
• Compression minimum: 880 kPa at 20 °C with throttle fully open
• Thermostat opening: 58–62 °C, full-open at 70 °C
• Comprehensive special service tool list with part numbers for all major procedures

Why This Manual Is Useful

This Yamaha workshop manual gives marine technicians and serious DIY boat owners the exact data needed to service every major system on the F40H through FT60G outboard family — from fuel injection calibration to lower unit shimming. With 502 pages of wiring data, torque tables, service limits, and step-by-step procedures, it eliminates guesswork and reduces shop dependence for everything from routine oil changes to full powerhead rebuilds. The ECM ID matrix and YDIS diagnostic references make it especially valuable for chasing modern EFI faults on these engines.
