1977-1989 Mercury Mariner 2-Stroke Outboard Service Manual

Description

The 1977-1989 Mercury Mariner 2-Stroke Outboard Service Manual is a full 609-page workshop guide covering nearly every Mercury and Mariner two-stroke outboard built across those model years, from the compact 45hp four-cylinder up to the 220 EFI V6. It is written for the person actually turning wrenches on the engine — the DIY owner who wants to keep a classic outboard running, the marine mechanic servicing a customer’s unit, or the restorer bringing a tired powerhead back to spec. Everything in the manual is organised around real service work: step-by-step disassembly, bench procedures, torque values, torque sequences, service limits and tune-up specifications.

File Details

• Manual type: Service / repair workshop manual
• Brand: Mercury / Mariner
• Engine family: Two-stroke outboard
• Coverage years: 1977 – 1989
• Language: English
• Page count: 609 pages
• File format: PDF
• Organisation: 13 numbered chapters plus a data appendix

Chapters Covered

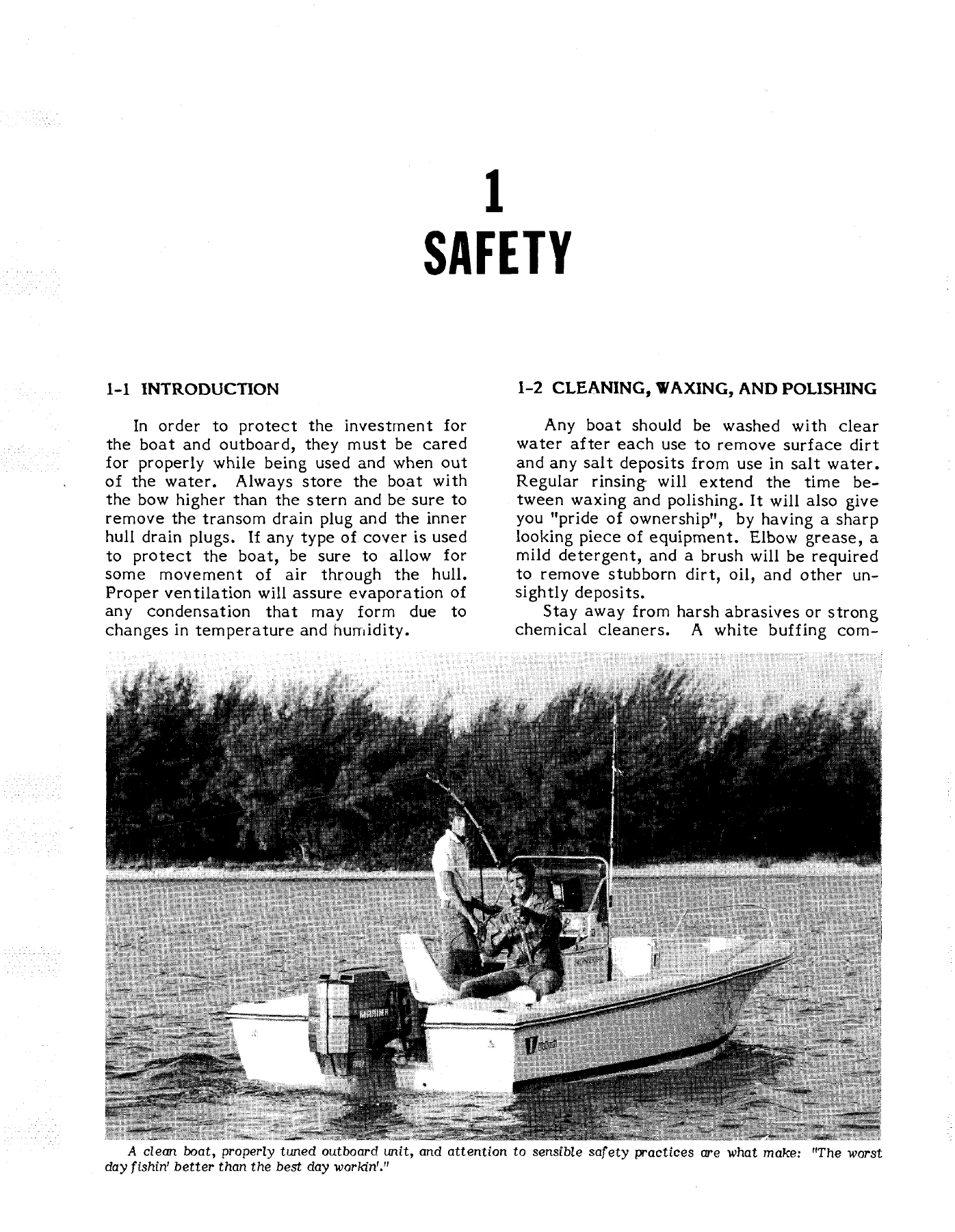

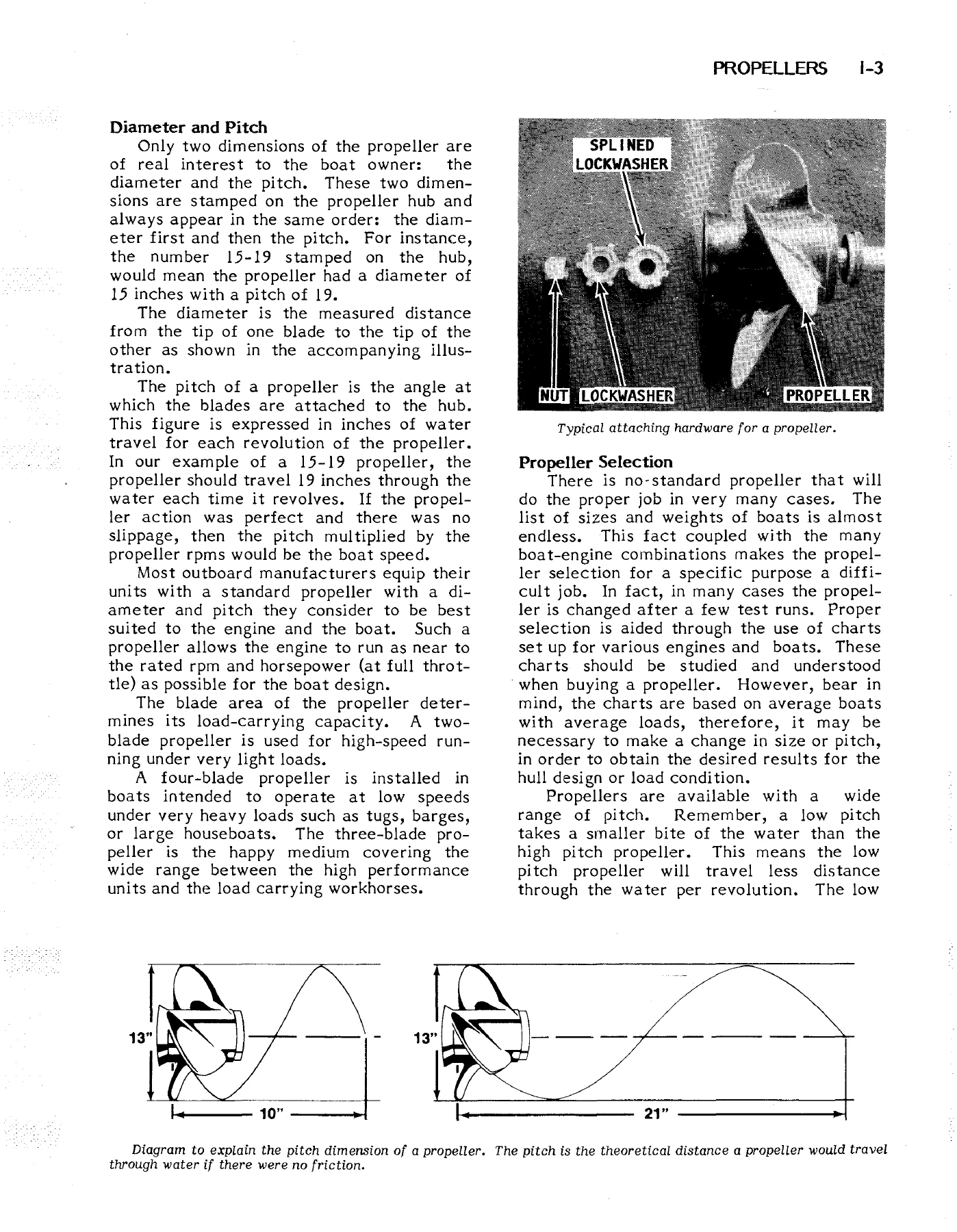

• 1 – Safety: cleaning, waxing and polishing, controlling corrosion and zinc installation, propellers (diameter, pitch, cupping, rake, cavitation), fuel system with built-in tank, loading, horsepower, flotation and PFDs, emergency equipment, compass selection and installation, anchors, navigation and the rules of the road
• 2 – Tuning: tune-up sequence, compression check, spark plug inspection, ignition system, timing and synchronising, electrical power supply, carburettor adjustment, electronic fuel injection, fuel pumps, oil injection, cranking motor and solenoid, internal wiring harness, water pump check, propeller, lower unit, boat testing

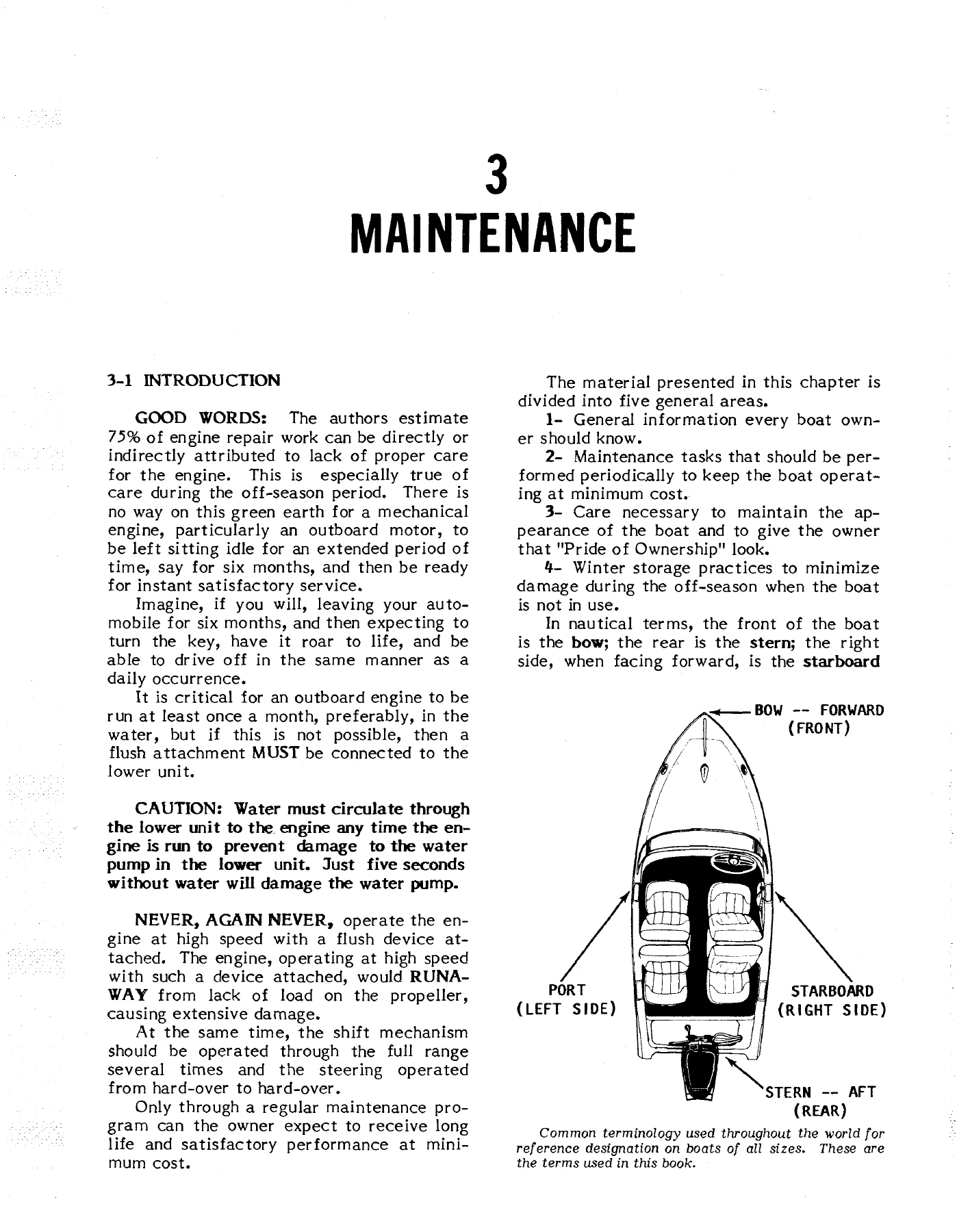

• 3 – Maintenance: outboard serial numbers, complete unit lubrication, pre-season preparation, fibreglass hulls, below-waterline service, submerged engine service, propeller service, power trim/tilt, inside the boat, lower unit, winter storage
• 4 – Fuel: general carburation, carburettor identification, the 2+2 system with accelerator pump, five distinct carburettor types (A Mercarb, B centre square bowl, C WME series, D side bowl/back drag, E V6 dual float centre bowl), fuel pump service, electronic fuel injection theory and troubleshooting
• 5 – Oil Injection: Auto Blend description and operation, Advanced Oil Injection description, operation, filling, bleeding, oil pump adjustment and full pump overhaul
• 6 – Ignition: spark plug evaluation, Thunderbolt distributor CD ignition, Thunderbolt flywheel CD coil-per-cylinder, spark advance and idle stabiliser modules
• 7 – Timing and Synchronizing: preparation, ignition timing and carb synchronisation for 3-, 4-, 6-cylinder in-line and V6 powerheads, with model and serial-number specific settings
• 8 – Powerhead: general two-stroke theory, cooling system, cylinder drain system, original-design in-line and V6 powerhead removal, disassembly, cleaning and inspection, assembly and installation
• 9 – Electrical: batteries, jumper cables, gauges and horns, charging circuit service, stator service, choke and enrichener circuits, cranking motor circuit, cranking motor repair for Bosch, Delco Remy and Prestolite units
• 10 – Trim/Tilt: mechanical tilt pin, System A (two trim/tilt cylinders), System B (two trim cylinders and one tilt cylinder), System C (single cylinder) — each with operation, bleeding, troubleshooting, service and component overhaul
• 11 – Lower Unit: troubleshooting, removal, water pump service (high pressure and high volume types), Cam-Shift Type I, Cam-Shift Type II, E-Z Shift (including Alpha drive), shimming, backlash, cleaning and inspection, installation
• 12 – Remote Controls: Commander control box removal, disassembly, cleaning, inspection, assembly and installation
• 13 – Hand Rewind Starter: Type A and Type B rewind starters, removal, disassembly, cleaning, inspection, assembly and shift interlock adjustment
• Appendix: metric conversion chart, engine specifications and tune-up adjustments, reed stop opening, piston and cylinder specs, lower unit backlash table, lower unit oil capacity and gear chart, carburettor jet size/elevation charts, wiring identification drawings

Put together, these chapters give a working technician the full service chain: how the two-stroke loop works, why the reed valve and transfer ports behave the way they do, how to diagnose a fault by symptom, how to measure and adjust, and how to put it back together so it lasts. That is the difference between a manual that tells you what to take off and one that tells you how to make the engine right.

Models Covered

The manual covers the following Mercury and Mariner two-stroke outboards across the 1977–1989 model years:

• 45 hp, 4-cylinder, 2-stroke, 1986–1989
• 50 hp, 3-cylinder, 2-stroke, 1986–1989
• 50 hp, 4-cylinder, 2-stroke, 1982–1985
• 60 hp, 3-cylinder, 2-stroke, 1984–1989
• 70 hp, 3-cylinder, 2-stroke, 1980–1983
• 75 hp, 3-cylinder, 2-stroke, 1987–1989
• 75 hp, 4-cylinder, 2-stroke, 1984–1986
• 80 hp, 4-cylinder, 2-stroke, 1978–1983
• 85 hp, 4-cylinder, 2-stroke, 1977
• 90 hp, 3-cylinder, 2-stroke, 1987–1989
• 90 hp, 6-cylinder, 2-stroke, 1979–1986
• 100 hp, 4-cylinder, 2-stroke, 1988–1989
• 115 hp, 4-cylinder, 2-stroke, 1989
• 115 hp, 6-cylinder, 2-stroke, 1978–1988
• 135 hp, V6, 2-stroke, 1986–1989
• 140 hp, 6-cylinder, 2-stroke, 1978–1980
• 150 hp, V6, 2-stroke, 1980–1989
• 175 hp, V6, 2-stroke, 1979–1980
• 175 hp, V6, 2-stroke, 1985–1989
• 200 hp, V6, 2-stroke, 1980–1989
• 220 EFI, V6, 2-stroke, 1987–1988

What This Manual Lets You Do

Because the coverage spans thirteen model years and four engine architectures — 3-cylinder, 4-cylinder, in-line 6 and V6 — the manual is arranged so you can go straight to the section that matches the unit on your bench. Ignition troubleshooting walks you through the Thunderbolt distributor CD system and the Thunderbolt flywheel CD system with the coil-per-cylinder layout, and gives you the ohmmeter checks for the stator, trigger and ignition coils. Fuel work starts with identification of the five different carburettor families so you don’t apply Mercarb procedures to a WME series unit, then moves into the 2+2 accelerator-pump system on the 100hp and 115hp four-cylinders. Lower unit service splits into Cam-Shift Type I, Cam-Shift Type II and E-Z Shift, each with its own shimming and backlash routine, including the Alpha drive. Powerhead chapters cover the original design and the redesigned large-bore block used from 1987 on, with the reed block, crankcase, crankshaft and piston assemblies. Trim/tilt is treated in three complete systems so you get the right bleeding and troubleshooting order for the pump and cylinders actually fitted to your engine.

Alongside the procedures, the appendix carries the numbers you actually reach for: engine specifications and tune-up adjustments, piston and cylinder specs, lower unit backlash values, oil capacity and gear charts, carburettor jet sizes with elevation correction, plus full wiring identification drawings for the ignition systems, Type B and Type C trim/tilt, and the Commander control box.

Who This Manual Suits

The 1977-1989 Mercury Mariner 2-Stroke Outboard Service Manual is aimed at owners and independent mechanics who want to service, tune, diagnose and overhaul their own Mercury or Mariner outboard rather than pay a shop for every job. It also suits anyone restoring an older unit where factory-style procedures, torque sequences and measurement tolerances matter more than guesswork. If your engine falls anywhere in the 45hp to 220 EFI range for the model years listed, this manual gives you the full workshop reference in one place.
