Yamaha Four-Stroke Jet Drive Operation and Service Manual PDF Download

Description

Yamaha Four-Stroke Jet Drive Operation and Service Manual

This Operation and Service Manual covers Yamaha four-stroke jet drive outboard units used with F40, F60, F90 and F115 powerheads. It supplies operating instructions plus service, maintenance and overhaul procedures that apply specifically to the jet drive, and is intended to be used together with the corresponding Yamaha outboard owner’s and service manuals.

Models Covered

The manual applies to the following jet-drive designations matched to their powerheads:

• F40 (3-cylinder) – Jet Drive model designation 30
• F60 (4-cylinder) – Jet Drive model designation 40
• F90 (4-cylinder) – Jet Drive model designation 65
• F115 (4-cylinder) – Jet Drive model designation 80

Jet Drive Model Letter is stamped on the rear port-side casing; serial number is stamped on the starboard side of the casing. Transom height guidance and hull recommendations are given for light, shallow-draft aluminum boats with relatively flat bottoms.

Main Subjects Included

• Features, advantages and location of main components (intake grille, impeller, reverse gate, cam, grease nipple, exhaust tube)
• Model identification and serial-number locations
• Engine mounting height (6–7 in higher than propeller-driven units), test-running for cavitation, transom elevators and anti-cavitation plates
• Operating instructions: shifting, remote-control fast-idle, steering, shallow-water operation, intake blockage, mooring, throttle use, tilt and trim
• Maintenance, lubrication and storage: bearing greasing (Yamalube or NLGI No. 1), impeller clearance setting with shims, linkage adjustment, salt-water precautions
• Adjustments: shift-cam neutral setting with clearance gauges, trim fin bending, idle
• Performance tips and impeller leading-edge maintenance
• Overhaul procedures: bearing-housing disassembly and reassembly (including special tools for F90/F115), seal and O-ring installation, liner replacement for F40/F60 and F90/F115

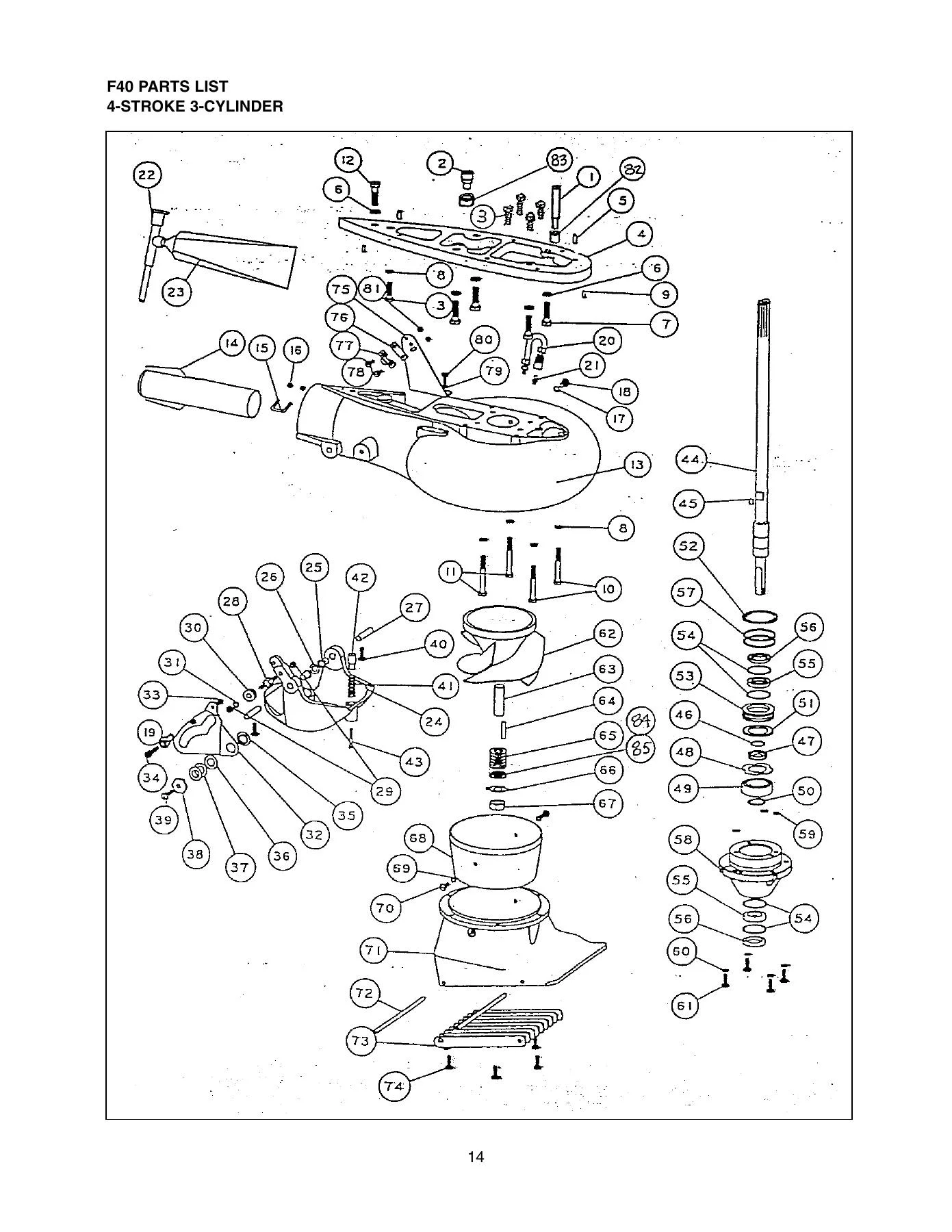

• Complete parts lists and assembly instructions for F40, F60, F90 and F115 jet drives
• Tiller-steering shift-cable parts lists and assembly for each model
• Specifications, limited warranty and tiller-handle templates

Service and Overhaul Coverage

Detailed steps are provided for impeller installation and shim adjustment to maintain approximately 1/32 in clearance, shear-key replacement after rock jams, reverse-gate and shift-cam adjustment so the gate locks in forward, bearing and seal overhaul (with heat and press procedures), liner removal and replacement, and full reassembly of the jet-drive unit onto the powerhead adapter plate. Torque values, grease points and cooling-water verification after first start are included.

Why This Manual Is Useful

It supplies the jet-drive-specific information that is not contained in standard propeller-driven outboard manuals—correct mounting height to prevent cavitation, impeller clearance correction after sand or gravel wear, shift-cam neutral adjustment, and complete parts and assembly data for the F40 through F115 jet units. The procedures allow owners and technicians to set height, maintain bearings, clear intake blockages and perform overhauls without guesswork.

Instant PDF download. The complete 313-page manual is delivered digitally the moment payment is completed and can be viewed on any device.
