Yamaha GP1800R Waverunner 2021-2022 Service Workshop Manual – HO & SVHO

Description

Yamaha GP1800R Waverunner 2021-2022 Service Workshop Manual (HO & SVHO)

This Yamaha GP1800R Waverunner 2021-2022 Service Workshop Manual is the complete technical reference for maintaining, diagnosing, and repairing the GP1800R HO and GP1800R SVHO personal watercraft. Covering both the naturally aspirated 1.8-liter HO (F4M) platform and the supercharged SVHO (F4P) platform across the 2021 and 2022 model years, the manual walks through every major system on the machine — engine internals, supercharger service, jet pump, hull and deck, and the full electrical and multifunction information center network. Whether you are a Yamaha-trained technician or a dedicated owner performing your own maintenance, this is the document that shows exactly how the watercraft is built, how it comes apart, and how it goes back together to specification.

File Details

• Manual Type: Service Workshop Manual
• Brand: Yamaha
• Models Covered: GP1800R HO, GP1800R SVHO, GP1800R HO W/Audio, GP1800R SVHO W/Audio
• Language: English
• File Format: PDF
• Publication Number: LIT-18616-04-04
• Edition: 1st Edition, December 2020
• Model Year Coverage: 2021, 2022
• Page Count: 387 pages

Chapters Covered

• General Information — safety while working (rotating parts, hot parts, electric shock, impeller, gasoline handling, ventilation, crane work, heat gun), identification numbers (Primary I.D., engine serial, jet pump serial, C.I.N., H.I.N.), how to use this manual, abbreviations, symbols, adhesive/lubricant/sealant symbols, special service tool listings
• Model Features — general feature and technical tips for GP1800R HO and GP1800R SVHO, engine control system tables, jet pump unit overview, electrical system overview
• Specifications — specified tightening torque, torque wrench reading calculation, general tightening torque chart, cable and hose routing, coupler layout
• Periodic Service — fuel line check, fuel filler cap and water separator, fuel tank, water inlet strainer, cooling water hoses, engine oil level and replacement, oil filter, intermediate housing lubrication, spark plug check, battery and battery lead check, steering master and cable, trim rod, shift rod and reverse gate, air intake pipe, throttle valve lubrication, exhaust system, breather hose, impeller, jet thrust nozzle, jet vacuum bilge draining system, drain plug, anode check, valve clearance measurement, rubber coupling, engine mount, maintenance interval chart

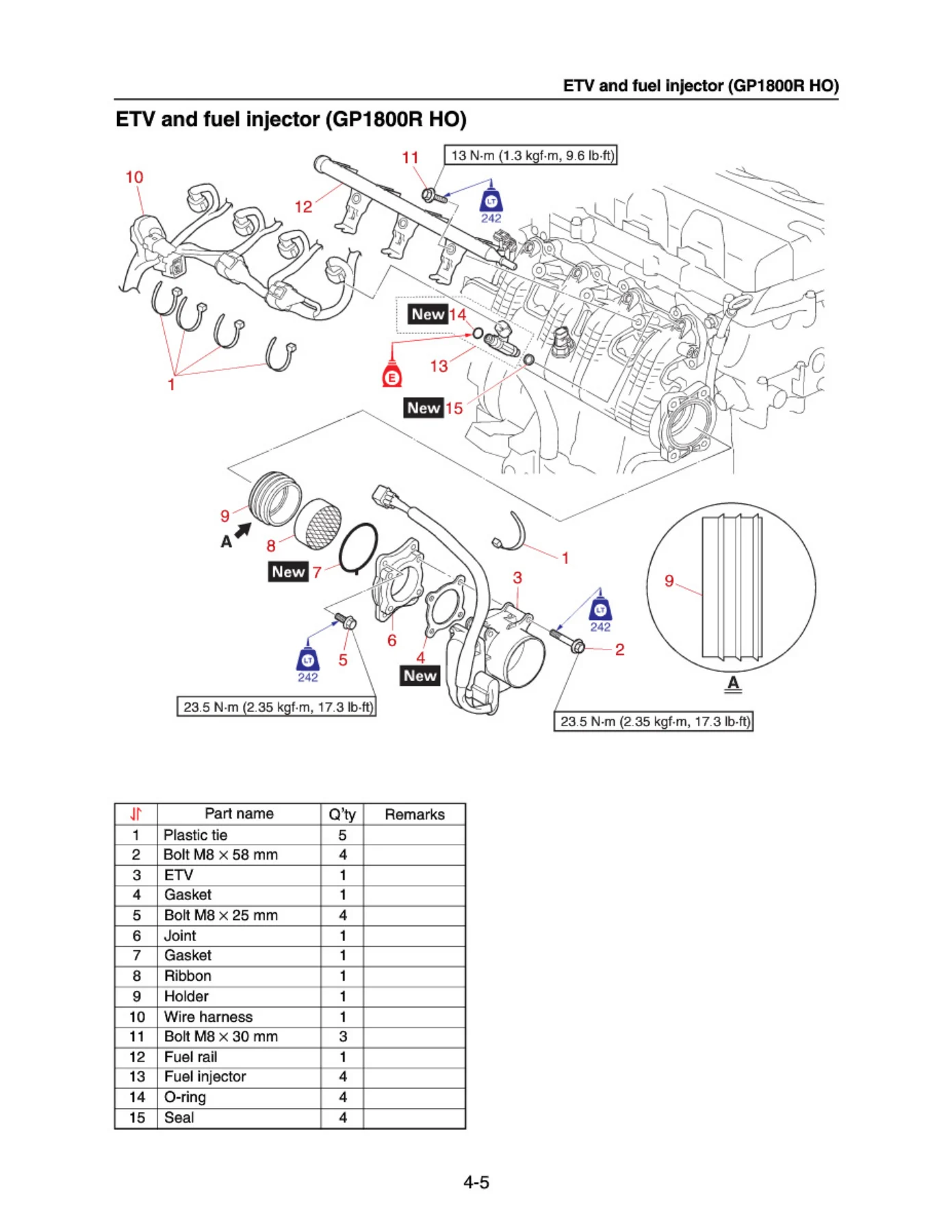

• Fuel System — air filter case and fuel hose (HO and SVHO), fuel hose disconnection, fuel pressure measurement, air filter element, ETV and fuel injector (HO), fuel injector (SVHO), fuel rail and injector installation, fuel tank and fuel pump module, fuel sender, check valve, fuel filler cap

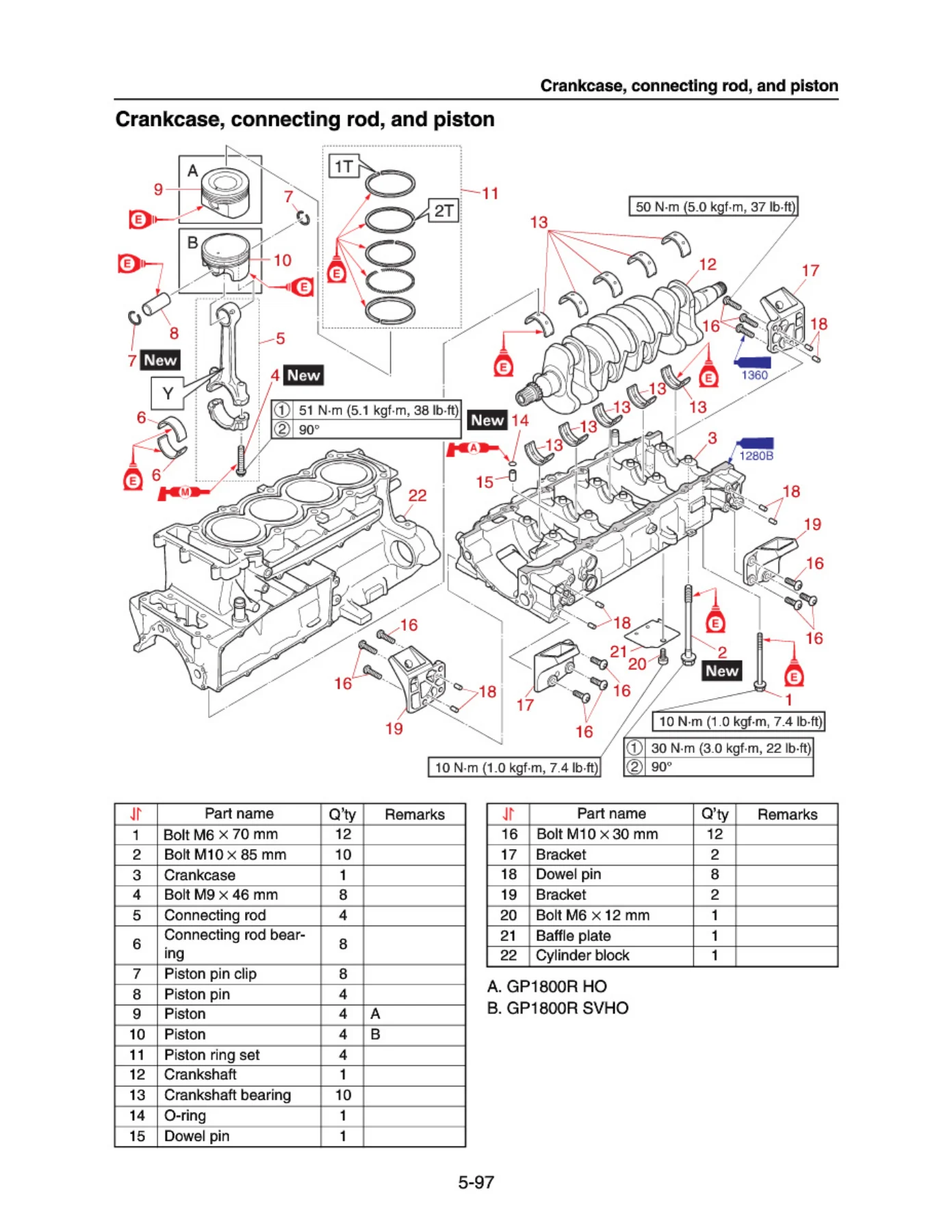

• Power Unit — compression pressure check, engine unit removal and installation (HO and SVHO), exhaust manifold (HO and SVHO), rectifier/regulator, engine mount, rubber coupling, muffler, exhaust pipe disassembly and assembly, wire harness (HO and SVHO) and installation, thermostat check, air cooler and supercharger (SVHO), intake manifold (HO), intake (SVHO), ETV and intake manifold (SVHO), oil cooler / oil pump / drive gear (HO), oil cooler and oil pump (SVHO), idle gear and drive gear (SVHO), cylinder head cover, camshaft (HO and SVHO), camshaft removal / sprocket removal / check / journal oil clearance / timing chain tensioner / sprocket installation / camshaft installation / valve clearance adjustment / valve pad selection tables, cylinder head, valve and valve spring, valve guide removal and installation, valve seat check and refacing, cylinder head assembly and installation, generator cover ASSY and flywheel magneto, drive coupling removal and installation, flywheel magneto removal / disassembly / assembly / installation, oil separator tank and oil pan, crankcase, connecting rod and piston, crankcase disassembly, piston / ring / pin / connecting rod / crankshaft checks, crankshaft pin oil clearance, connecting rod bearing selection, crankshaft journal oil clearance, crankshaft bearing selection, connecting rod and piston installation, crankcase assembly
• Jet Pump Unit — intake grate and ride plate, nozzle and impeller duct ASSY, jet thrust nozzle and nozzle ring, water inlet strainer
• Electrical System — multifunction information center, auto trim, battery, YDIS coupler, engine start/stop switch, meter, Yamaha Security System, electric trim system, reverse assist, T.D.E., no-wake mode, drive control mode, cruise assist
• Hull and Deck — glove box, footwell drain, seat, seat base and handgrip, multifunction information center, steering pad and handlebar cover, steering master ASSY
• Troubleshooting

What This Yamaha GP1800R Waverunner Service Manual Enables

With this Yamaha GP1800R Waverunner 2021-2022 Service Workshop Manual on hand, the full service lifecycle of the machine is covered. Owners can carry out routine periodic maintenance — engine oil and filter changes, spark plug inspection, battery and lead checks, steering and trim rod lubrication, impeller and jet thrust nozzle inspection, anode service, and valve clearance measurement — with the same procedures and torque figures a dealer workshop would use. The manual also supports heavier work: top-end teardown, camshaft and timing chain service, valve clearance adjustment with the complete valve pad selection tables, cylinder head removal and inspection, piston and connecting rod inspection, crankcase disassembly and reassembly, and connecting rod and crankshaft bearing selection. On the jet pump side, the impeller, nozzle ring, and jet thrust nozzle procedures are laid out step by step with the relevant torque values.

Electrical diagnostics for the GP1800R SVHO and GP1800R HO are treated in depth. The manual documents the multifunction information center, Yamaha Security System PIN-code keyless security, engine start/stop switch behaviour, electric trim system, reverse assist, T.D.E., no-wake mode, drive control mode, and cruise assist, plus the engine control system tables that explain how the ECM responds to overheat, oil pressure, cam position sensor, ETV, battery disconnection, idle speed, over-revolution, high intake air pressure, knock, slant detection, drive control mode, off-throttle steering, low octane fuel, and maximum engine speed conditions. This is exactly the material needed to understand fault behaviour before pulling the engine apart.

Coverage and Applicability

This Yamaha GP1800R service workshop manual applies to the 2021 and 2022 GP1800R HO and GP1800R SVHO Waverunners, including the W/Audio variants. Both the F4M (HO) and F4P (SVHO) engine platforms are covered, along with their respective 1812 cm³ DOHC 16-valve four-cylinder engines, the HO’s naturally aspirated intake and the SVHO’s supercharger and air cooler circuit. The jet pump section covers both the HO’s ø155 mm impeller and the SVHO’s ø160 mm impeller along with the RiDE system reverse gate and shift rod adjustment.

Why Correct Specifications Matter on the GP1800R

The GP1800R platform is a high-output, high-revving personal watercraft. Torque values, clearances, and the sequence in which fasteners are tightened — particularly on the cylinder head, camshaft caps, crankcase, and connecting rods — are not optional. The manual documents multi-stage torque sequences with angle specifications, valve pad selection tables for setting valve clearance, crankshaft bearing selection by size number, and connecting rod bearing selection by combined rod and pin size numbers. Using the correct figures and sequences is what keeps the engine reliable after a rebuild. The same applies to the jet pump, where impeller and nozzle torques and correct reverse gate adjustment directly affect handling and safety.
