Yamaha XT1200Z Super Ténéré 2012 XTZ12B XTZ12BC Service Manual Download

Description

The Yamaha XT1200Z Super Ténéré 2012 XTZ12B XTZ12BC Service Manual Download is the complete workshop reference for the 2012 Super Ténéré, covering both the 23P4 (USA) and 23P5 (California) model codes. From routine periodic maintenance and valve clearance adjustment through full engine teardown, ABS/UBS hydraulic unit servicing, YCC-T throttle diagnostics, traction control system repairs and complete wiring, this manual gives the technician every procedure, specification and diagram required to service the machine correctly.

File Details

• Manual type: Service Manual (workshop / repair)
• Brand: Yamaha
• Model: XT1200Z Super Ténéré (XTZ12B, XTZ12BC)
• Model year: 2012
• Model codes: 23P4 (USA), 23P5 (California)
• Publication number: LIT-11616-25-09
• Edition: First edition, May 2011
• Publisher: Yamaha Motor Corporation, U.S.A.
• Language: English
• Page count: 606
• File format: PDF

Chapters Covered

• General Information
  • Identification, vehicle identification number, model label
  • Features: FI system, YCC-T, UBS, ABS, TCS, instruments
  • Important information, replacement parts, basic service information
  • Special tools
• Specifications
  • General, engine, chassis and electrical specifications
  • Tightening torques (general, engine, chassis)
  • Lubrication points and lubricant types
  • Lubrication system chart and diagrams
  • Cooling system diagrams and cable routing
• Periodic Checks and Adjustments
  • Periodic maintenance chart for the emission control system
  • General maintenance and lubrication chart
  • Fuel line, spark plugs, valve clearance
  • Throttle body synchronization, exhaust system, canister
  • Air filter, clutch lever, clutch fluid and bleeding
  • Brake adjustments, fluid level, ABS bleeding, pads and hoses
  • Wheels, spokes, tires, wheel bearings, swingarm pivot
  • Steering head, front fork and rear shock adjustment
  • Engine oil and filter, oil pressure, coolant, final gear oil
  • Cables, throttle grip, switches, lights and headlight
• Chassis
  • Seats and carriers, cowlings, electrical components tray, headlight
  • Front wheel and rear wheel service
  • Front brake, rear brake, ABS (hydraulic unit, brake pipes, operation tests)
  • Handlebar, front fork, steering head
  • Rear shock absorber assembly, swingarm
  • Shaft drive: final drive assembly, drive shaft, gear backlash, ring-gear setup
• Engine
  • Engine inspection and compression pressure measurement
  • Engine removal and installation
  • Camshafts, cylinder head, valves and valve springs
  • Cylinder and pistons
  • Generator and starter clutch
  • Electric starter
  • Clutch (including master cylinder and release cylinder)
  • Pickup rotor, shift shaft, oil pump
  • Crankcase, crankshaft and balancer
  • Transmission
  • Middle gear
• Cooling System
  • Radiator, thermostat, water pump
• Fuel System
  • Fuel tank, fuel pump, rollover valves
  • Throttle bodies, injectors, fuel pressure, sensors
  • Throttle position sensor and accelerator position sensor adjustment
• Electrical System
  • Ignition system, electric starting system, charging system
  • Lighting and signaling systems
  • Cooling system electrical circuit
  • Fuel injection system with ECU self-diagnostic function and diagnostic mode
  • Fuel pump system
  • ABS electrical circuit and troubleshooting by fault code
  • Electrical components, switch, bulb, fuse, relay and sensor checks
• Troubleshooting
  • Starting failures, incorrect idle, poor performance
  • Gear shifting, clutch, overheating, braking
  • Front fork, unstable handling, lighting and signaling faults
• Wiring Diagram
  • Full XTZ12B(C) 2012 wiring diagram with colour code key

Across more than six hundred pages, this manual treats the Super Ténéré as the technology-rich machine it is. The 1199 cc liquid-cooled DOHC inline twin is documented component by component — camshaft sprocket alignment, valve clearance adjustment with valve pad selection, connecting rod bearing selection by colour code, balancer shaft alignment, middle gear backlash measurement and shim adjustment. The chassis section, meanwhile, goes deep into the systems that make this model distinctive: the Yamaha Chip Controlled Throttle (YCC-T), the Unified Brake System (UBS), the anti-lock brake system with its hydraulic unit assembly, and the traction control system. Each of these is introduced with a detailed functional outline so the technician knows what the system is doing before touching it, then followed by the actual disassembly, inspection, reassembly and diagnostic steps.

Systems and Procedures You Can Work On

Because the 2012 Super Ténéré combines conventional mechanical service with a substantial electronic control layer, the manual is organised to keep both sides equally accessible. Engine mechanical work — from compression testing to full crankcase separation — sits in its own chapter with a dedicated tightening sequence for the angle-controlled cylinder head and crankcase bolts. Chassis work is separated by system so a brake job, a fork rebuild or a shaft-drive gear set-up can be tackled independently.

On the electronics side, the fuel injection chapter explains the ECU self-diagnostic function, how to enter diagnostic mode via the meter set buttons, how to read and erase fault codes, and the full fault code table with probable causes. ABS is handled the same way: the ABS warning light flash pattern, the fault code table, the component and coupler location charts, hydraulic unit operation tests, fault code deletion and a trial run.

Coverage Highlights

• Complete torque tables for engine, chassis and general fasteners
• Valve clearance adjustment with valve pad thickness calculation
• Connecting rod and crankshaft journal bearing selection by colour code
• Middle gear backlash measurement, shimming and gear alignment
• Final gear backlash and ring-gear-to-stopper-bolt clearance adjustment
• YCC-T throttle position sensor and accelerator position sensor diagnostics
• ABS hydraulic unit operation tests 1 and 2 with pulsating action verification
• UBS hydraulic pressure distribution explanation and shuttle/separation solenoid behaviour
• Traction control system modes, reset and indicator light behaviour
• Full cable routing diagrams for the wiring harness and sub-harnesses
• Colour-coded wiring diagram for the entire XTZ12B(C) 2012 model

Service tasks that touch the fuel system, brakes, hydraulic clutch or ABS all need the correct specifications and bleeding sequence. The manual supplies the brake and clutch fluid type (DOT 4), the correct bleeding order for the ABS system (right front caliper, left front caliper, rear caliper), the hydraulic unit bolt torques, the brake pipe flare nut torque and the required conditions for running a hydraulic unit operation test. The same level of detail is applied to the shaft drive — final gear oil type, capacity and drain/filler bolt torques; ring gear backlash limits; thrust washer selection — and to the engine, where cylinder head and crankcase bolts are angle-controlled and must be replaced after use.

Whether the job is a scheduled service, a clutch rebuild, an ABS fault chase, a fork seal replacement or a full engine overhaul, the Yamaha XT1200Z Super Ténéré 2012 XTZ12B XTZ12BC Service Manual Download gives the technician the procedures, specifications, torque values, service limits and diagnostic routines that the job actually requires. Working without them — guessing at a bearing colour code, using the wrong bleeding sequence, or skipping the angle stage on a cylinder head bolt — is how expensive damage happens.

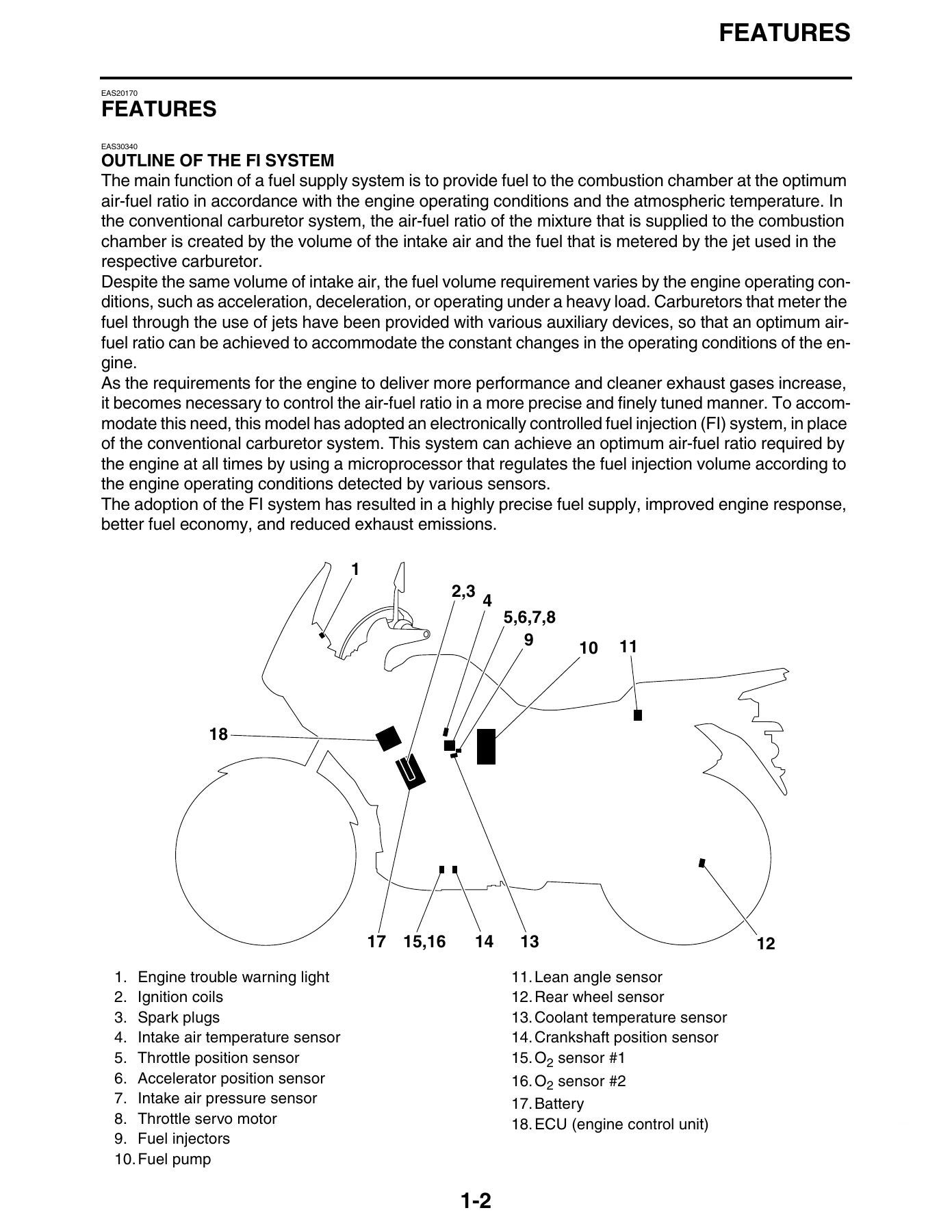

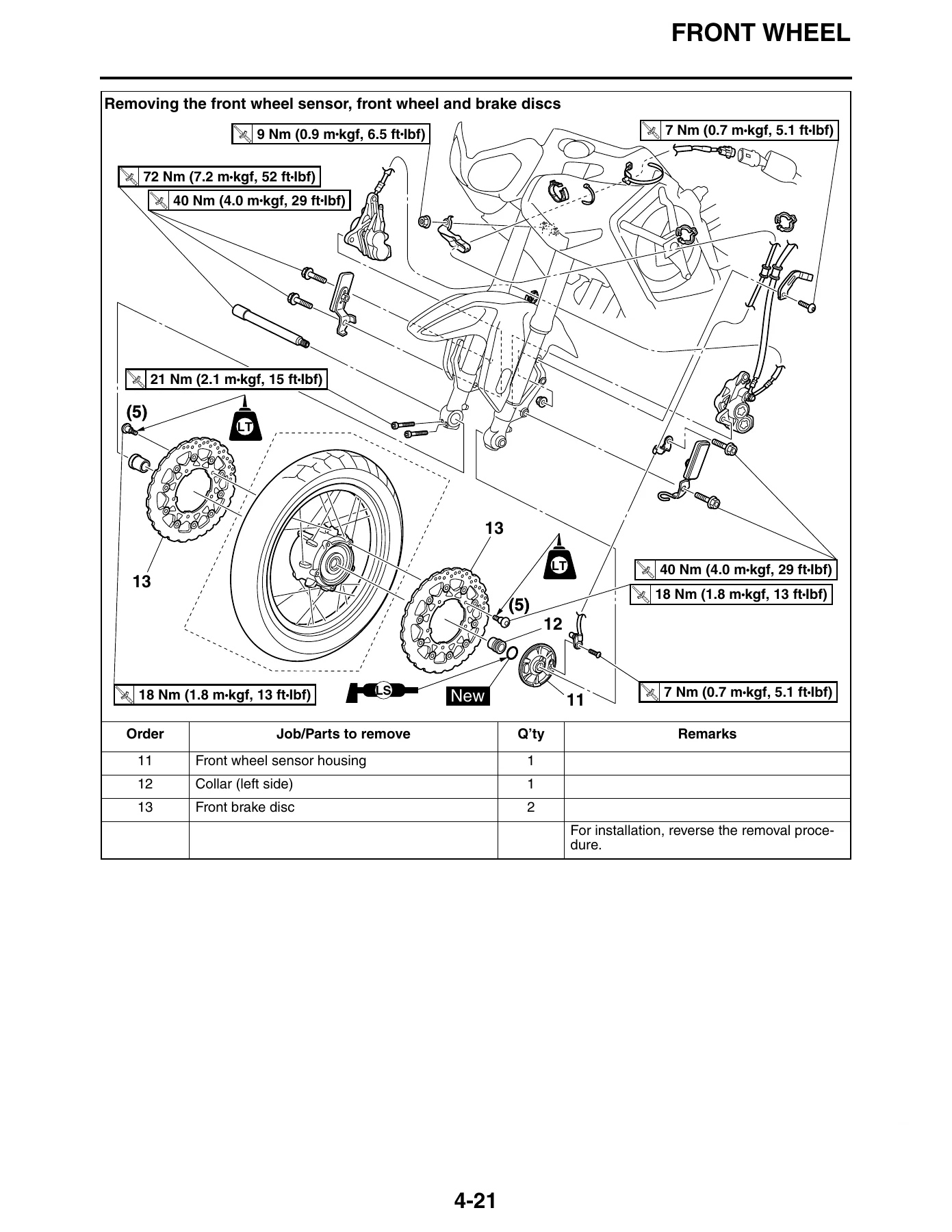

IMAGES PREVIEW

This manual is delivered as an instant PDF download, ready the moment payment is confirmed. There is no shipping and no waiting. The file opens on a laptop in the workshop, a tablet beside the bike, or a phone in the garage, and individual pages can be printed for use at the bench. Keep a copy on every device you work from.
