Yanmar YM276 & YM276D Diesel Tractor Service Manual – Full Workshop Repair Guide

Description

The Yanmar YM276 & YM276D Diesel Tractor Service Manual is the complete bench reference for these two compact diesel tractors — the two-wheel-drive YM276 and the four-wheel-drive YM276D. Both machines share the three-cylinder 3T84HA diesel engine, and this Yanmar YM276 YM276D service manual walks through every major assembly, from cylinder head reconditioning and crankshaft measurement through to the power shift transmission, final drive, hydraulic lift and three-point hitch. This is a working technician’s guide rather than an owner’s handbook: torque values, wear limits, oil clearances and step-by-step disassembly sequences are given for each system, backed by photographs, exploded parts drawings and hydraulic schematics.

File Details

• Manual type: Service Manual (workshop repair)
• Brand: Yanmar
• Models covered: YM276, YM276D
• Engine: Yanmar 3T84HA three-cylinder in-line diesel
• Language: English
• Page count: 662 pages
• File format: PDF
• Revision: Rev. Jun. ’89

Chapters Covered

The Yanmar YM276 YM276D repair manual is organised into two matching groups of chapters. The cream-coloured chapters (10 through 80) give the disassembly, inspection, repair, assembly and installation procedures for hands-on repair work. The blue-coloured chapters (220 through 270) explain how each system operates and how to test it before tearing anything down, so faults can be diagnosed instead of guessed at.

• General — specifications, special tools, predelivery service, periodic service, fuel and lubrication, separation
• Engine Repair — cylinder head, valves and camshaft; cylinder block, liners, pistons and rods; crankshaft, main bearings and flywheel; lubrication system; cooling system
• Fuel and Air Repair — air intake system; fuel system; speed control linkage
• Electrical Repair — charging circuit (15A); charging circuit (35A); starting circuit; lighting and accessory circuits
• Power Train Repair — engine clutch and linkage; sliding gear transmission; rear PTO; final drive and differential; front wheel drive
• Steering / Brake Repair — steering gear box, linkage and adjustment; brake housing, shoes, drums and pedal assembly
• Hydraulic Repair — miscellaneous hydraulic components; hydraulic pump; hydraulic lift and implement hitches
• Miscellaneous Repair — front axle assembly; wheels and hubs
• Engine Operation and Tests
• Fuel / Air Operation and Tests
• Electrical Operation and Tests
• Power Train Operation and Tests
• Steering / Brakes Operation and Tests
• Hydraulic Operation and Tests

What This Yanmar Tractor Manual Covers In Practice

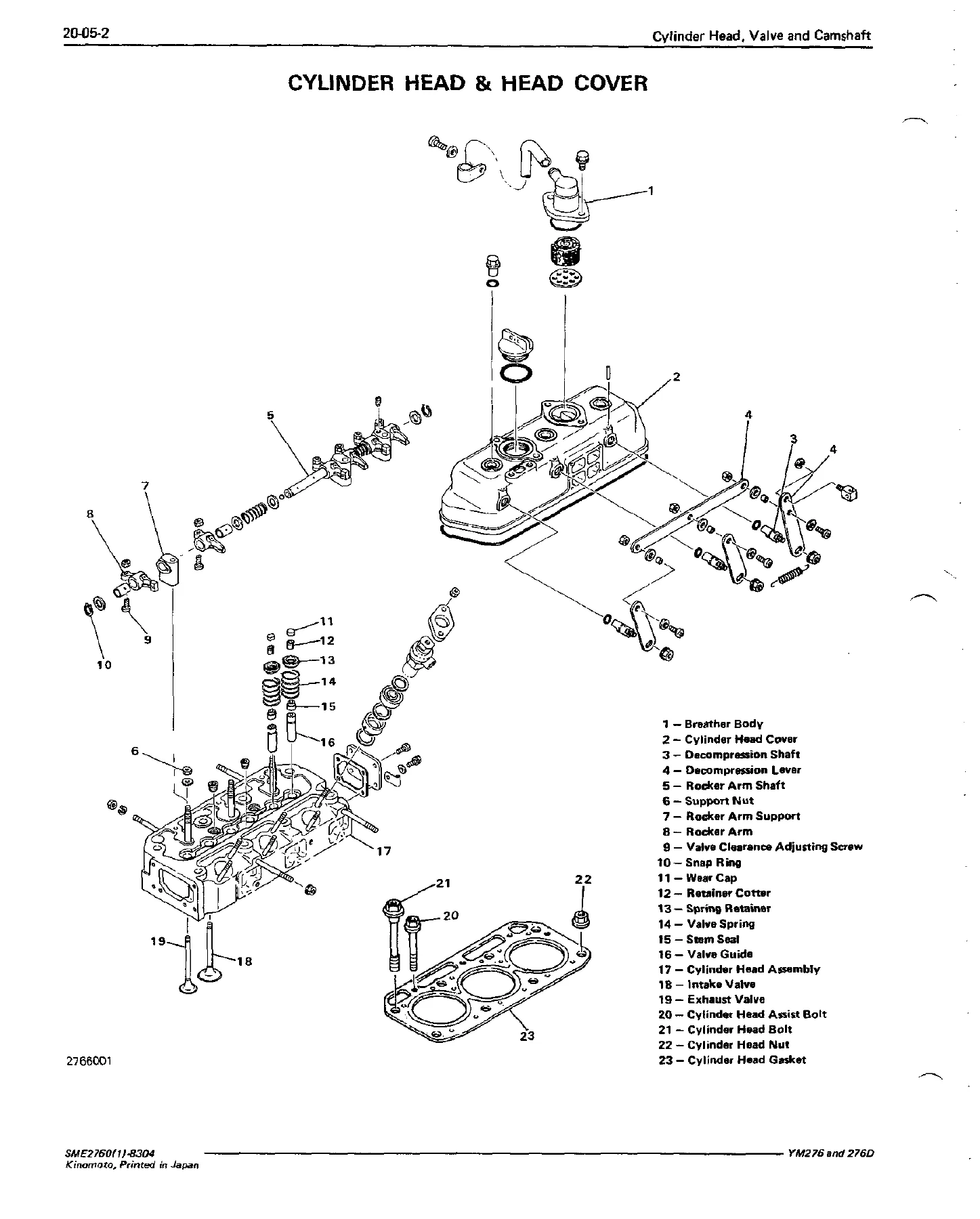

On the engine side, the manual takes the 3T84HA down to its components. You get valve guide replacement and seat grinding, valve spring free-length and tension limits, cylinder head distortion checks, camshaft journal and lobe wear limits, tappet clearances, piston ring end gaps and groove clearances, liner height above the block, connecting rod bearing oil clearance and crankshaft end play. Valve clearance is set at 0.2 mm cold, injection timing is 21 degrees BTDC and the firing order is 1-3-2 — all stated up front. Lubrication and cooling sections cover oil pump rotor clearances, the pressure regulating valve, thermostat opening temperature and water pump bearing replacement.

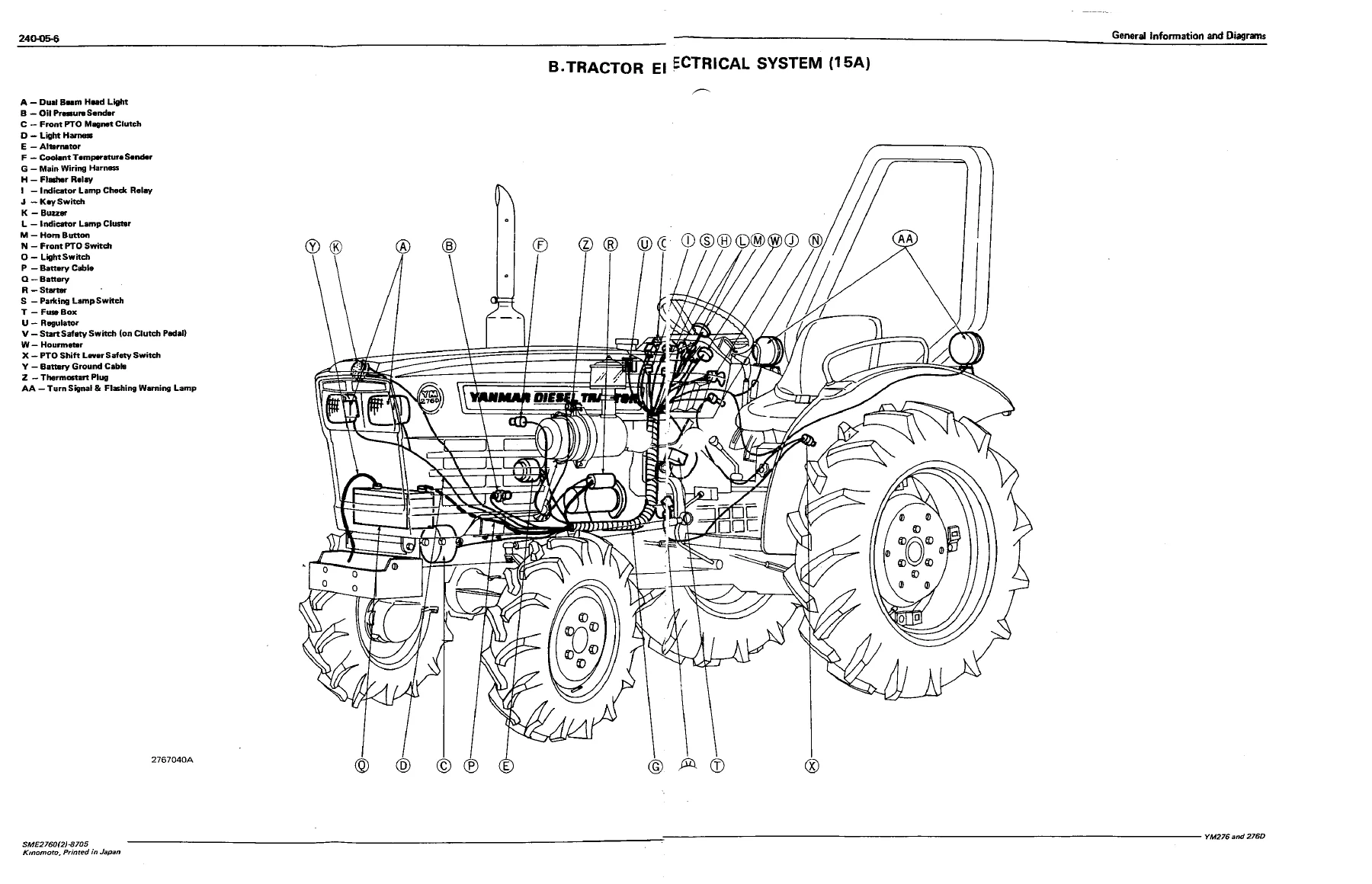

Fuel and air coverage includes the injection pump, plunger and barrel inspection, delivery valve testing, plunger top clearance adjustment, the governor, fuel injection nozzles, precombustion chambers and the thermostart cold-start system. The electrical chapters handle the 15A and 35A charging circuits, the 15-amp alternator and its regulator, the 35-amp option, the starting motor with its solenoid, pinion clearance and brush limits, plus the lighting, indicator and flashing warning circuits with full continuity test tables.

Power train repair is where the YM276 differs from a simple gearbox tractor. The power shift transmission uses two hydraulically operated clutch packs to give three forward and one reverse speed without touching the clutch pedal, working alongside a sliding gear range section — 12 forward and 4 reverse in total. The manual covers the power shift pump, regulator case, main and delay relief valves, valve spool, clutch pack disassembly and assembly, one-way clutch, creep gear, reverse idler, differential and differential lock. Final drive and rear axle rebuilds, brake shoe and drum servicing, and the 4WD front axle with its bevel gear case, final gear case and front differential are all detailed with backlash adjustment procedures.

Hydraulics get their own full treatment: the gear-type hydraulic pump, cylinder head, main relief valve, safety relief valve, slow return and stop valve, control valve, main spool, load check valve, unload valve and the flow control valve. Lift arm free play adjustment, feedback rod adjustment for both position and draft control, draft sensing spring setup and the three-point hitch components are all included, together with cycle time and leakage test procedures.

Why This Manual Matters

These tractors are old enough now that guesswork gets expensive fast. Setting the wrong valve clearance or ignoring a worn liner height will cost you a head gasket; mismatched differential backlash will chew a ring and pinion; an incorrectly shimmed injection pump will leave you chasing a starting fault that never existed. The Yanmar YM276 YM276D service manual gives you the actual figures — the torque chart lists grade 7T and grade 10.9T values from M6 through M20, and every assembly section repeats the specific tightening torques and clearances for that component. That means you can measure, compare and decide whether a part is serviceable or scrap, instead of replacing everything and hoping.

Because the manual is organised in matching repair and operation chapters, a diagnosis can be made before disassembly rather than after. The blue operation chapters describe how each system works and how to test it; the cream repair chapters then take you into the components that test identified as faulty. That structure saves hours, particularly on hydraulic faults where the problem could sit in the pump, the relief valve, the control valve or the cylinder.

Whether you are servicing your own YM276 or YM276D, running a small repair shop, or restoring a tired four-wheel-drive machine, this is the reference that covers the whole tractor end to end — engine, fuel, electrical, power train, steering, brakes, hydraulics, front axle and wheels.

IMAGES PREVIEW

Instant PDF Delivery

The manual is delivered as an instant PDF download after checkout. There is no shipping, no waiting and no physical book to store. Keep it on a laptop, tablet or phone in the workshop, print out just the chapter you are working on, and search the file for the torque figure or wear limit you need without flipping through hundreds of pages.
