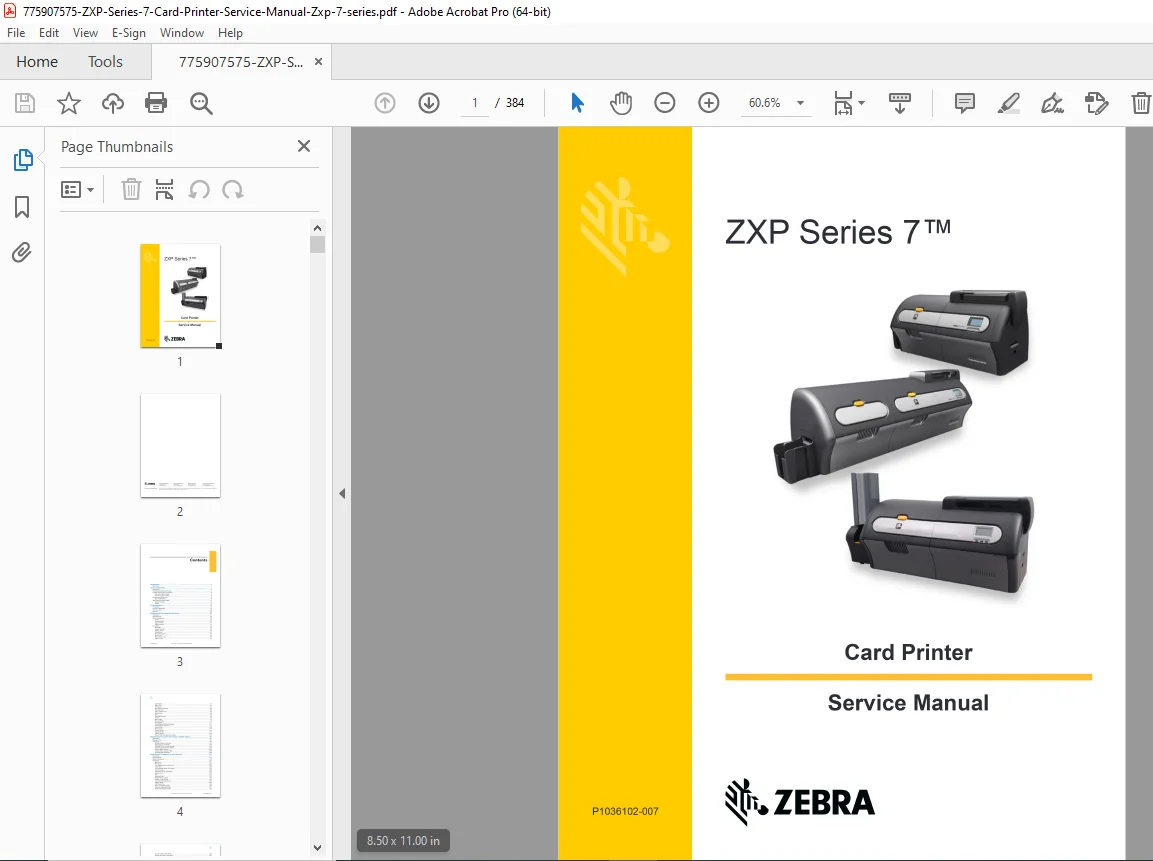

Zebra ZXP Series 7 Card Printer Service Manual PDF – Repair Guide

Description

Zebra ZXP Series 7 Card Printer Service Manual PDF – Repair Guide DOWNLOAD

Description

The Zebra ZXP Series 7 Card Printer Service Manual is a professional, factory-issued service document developed by Zebra Technologies for the maintenance, troubleshooting, and repair of ZXP Series 7 card printers.

This manual provides step-by-step service procedures for the printer base unit, optional single- and dual-sided laminators, and the high-capacity output hopper. It is designed strictly for qualified service personnel, offering in-depth technical coverage of card transport, dye-sublimation and thermal transfer printing, system electronics, and modular component replacement.

📂 What This Service Manual Covers

🔹 Introduction & Theory of Operation

• ZXP Series 7 system overview

• Card movement during printing

• Dye sublimation & thermal transfer printing

• YMCKO ribbon operation and sequencing

• System-level electronics overview

• Main PCBA (CPU) architecture

• High-capacity output hopper operation


  Pages from 01 to 260 775907575-…

🔹 Troubleshooting & Diagnostics

• Printer error messages

• OCP (Operator Control Panel) error messages

• OCP test cards

• Symptom-based fault isolation

• Sensor, motor, and ribbon fault diagnosis

🔹 Replacement Procedures – Printer

• Feeder module

• Flipper module

• Options module

• Printhead replacement

• Ribbon cartridge

• Card guide & feed components

• Covers, doors, latches, and brackets

• PCBA replacement (Main PCBA, Minor PCBA, Ethernet PCBA)

🔹 Replacement Procedures – Factory Installed Options

• Barcode scanner assembly

• Smart card control PCBA

• MIFARE contact encoder module

• Contact station module

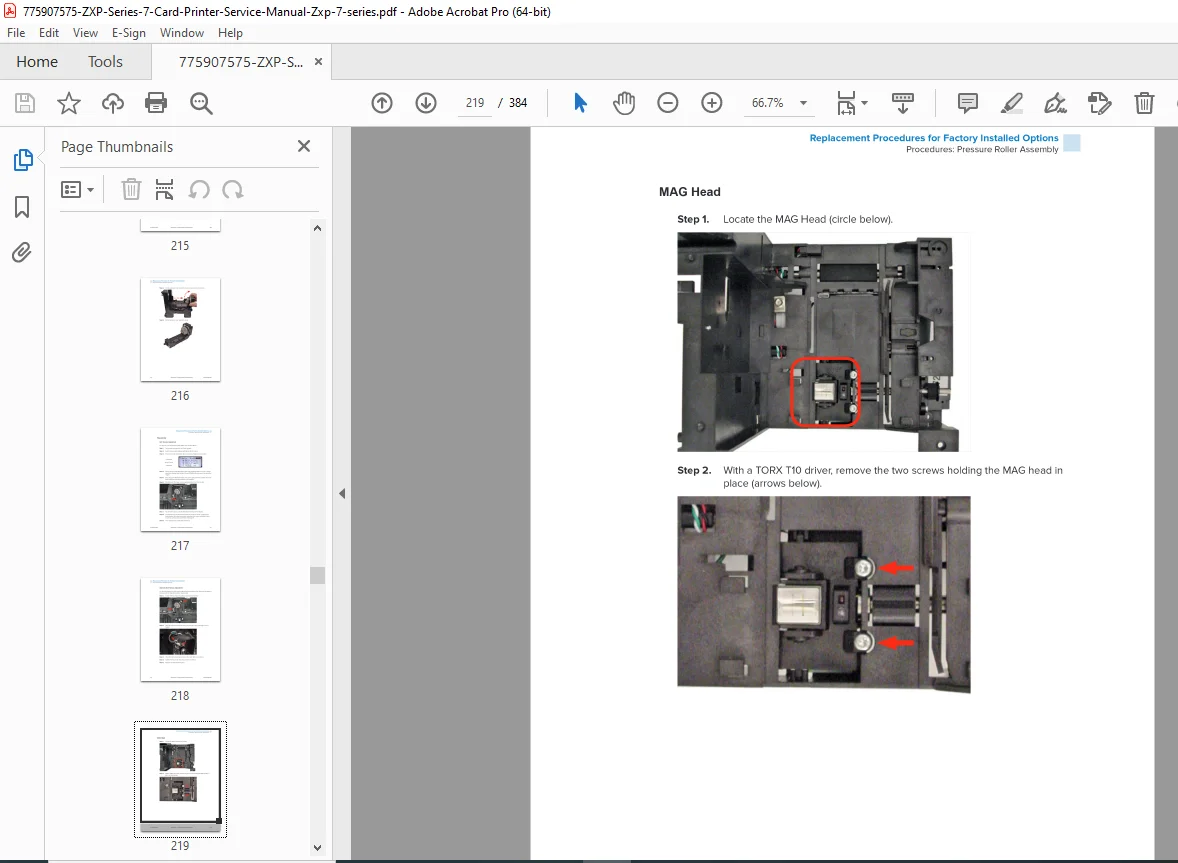

• Pressure roller assembly

🔹 Replacement Procedures – Laminator

• Laminator door & lock assemblies

• Laminator printer separation

• Heater assembly

• Laminator control PCBA

• Drive motors and rollers

• Card entry and exit sensor assemblies

🔹 Replacement Procedures – High-Capacity Output Hopper

• Output hopper cassette

• High-capacity output hopper assembly

• Sensors, drives, and elevator mechanism

• Base housing and latch assemblies

🔹 Cleaning & Preventive Maintenance

• Printer cleaning procedures

• Feed path cleaning

• Laminator card path cleaning

• Laminator media roller cleaning

• Manual feed cleaning cassette

• Approved cleaning supplies

🔹 Field Upgrades

• Field upgrade introduction

• Placement of labels

• Field upgrade identification

📊 Manual Sections Overview

📑 File Details
