ZF SCANIA 8098 Power Steering Gear Function & work description Manual PDF

Description

ZF SCANIA 8098 Power Steering Gear Function & work description Manual – PDF DOWNLOAD

FILE DETAILS:

ZF SCANIA 8098 Power Steering Gear Function & work description Manual – PDF DOWNLOAD

Language : English
Pages : 83
Downloadable : Yes
File Type : PDF

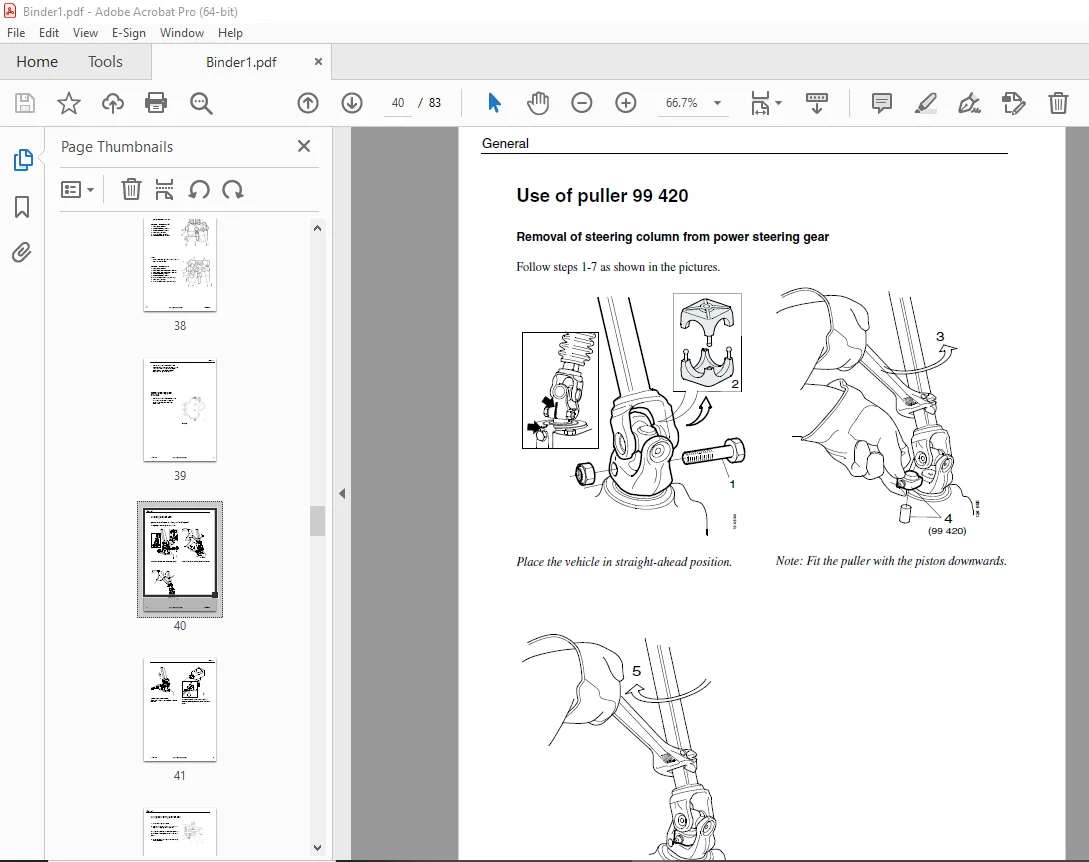

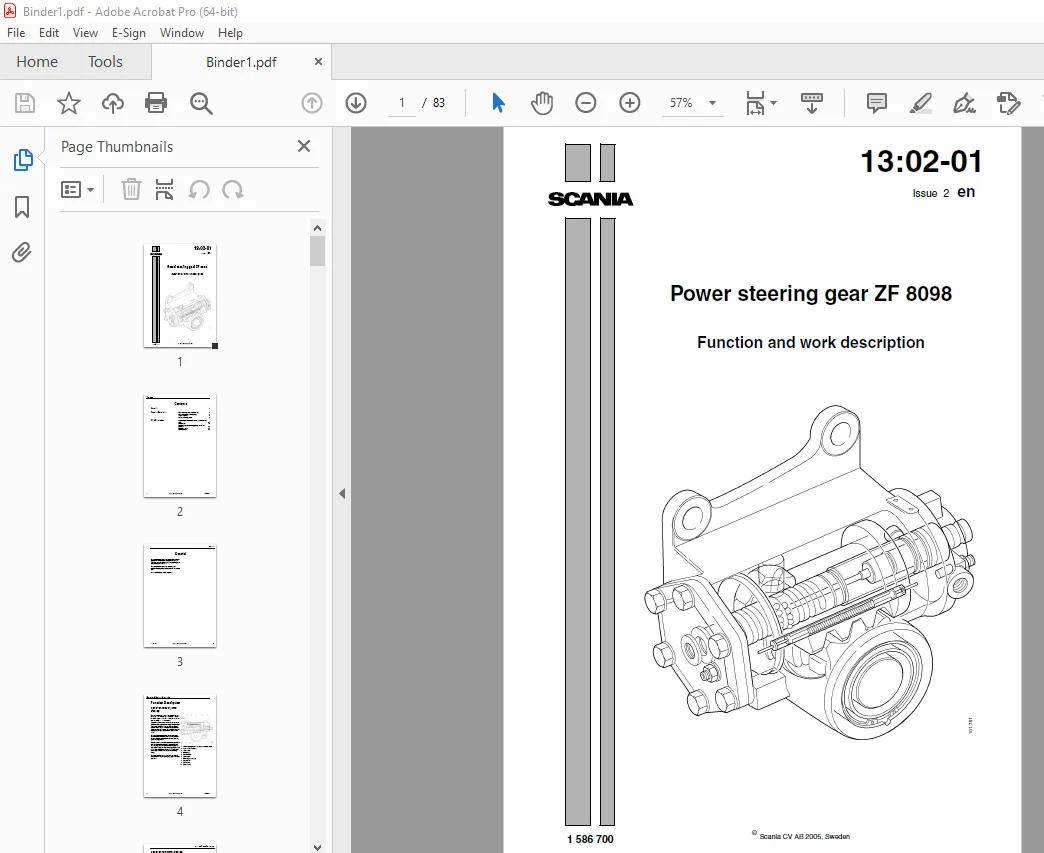

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

ZF SCANIA 8098 Power Steering Gear Function & work description Manual – PDF DOWNLOAD

General 3
Function Description Operation without power steering 4
Operation with power steering 5
Wheel end lock 8
Pressure limiting valve 9
Work Description Important information about the power steering
gear 10
Cleanliness 11
Renew the power steering gear or rectify the
leakage? 12
Changing seals 13
Specifications 32

DESCRIPTION:

ZF SCANIA 8098 Power Steering Gear Function & work description Manual – PDF DOWNLOAD

General:
The power steering gear is designed for a system pressure of 150 bar and a maximum torque of 6726 Nm from the sector shaft.

• The steering gear ratio is variable at 17-20:1.  The power steering gear has an integrated pressure limiting valve and a hydraulic wheel end lock.
• The wheel end lock is self-adjusting.

Function Description:
Operation without power steering:

• If a fault occurs and there is no power steering, the power steering gear will operate as a mechanical steering gear. The vehicle can be steered but the steering will be much heavier.
• When the steering wheel is turned, the torque is transferred to the power steering gear input shaft.
• A torsion bar is fixed onto the input shaft and onto the worm screw. When the torsion bar has been turned approximately 7°, a pin engages and transfers the torque mechanically to the worm screw.
• The set of balls between the worm screw and piston transfers and reinforces the torque to the piston which is then displaced into the steering gear housing cylinder.
