ZF Transmission 16 S 130 IVECO-M Parts Manual 1295 052 458 PDF

Description

ZF Transmission 16 S 130 IVECO-M Parts Manual 1295 052 458 – PDF DOWNLOAD

FILE DETAILS:

ZF Transmission 16 S 130 IVECO-M Parts Manual 1295 052 458 – PDF DOWNLOAD

Language : English
Pages : 44
Downloadable : Yes
File Type : PDF

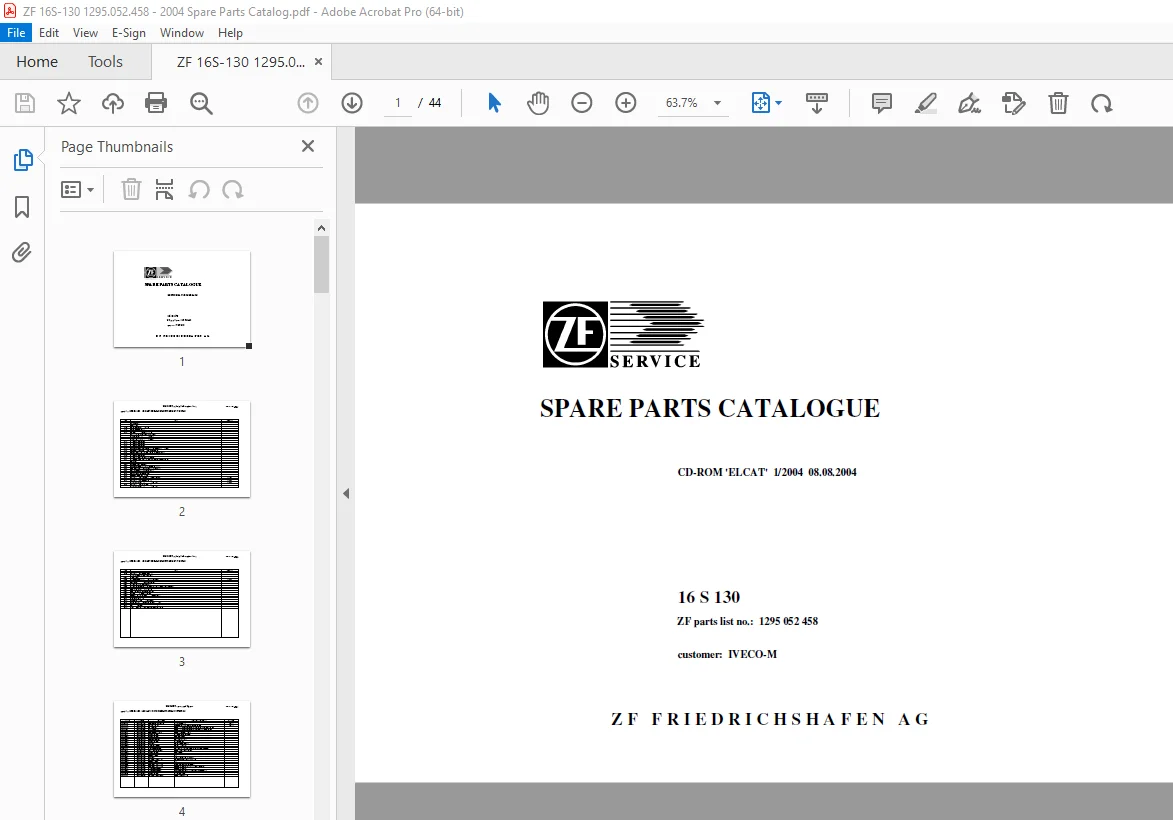

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

ZF Transmission 16 S 130 IVECO-M Parts Manual 1295 052 458 – PDF DOWNLOAD

A10 CUSTOMER:IVECO-M
COUNTRY:D
CITY:ULM
A14 CUST.SPEC.NO: CODE:
A16 42062923KZ53-0386
F06 INSTAL.POSITION:HOR. RH *FLANGE MOUNTED*
F10 RATIO: 13,68- 1,00 *DG
G13,68* 9,40* 6,73* 4,79* 3,36* 2,31*
G 1,65* 1,17* * R11,06
S11,64* 8,00* 5,73* 4,07* 2,86* 1,96*
S 1,40* 1,00* * R 9,41
F12 POSITION DELETED
F14 POSITION DELETED
F22 POSITION DELETED
F24 POSITION DELETED
F34 CONTROL:REMOTE CONTROL *VERTICAL *H-H
F38 SEPARAT.CLUTCH: SYNCHRONIZED
F42 INPUT FLANGE: OD=150 *NH= 8*D= M12X1,5
L=125,0*
F44 POSITION DELETED
F50 OUTPUT :STANDARD BEARINGS
F52 OUTP.FLANGE RA:OD=180 *BOLT=10XM16X1,50X45
L=197,0*
F54 POSITION DELETED
F64 CONN.OF GEARSHIFT:
F66 CONTROL SHAFT DIMENSION:A=208,5*
F68 MEAS.POINT: SHIFTLEVER-LOCATION *
F96 SET OF SPRINGS:LAYOUT Q3 *
F98 PAWL STOP: SPRING FORCE RG=240N
G16 SELECTION PATTERN:WI
G26 SPEEDO-DRIVE:I= 1,545
G30 SWITCH: RG*CLOSING *PAWL STOP 40451
PROTECT.CAP: * *L= M 40451
G32 SWITCH: NG*OPENING * 42160
PROTECT.CAP: * *L= M 42160
G36 SWITCH: GP*CLOSING *
PROTECT.CAP: * *L= M
ZF-ELCAT technical information sheet CD 1/2004 08.08.2004
sheet 3
parts list: 1295 052 458 16 S 130 / DG*LR*GETR*DW-SE H-H / IVECO-M
item text mod. no.
G50 AUXILIARY UNITS:
G56 SWITCH: GV*PREPARED *
PROTECTING CAP:WITHOUT*
M00 DRAWING:
M12 ORDER DRAWING: 1295 600 111(1) 42160
M14 SECTION: 1295 052 700(0)
M16 SECTION: 1295 107 202(0)
M50 ASSEMBLY INSTRUCTIONS:
M58 ASSEMBLY:OIL FILL+OVERFLOW *HOUSING LEFT+RIGHT
M82 ASSEMBLY:SHUT-OFF VALVE* F
M90 OIL CAPACITY: AP. 13,00L
M92 OIL GRADE ACC.TO ZF:TE-ML02
M94 MASS: APPRX. 350 KG
M96 PAINT :BROWN-RED *ZFN 915W
M98 PRESERVATION : KA1 T/KI2/S09*ZFN 916
S02 VEHICLE DATA 1:
S04 MODEL:TRUCK *330.30HW
S06 MAX. G.V.M. 26T*MAX. G.C.M. 33T
S08 R DYN: 526*V MAX: APPRX. 85KM/H
S10 RA: I= 4,82*
S14 FIAT /8210.22 *KW413/2000*N.M1324/1200

S.V 08/24
