1989 Chevrolet C-K Light Duty Truck Service Manual – ST-375-89

Description

1989 Chevrolet C-K Light Duty Truck Service Manual – ST-375-89

The 1989 Chevrolet C-K Light Duty Truck Service Manual – ST-375-89 provides essential factory diagnostic routines, on-vehicle maintenance procedures, and mechanical repair specifications published by the Chevrolet Motor Division of General Motors Corporation. Engineered specifically for professional workshop mechanics and dedicated truck owners, this comprehensive technical document covers two-wheel drive (C Series) and four-wheel drive (K Series) full-size trucks across 1/2-ton, 3/4-ton, and 1-ton weight ratings. From complete driveline vibration troubleshooting to electronic climate control circuitry and precision frame alignment, this 1989 Chevrolet C-K Light Duty Truck Service Manual – ST-375-89 serves as an indispensable reference for preserving vehicle dependability, structural integrity, and operating efficiency.

File Details

• Manual Type: Factory Service Manual (On-Vehicle Maintenance, Diagnosis, and Light Repair)
• Brand: Chevrolet (General Motors Corporation)
• Model Coverage: 1989 Chevrolet C/K Light Duty Trucks (C1500, C2500, C3500, K1500, K2500, K3500; Regular Cab, Extended Cab, Fenderside/Sportside, Wideside, and Chassis Cab configurations)
• Engines Covered: 4.3L V6 TBI (LB4), 5.0L V8 TBI (L03), 5.7L V8 TBI (L05), 7.4L V8 TBI (L19), and 6.2L V8 Diesel (LH6 Light Duty / LL4 Heavy Duty)
• Document Number: ST-375-89
• Publication Date: August 1988
• Language: English
• File Format: PDF
• Page Count: 1373 pages

Chapters Covered

• Section 0 — General Information
  • Section 0A: General Information (Service Parts Identification, VIN Decoding, Lifting and Jacking Points, Metric and Prevailing Torque Fasteners, Torx Six-Lobe Fasteners, Regular Production Options, Lock Cylinder Assembly and Coding)

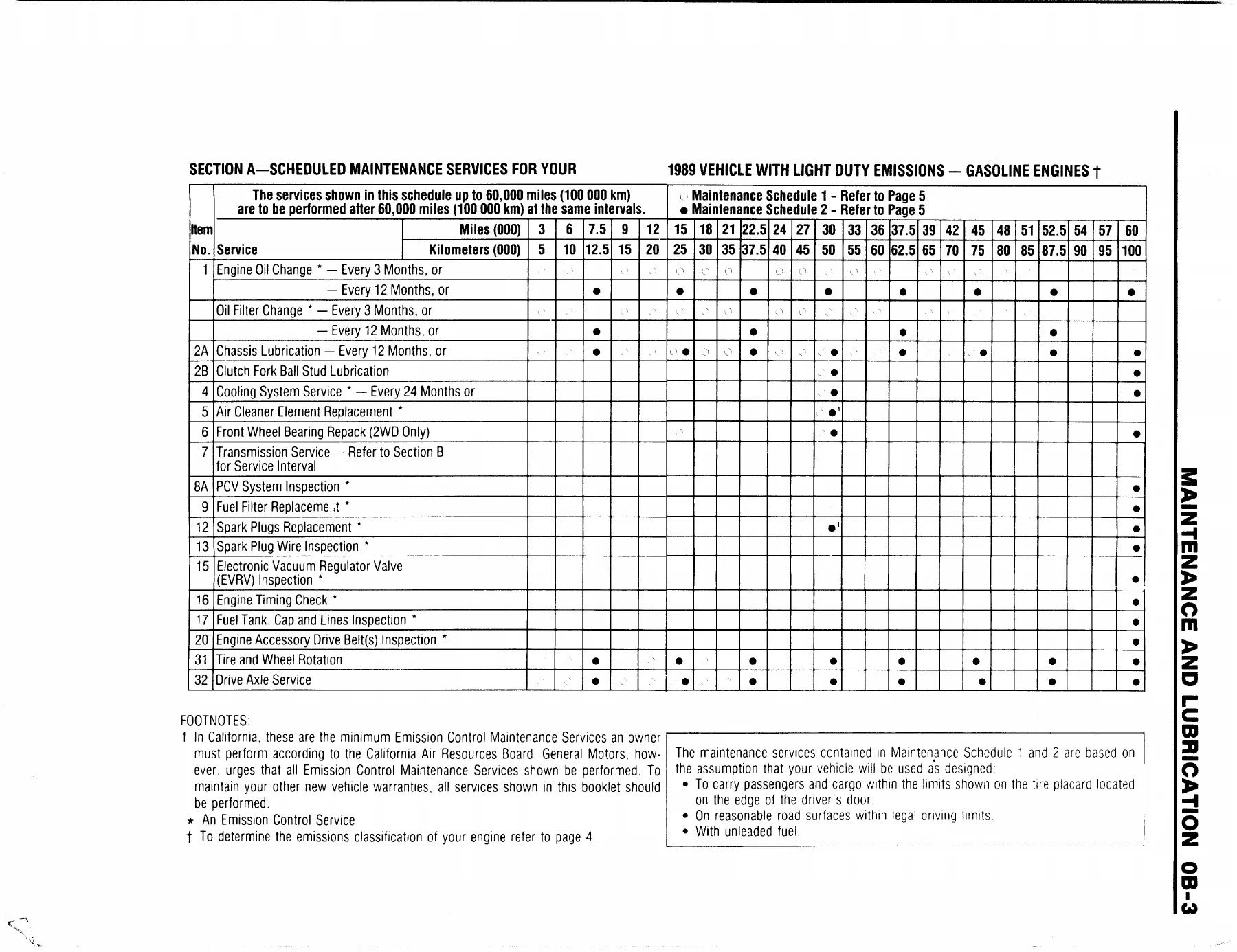

  • Section 0B: Maintenance and Lubrication (Light-Duty and Heavy-Duty Emission Maintenance Schedules, 6.2L Diesel Schedules, Owner Inspection Services, Recommended GM Fluids and Lubricants, Fluid Capacity Specifications, Undercarriage Chassis Lubrication Diagrams)
  • Section 0C: Vibration Diagnosis (Vibration Categories and Classes, Order of Vibration Analysis, Road Testing, Reed Tachometer Operation, Tire and Wheel Runout, Match Mounting, Propeller Shaft Runout and Balancing, Driveline Working Angles)
• Section 1 — Heating and Air Conditioning
  • Section 1A: Heating and Ventilation (Base and Deluxe Heater Systems, Vacuum/Cable Air Flow Diagnosis, Insufficient Heat Troubleshooting Flowcharts, Blower Motor and Resistor Replacement, Heater Core Removal, Heater Hose Engine Routing)
  • Section 1B: Air Conditioning (Cycling Clutch Orifice Tube / CCOT System, Refrigerant-12 Pressure-Temperature Diagnostics, Pressure Sensing Switch Servicing, Microprocessor Electronic A/C Control Operation, Self-Balancing Bridge Feedback Testing, Actuator Replacement, Component R&R Procedures)
• Section 2 — Frame and Cab
  • Section 2A: Frame and Bumpers (Frame Inspection, Section Modulus and Yield Strength Analysis, Plumb Bob Centerline and Diagonal Alignment Checks, Heat and Cold Straightening Limitations, Crack Repair and Arc Welding Procedures, Bumper and Trailer Hitch Platform Servicing)
  • Section 2B: Sheet Metal (Hood Hinges and Spring Mechanisms, Primary and Secondary Latch Assemblies, Cable Controls, Cowl Vent Grille, Front Fenders, Wheelhouse Panels, Radiator Support Alignment Shimming, Dual-Wheel and Stepside Fenders, Pickup Box Bed Removal, Body Gap Tolerances, Cab Mount Replacement)

Together, these technical sections provide technicians with clear, step-by-step diagnostic logic trees, factory testing procedures, and precise disassembly instructions. Instead of relying on generic repair advice, mechanics working with the 1989 Chevrolet C-K Light Duty Truck Service Manual – ST-375-89 have immediate access to factory-calibrated testing parameters, complete wiring pinouts, and exact torque ratings direct from General Motors engineering.

Chassis Identification, Fasteners, and Maintenance Schedules

Section 0 establishes foundational specifications necessary for accurate service work on all 1989 C and K truck models. A comprehensive 17-digit Vehicle Identification Number (VIN) decoding matrix details country of origin, engine plant designations, GVWR brake classes, and chassis types. Factory RPO tables allow instant identification of factory options such as locking differentials (G80), heavy-duty cooling packages (V01, V02), electronic speed control (K34), and transmission models including the 4-speed automatic with overdrive (MX0) and 5-speed overdrive manual (MM5). Fastener engineering sections distinguish between ISO metric property classes (9.8 and 10.9) and customary inch-grade fasteners, specifying strict prevailing torque reuse thresholds and Posidriv/Torx driver requirements. Detailed maintenance charts lay out distinct service intervals for light-duty emissions, heavy-duty emissions, and 6.2-liter diesel engines, accompanied by exact refill fluid capacities for engine oil, engine coolant, rear differential gear oils, and automatic transmission overhauls.

Advanced Driveline Vibration and Propeller Shaft Analysis

Driveline and ride disturbances are addressed through Section 0C’s rigorous vibration diagnosis protocols. The manual outlines systematic road test methods to classify disturbances into vehicle speed sensitive, engine speed sensitive, torque sensitive, or load/jounce sensitive categories. Technicians are guided through using a Frahm resonant reed tachometer to measure vibrations in cycles per minute (CPM), isolating first-order disturbances (such as single-spot tire unbalance or bent driveshafts) from second-order disturbances (such as oval tires or defective universal joints). Precise on-vehicle procedures detail wheel radial and lateral runout measurement with a dial indicator, match mounting high-spot tire orientations to wheel low spots, and measuring axle flange/stud runout. For propeller shaft issues, complete instructions cover dial indicator runout checks across front, center, and rear tube locations, two-piece shaft phasing alignment, inclinometer measurements for U-joint working angles (enforcing the 0.5-degree maximum variance on high-speed shafts), and dynamic shaft balancing using both dual hose-clamp and strobe-light methods.

IMAGES PREVIEW

Factory Heating, Ventilation, and Electronic CCOT Air Conditioning

Section 1 delivers exhaustive troubleshooting and repair coverage for both standard heating and Cycling Clutch Orifice Tube (CCOT) air conditioning systems. The documentation covers base and deluxe manual heater airflow routing, blower circuit diagnostic charts, and heater core replacement steps across 4.3L V6, small-block V8, 7.4L big-block, and 6.2L diesel engine bays. The air conditioning service section details the complete R-12 refrigeration loop, accumulator desiccant functions, cycling pressure switch thresholds (cutting out at 21–24 psi and cutting in at 43–49 psi), and correct manifold gage evacuation and charging methods. Special emphasis is given to the electronic microprocessor control system, featuring vacuum fluorescent displays, H-gate directional motor drivers, and self-balancing bridge circuits. Comprehensive terminal-by-terminal test tables using a digital multimeter guide the technician in validating signal voltages, checking feedback potentiometers, and testing blower relay driver outputs for pinpoint electrical fault isolation.

Structural Frame Alignment, Arc Welding, and Sheet Metal Servicing

Section 2 provides heavy-duty body-on-frame structural repair standards and sheet metal servicing protocols. Frame diagnosis addresses sag, buckle, diamond, twist, and sidesway conditions. A detailed floor layout method uses plumb bobs to transfer frame reference points onto shop floors, establishing a true centerline based on factory widths of 860 mm (33.85 in) forward and 932 mm (36.69 in) rearward. Frame straightening guidelines mandate large multi-hole torch tips and strictly enforce a maximum heat threshold of 606°C (1200°F) to prevent metal degradation, while structural welding instructions cover stop-drilling cracks, V-grooving, wax removal, and avoiding edge notches. In the sheet metal division, step-by-step procedures govern the removal and adjustment of hoods, cowl vent grilles, fenders, wheelhouse panels, radiator supports, and complete pickup beds. Critical alignment specifications ensure factory panel fit, including 5.0 mm (±1.0 mm) fender-to-door margins, 4.0 mm (±1.0 mm) hood-to-fender clearances, and radiator support shim leveling guidelines.

Sales Close: Capabilities, Value, and Instant Download Delivery

The 1989 Chevrolet C-K Light Duty Truck Service Manual – ST-375-89 equips technicians, commercial fleet operators, and classic truck owners with the authoritative data needed to execute professional inspections, pinpoint diagnostic tests, and precision mechanical overhauls. Utilizing exact factory repair procedures protects sensitive electronic components from damage, guarantees proper structural alignment after impact, and maintains correct operating temperatures and fluid levels across every vital truck subsystem. Delivered as a convenient high-resolution digital PDF download immediately upon checkout, there are no shipping delays or physical book handling fees. Access the manual instantly across your desktop workstation, shop laptop, tablet, or smartphone, or print out targeted procedure pages and schematics directly for clean, hands-on bench use.
