1989 M911 C-HET Heavy Equipment Transporter Repair Parts & Special Tools Manual TM 9-2320-270-34P

Description

1989 M911 C-HET Heavy Equipment Transporter Repair Parts & Special Tools Manual TM 9-2320-270-34P

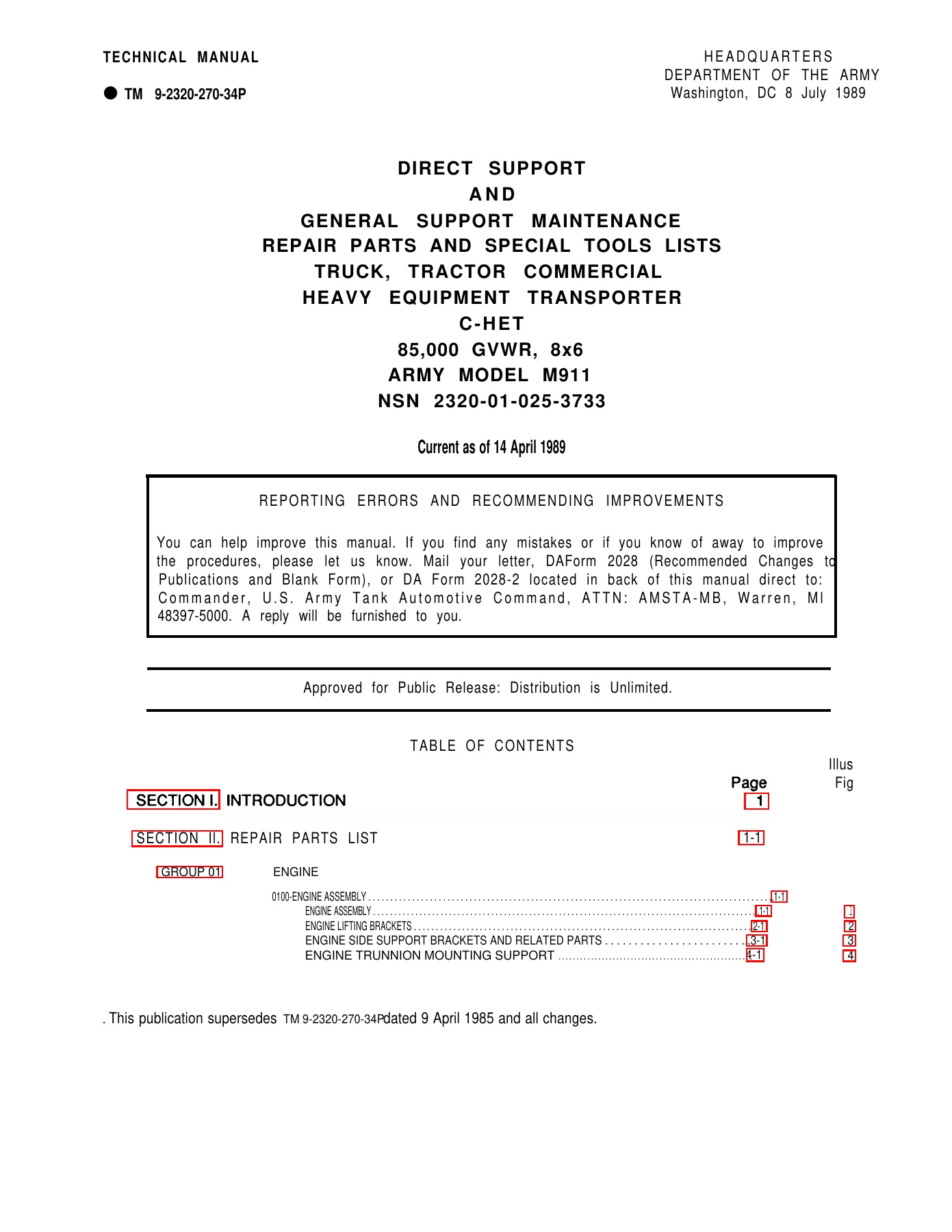

This 1989 M911 C-HET Heavy Equipment Transporter Repair Parts & Special Tools Manual TM 9-2320-270-34P is the Direct Support and General Support Maintenance Repair Parts and Special Tools List for the Truck, Tractor, Commercial Heavy Equipment Transporter, C-HET, 85,000 GVWR, 8 X 6, Army Model M911. The publication is organized around illustrated assemblies and detailed parts listings, giving maintenance personnel a structured way to identify components, relate each callout to its part listing, and locate National Stock Number and part-number references. It also includes the special tools and support equipment identified for Direct Support and General Support maintenance.

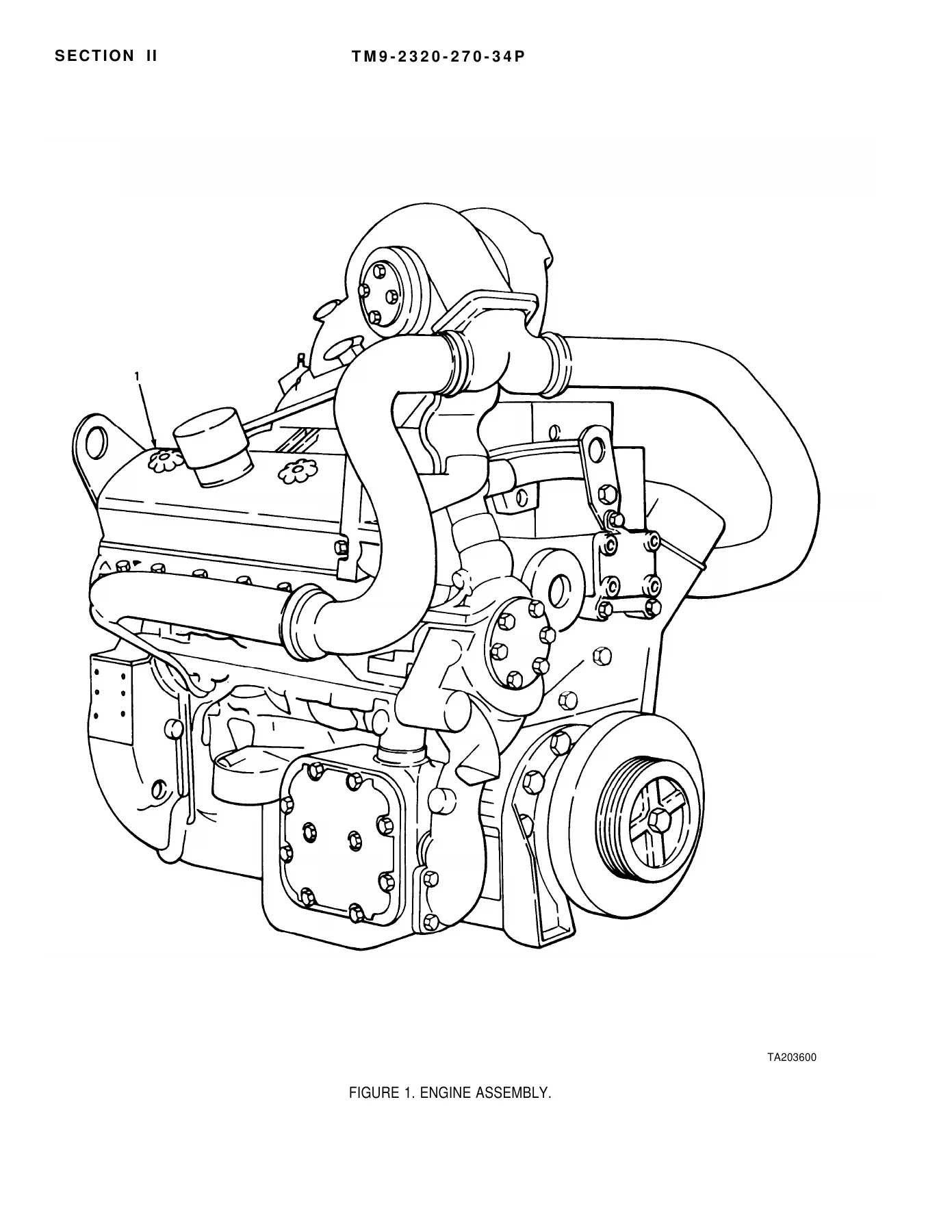

The manual is especially useful when a repair task has reached the parts-identification stage. Illustrations show assemblies and subassemblies with numbered callouts, while the adjoining lists provide item numbers, SMR codes, FSCM entries, part numbers, descriptions and quantities. The introduction explains how to use those fields, how source, maintenance and recoverability codes are interpreted, and how to work from either an unknown part or a known NSN or part number to the appropriate figure and item entry.

File Details

• Manual type: Direct Support and General Support Maintenance Repair Parts and Special Tools Lists
• Model: M911 C-HET Heavy Equipment Transporter
• Vehicle identification: C-HET, 85,000 GVWR, 8 X 6
• NSN: 2320-01-025-3733
• Technical manual number: TM 9-2320-270-34P
• Publication date: 8 July 1989
• Current as of: 14 April 1989
• Change included: Change No. 1, 20 April 1993
• Language: English
• Page count: 974 pages
• File format: PDF

What the Parts Listings Provide

The M911 repair parts manual is arranged as a functional illustrated parts catalog rather than a step-by-step repair procedure book. Section II lists spares and repair parts by functional group and figure/item sequence. Individual entries can include the source, maintenance and recoverability code, the Federal Supply Code for Manufacturer, the part number, item description and quantity used in the illustrated breakout. Repair kits and bulk materials are also included in dedicated groups. This layout makes the manual practical for identifying what belongs in an assembly, checking the relationship between nearby components, and tracing a listed item back through the indexes.

The publication also explains how to locate a repair part when the NSN or part number is not known: first identify the assembly or subassembly group, locate the applicable figure, identify the callout, then use the Figure and Item Number Index to find the stock-number information. When an NSN or part number is already known, the National Stock Number Index or Part Number Index cross-references the item to the relevant figure and item number.

Chapters Covered

• Section I – Introduction
  • Scope; organization of the Repair Parts and Special Tools List; explanation of item, SMR, FSCM, part-number, description/UOC and quantity columns; cross-reference indexes; special information; associated publications; methods for locating repair parts; abbreviations.
• Group 01 – Engine
  • Engine assembly; crankcase, block and cylinder head; crankshaft; flywheel assembly; pistons and connecting rods; valves, camshafts and timing systems; engine lubrication; manifolds; accessory driving mechanisms.
• Group 03 – Fuel System
  • Fuel injectors and injector exploded views; fuel pumps, lines and fittings; air cleaner; turbocharger, blower and aftercooler components; fuel tanks and lines; governor and controls; fuel filters; engine starting aid; accelerator and throttle controls.
• Group 04 – Exhaust System
  • Muffler, exhaust pipes, flexible joints, mounting hardware and related parts.
• Group 05 – Cooling System
  • Radiator, heat exchanger, cowling and shrouds; thermostats and housings; radiator and heat-exchanger hoses; water pump; fan assembly.
• Group 06 – Electrical System
  • Alternator; starting motor; engine safety controls; instrument control panel; sending switches; lights; warning switches; horn; batteries; chassis, engine, cab and instrument-panel wiring.
• Group 07 – Transmission
  • Auxiliary transmission; shafts and shift controls; torque converter; hydraulic transmission; carrier assemblies and clutches; retarder controls; servo and valve components; oil pump, filters and cooler hoses.
• Group 08 – Transfer and Final Drive Assemblies
  • Transfer case and exploded components; front output shaft; shifter fork and universal yoke; air-shift chamber, lines and lockup valve.
• Group 09 – Propeller Shafts
  • Propeller shafts and related parts.
• Group 10 – Front Axle
  • Front axle assembly; carrier and differential components; steering-wheel mechanism and axle-ball related parts.
• Group 11 – Rear Axle
  • Rear pusher and tandem axles; axle shafts and housings; differential assemblies; universal yokes; tandem-drive components; walking and equalizing beam parts.
• Group 12 – Brakes
  • Service brakes; front and pusher axle brake components; air-brake chambers, valves, tanks, lines and fittings; spring-brake components; air compressor; trailer brake connections and controls.
• Group 13 – Wheels
  • Brake drums and hubs; wheel assemblies; tires and inner tubes.
• Group 14 – Steering
  • Mechanical steering gear; steering shaft, drag link, tie rod and remote-control components; power-steering pump, hoses, booster and reservoir.
• Group 15 – Frame, Towing Attachments and Drawbars
  • Frame and crossmembers; towing attachments and pintle; spare-tire winch; fifth wheel and locking components.
• Group 16 – Springs and Shock Absorbers
  • Front and rear spring components; pusher-axle air lift spring and controls; shock absorber; torque rod.
• Group 18 – Body, Cab and Hood
  • Radiator and headlight guard; hood and side covers; cab mounting and cab assembly; doors; windshield and glass; fenders; floor; driver and passenger seating; winch platform and stowage-related parts.
• Group 20 – Winch, Capstan, Windlass Power Control Unit and Power Takeoff
  • Winch assemblies and exploded views; cable drum; hydraulic motor; regulating and relief valves; PTO control; winch controls; rotary pump; reservoir; PTO-to-winch shaft and related hydraulic adapters.
• Group 22 – Body, Chassis and Accessory Items
  • Air connectors; windshield washer and wipers; mirrors; air horn; heater and defroster; data plates, warnings and instruction decals.
• Group 47 – Gages
  • Non-electrical gages, mountings, lines and fittings, including the air-pressure gage.
• Group 94 – Repair Kits
  • Repair kits listed as a dedicated functional group.
• Group 95 – General Use Standardized Parts
  • Bulk material used for supported fabrication and repair-parts requirements.
• Section III – Special Tools
  • Group 26 tools and test equipment, including organizational, Direct Support and General Support special tools and associated basis-of-issue information.
• Section IV – Cross-Reference Indexes
  • National Stock Number Index; Part Number Index; Figure and Item Number Index.

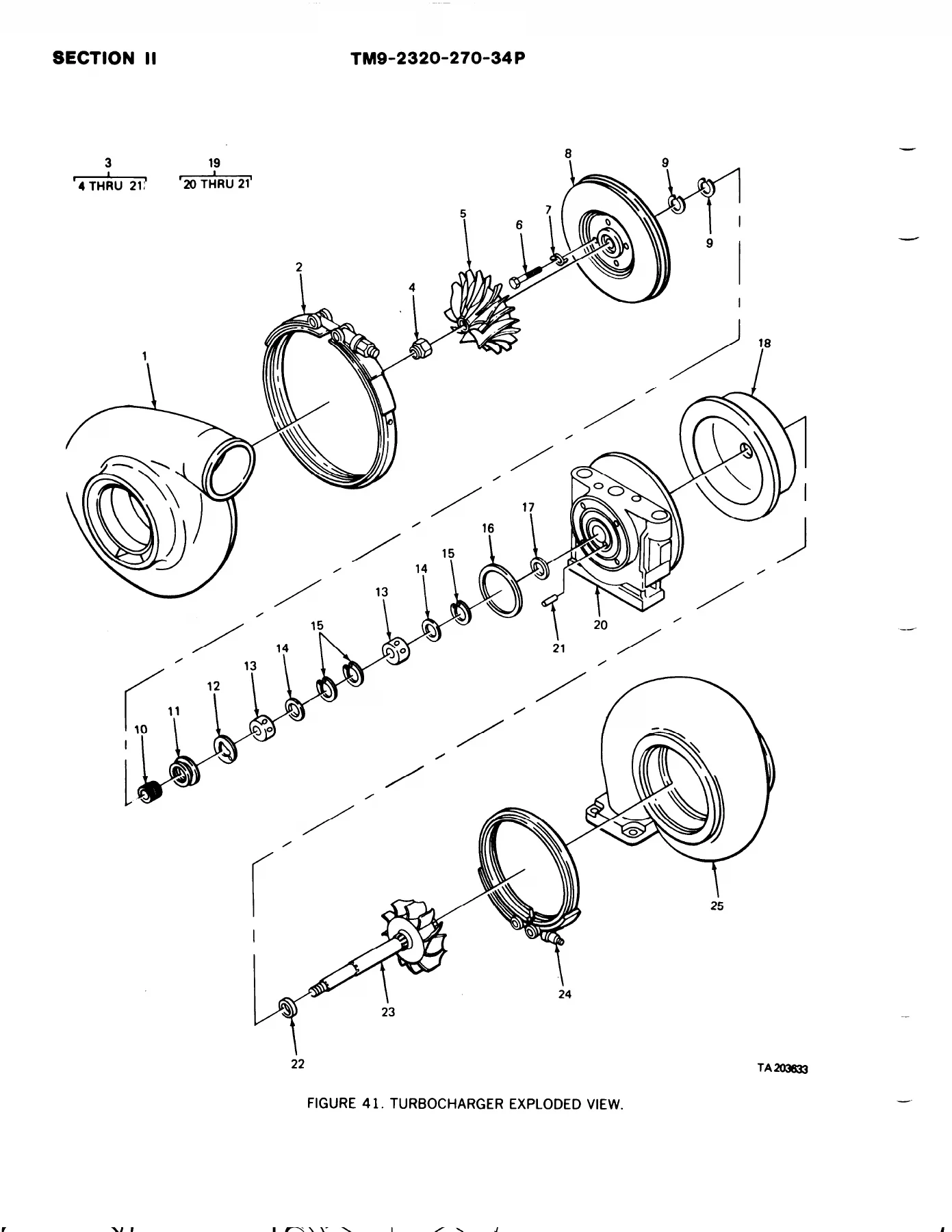

Across these groups, TM 9-2320-270-34P reaches from the M911 powerplant and fuel system through the transmission, transfer case, axles, brakes, steering, chassis, cab and winch equipment. The parts figures include complete assemblies as well as exploded views for components such as the turbocharger, blower, transmission and transfer case. Engine-related listings distinguish applications for the 8V92T and 8V92TA where the publication calls for different components, including turbocharger, aftercooler, injector and related engine parts.

Special Tools and Maintenance Support Information

The special-tools section extends the catalog beyond replacement parts. It identifies organizational, Direct Support and General Support tools and test equipment used with the M911 systems. Examples shown in the manual include wheel-bearing wrenches, installers and removers, electrical terminal tools, injector test equipment, measuring gages, torque-multiplier equipment and transmission service tools. This is valuable when the required maintenance task depends on a specific tool or fixture and the technician needs its listed identification rather than a generic substitute.

The SMR coding guidance is another important part of the M911 C-HET parts reference. The manual explains how the five-position code communicates the source of an item, the maintenance level authorized to remove, replace or use it, the level capable of complete repair, and the recoverability or disposition requirement. That information gives the illustrated parts listings their maintenance-support context and helps the reader interpret why different components are handled differently in the supply and repair system.

Get the M911 Parts and Special Tools Reference Instantly

The 1989 M911 C-HET Heavy Equipment Transporter Repair Parts & Special Tools Manual TM 9-2320-270-34P is built for detailed component identification during Direct Support and General Support maintenance. Use it to follow illustrated assemblies, identify repair parts and kits, check part and stock-number references, distinguish listed 8V92T and 8V92TA applications, trace transmission, axle, brake, steering and winch components, and identify the special tools called out for supported work. Because this is an RPSTL, it is primarily a parts-identification, supply-reference and special-tools publication rather than a step-by-step repair-procedure manual.

Accurate figure callouts, part numbers, SMR information and cross-reference indexes matter when a repair depends on ordering or identifying the correct component. Your purchase is delivered as an instant PDF download after payment – there is no shipping or waiting for a printed book. Open the manual on any computer, tablet, phone or other device that can read PDF files, and print the pages you need for workshop use.
