Description

2000 Jeep Wrangler TJ Service Manual – 2.5L & 4.0L Workshop Repair PDF

This 2000 Jeep Wrangler TJ Service Manual – 2.5L & 4.0L Workshop Repair PDF is the full TJ workshop volume used to identify, diagnose, and rebuild a model-year 2000 Wrangler. The pages carry the TJ group structure used throughout the book and decode the vehicle as a United States-built Jeep MPV with open body, 4×4 driveline, and either the 2.5L or 4.0L gasoline engine. Sport, SE, and Sahara series codes appear in the VIN chart, along with left-hand-drive and right-hand-drive line codes and Toledo #2 as the assembly plant.

File Details

• Manual type: Service manual
• Brand / model: Jeep Wrangler TJ (2000)
• Language: English
• Page count: 1407
• File format: PDF

Vehicle Identification and Build Data

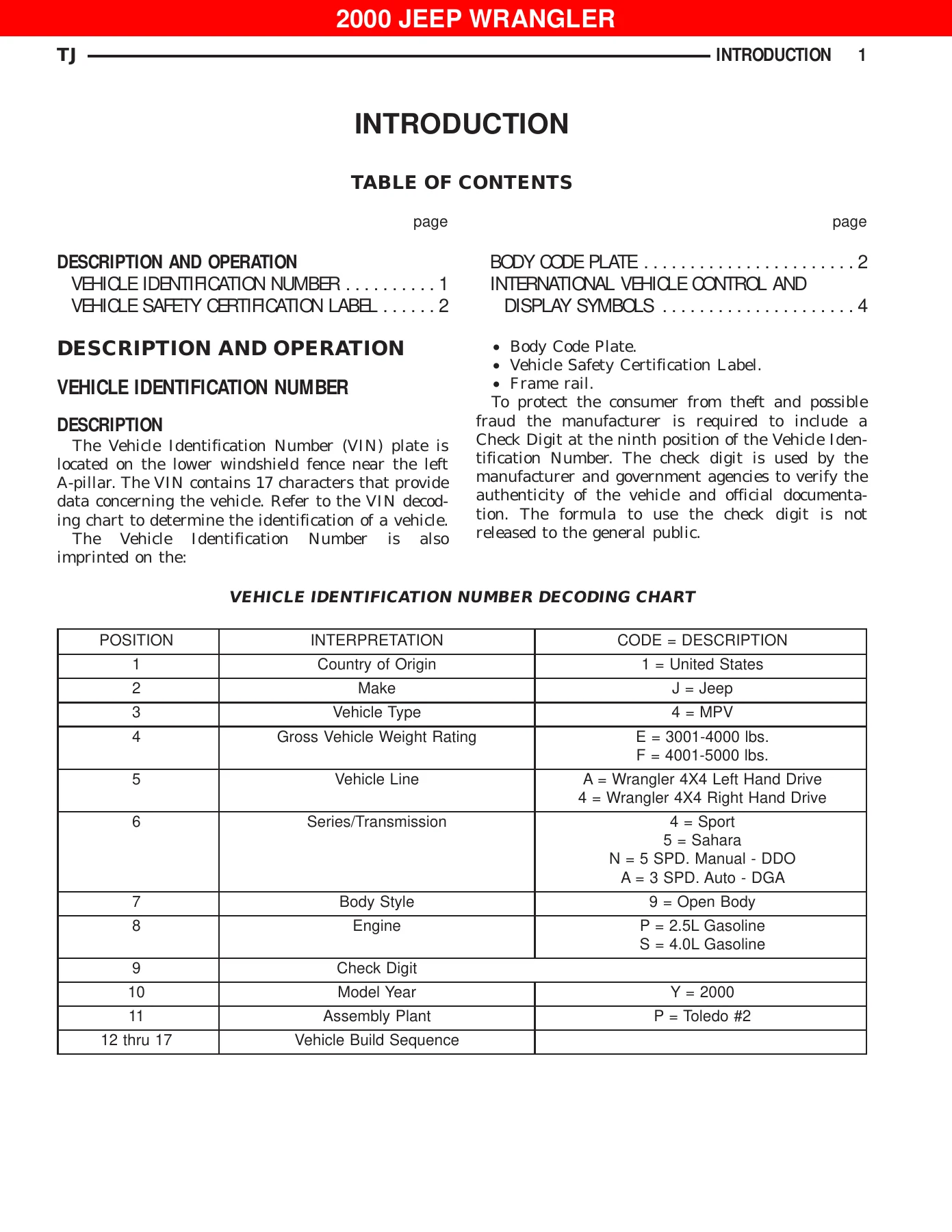

The introduction shows where to read the 17-character VIN on the lower windshield fence near the left A-pillar, on the vehicle safety certification label, on the frame rail, and on the body code plate under the driver’s seat. Position 8 identifies the engine as P = 2.5L unleaded gasoline or S = 4.0L unleaded gasoline. Position 10 is model year Y = 2000. Body-code line 2 lists engine stamps EPE (2.5L 4-cyl. MPI gasoline) and ERH (4.0L 6-cyl. MPI gasoline). Transmission stamps on line 1 include AX5 and AX15 five-speed manuals plus 30RH and 32RH three-speed automatics. Roof and top codes distinguish soft-top and hard-top colors, and the plate also records paint, trim, market, and the full VIN.

A typical safety certification label in the book lists manufacturer Chrysler Corporation, vehicle type MPV, GAWR front 0998 kg / 2200 lb, GAWR rear 1180 kg / 2600 lb, and GVWR 1978 kg / 4360 lb with P205/75R15 tires on 15-inch rims. Use the chart in this 2000 Jeep Wrangler TJ service manual whenever you need to confirm series, engine, or driveline before ordering parts.

Chapters Covered

• Introduction — VIN decoding, safety certification label, body code plate, international control symbols, fastener identification, metric conversions, torque charts
• Lubrication and Maintenance — lubricant recommendations, fluid capacities, Schedule A and Schedule B, jump starting, hoisting, towing
• Suspension — alignment, front suspension, rear suspension, steering and suspension ball joints
• Differential and Driveline — propeller shafts, 181 FBI front axle, 194 RBI rear axle, 216 RBI rear axle
• Brakes — base brake system, disc and drum service, parking brake, antilock brakes
• Clutch — cover and disc, pedal and related switches
• Cooling System — radiator, water pump, thermostat, belts, viscous fan, electric fan
• Battery — ratings, inspection, charging and jump-start cautions
• Starting Systems — starter, relay, and related circuits
• Charging System — generator ratings and diagnosis
• Ignition System — spark plugs, cables, coil, distributor, ignition switch
• Instrument Panel Systems — cluster, switches, bezels, glove box, panel assembly
• Audio Systems — radio, speakers, antenna, noise suppression
• Horn Systems — horn, relay, and switch
• Speed Control System — switches, vacuum reservoir, diagnosis
• Turn Signal and Hazard Warning Systems — multi-function switch and flasher
• Wiper and Washer Systems — front and rear motors, arms, switches
• Lamps — headlamp alignment, bulb application, fog lamps, lamp diagnosis
• Passive Restraint Systems — ACM, driver and passenger airbags, clockspring, on/off switch
• Electrically Heated Systems — rear window defogger grid and relay
• Power Distribution System — PDC, fuseblock, IOD fuse
• Vehicle Theft/Security Systems — Sentry Key Immobilizer System (SKIS)
• Chime/Buzzer Warning Systems — key-in, seat belt, and headlamp warnings
• Wiring Diagrams — 8W section index, power distribution, connectors, splices, grounds
• Engine — 2.5L four-cylinder and 4.0L six-cylinder overhaul, diagnosis, and specifications
• Exhaust System — manifolds and related service
• Frame and Bumpers — bumper and frame service, transfer-case skid plate references
• Fuel System — tank, pump module, rails, injection, throttle body, sensors
• Steering — power steering pump and gear, linkage, column
• Transmission and Transfer Case — AX5, NV3550, 30RH/32RH, NV231 Command-Trac
• Tires and Wheels — tire service and wheel procedures
• Body — paint, stationary glass, seats, doors, sport bar, soft top / hard top related service
• Heating and Air Conditioning — heater-A/C housing, compressor, R-134a charge and leak procedures
• Emission Control Systems — on-board diagnostics, evaporative controls, leak detection pump

IMAGES PREVIEW

Taken together, those groups give a technician the same map the book itself uses: find the system, read description and operation, run diagnosis and testing, then follow removal, installation, adjustment, and torque data. The 2000 Jeep Wrangler TJ workshop repair PDF is not a single-system pamphlet; it is the complete chassis-to-cabin service set for this model year.

Maintenance Intervals and Fluid Capacities

Group 0 prints two calendars. Schedule A is the normal-use list beginning at 7,500 miles / 6 months with oil and filter, steering-linkage lubrication, and later air-cleaner, spark-plug, transfer-case, and coolant services. Schedule B shortens the oil interval to 3,000 miles for short trips, dusty roads, trailer towing, extensive idling, hot high-speed running, off-road use, and desert operation, and it adds more frequent axle and automatic-transmission fluid changes (marked where commercial or heavy loading applies).

Capacities listed in the lubricants section include:

• Fuel tank: 71.9 L (19.0 gal.)
• Engine oil with filter — 2.5L: 3.8 L (4.0 qts.); 4.0L: 5.7 L (6.0 qts.)
• Cooling system — 2.5L: 8.5 L (9.0 qts.); 4.0L: 9.9 L (10.5 qts.)
• Automatic transmission dry fill — 32RH: 6.31 L (13.33 pts.); 30RH: 4.67 L (9.86 pts.)
• Manual transmission — AX5: 3.3 L (3.5 qts.); AX15: 3.15 L (3.32 qts.)
• NV3550 refill after drain or overhaul: approximately 2.28 L (4.8 pints) of the specified Mopar manual transmission lubricant
• Transfer case Command-Trac 231: 1.0 L (2.2 pts.)
• Front axle 181-FBI: 1.2 L (2.5 pts.)
• Rear axle 194-RBI: 1.66 L (3.5 pts.); 216-RBI: 1.89 L (4.0 pts.), plus 4 ounces of friction modifier when Trac-Lok is fitted

The same group covers jump-start cable order, the 12.4-volt / 75 percent charge target before cranking, a 15-second crank limit, flat-bed towing preference for 4WD, and hoist points. DaimlerChrysler lubricant guidance in the book points to API-certified multi-grade engine oils and NLGI greases for chassis and wheel bearings.

Engines, Fuel, and Emissions

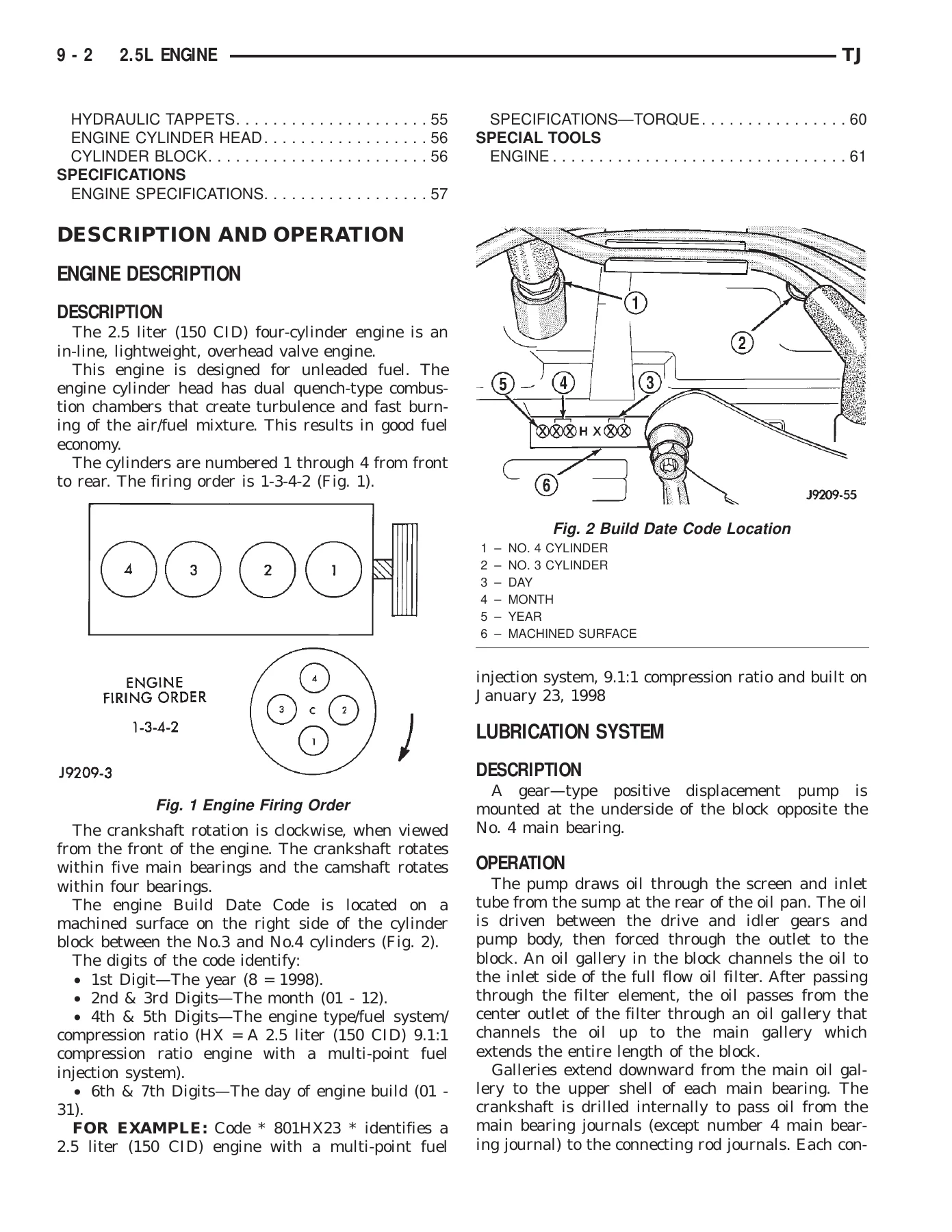

Group 9 splits the powerplants. The 2.5 liter (150 CID) four-cylinder is described as an in-line, lightweight, overhead-valve engine with dual quench-type chambers, cylinders numbered 1–4 front to rear, and firing order 1-3-4-2. Build-date decoding on the block (example code format 801HX23) identifies displacement, multi-point injection, 9.1:1 compression, and build day. A gear-type oil pump feeds the main gallery. The 4.0L six-cylinder section follows with its own diagnosis charts, cylinder-head and timing-chain service, oil-pump work, and torque tables.

Both engines share the book’s mechanical diagnosis path: no-crank and no-start charts, oil-pressure checks, compression and leakage tests, Plastigage bearing measurement, short-block notes, and hydrostatic-lock cautions. Fuel Group 14 covers tank and skid-plate removal, the in-tank pump module, filter/regulator, fuel rails, throttle body, coolant-temperature and IAT sensors, and the required pressure-release steps before opening lines. Emission Group 25 ties the MIL and PCM to OBD diagnostic trouble code charts, evaporative hardware, and the leak detection pump used for OBD II evaporative testing. That combination is why this 2000 Jeep Wrangler TJ service manual stays useful after a simple tune-up list runs out.

Driveline, Axles, and Transmissions

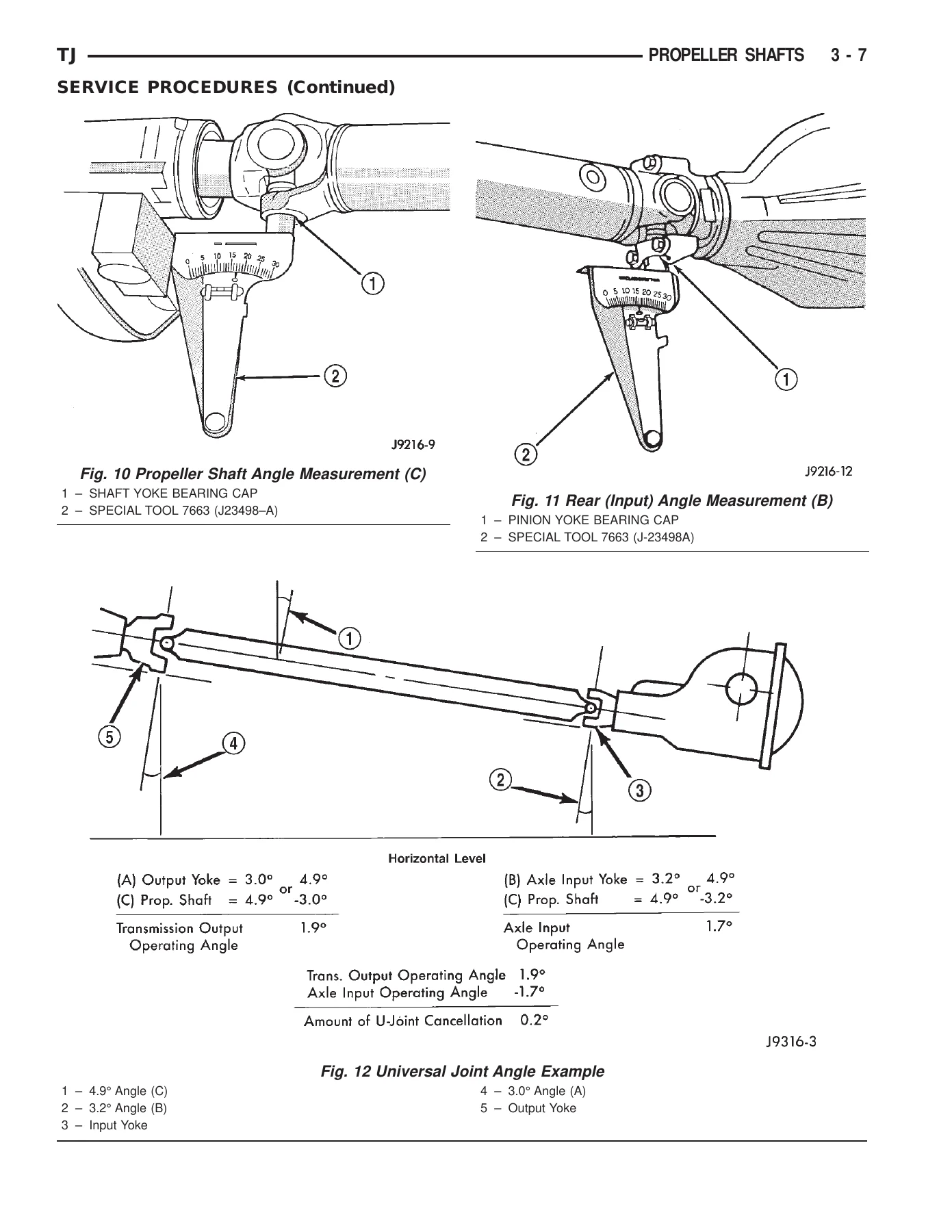

Propeller-shaft service includes zero-phase yoke alignment, angle measurement with the specified tools, single- and double-Cardan joint overhaul, and pinion-angle adjustment. Front work is written around the 181 FBI axle; rear work covers 194 RBI and 216 RBI, including noise diagnosis (gear, bearing, low-speed knock, vibration), preload and backlash, and Trac-Lok friction-modifier notes.
