2001 Yamaha Outboard Rigging Guide – Complete Rigging & Installation Manual for 2HP-250HP Engines

Description

2001 Yamaha Outboard Rigging Guide – Complete Rigging & Installation Manual

The 2001 Yamaha Outboard Rigging Guide is the comprehensive technical reference used by riggers and marine technicians to correctly set up Yamaha outboard motors from 2HP through 250HP. Published by Yamaha Motor Corporation, U.S.A. in October 2000 under document number 00-149, this guide covers the full 2001 model year lineup including 2-stroke, 4-stroke, HPDI, V4, V6, C-Series, F-Series, and high-thrust models. Whether you are mounting a new engine, wiring a helm, running rigging tubes, setting up a dual-station system, or selecting the correct propeller, the correct procedure and specification is laid out here with dimensioned illustrations, exploded parts views, wiring diagrams, and step-by-step installation instructions.

File Details

• Manual Type: Outboard Rigging Guide / Technical Installation Manual
• Brand: Yamaha
• Model Year Covered: 2001
• Publisher: Yamaha Motor Corporation, U.S.A.
• Document Number: 00-149
• Publication Date: October 2000
• Language: English
• Format: PDF
• Approximate Page Count: 497 pages

Chapters Covered

• Section 1 – Standard Equipment, Rigging Kits & Crate Contents: Standard equipment by model, propeller/controls/fuel tank/rigging items shipping locations, rigging kits, and outboard crate contents
• Section 2 – Engine Dimensions, Mounting & Mounting Equipment: Engine mounting dimensions, transom mounting patterns, transom drill fixture, four-stroke splash guards and splash plates, jet drive identification and serial numbers, jet drive mounting and maintenance, shift cable instruction, dual engine tie bar kit, dual cable steering bracket kit, Morse universal dual cable steering bracket kit, V4/V6 rigging tube grommet, F9.9 exhaust well kit
• Section 3 – Electrical: Wire harnesses, switch panel assemblies, battery installations, electrical connectors, rectifier, voltage regulator, 5HP lighting coil, neutral safety switch, remote power trim & tilt switch, boat wiring diagrams
• Section 4 – Remote Controls: Control boxes, applications, 701 remote control assembly, 703 control assemblies, 704 binnacle mount controls, 705 flush side-mount control, remote control cables and conversion kits, control box adjustments
• Section 5 – Instrument & Gauge Installations: Digital instruments, tachometer, speedometer, trim meter, water pressure gauge, water temperature gauge, sender installation, voltmeter, hour meter, fuel gauge, fuel management system and gauge, HPDI water detection switch
• Section 6 – Tiller Handle Kits: T9.9 remote tiller rigging kit, F15, F25, 30HP, F30/F40 3-cylinder, 40/C40/50/C50, F40 4-cylinder and F/T50, C60/C70/70HP, C90/90HP tiller handle and steering friction kits
• Section 7 – Conversion & Steering Kits: Remote control attachment kits for 6/8HP, 9.9/15 (2-stroke), F9.9/T9.9 (4-stroke), F15, F25, 25HP 2-cylinder, 25E electrical conversion, 25/30HP 3-cylinder, 6/8HP electric starter conversion, steering hooks, steering attachment kits
• Section 8 – Propellers: Propeller types and application charts for small, mid, and large engines
• Section 9 – Rigging Components/Kits: Portable fuel tanks, remote oil tank mounting (2.8 and 5.0 gallon), oil deck filler plate, vertical starter, outboard display stands
• Section 10 – Appendices: 6X1 Dual Station System installation manual and service guide, plus F30/F40 and F80/F100 tiller handle and steering friction installation/owner’s materials

Every chapter is organized for the working rigger: each section opens with the model application and part identification, then presents dimensioned drawings, exploded views, and precise installation procedures. Wiring sections include complete pinout illustrations for 7-pin and 10-pin harnesses, and the appendices reproduce the full 6X1 Dual Station System documentation for twin-station boats with tuna towers. Throughout the guide, cautions and warnings flag procedures that risk damaging the motor or creating a safety hazard, and torque values, clearances, and measurement specifications are given so the installation is correct the first time.

What This Yamaha Rigging Manual Enables You To Do

This is not a generic boating book — it is the model-year-specific rigging reference for the 2001 Yamaha outboard line. With it, a rigger can mount an engine at the correct transom height, drill the right bolt pattern, route a rigging tube, and wire a helm to the correct harness pinout. It covers the full range of rigging tasks across Yamaha’s 2HP through 250HP 2001 lineup, from small portable engines up to V6 HPDI and 3.1L offshore motors, and it includes the specialized systems — jet drives, dual-station controls, power trim and tilt switches, oil injection, and fuel management — that generic manuals leave out.

The guide is essential because rigging errors are expensive. A wrong transom height causes cavitation and steering problems. Incorrect cable lengths, harness pinouts, or shift adjustments cause hard shifting, no-start conditions, or throttle binding. Using the correct factory dimensions, wiring diagrams, and adjustment values from the 2001 Yamaha Outboard Rigging Guide eliminates guesswork and the callbacks that come with it.

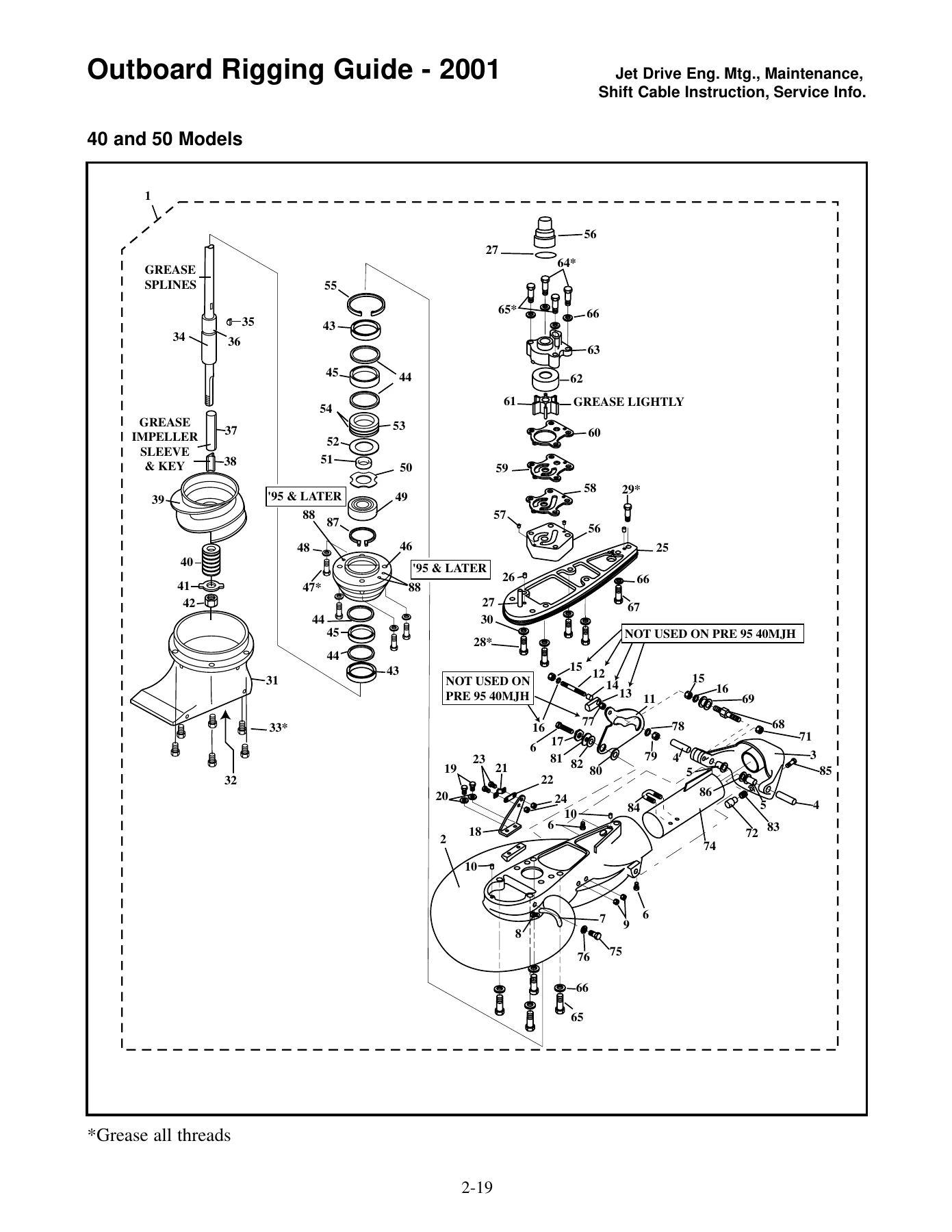

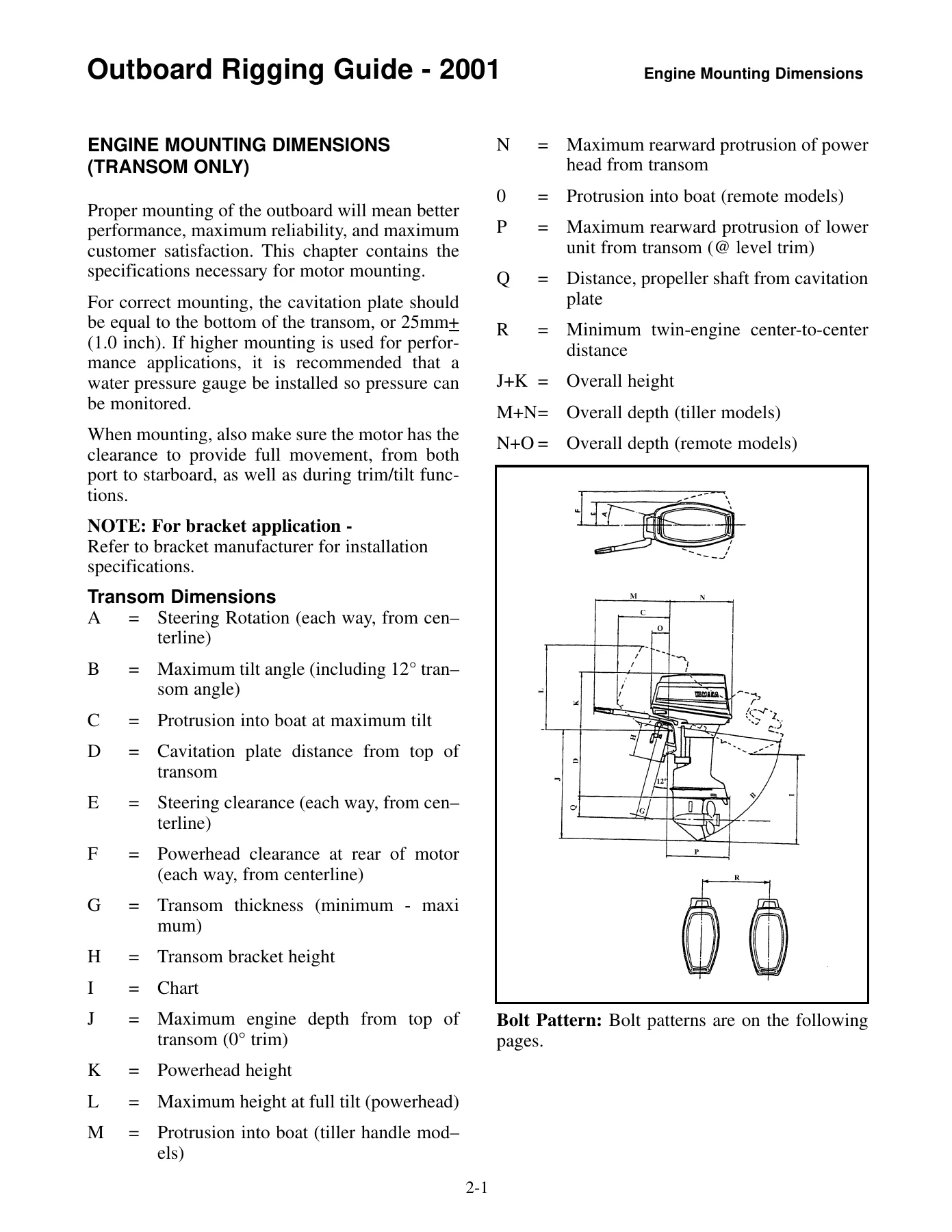

IMAGES PREVIEW

Delivered as an instant PDF download after payment, the manual can be viewed on a laptop, tablet, or phone at the dock, in the shop, or on the water. Print only the pages you need for the job in front of you, or keep the full manual on a device for quick reference. No shipping, no waiting.
