2006 Chevrolet GMC 3500 HD Truck 7.8L Engine Controls Service Manual

Description

File Details

• Manual type: Truck service manual – Engine Controls section
• Brand: Chevrolet / GMC
• Model: 3500 HD Truck
• Model year: 2006
• Engine covered in this section: 7.8L
• Language: English
• File format: PDF
• Page count: 1124
• System coverage: Engine Controls (7.8L)

Chapters Covered

• General Information – document scope and how the service procedures are organised
• Cautions and Notices – personal injury and property damage warnings, including Supplemental Inflatable Restraint (SIR) precautions
• Engine Controls – 7.8L Specifications – Temperature vs Resistance tables for fuel temperature, intake air temperature and engine coolant temperature, plus a full Fastener Tightening Specifications listing
• Diagnostic Trouble Code (DTC) Type Definitions – Type A, Type B, Type C and Type X behaviour, what each does to the MIL, and the conditions that clear each type
• Schematic and Routing Diagrams – engine controls schematic icons, caution and twisted-pair wire requirements
• Diagnostic Information and Procedures – Diagnostic Starting Point, Scan Tool Data List and Scan Tool Data Definitions
• Component Connector End Views – ECM connectors, APP sensor, CMP sensor, CKP sensor, ECT sensor, EGR valve, fuel heater and relay, FRP sensor, fuel temperature sensor, glow plug relays, high idle switch, MAP sensor, MAF/IAT sensor, suction control valve, turbocharger vane position control solenoid valve and vane position sensor
• DTC Diagnostic Tables – P0087, P0088, P0091, P0092, P0107, P0108, P0112, P0113, P0117, P0118, P0182, P0183, P0192, P0193, P0201-P0206, P0219, P0234, P0237, P0238, P0335, P0382, P0385, P0601-P0607/P1600/P1621/P1627/P1680/P1681/P1683/P2610, P0641, P0651, P1087, P1088, P1125, P1261, P1263, P1264, P1265, P1266, P1271, P1272, P1273, P1277, P1278, P1282, P1283, P1287, P1288, P1646, P2003, P2004, P2005, P2007, P2008, P2011, P2012, P2564, P2565, P2900, P2901, P2902, P2903, P2920, P2921, P2922 and P2923
• Symptoms – Engine Controls – intermittent conditions, hard start, surges/chuggles, lack of power, fuel knock/combustion noise, hesitation, sag and stumble, cuts out and misses, poor fuel economy, rough or unstable idle and stalling, excessive black smoke, excessive blue or grey smoke, excessive white smoke, and engine cranks but does not run
• Malfunction Indicator Lamp (MIL) diagnostics – MIL operation, function and illumination testing

This 2006 Chevrolet GMC 3500 HD Truck 7.8L Engine Controls Service Manual is built around the way engine control faults actually present themselves in the workshop. Rather than a loose collection of wiring pictures, it walks the technician through the engine control module strategy for the 7.8L engine, then supplies the reference material needed to prove or disprove each circuit: resistance-versus-temperature charts for the fuel, intake air and coolant sensors, the full fastener torque schedule for the fuel system, turbocharger, EGR and engine mounting hardware, and pin-by-pin connector end views with wire colour and circuit number for every engine control sensor and actuator. The scan tool data list gives normal running values so a technician can compare a suspect truck against a healthy one, and the data definitions explain what each parameter actually represents.

The diagnostic trouble code coverage is the core of the document. Each DTC entry opens with a circuit description, the conditions required to run the diagnostic, the conditions that set the code, the action taken by the ECM when the code sets, and the conditions that clear it, followed by a numbered step-by-step diagnostic table. Many of the DTC tables include diagnostic aids specific to this engine – for example the note that the actual fuel rail pressure reading only updates with the engine running or after a key cycle following more than ten seconds of ignition OFF, that a sticking suction control valve can drop or raise rail pressure, and that a skewed fuel rail pressure sensor should read zero pressure with the key ON and the engine OFF after two minutes.

Diagnostics and Repair Work This Manual Supports

Inside the 2006 Chevrolet GMC 3500 HD Truck service manual, the Engine Controls section supports the day-to-day work a 7.8L truck actually needs: tracing a no-start to a fuel rail pressure or crankshaft position fault, diagnosing an overboost or underboost complaint through the turbocharger vane position circuits, confirming an injector circuit fault by resistance and voltage checks at the intermediate connector and the ECM, checking glow plug relay control, verifying accelerator pedal position sensor correlation across all three APP sensors, and confirming EGR valve and EGR position sensor operation. Wiring repair guidance covers the twisted-pair requirements for sensitive circuits, including the minimum twist rate and maximum outside diameter that must be maintained when repairing shielded wiring. The symptom tables group the practical causes for hard starting, misfire, smoke, power loss and stalling, so a technician can work from a complaint to a circuit rather than the other way round.

Why It Matters

Engine control work on a common-rail diesel rewards precision. The wrong rail pressure assumption, a misread sensor resistance or a torque value taken from memory can send a technician down a costly parts path. Having the connector end views, the resistance tables, the torque figures and the ECM’s own enable conditions in one place means the fault can be isolated at the harness before anything is replaced. The manual also documents what each code does to engine output – which codes limit injection quantity, close the EGR valve, inhibit cruise control or inhibit power take-off – so the driveability complaint after a repair makes sense.

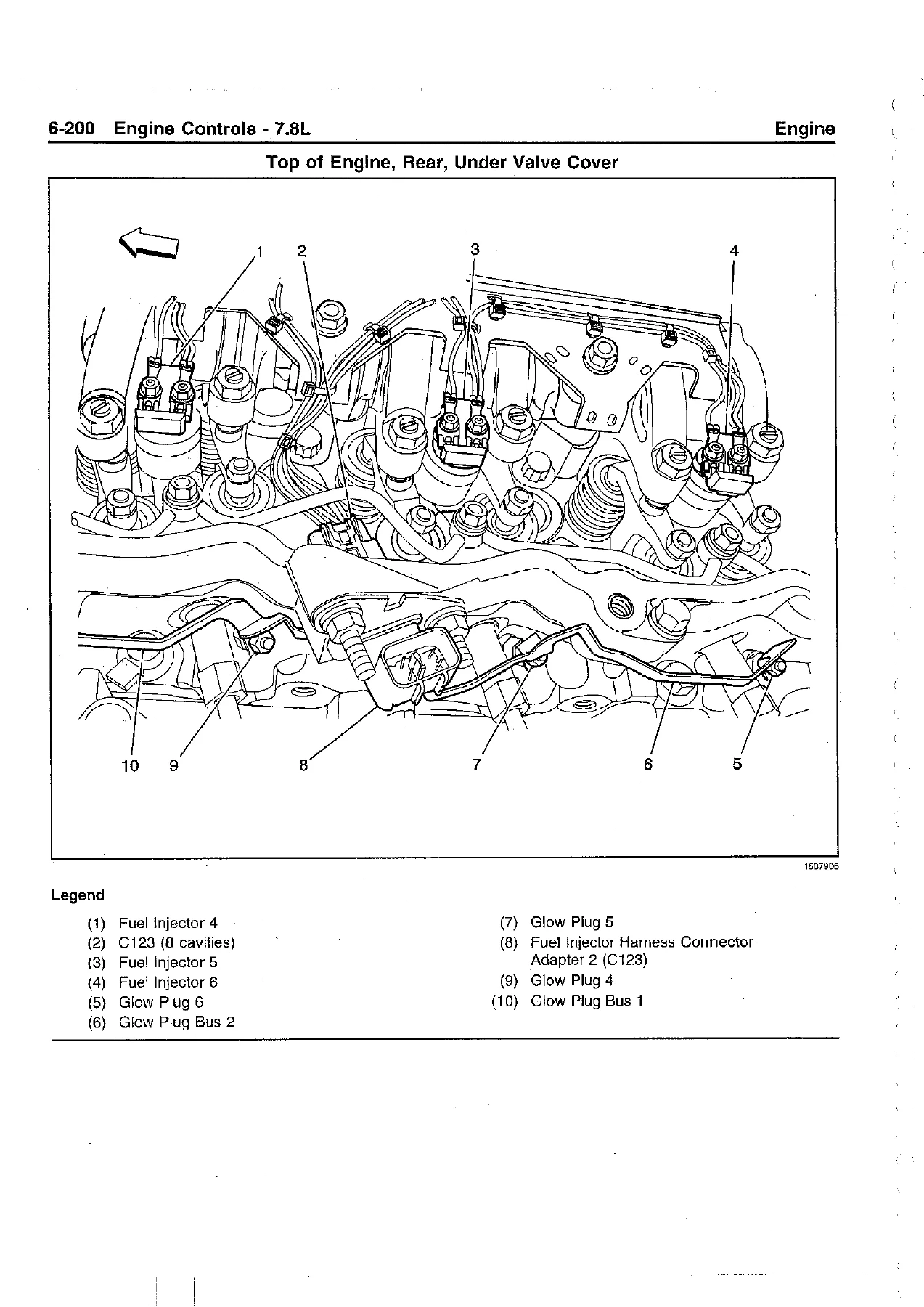

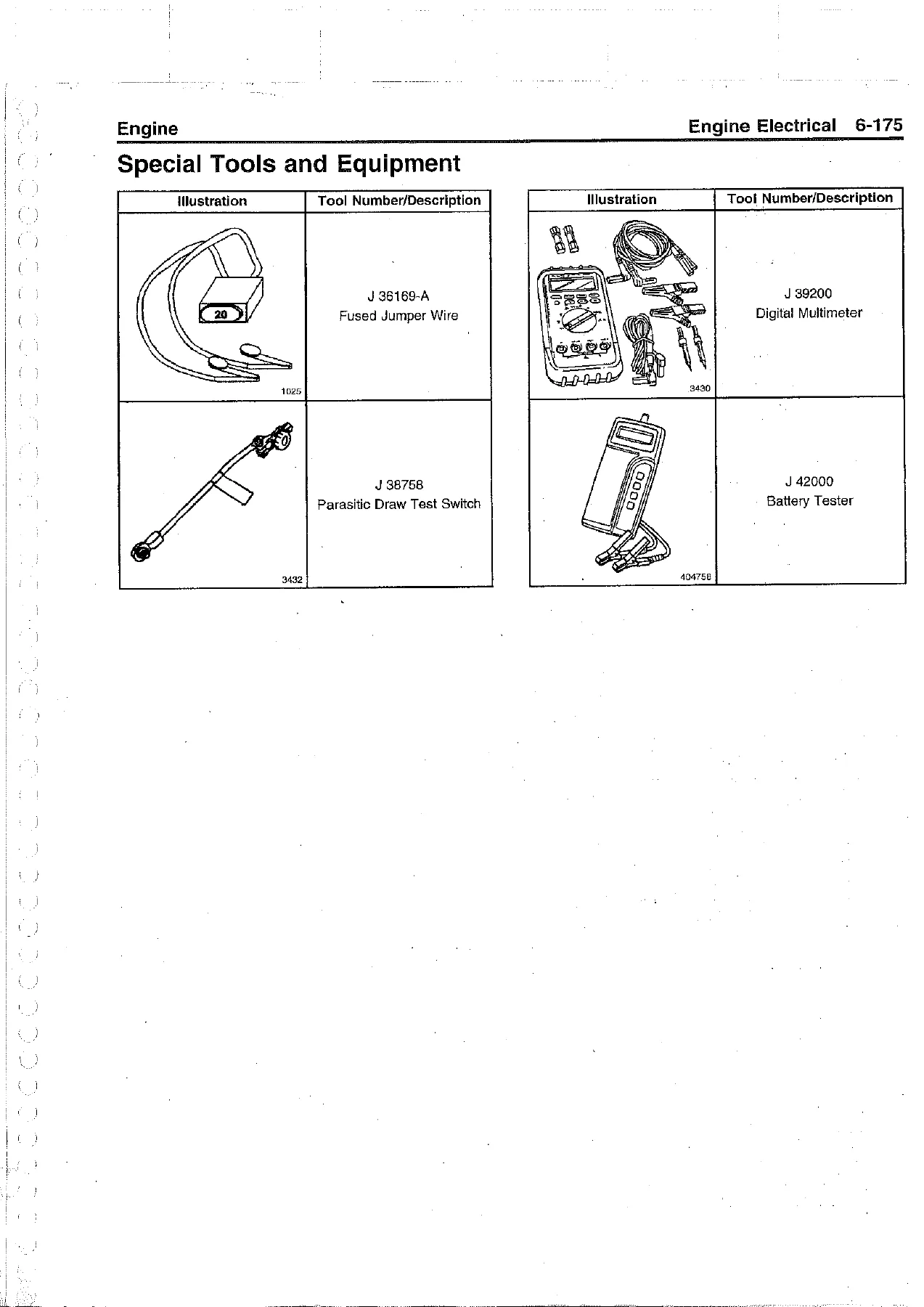

IMAGES PREVIEW

Instant PDF Delivery

This 2006 Chevrolet GMC 3500 HD Truck 7.8L Engine Controls service manual is delivered as a digital PDF download immediately after purchase. There is no shipping and nothing to wait for. Open it on a laptop, tablet or phone in the workshop, search or scroll to the DTC or specification you need, and print the pages you want to keep beside the truck. Whether the job is a single stored code, a full engine controls diagnostic session or a rebuild that needs the fuel system torque schedule, the reference material is in hand the moment payment clears.
