2006 Volvo V70 V70R XC70 XC90 Wiring Diagram Manual

Description

2006 Volvo V70 V70R XC70 XC90 Wiring Diagram Manual — Complete Electrical Wiring Diagrams

Finding the right electrical information for a 2006 Volvo V70, V70R, XC70, or XC90 can be the difference between a quick diagnosis and hours of guesswork. This 2006 Volvo V70 V70R XC70 XC90 Wiring Diagram Manual delivers the complete Electrical Wiring Diagram (EWD) documentation for all four models in one organized resource. Published under Volvo order number TP 3989202, it supersedes the earlier publication 3989201 and incorporates changes introduced up to June 2005. Whether you are troubleshooting a no-start condition, tracing a short in the lighting circuit, or repairing a climate control fault, this manual provides the wiring paths, component designations, and connector references you need.

File Details

• Manual type: Electrical Wiring Diagram (EWD) manual
• Brand: Volvo
• Models covered: 2006 V70, V70R, XC70, XC90
• Language: English
• Page count: 328 pages
• File format: PDF
• Order number: TP 3989202
• Replaces: Previous publication 3989201
• Publication date: 08-2005
• Changes incorporated up to: June 2005

What This Wiring Diagram Manual Covers

The 2006 Volvo V70 V70R XC70 XC90 Wiring Diagram Manual is organized by vehicle system, following Volvo’s group numbering convention. Each section shows complete wiring paths for the components in that system, using the standard Volvo component designation system (type number plus serial number, e.g. 3/2 for a light switch). The manual includes a full list of component designations at the end, plus numbered branching points that show which components share a common junction. Connector pinouts, ground connection locations, and cable harness routing diagrams are all included.

This is not a generic repair guide. It is the electrical wiring diagram documentation specifically for the 2006 V70, V70R, XC70, and XC90, covering the full range of engine variants sold in that model year. The manual is intended for professional technicians and advanced DIY owners who need accurate electrical schematics to diagnose and repair these vehicles properly.

Chapters Covered

• Fuses — Engine compartment 11A, 11B; Passenger compartment 11C; Cargo compartment 11E, 11F; CEM F1-F34; REM F1-F38
• Relays — Ignition switch and relays; Engine compartment FMA1-FST3; Other relays

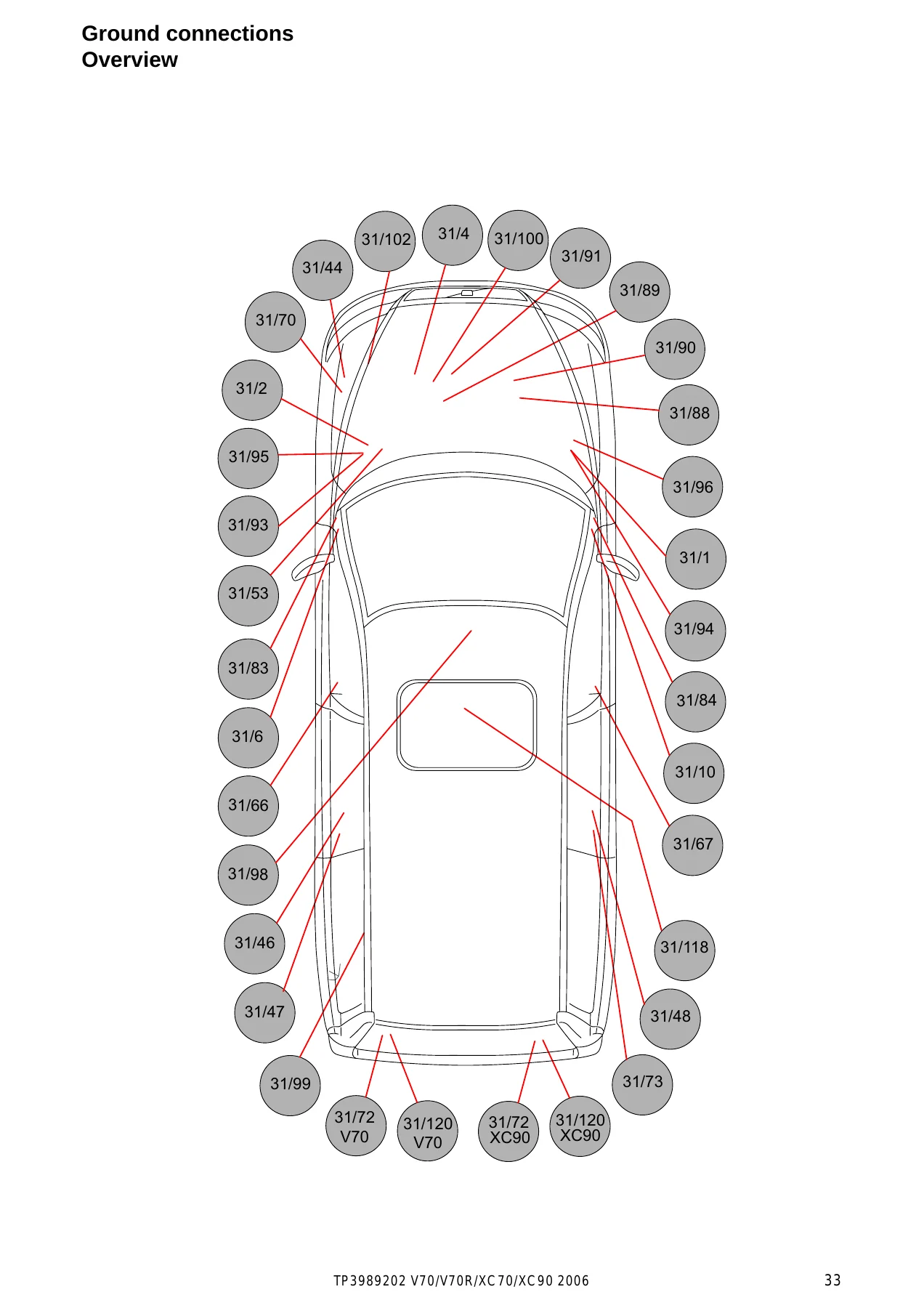

• Ground connections — Overview and individual ground points 31/1 through 31/120

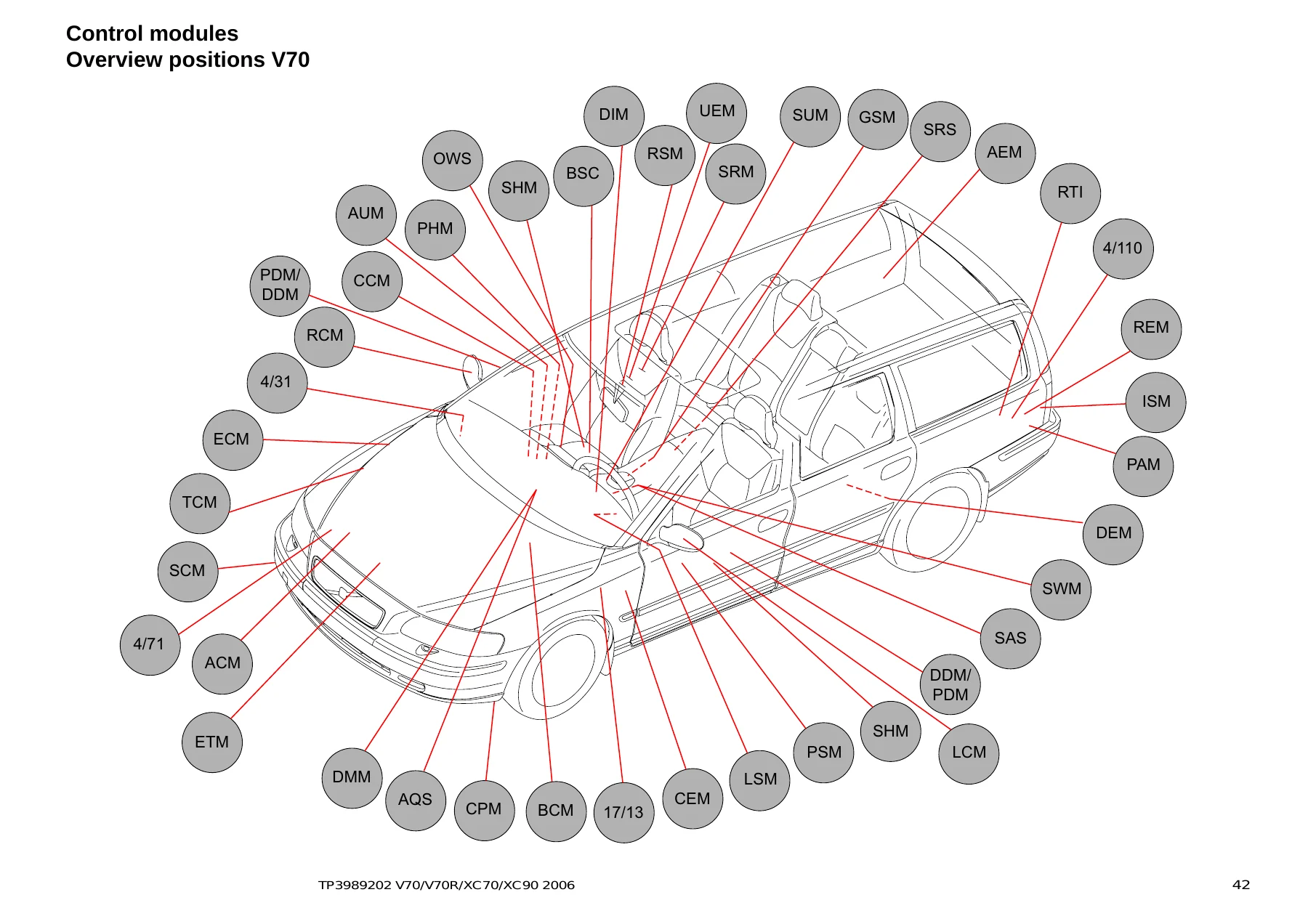

• Control modules — Overview positions and designations for V70 and XC90; Central Electronic Module (CEM); Rear Electronic Module (REM)
• Data communication — High speed CAN (V70, XC90); Low speed CAN (V70, XC90); LIN; MOST (XC90)
• Group 23 Fuel system — Engine management systems for 15D, 5-cyl., 5-cyl. Turbo, 6-cyl., Bi-fuel, diesel, 8-cyl.; Emission control
• Group 26 Cooling system — Cooling fan; Cooling fan for 15D and 8-cyl.
• Group 27 Engine control — Cruise control; Cruise control for 15D and 8-cyl.
• Group 32 Alternator and voltage regulator — Power supply
• Group 33 Starting system
• Group 35 Lighting — High and low beams/Bi-Xenon and daytime running lights V70/XC90; Fog lights; Brake lights; Reversing lights; Follow-me-home lighting; Running/parking lights, tail lights and license plate lighting V70/XC90; Interior lighting V70/XC90; Beam length adjustment V70/XC90; Auxiliary lights
• Group 36 Additional electrical equipment — Rain sensor; Direction indicators and hazard warning flashers V70/XC90; Wiper/washer windshield; Wiper/washer headlights V70; High pressure headlight washer; Wiper/washer rear window; Horn; Electronic immobilizer; Anti-theft alarm V70/XC90; Parking assistance; Accessory Electronic Module (AEM)
• Group 37 Wiring and fuses — Diagnostics system; 12V outlet; Tow hitch cable harness 4-pin, 4/7-pin, 7-pin, 13-pin
• Group 38 Instruments — Seat belt reminder; Driver information module; ISD; 8-cyl.
• Group 39 Other — Audio V70; Audio with auxiliary amplifier V70; Audio XC90; Road Traffic Information module V70; Turn-by-Turn navigation V70; RTI XC90; Handsfree V70/XC90; Handsfree MAX V70/XC90; CD-Changer V70; RTI and CD changer V70; MP3 player V70; CD/MD player XC90; Cellular phone V70; Subwoofer V70/XC90; Infotainment XC90; Satellite radio V70; Rear Seat Entertainment XC90
• Group 43 Transmission — Automatic transmission AW55-50/51SN/AW50/51AWD; Automatic transmission 4765AWD XC90; Automatic transmission TF-80SC AWD; Geartronic; Shift lock; Differential Electronic Module (DEM)
• Group 59 Brake system — Brake control system
• Group 64 Steering — Electronic power steering
• Group 76 Shock absorbers — Four-C V70
• Group 83 Doors and openings — Central locking system V70/XC90; Power windows; Power sunroof
• Group 84 Exterior decorative elements — Power exterior rearview mirrors; Heated exterior rearview mirrors with camera function; Heated exterior rearview mirrors; Heated rear window
• Group 85 Interior equipment — Power driver’s seat; Power passenger seat; Heated seats
• Group 87 Climate control system — Rear climate control system XC90; Climate control system; Climate control system ISD and 8-cyl.; Parking heater, auxiliary heater; Relay electric engine heater; Remote parking heater start V70; Parking heater call start V70; Auxiliary heater V70
• Group 88 Internal equipment — Remote garage door opener; Supplemental Restraint System module (SRS) V70/XC90
• Connectors
• Branching points
• Cable harness routine in vehicle — Engine harnesses, engine compartment harnesses, passenger compartment harnesses, cargo compartment harnesses, roof harnesses, tailgate harnesses, door harnesses, Bi-Fuel harnesses, rear seat entertainment

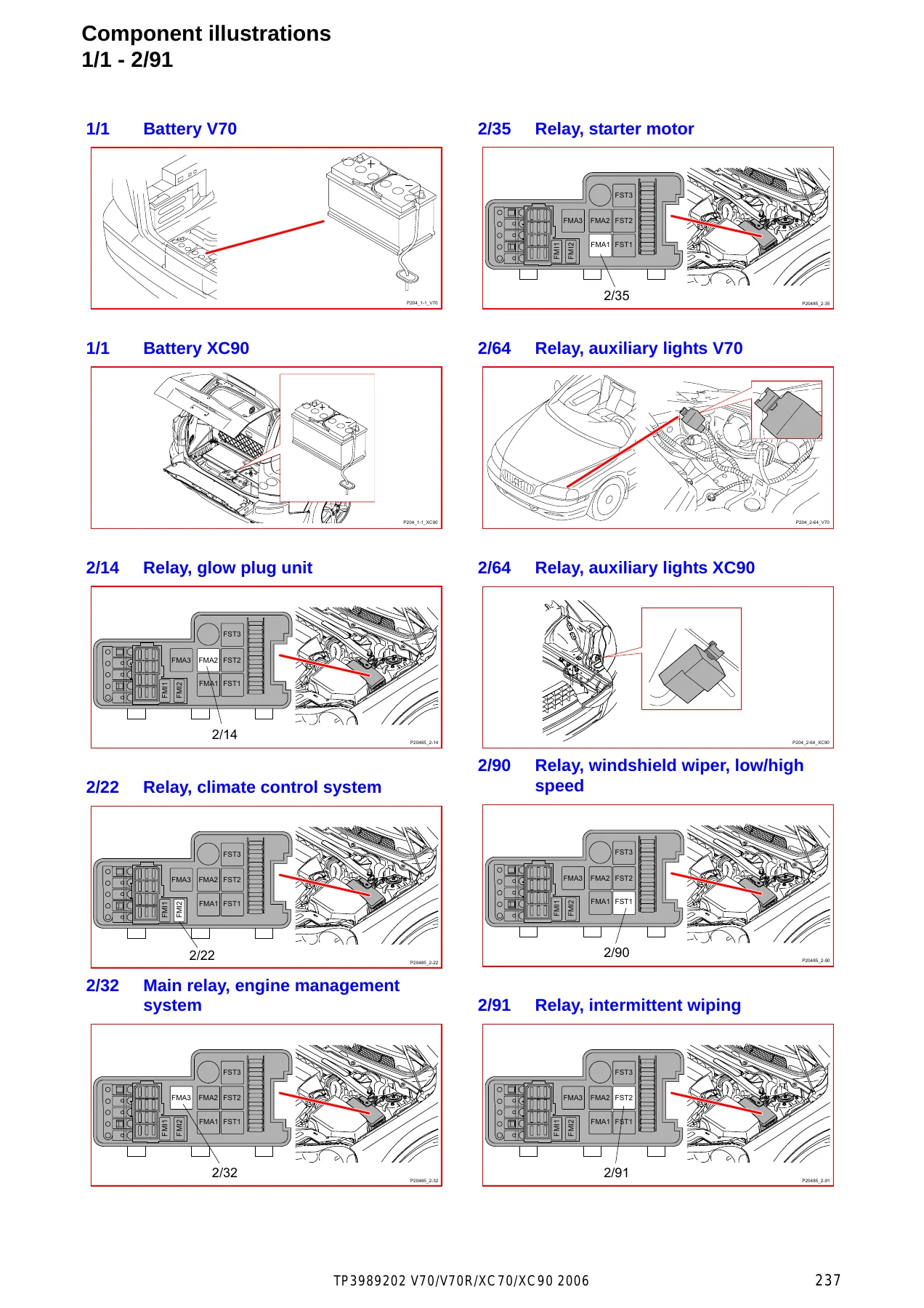

• Component illustrations
• Index
• List of components

This 2006 Volvo V70 V70R XC70 XC90 Wiring Diagram Manual gives a technician or advanced DIY owner a full electrical map of the vehicle. Each system section provides the wiring runs between the relevant control modules, fuses, relays, sensors, and actuators. The component illustration section shows what each part looks like and where it sits, which is essential when you need to physically locate a connector or module. The cable harness routing diagrams show how the wiring is laid out through the engine compartment, passenger compartment, cargo area, doors, roof, and tailgate.

Why This EWD Manual Matters for Electrical Diagnostics

Electrical faults in modern vehicles are rarely solved by swapping parts until something works. The 2006 Volvo V70, V70R, XC70, and XC90 use multiple data networks (high speed CAN, low speed CAN, LIN, and MOST on the XC90) plus dozens of control modules. Without accurate wiring diagrams, diagnosing a communication fault, a parasitic draw, or an intermittent short becomes a process of elimination with no reliable direction. This manual shows the actual wire colors, connector pin numbers, splice points, and module pinouts so you can test the circuit properly.

The manual covers all the major systems in these vehicles — engine management, transmission control, braking, steering, climate control, lighting, locking, power seats, audio, navigation, and more. Because it includes all engine variants (5-cylinder, 5-cylinder turbo, 6-cylinder, 8-cylinder, diesel, 15D, I5D, and Bi-Fuel), you can use the same manual regardless of which engine is in the vehicle.

Who This Manual Is For

This 2006 Volvo V70 V70R XC70 XC90 Wiring Diagram Manual is suitable for:

• Professional automotive technicians working on Volvo electrical systems
• Independent repair shops that service V70, V70R, XC70, or XC90 models
• Advanced DIY owners who want to diagnose and repair electrical faults themselves
• Enthusiasts restoring or maintaining a 2006 model year Volvo
• Anyone installing accessories or aftermarket electrical equipment and needing to tap into the correct circuits

Get Instant Access to the Complete 2006 Volvo Wiring Diagrams

With this manual, you can trace circuits from the battery through the fuses, relays, control modules, and down to the individual component connectors. You can identify the exact wire color, pin position, and ground point for any circuit. You can find the location of every component illustration and understand how the harnesses are routed through the vehicle. That means faster diagnosis, fewer guesswork repairs, and the confidence that comes from working with the correct electrical information.

IMAGES PREVIEW

The manual is delivered as an instant PDF download after payment — no shipping, no waiting, no physical book to store. You can view it on any device (computer, tablet, or smartphone) and print the pages you need for the job. The PDF format lets you keep the entire 328-page manual on hand in your workshop, at home, or on the road. Get your copy of the 2006 Volvo V70 V70R XC70 XC90 Wiring Diagram Manual and start solving electrical problems the right way.
