2012-2013 Ford Focus Workshop Service Repair Manual PDF

Description

2012-2013 Ford Focus Workshop Service Repair Manual PDF

The 2012-2013 Ford Focus Workshop Service Repair Manual PDF is a comprehensive workshop reference covering service information, diagnosis, testing, specifications, general procedures, removal and installation, and component-level repair across the 2012-2013 Focus. The manual includes procedures for both the 2.0L Duratec-HE (125kW/170PS) – MI4 and 2.0L EcoBoost (184kW/250PS) – MI4 engines, together with automatic and manual transmission systems identified in the manual. Its coverage extends well beyond powertrain work into brakes, suspension, steering, body and paint, climate control, restraint systems, lighting, communications, anti-theft, entertainment systems, and other vehicle electronics.

This is a large 2,591-page workshop manual organized into service groups and individual sections. Procedures are presented around the exact system being serviced, with specification pages, component locations, system operation descriptions, diagnostic trouble code material, symptom-based diagnosis, special-tool references, torque values, cautions, and illustrated removal and installation steps where the section provides them. That makes the Ford Focus 2012-2013 workshop manual useful for planned maintenance as well as more involved mechanical, electrical, body, and diagnostic work.

File Details

• Manual type: Workshop Manual
• Brand/model: Ford Focus
• Coverage: 2012-2013 Focus
• Language: English
• Page count: 2,591 pages
• File format: PDF

Powertrain Coverage

The engine material is divided between the 2.0L Duratec-HE (125kW/170PS) – MI4 and the 2.0L EcoBoost (184kW/250PS) – MI4. The engine group includes general engine information, engine removal and installation, assembly and disassembly, cooling, fuel charging and controls, accessory drive, starting, ignition, emissions, intake air, evaporative emissions, and electronic engine controls. The EcoBoost coverage also includes turbocharger-specific fuel charging and control information. Individual procedures include components such as camshafts, cylinder heads, timing drive components, oil pumps, crankshaft seals, sensors, fuel injectors, fuel rails, cooling components, and related control hardware.

Transmission coverage includes the 6-Speed PowerShift Transmission – DPS6/6DCT250, the 5-Speed Manual Transmission – MTX75, and the 6-Speed Manual Transmission – MMT6. Depending on transmission type, the manual covers diagnosis and testing, specifications, external controls, draining and filling, fluid-level checks, clutch systems, selector mechanisms, shafts, seals, differential work, transmission removal and installation, and automatic-transmission components such as the clutch actuator, clutch actuator motor, transmission control module, input and output speed sensors, and transmission range sensor.

Diagnostics, Specifications and Illustrated Procedures

The manual repeatedly combines system descriptions with diagnosis and testing. Diagnostic sections include DTC charts, symptom charts, inspection and verification steps, pinpoint tests, component tests, and references to scan-tool or Ford diagnostic equipment where required by the procedure. For example, the cooling-system material includes checks for coolant loss, overheating, thermostat operation, cooling-fan operation, pressure testing and coolant condition, while electronic-control sections route faults through DTC-specific diagnostic paths. Other diagnostic areas include ABS and stability control, body control, communications, cruise control, climate control, parking aid, lighting, PATS, information and entertainment systems, power steering, brakes, transmissions, and NVH concerns.

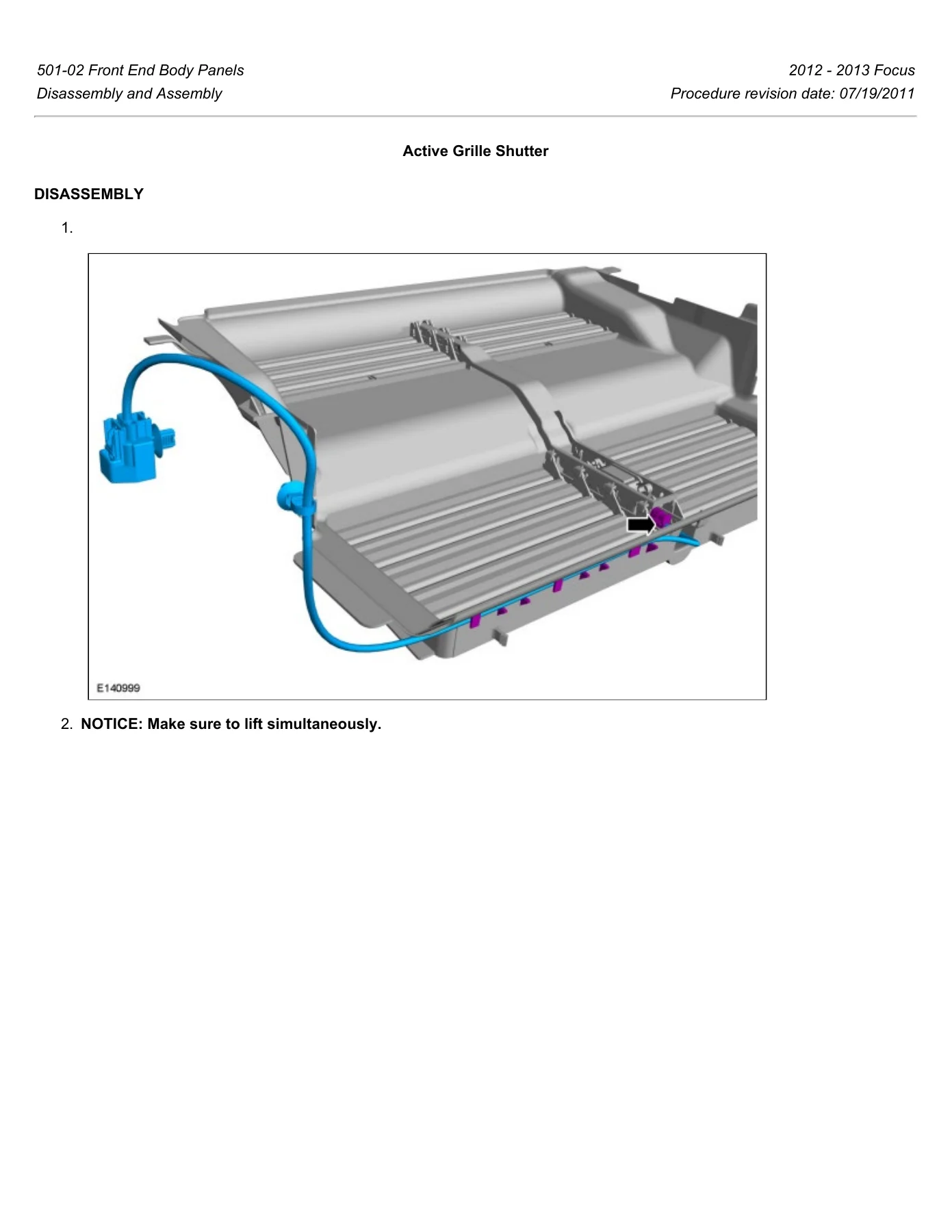

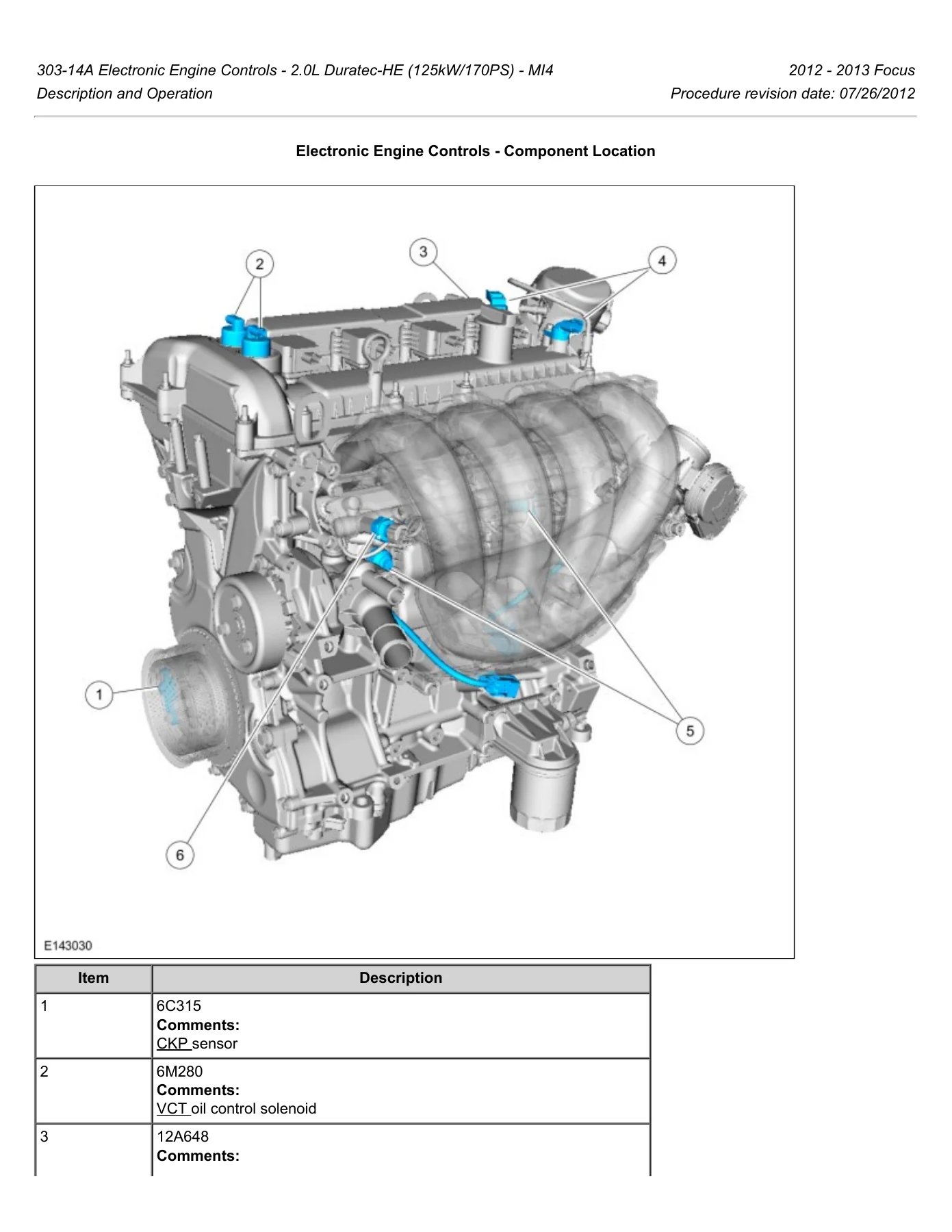

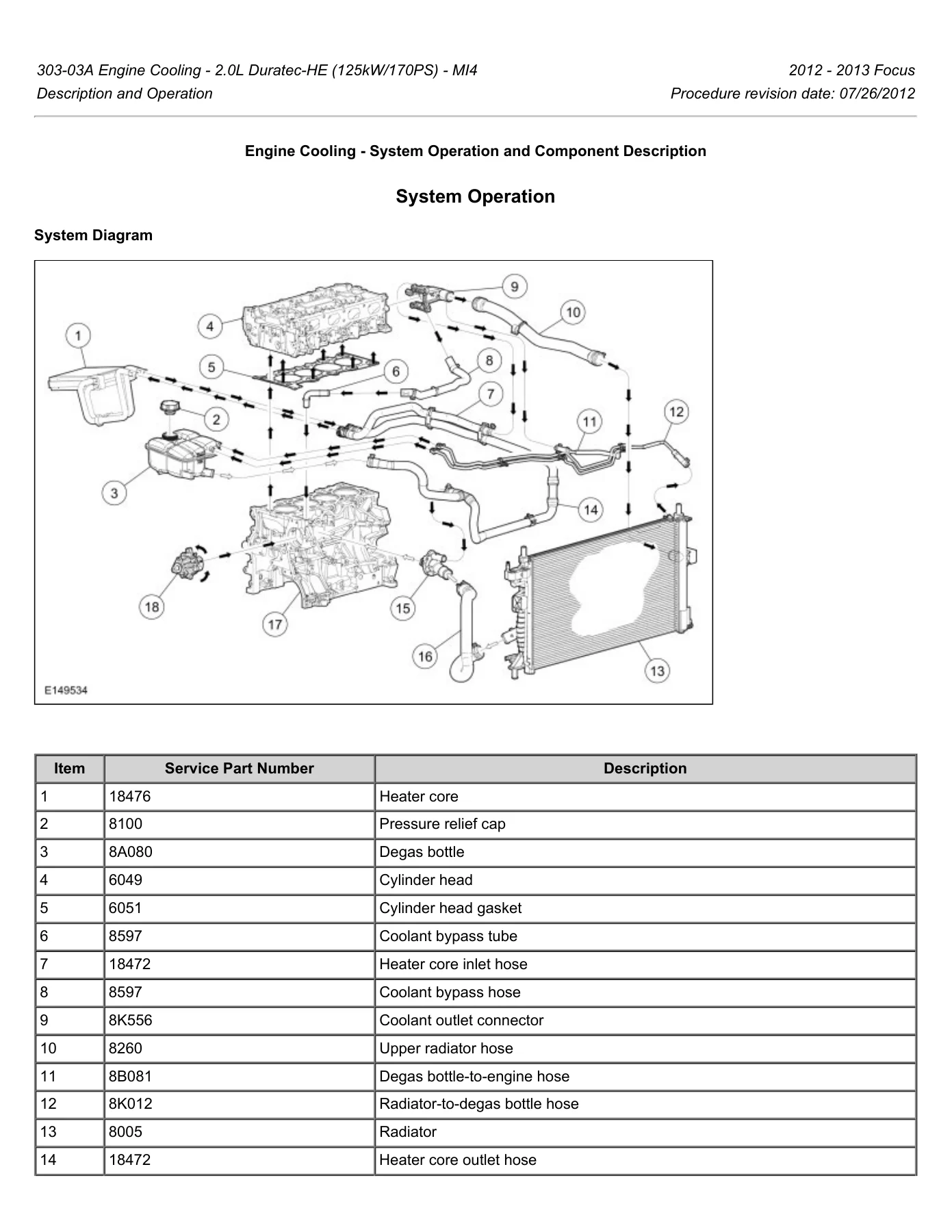

Service procedures frequently identify required special tools or general equipment, tightening torques, fluid specifications, component positions, installation cautions and safety warnings. Illustrated pages show component locations and service steps for items such as steering components, transmission parts, cooling-system components, doors and weatherstrips, exterior lighting, mirrors, grille shutters and engine-control components. This structure helps connect the written sequence to the actual part or assembly being handled.

Chapters Covered

• Group 00 – Service Information: General Information; Identification Codes; Jacking and Lifting; Maintenance Schedules; Noise, Vibration and Harshness.
• Group 01 – Body and Paint: Body System; Front End Body Panels; Body Closures; Interior and Exterior Trim; Rear View Mirrors; Seating; Glass, Frames and Mechanisms; Instrument Panel and Console; Handles, Locks, Latches and Entry Systems; Wipers and Washers; Roof Opening Panel; Bumpers; Safety Belt System; Supplemental Restraint System; body repair information and tolerance checks; front, roof, side and rear sheet-metal repairs; Paint.
• Group 02 – Frame and Mounting: Uni-Body, Subframe and Mounting System.
• Group 03 – Engine: Engine System General Information; 2.0L Duratec-HE and 2.0L EcoBoost engine sections; Engine Cooling; Fuel Charging and Controls; EcoBoost Turbocharger; Accessory Drive; Starting System; Engine Ignition; Engine Emission Control; Intake Air Distribution and Filtering; Evaporative Emissions; Electronic Engine Controls.
• Group 04 – Suspension: Suspension System General Information; Front Suspension; Rear Suspension; Wheels and Tires; Tire Pressure Monitoring System (TPMS).
• Group 05 – Driveline: Driveline System General Information; Front Drive Halfshafts.
• Group 06 – Brake System: Brake System General Information; Drum Brake; Front Disc Brake; Rear Disc Brake; Parking Brake and Actuation; Hydraulic Brake Actuation; Power Brake Actuation; Anti-Lock Brake System (ABS) and Stability Control.
• Group 07 – Automatic Transmission: 6-Speed PowerShift Transmission DPS6/6DCT250; Automatic Transmission External Controls.
• Group 08 – Manual Transmission, Clutch and Transfer Case: Clutch; Clutch Controls; 5-Speed Manual Transmission MTX75; 6-Speed Manual Transmission MMT6; Manual Transmission External Controls.
• Group 09 – Exhaust System: 2.0L Duratec-HE exhaust coverage and general Exhaust System procedures.
• Group 10 – Fuel System – General Information: Fuel System General Information; Fuel Tank and Lines; Acceleration Control.
• Group 11 – Steering System: Power Steering; Steering Column; Steering Column Switches.
• Group 12 – Climate Control System: Climate Control System General Information, including EMTC and DATC-related service procedures.
• Group 13 – Instrumentation and Warning Systems: Instrument Panel Cluster and Panel Illumination; Instrumentation, Message Center and Warning Chimes; Horn; Parking Aid; Active Park Assist.
• Group 14 – Battery and Charging System: Charging System General Information; Battery, Mounting and Cables; Generator and Regulator.
• Group 15 – Information and Entertainment Systems: AM/FM/CD; AM/FM/CD/SYNC; SYNC/Sony AM/FM/CD configurations.
• Group 17 – Lighting: Exterior Lighting; Interior Lighting.
• Group 18 – Electrical Distribution: Module Communications Network; Module Configuration.
• Group 19 – Electronic Feature Group: Perimeter Anti-Theft Alarm; Passive Anti-Theft System (PATS); PATS with Push Button Start; Cruise Control; Multifunction Electronic Modules.

Across these groups, the manual provides a linked service structure rather than isolated procedures. A repair may direct the technician from a diagnosis section to a related component-removal procedure, then to specifications, special tools, module configuration or another supporting system. That is especially useful on systems that cross mechanical and electronic boundaries, such as the PowerShift transmission, engine management, climate control, restraint systems, parking aid, starting and charging, or networked modules.

Body, Chassis and Electrical Service Scope

The chassis and body sections support work on front and rear suspension, wheel bearings and hubs, alignment-related adjustments, brakes, ABS and stability control, steering, halfshafts, body closures, trim, glass, seats, mirrors, bumpers, sheet-metal repairs and paint-related procedures. Safety-system coverage includes safety belts, airbags, pretensioners, occupant-classification components and SRS depowering/repowering procedures. The manual distinguishes vehicle configurations where necessary, including 4-door and 5-door procedures, one-touch and non-one-touch window systems, push-button-start applications, and equipment-dependent variations.

Electrical and convenience-system coverage spans charging and battery systems, exterior and interior lighting, instrument cluster and warning functions, horn, parking aid and Active Park Assist, module communications, module configuration, body control functions, PATS, perimeter alarm, cruise control, and several audio/SYNC configurations. Climate-control material covers system diagnosis and component service for Electronic Manual Temperature Control (EMTC) and Dual Automatic Temperature Control (DATC), along with refrigerant-system service procedures and component replacement.

Use the Manual for Accurate Workshop Work

The 2012-2013 Ford Focus Workshop Service Repair Manual PDF supports routine service, fault diagnosis, component replacement, mechanical repair, transmission work, engine service, chassis repairs, body procedures and electrical troubleshooting with the procedures, specifications, cautions and system information provided for the 2012-2013 Focus. Having the correct Ford Focus workshop information at hand matters when a job depends on the right sequence, tightening value, fluid specification, special tool, diagnostic path or configuration-specific procedure.

Delivery is instant as a PDF after purchase, with no shipping required. The manual can be viewed on compatible phones, tablets and computers and printed when a paper copy of a procedure is useful at the vehicle.
