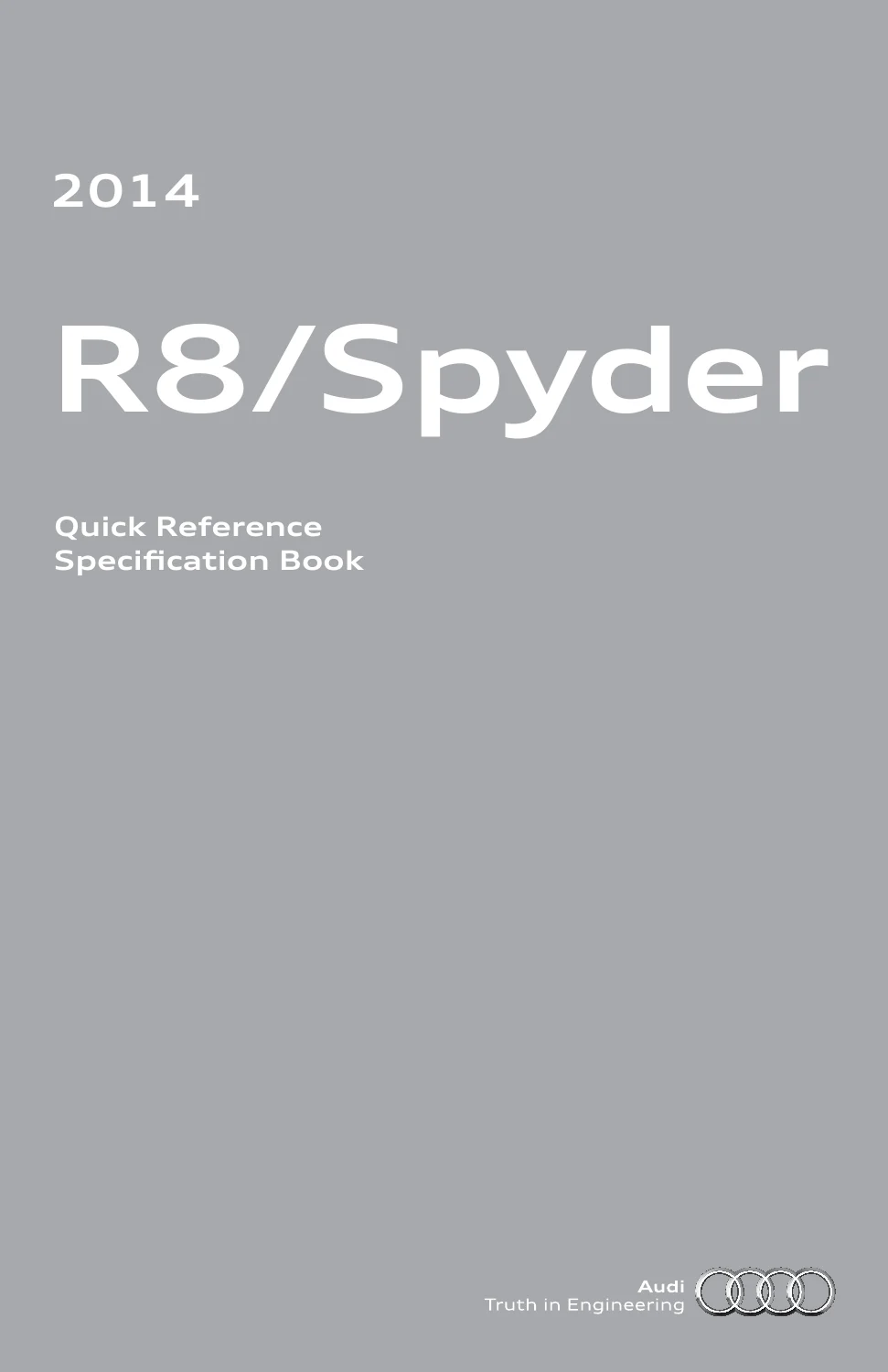

2014 Audi R8 and R8 Spyder Quick Reference Specification Book PDF

Description

2014 Audi R8 and R8 Spyder Quick Reference Specification Book PDF

The 2014 Audi R8 and R8 Spyder Quick Reference Specification Book PDF is a concentrated technical reference for 2014 R8 and R8 Spyder service information. Published in September 2013, it brings together identification data, tightening specifications, engine measurements, transmission references, chassis geometry, brake dimensions, body gap values, air-conditioning data, electrical fastener specifications, and extensive diagnostic trouble code criteria in one 199-page document.

The engine coverage is split between the 4.2L CNDA and 5.2L CTPA, CTYA sections. The 4.2L material includes engine data, bearing-shell allocation, crankshaft and piston dimensions, compression checking, valvetrain specifications, lubrication, cooling, fuel supply, exhaust and emissions, multiport fuel injection, and ignition. The 5.2L section follows with its own engine data and component-specific specifications, including crankshaft and cylinder-block references, valvetrain and timing-chain tightening sequences, oil pump and oil-cooler information, cooling and fuel-system fasteners, intake-manifold specifications, and ignition data.

File Details

• Manual type: Quick Reference Specification Book
• Brand and models: Audi R8 / R8 Spyder, 2014
• Language: English
• Page count: 199 PDF pages
• File format: PDF
• Date: September 2013

Technical Reference Built Around Specifications

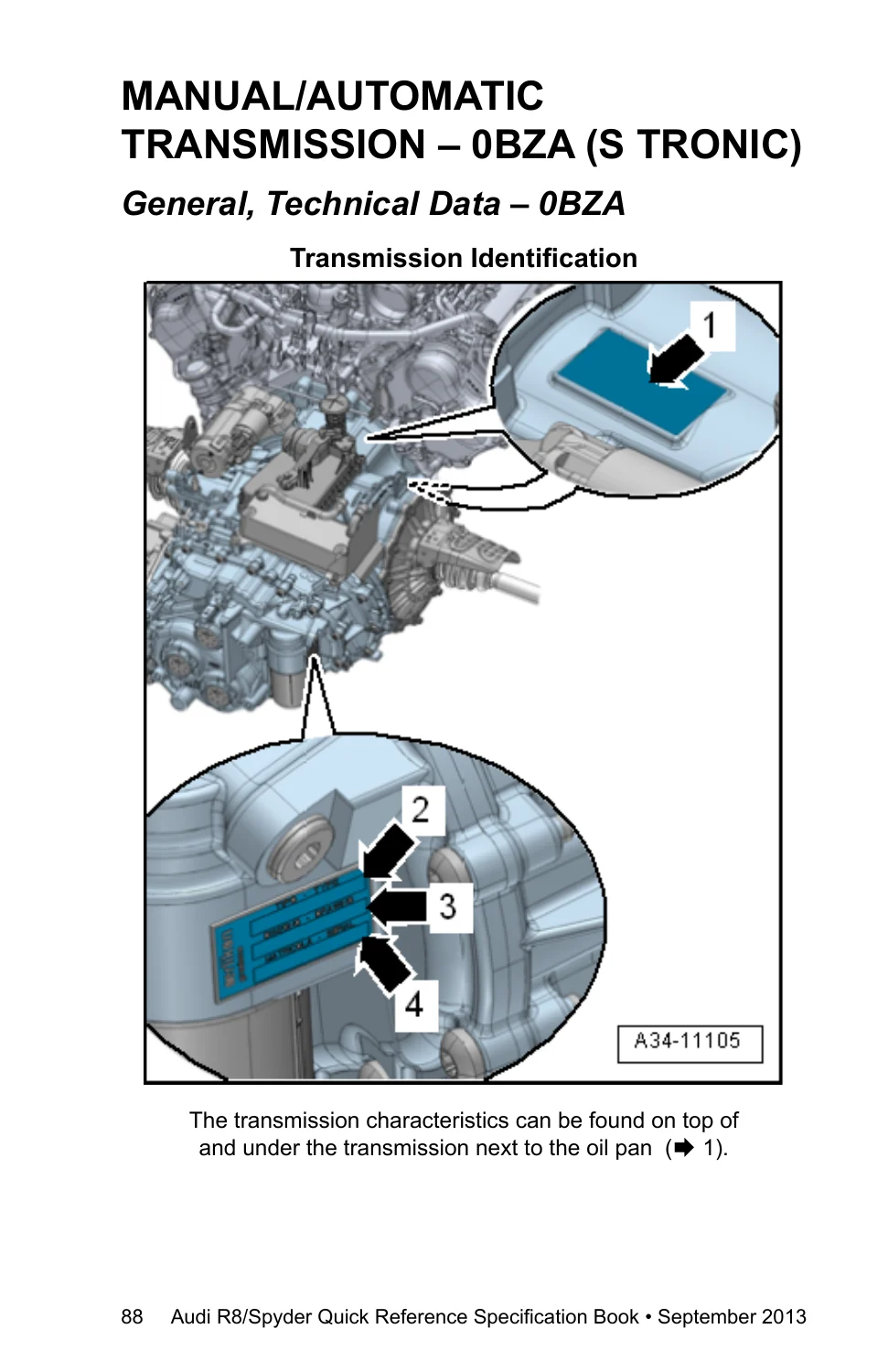

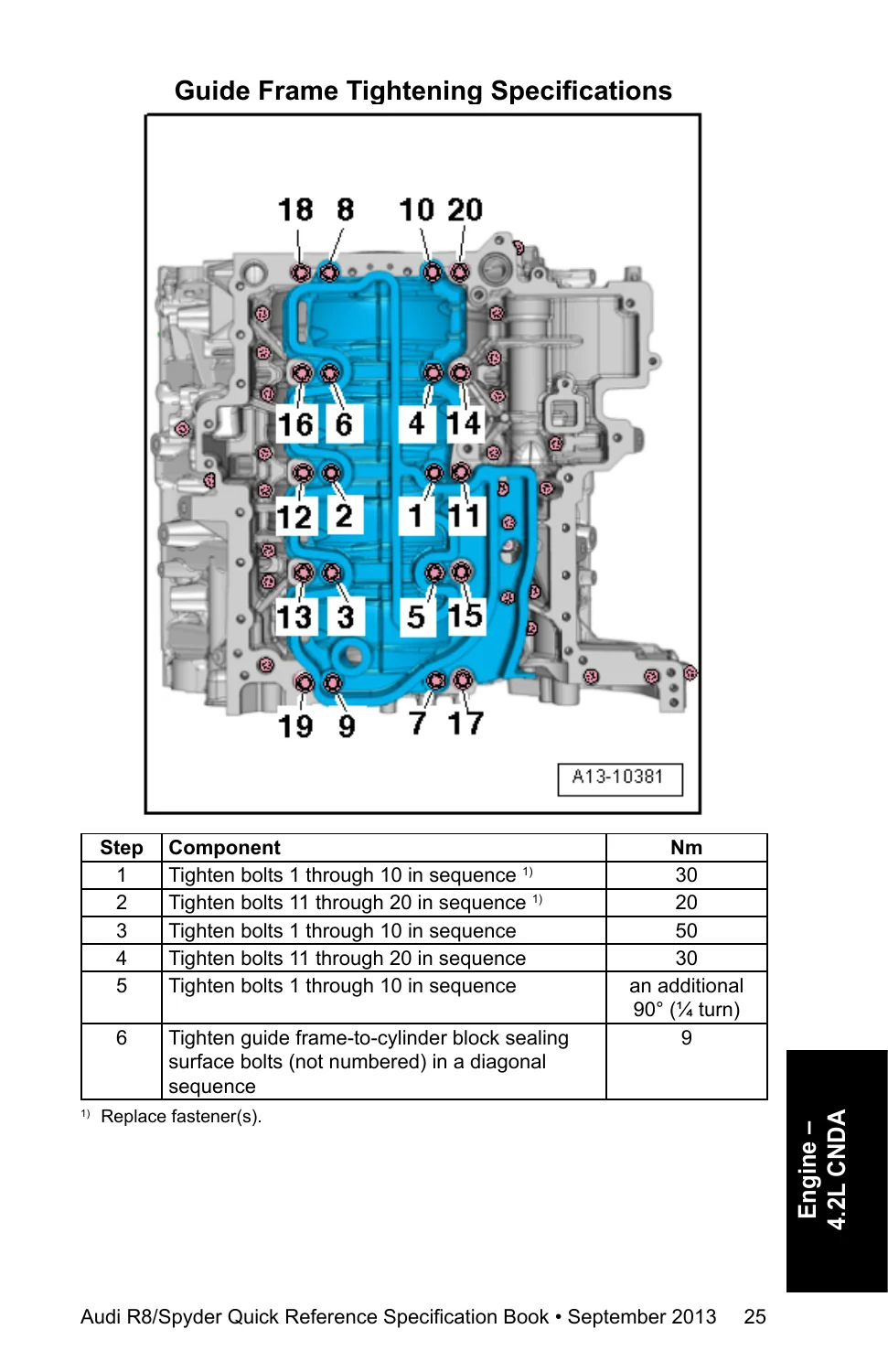

This R8/Spyder specification book is especially useful where a job depends on exact values rather than broad repair descriptions. Across the engine and drivetrain sections it supplies fastener torques, staged tightening sequences, bearing identification information, wear limits, compression specifications, valve dimensions, piston-ring measurements, crankshaft dimensions, fuel-pressure ranges, ignition data, and transmission identification details. Illustrations accompany many tightening sequences so the numbered bolt order and component location can be checked alongside the listed values.

For the 4.2L CNDA engine, the book records a displacement of 4.163 liters, output of 316 kW at 7800 RPM and torque of 430 Nm at 4500 to 6000 RPM. The 5.2L engine data distinguishes CTPA and CTYA, both at 5.204 liters, with separate output and torque figures. The transmission portion covers the 086 R Tronic material and the 0BZA S TRONIC material, including identification, clutch and housing fasteners, differential references, mechatronic and oil-pan tightening, and electrical/hydraulic parking-lock tightening sequences.

IMAGES PREVIEW

Chapters Covered

• General Information – decimal and metric equivalents; tightening torque conversions; warnings and cautions
• Vehicle Identification – VIN location; VIN decoder
• Sales Codes – engine codes; transmission codes
• Vehicle Lifting – hoist and floor jack lifting points
• Engine Mechanical – 4.2L CNDA – general technical data; engine number location; engine data
• Engine Assembly – 4.2L CNDA – fastener tightening specifications
• Crankshaft, Cylinder Block – 4.2L CNDA – bearing-shell allocation; crankshaft and connecting-rod references; tightening data; crankshaft and piston dimensions
• Cylinder Head, Valvetrain – 4.2L CNDA – compression checks; valve dimensions; timing-chain covers; cylinder-head and camshaft-guide-frame sequences
• Engine Lubrication – 4.2L CNDA – lubrication fasteners; upper oil pan; oil pan
• Cooling System – 4.2L CNDA – fastener tightening specifications
• Fuel Supply – 4.2L CNDA – fuel-system tightening specifications
• Exhaust System, Emission Controls – 4.2L CNDA – exhaust and manifold tightening specifications
• Multiport Fuel Injection – 4.2L CNDA – technical data; fuel-pressure data; intake-manifold tightening
• Ignition – 4.2L CNDA – ignition technical data; tightening specifications
• Engine Mechanical – 5.2L CTPA, CTYA – general technical data; engine number location; engine data
• Engine Assembly – 5.2L CTPA, CTYA – fastener and crankshaft-bearing information; vibration damper and guide-frame sequences; piston and cylinder data
• Cylinder Head, Valvetrain – 5.2L CTPA, CTYA – compression specifications; valve dimensions; timing covers; cylinder-head and camshaft-guide-frame tightening
• Engine Lubrication – 5.2L CTPA, CTYA – lubrication fasteners; oil pump; mounting plate; upper engine oil cooler
• Cooling and Fuel Supply – 5.2L CTPA, CTYA – component tightening specifications
• Exhaust System, Emission Controls – 5.2L CTPA, CTYA – exhaust-system and manifold tightening data
• Multiport Fuel Injection and Ignition – 5.2L CTPA, CTYA – technical data; intake manifolds; ignition specifications
• Manual/Automatic Transmission – 086 R Tronic – identification; code letters and allocations; clutch; controls and housing; rear final drive and differential
• Manual/Automatic Transmission – 0BZA S TRONIC – transmission and front final-drive identification; engine allocation; clutch; controls and housing; gears and shafts; mechatronic; oil pan; parking lock; differential
• Suspension, Wheels, Steering – front and rear suspension; wheel alignment; AWD specified values; steering
• Brake System – front and rear wheel brake data; parking brake; ABS; mechanical and hydraulic components
• Body – front, center and rear gap dimensions; body exterior; doors; bumpers; spoiler; mirrors; trim; convertible top; body interior; passenger protection; seat frames
• Heating, Ventilation and Air Conditioning – refrigerant oil distribution; R134a vapor-pressure table; A/C tightening data
• Electrical System – communication equipment; battery, starter and generator; instruments; wiper/washer; exterior and interior lights; wiring; fuse and connector stations
• DTC Chart – Engine Codes CTPA, CTYA – fuel and air mixture; emissions; ignition; speed and idle; control modules; transmission; fuel and air ratios
• DTC Chart – Engine Code CNDA – fuel and air mixture; ignition; emissions; speed and idle; control modules; transmission; fuel and air ratios

Together, these chapters make the book a fast shop reference for confirming measurements, tightening sequences, service limits, identification information and diagnostic thresholds across the R8 and R8 Spyder. The DTC sections are particularly extensive, listing codes alongside error messages and malfunction criteria or threshold values for the covered engine codes.

Chassis, Brakes, Body and Electrical Coverage

The reference extends well beyond the engine bay. Chassis pages include double-wishbone suspension data, wheelbase and track figures, steering information and alignment values for coupe and Spyder applications. Brake sections give front, rear and parking-brake technical data, including disc dimensions, wear limits, pad measurements and fastener specifications. Body pages include illustrated front, center and rear air-gap dimensions plus tightening data for exterior panels, doors, bumpers, the rear spoiler, mirrors, interior trim, seats and the Spyder convertible-top mechanism.

HVAC coverage includes refrigerant oil distribution and an R134a vapor-pressure table, while the electrical section gathers tightening values for communication equipment, battery and starter connections, instruments, lighting, wiper/washer components, wiring, fuse panels and connector stations. This breadth makes the 2014 Audi R8 and R8 Spyder Quick Reference Specification Book PDF useful as a companion during inspection, diagnosis, disassembly and reassembly where exact reference values are required.

Important Scope Note

This is a quick-reference specification book rather than a complete step-by-step workshop manual. Many pages are built around technical data, fastener values, tightening order diagrams and diagnostic thresholds, and some entries direct the technician to ElsaWeb, Maintenance Procedures or the Parts Catalog for additional procedure or allocation detail.

Get the R8/Spyder Specifications Ready for the Job
