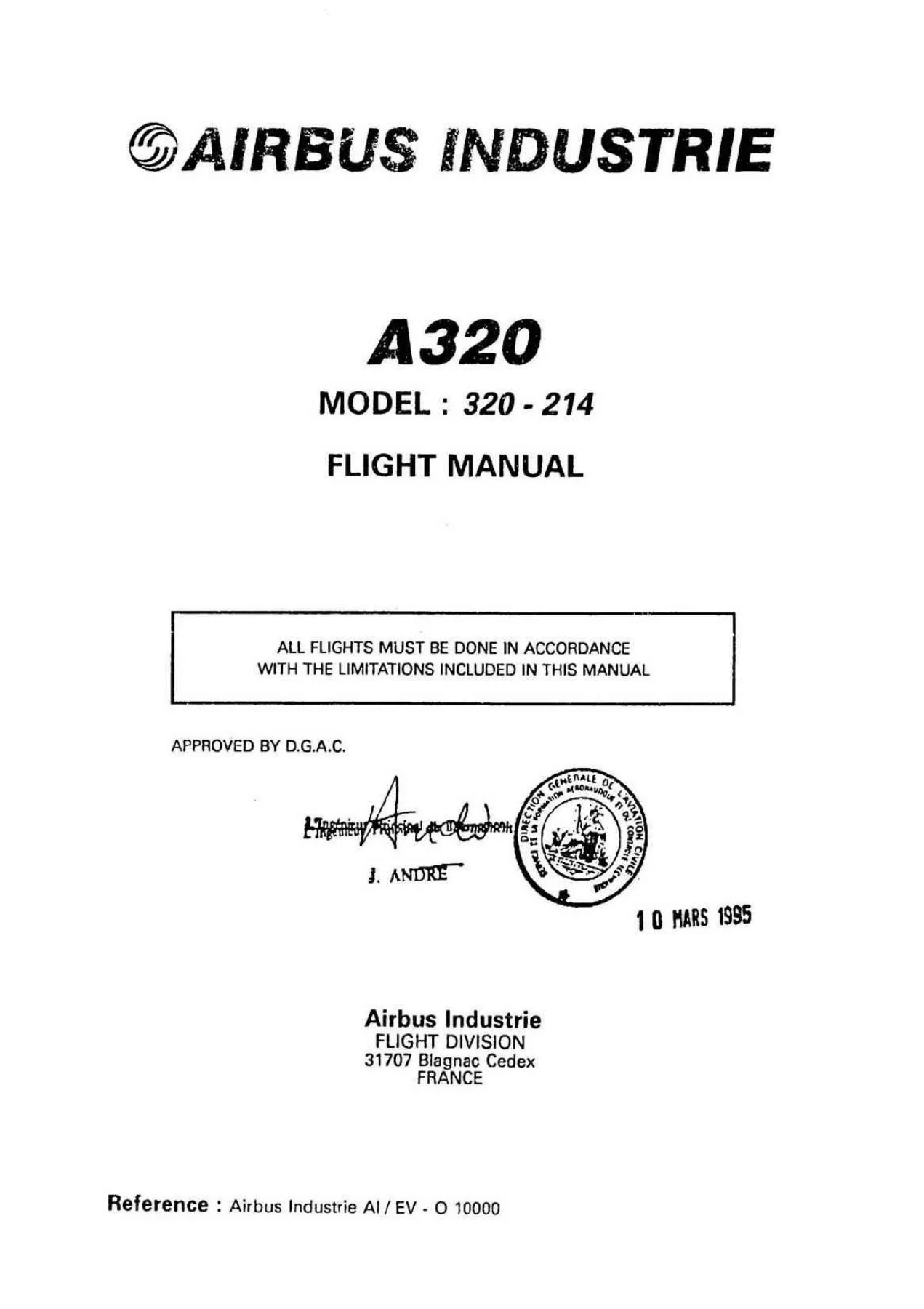

Airbus A320-214 Airplane Flight Manual (AFM) – EASA Approved
This is the complete Airbus A320-214 Airplane Flight Manual (AFM), approved by the European Aviation Safety Agency (EASA) and issued at Revision 24, dated 06 January 2015. It is the aircraft-level flight manual for the VJC A320-214 fleet, covering a defined list of airframes by manufacturer serial number and engine fit. Every chapter is present in a single PDF – Limitations, Emergency Procedures, Abnormal Procedures, Normal Procedures, Performance, Appendices and Supplements, the Master Configuration Deviation List, and the Contaminated Runway Supplementary Performance chapter – all of it readable on any device and printable for the flight deck, the training room, or the maintenance office.
File Details
- Manual type: Airplane Flight Manual (AFM)
- Manufacturer: Airbus
- Model: A320-214
- Fleet: VJC A320-214 FLEET
- Approval: EASA approved (originally DGAC approved, 10 March 1995)
- Approval reference: 10047319
- Revision: 24
- Issue date: 06 JAN 15
- Language: English
- Format: PDF
- Length: 706 pages
Chapters Covered
- Approval Data – Approval Reference, Temporary Revisions
- General – Introduction, AFM Description, Wording Definitions, Abbreviations, Units, 3-View Drawing
- Limitations – General, Weights and Loading, Airspeeds, Operational Parameters, Towing and Taxiing, Air Conditioning / Pressurisation / Ventilation, Auto Flight System, Electrical Power, Equipment Furnishing, Fuel, Hydraulic, Landing Gear, Navigation, Cabin System, Information Systems, Auxiliary Power Unit, Power Plant
- Emergency Procedures – General, Air Conditioning / Pressurisation / Ventilation, Electrical Power, Fire / Smoke, Flight Controls, Hydraulic, Landing Gear, Navigation, Power Plant, Miscellaneous
- Abnormal Procedures – General, One Engine Inoperative (Takeoff and Approach and Landing), Air Conditioning / Pressurisation / Ventilation, Auto Flight System including CAT II, CAT III with DH and CAT III without DH failure cases, Electrical Power, Flight Controls, Fuel, Hydraulic, Ice and Rain Protection, Indicating / Recording System, Landing Gear, Navigation, Pneumatic, Doors, Power Plant, Miscellaneous
- Normal Procedures – General, Preflight Checks, Takeoff, Flight, Approach and Landing, Auto Flight System, Fuel, Ice and Rain Protection, Indicating / Recording System, Navigation, Auxiliary Power Unit
- Performance – General, Airspeed and Altitude Calibration, Takeoff Performance, In-Flight Performance, Landing Performance, Performance Database, Engine Management, Reduced Thrust Takeoff
- Appendices and Supplements – External Noise, Traffic Alert and Collision Avoidance System, Dispatch with Inoperative Items, Flight with Landing Gear Down, Engine Intermix, Tailwind Operation, TAWS-GPWS, Narrow Runway, Operations on Wet Grooved / PFC Runways
- Master Configuration Deviation List (MCDL) – General, Limitations, Performance Determination Method, plus item-by-item dispatch conditions from ATA 21 through ATA 78
- Supplementary Performance – Contaminated Runway (General, Limitations, Performance)
The A320-214 AFM is not a training summary or a fleet-wide textbook. It is the specific certified flight manual for this aircraft model and configuration, structured so that a qualified crew or engineer can go straight to the authorised procedure, limit or performance figure and apply it. Each chapter follows the same documentary-unit logic: an identification strip with criteria, then the approved text, table or diagram. The Limitations chapter anchors the whole document with the weight variants, CG envelopes, VMO/MMO, VA, VFE, VLO and VLE/ML figures, environmental envelope, tailwind and runway slope limits, hydraulics, fuel temperature limits, APU parameters and power plant data that every other chapter assumes.
What the A320-214 AFM Covers in Practice
The Emergency Procedures chapter opens with general landing-distance determination guidance for in-flight failures and fire/smoke doctrine, then walks through the specific emergency cases: cabin pressure excess, emergency electrical configuration, engine and APU fire, forward and aft cargo smoke, avionics smoke and smoke removal, elevator faults, flap lever position, green and blue and yellow hydraulic system low pressure, gear not downlocked, loss of braking, abnormal V Alpha Prot, ADR faults, dual engine flame-out, engine oil low pressure, stall recovery, emergency descent, evacuation, ditching and forced landing.
The Abnormal Procedures chapter is the largest block in the manual and covers the failures that are serious but not emergencies: pack faults, cabin pressure system faults, safety valve and hot air and skin valve faults, flight control unit faults, rudder travel limit system, FAC and yaw damper faults, the complete CAT II, CAT III with DH and CAT III without DH failure matrices, AC and DC bus and essential bus faults, DC emergency configuration, flap and slat faults and locks, spoiler and speedbrake faults, rudder jam, elevator faults, ELAC and SEC faults, FCDC faults, stabiliser jam, alternate and direct law, fuel pump and wing tank low level faults, fuel gravity feeding, fuel imbalance and fuel leak, hydraulic system and reservoir faults, ice and rain protection failures, FWC and SDAC faults, display unit failure, landing gear and brake faults, RA and IR and ADR faults, unreliable airspeed, pneumatic bleed faults, door faults and the full power plant abnormal set.
Performance, Appendices and the MCDL
Performance is built around the Airspeed and Altitude Calibration data, Takeoff Performance, In-Flight Performance, Landing Performance, the Performance Database references, Engine Management and Reduced Thrust Takeoff. Takeoff and landing speeds and distances are defined, the approach climb and landing climb requirements are given, autoland landing distance increments are tabulated by weight and headwind, and the database revision and aircraft database references are listed so the operator can confirm which approved FM module revision matches the airframe.
Appendices and Supplements extend the manual beyond the base aircraft: external noise certification data, TCAS general and procedures, dispatch with inoperative items, flight with landing gear down (general, limitations, emergency, abnormal, normal and performance), engine intermix (general, limitations, abnormal, normal), tailwind operation (general, limitations, normal), TAWS-GPWS (general, limitations, normal), narrow runway operations and operations on wet grooved or PFC runways. The Master Configuration Deviation List then provides the item-by-item dispatch conditions for missing secondary airframe and engine parts, together with the associated performance penalties or AFM_OCTO database input requirements. Supplementary Performance closes the manual with the contaminated runway takeoff and landing data set.
Complete PDF Bookmark Tree
Complete Bookmarks
The complete bookmarks in the βAirbus A320-214 Airplane Flight Manual (AFM) – EASA Approved PDFβ are as follows:
+Front Matterp. 1
Heading Approbationp. 1
Transmittal Letterp. 3
Filing Instructionsp. 5
+Preliminary Pagesp. 7
Table of Contentsp. 9
List of Effective Sections/Subsectionsp. 11
List of Effective Documentary Unitsp. 17
List of Effective Temporary Revisionsp. 95
List of Modificationsp. 99
+APPROVAL DATAp. 109
+Preliminary Pagesp. 109
Table of Contentsp. 111
Summary of Highlightsp. 113
+APPROVAL REFERENCEp. 115
Approval Reference A320-214p. 115
+TEMPORARY REVISIONSp. 117
TAWS Database Compliance Statementp. 117
PERFORMANCE – A320-214 Octopus Databasep. 118
FMS – FAA AC 90-105 Compliancep. 119
Erroneous RA Height Indicationp. 120
Unreliable Airspeedp. 121
(TR 4.02.00/41) – ENG Compressor vane/ENG STALL on groundp. 122
(TR 2.05.00/47) – Non Precision Approaches withOEIp. 123
Landing Distance Determination in case of In-Flight Failurep. 124
Autoland Databases with Honeywell ADIRUp. 125
DISPLAY UNIT FAILUREp. 126
Introduction of center tank jet pumps on A320 aircraftp. 127
MCDL Performance databasep. 128
Update of MCDL 52-02, 52-03, 52-04, -52-05p. 129
Update of MCDL 52-01p. 130
Update of MCDL 52-20p. 131
WING A.ICE – SYS FAULT or OFF – Correction of Minimum Speedsp. 133
MCDL 54-05 Pylon Fairing Sealp. 134
MCDL 57-05 Vortex Generatorp. 135
Abnormal V Alpha Protp. 136
+GENERALp. 137
+Preliminary Pagesp. 137
+INTRODUCTIONp. 141
+AFM DESCRIPTIONp. 143
Approved AFM Formatp. 143
Customized AFMp. 143
Organization of the Manualp. 143
Documentary Unit (DU)p. 144
Identification Stripp. 144
AFM Revisionp. 144
Temporary Revision (TR)p. 145
+WORDING DEFINITIONSp. 147
Warning Definitionp. 147
Caution Definitionp. 147
Note Definitionp. 147
LAND ASAP Definitionp. 147
+ABBREVIATIONSp. 149
+UNITSp. 159
Correspondence Between Unitsp. 159

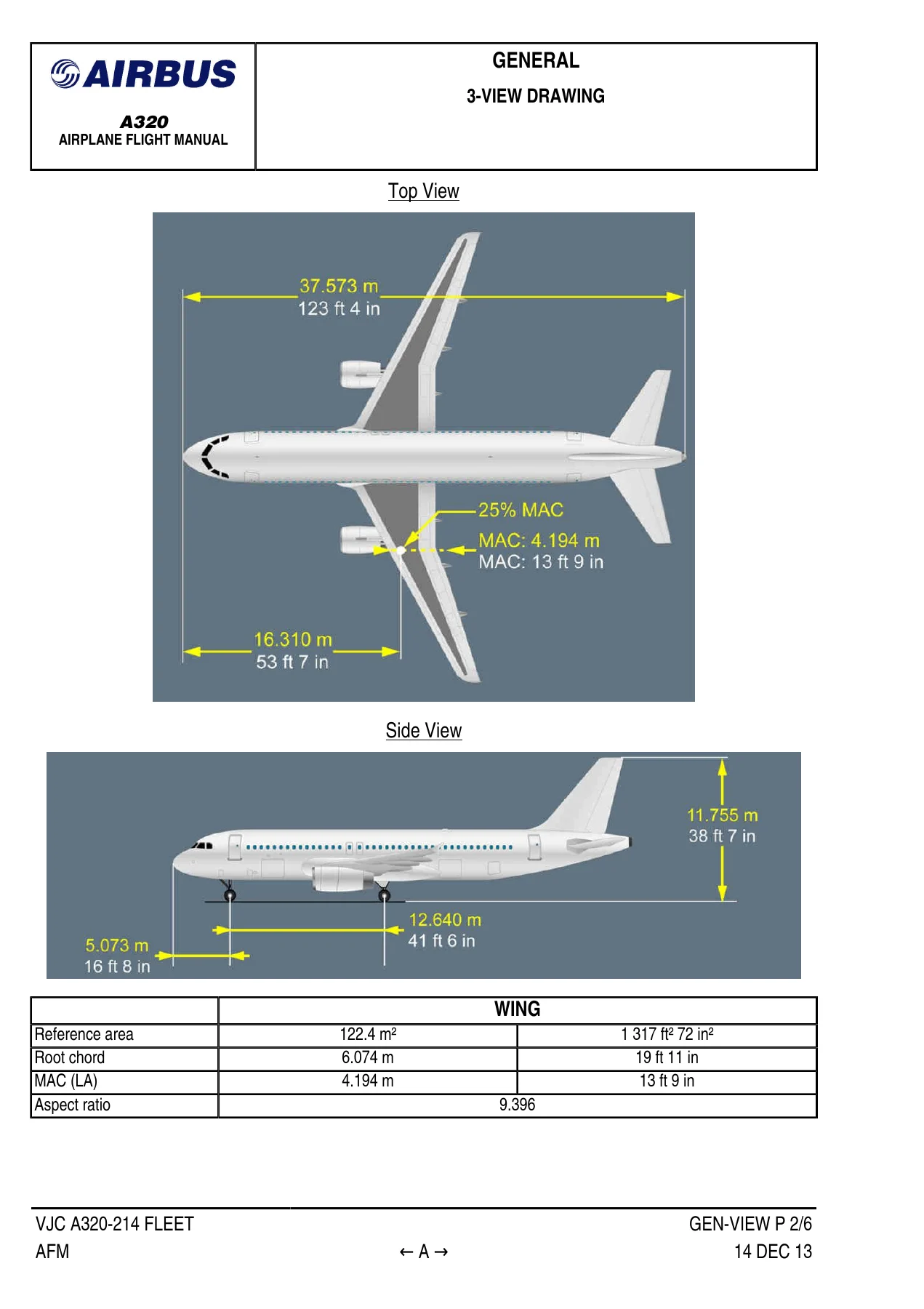

+3-VIEW DRAWINGp. 161
+LIMITATIONSp. 167
+Preliminary Pagesp. 167
+GENERALp. 173
Introductionp. 173
Kind of Operationsp. 173
Minimum Flight Crewp. 173
Maximum Operating Altitudep. 173
Maneuver Limit Load Factorsp. 173
Icing Conditions Definitionp. 174
+WEIGHTS AND LOADINGp. 175
Weight Limitationsp. 175

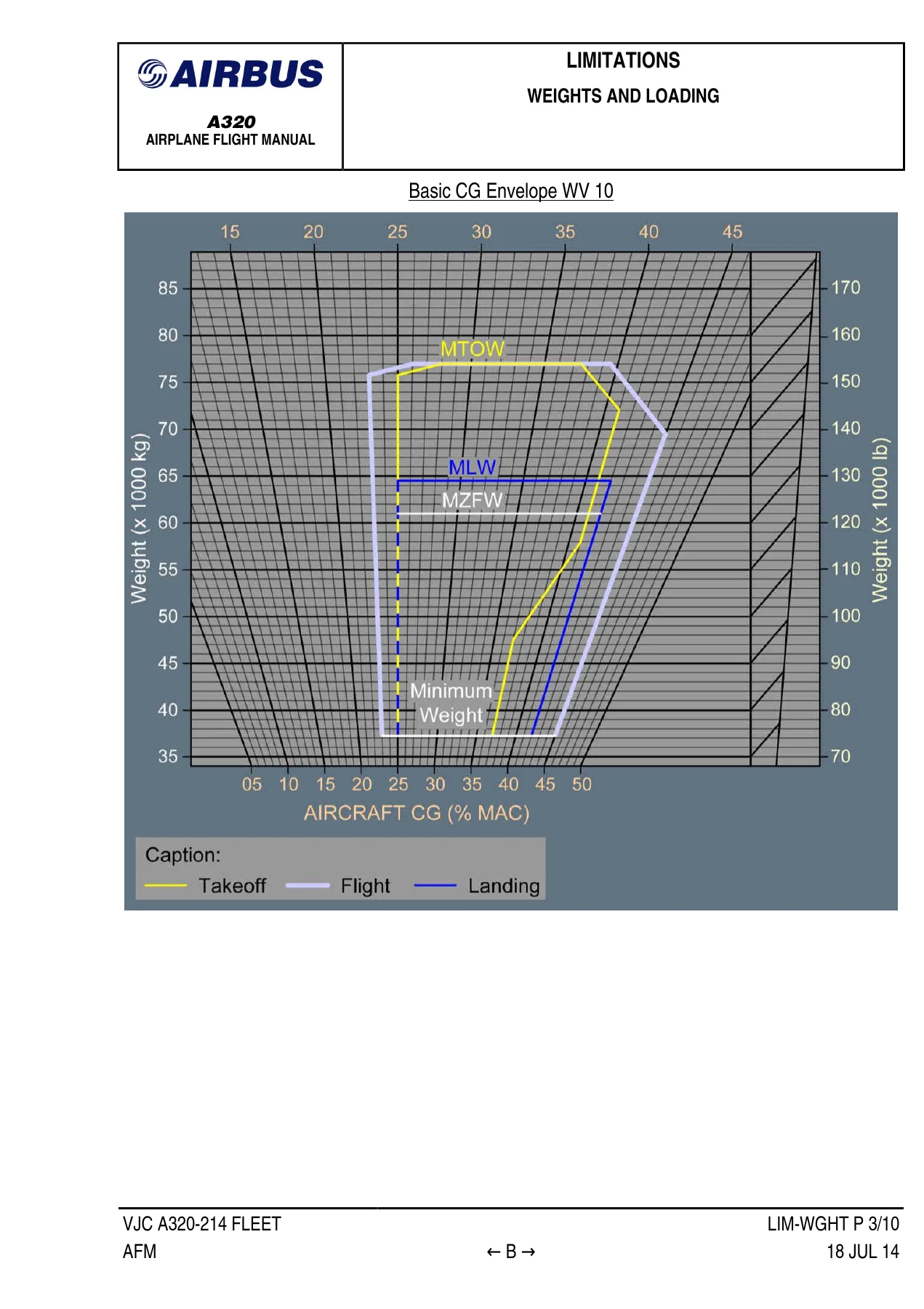

Center of Gravity Envelopep. 176
Performance Limitationsp. 183
Loadingp. 183
Landing Gear Limitationp. 183
+AIRSPEEDSp. 185
VMO/MMOp. 185
VAp. 185
VFEp. 186
VLO and VLE/MLEp. 186
+OPERATIONAL PARAMETERSp. 187
Environmental Envelopep. 187
Tailwindp. 187
Runway Slopep. 188
+09 TOWING AND TAXIINGp. 189
Maneuvers on Groundp. 189
Towbarless Operationsp. 189
+21 AIR COND/PRESS/VENTp. 191
Cabin Pressurizationp. 191
+22 AUTO FLIGHT SYSTEMp. 193
+Flight Management Systemp. 193
Generalp. 193
Airworthiness Standards Compliancep. 193
Airworthiness Standards Compliancep. 194
Navigation Performancep. 195
Use of NAV Modep. 195
Non Precision Approaches with OEIp. 196
Approachesp. 196
+Flight Guidance Systemp. 197
Airworthiness Standards Compliancep. 197
Autoland Databases with Honeywell ADIRUp. 197
Autolandp. 198
AUTOLAND with OEIp. 198
Minimum Height for Use of the Autopilotp. 198
CAT II / CAT III Operationsp. 199
+24 ELECTRICAL POWERp. 203
+25 EQUIPMENT FURNISHINGp. 205
In-Seat Power Supply System (ISPSS)p. 205
+28 FUELp. 207
Fuel and Additive Specificationsp. 207
Usable Fuelp. 207
Fuel Imbalancep. 208
Fuel Temperature Limitsp. 210
+29 HYDRAULICp. 213
+32 LANDING GEARp. 215
+34 NAVIGATIONp. 217
Inertial Reference System (IRS)p. 217
Reduced Vertical Separation Minimum (RVSM)p. 217
Mode S – EHS Enhanced Surveillancep. 217
Mode S – ADS-B Out Enhanced Surveillancep. 218
+44 CABIN SYSTEMp. 219
GSM on Board Systemp. 219
+46 INFORMATION SYSTEMSp. 221
Airline Operation Control Applicationsp. 221
+49 AUXILIARY POWER UNITp. 223
Auxiliary Power Unit (APU)p. 223
+70 POWER PLANTp. 225
Main Enginesp. 225
Engine Parametersp. 225
Reverse Thrustp. 225
Oilp. 225
Reduced Thrust Takeoffp. 226
Operations in Icing Conditionsp. 226
+EMERGENCY PROCEDURESp. 227
+Preliminary Pagesp. 227
Table of Contentsp. 229
Summary of Highlightsp. 231
+GENERALp. 233
INTRODUCTIONp. 233
LANDING DISTANCE DETERMINATION IN CASE OF IN-FLIGHT FAILUREp. 233
LANDING DISTANCE DETERMINATION IN CASE OF IN-FLIGHT FAILUREp. 234
FIRE/SMOKEp. 235
+21 AIR COND/PRESS/VENTp. 237
CAB PR – EXCESS CAB ALTp. 237
CAB PR – EXCESS RESIDUAL PRp. 237
+24 ELECTRICAL POWERp. 239
ELEC – EMER CONFIG (BOTH ENGINE GENERATORS FAILED)p. 239
+26 FIRE/SMOKEp. 241
ENG 1 (2) FIRE (In Flight)p. 241
ENG 1 (2) FIRE (On Ground)p. 241
APU FIREp. 242
SMOKE – FWD or AFT CARGO SMOKEp. 242
SMOKE/FUMES/AVNCS SMOKEp. 243
REMOVAL OF SMOKE/FUMESp. 245
+27 FLIGHT CONTROLSp. 247
F/CTL – L + R ELEV FAULTp. 247
F/CTL – FLAP LVR NOT ZEROp. 247
+29 HYDRAULICp. 249
HYD – G + B SYS LO PRp. 249
HYD – B + Y SYS LO PRp. 250
HYD – G + Y SYS LO PRp. 251
+32 LANDING GEARp. 253
L/G – GEAR NOT DOWNLOCKEDp. 253
LOSS OF BRAKINGp. 253
+34 NAVIGATIONp. 255
Abnormal V Alpha Protp. 255
NAV – ADR 1+2+3 FAULTp. 256
+70 POWER PLANTp. 257
DUAL ENG FAILURE (BOTH ENGINES FLAME OUT)p. 257
ENG – 1(2) OIL LO PRp. 258
+90 MISCELLANEOUSp. 259
STALL RECOVERYp. 259
EMER DESCENTp. 259
EMERGENCY EVACUATIONp. 260
DITCHINGp. 261
FORCED LANDINGp. 262
+ABNORMAL PROCEDURESp. 265
+Preliminary Pagesp. 265
+GENERALp. 273
INTRODUCTIONp. 273
LANDING DISTANCE DETERMINATION IN CASE OF IN-FLIGHT FAILUREp. 273
LANDING DISTANCE DETERMINATION IN CASE OF IN-FLIGHT FAILUREp. 274
+ONE ENGINE INOPERATIVEp. 277
+TO TAKEOFFp. 277
ENGINE FAILURE BEFORE V1 (REJECTED TAKEOFF)p. 277
ENGINE FAILURE BETWEEN V1 AND V2p. 278
ENGINE FAILURE DURING INITIAL CLIMB OUTp. 279
+LDG APPROACH AND LANDINGp. 281
APPROACH AND LANDINGp. 281
MISSED APPROACH (FROM INTERMEDIATE APPROACH CONFIGURATION)p. 281
BALKED LANDINGp. 282
+21 AIR COND/PRESS/VENTp. 283
AIR – PACK 1 + 2 FAULTp. 283
CAB PR – SYS 1 + 2 FAULTp. 283
CAB PR – SAFETY VALVE OPENp. 283
COND – HOT AIR FAULTp. 284
VENT – SKIN VALVE FAULTp. 284
+22 AUTO FLIGHT SYSTEMp. 285
+AUTO FLIGHT SYSTEMp. 285
AUTO FLT – FCU 1(2) FAULTp. 285
AUTO FLT – RUD TRV LIM SYSp. 285
AUTO FLT – FAC 1+2 FAULTp. 285
AUTO FLT – YAW DAMPER SYSp. 285
+22-CATII FAILURES OR WARNINGS DURING A CAT II APPROACH WITH OR WITHOUT AUTOMATIC LANDINGp. 287
Multiple Failures or Warnings (CAT II)p. 287
Altitude Loss with Autopilot Malfunction (CAT II)p. 287
Failure Leading to Slats/Flaps less than FLAPS 3 (CAT II)p. 287
Antiskid System and/or Nosewheel Steering Failure(CAT II)p. 287
Alpha Floor Activation (CAT II)p. 288
One Engine Failure (CAT II)p. 288
Red "RA" Flag on two PFDs (CAT II)p. 289
Amber "CHECK ATT" Flag on two PFDs (CAT II)p. 289
Red "ATT" Flag on one PFD (CAT II)p. 290
Diagonal Line or "INVALID DATA" on one PFD and one ND (CATII)p. 290
Amber "CHECK HDG" Flag on two PFDs and on two NDs (CAT II)p. 291
Red "HDG" Flag on one PFD and one ND (CAT II)p. 292
Red "SPD" Flag on one PFD (CAT II)p. 292
"AP OFF" Warning (CAT II)p. 293
Loss of "CAT 2" Capability (CAT II)p. 293
LOC or G/S Excessive Deviation on PFD (CAT II)p. 294
"AUTOLAND" Light (CAT II)p. 294
A/THR Fault (CAT II)p. 294
No "LAND" at 350 ft (CAT II)p. 295
Incorrect Selected Course at 350 ft > 5 deg (CAT II)p. 295
No "FLARE" at 30 ft (CAT II)p. 295
+22-CATIIIDH FAILURES OR WARNINGS DURING A CAT III APPROACH WITH DHp. 297
Multiples Failures or Warnings (CAT III with DH)p. 297
Failure Leading to Slats/Flaps less than CONF 3 (CAT III withDH)p. 297
Nosewheel Steering Failure (CAT III with DH)p. 297
Antiskid Failure (CAT III with DH)p. 298
Alpha Floor Activation (CAT III with DH)p. 298
One Engine Failure (CAT III with DH)p. 299
Auto Callout RA Failure (CAT III with DH)p. 299
Red "RA" Flag on two PFDs (CAT III with DH)p. 300
Amber "CHECK ATT" Flag on two PFDs (CAT III with DH)p. 301
Red "ATT" Flag on one PFD (CAT III with DH)p. 302
Amber "CHECK HDG" Flag on two PFDs and two NDs (CAT III withDH)p. 303
Red "HDG" Flag on one PFD and one ND (CAT III with DH)p. 304
Red "SPD" Flag on one PFD (CAT III with DH)p. 305
"AP OFF" Warning (CAT III with DH)p. 306
Capability Decrease (Except if due to A/THR Loss) (CAT IIIwith DH)p. 306
Total Loss of A/THR ("CAT 3" Decreases to "CAT 2") (CAT IIIwith DH)p. 307
LOC or G/S Excessive Deviation on PFD (CAT III with DH)p. 307
"AUTOLAND" Light (CAT III with DH)p. 308
No "LAND" at 350 ft (CAT III with DH)p. 308
Incorrect Selected Course at 350 ft > 5 deg (CAT III withDH)p. 308
No "FLARE" at 30 ft (CAT III with DH)p. 308
+22-CATIIInoDH FAILURES OR WARNINGS DURING A CAT III APPROACH WITH NO DHp. 309
Multiple Failures or Warnings (CAT III no DH)p. 309
Failure Leading to Slats/Flaps less than CONF 3 (CAT III noDH)p. 309
Nosewheel Steering Failure (CAT III no DH)p. 309
Antiskid Failure (CAT III no DH)p. 310
Alpha Floor Activation (CAT III no DH)p. 310
One Engine Failure (CAT III no DH)p. 311
Auto Callout RA Failure (CAT III no DH)p. 311
Red "RA" Flag on two PFDs (CAT III no DH)p. 311
Amber "CHECK ATT" Flag on two PFDs (CAT III no DH)p. 312
Red "ATT" Flag on one PFD (CAT III no DH)p. 313
Amber "CHECK HDG" Flag on two PFDs and two NDs (CAT III noDH)p. 314
Red "HDG" Flag on one PFD and one ND (CAT III no DH)p. 315
Red "SPD" Flag on one PFD (CAT III no DH)p. 316
"AP OFF" Warnings (CAT III no DH)p. 316
Capability Decrease (Except if due to A/THR Loss)(CAT III no DH)p. 317
Total Loss of A/THR ("CAT 3" Decreases to "CAT 2") (CAT IIIno DH)p. 317
LOC or G/S Excessive Deviation on PFD (CAT III no DH)p. 318
"AUTOLAND" Light (CAT III no DH)p. 318
No "LAND" at 350 ft (CAT III no DH)p. 318
Incorrect Selected Course at 350 ft > 5 deg (CAT III noDH)p. 318
No "FLARE" at 30 ft (CAT III no DH)p. 319
+24 ELECTRICAL POWERp. 321
ELEC – AC ESS BUS FAULTp. 321
ELEC – AC BUS 1 FAULTp. 321
ELEC – AC BUS 2 FAULTp. 321
ELEC – DC ESS BUS FAULTp. 322
ELEC – DC BUS 1 FAULTp. 322
ELEC – DC BUS 2 FAULTp. 323
ELEC – DC EMER CONFIGp. 323
ELEC – DC BUS 1 + 2 FAULTp. 323
ELEC – DC ESS BUS SHEDp. 324
+27 FLIGHT CONTROLSp. 325
F/CTL – FLAPS FAULTp. 325
F/CTL – FLAPS LOCKEDp. 325
F/CTL – SLATS FAULTp. 326
F/CTL – SLATS LOCKEDp. 326
APPROACH SPEED INCREMENT AND LANDING DISTANCE MULTIPLICATIONFACTORp. 327
PERFORMANCE LIMITATION FOR LANDING IN CLEAN CONFIGURATIONp. 328
F/CTL – SPLR FAULTp. 329
F/CTL – GND SPLR FAULTp. 329
F/CTL – SPD BRK DISAGREEp. 329
F/CTL – SPD BRK FAULTp. 329
F/CTL – RUDDER JAMp. 330
F/CTL – STOP RUDDER INPUTp. 330
F/CTL – L (R) ELEV FAULTp. 330
F/CTL – ELAC 1(2) FAULTp. 331
F/CTL – SEC FAULTp. 331
F/CTL – FCDC 1 + 2 FAULTp. 332
F/CTL – STABILIZER JAMp. 332
F/CTL – ATLN LAW (PROT LOST)p. 332
F/CTL – ALTN LAW (PROT LOST)p. 333
F/CTL – DIRECT LAW (PROT LOST)p. 333
+28 FUELp. 335
FUEL – L(R) TK PUMP 1+2 LO PRp. 335
FUEL – L(R) TK PUMP 1+2 LO PRp. 335
FUEL – L(R) WING TK LO LVLp. 336
FUEL – L+R WING TK LO LVLp. 336
FUEL – CTR TK PUMPS LO PRp. 336
FUEL GRAVITY FEEDINGp. 337
FUEL – L INNER (R INNER) (L OUTER) (R OUTER) TK HI TEMPp. 338
FUEL IMBALANCEp. 338
FUEL IMBALANCEp. 339
FUEL LEAKp. 340
FUEL LEAKp. 342
+29 HYDRAULICp. 345
HYD – G SYS LO PRp. 345
HYD – Y SYS LO PRp. 345
HYD – B SYS LO PRp. 345
HYD – RSVR LO AIR PRp. 346
HYD – RSVR OVHTp. 346
HYD – RSVR LO LVLp. 347
+30 ICE AND RAIN PROTECTIONp. 349
ANTI ICE – CAPT (F/O) PROBES HEAT FAULTp. 349
DOUBLE AOA HEAT FAILUREp. 349
WING A.ICE – SYS FAULT or OFFp. 349
WING A.ICE – SYS FAULT or OFFp. 350
ANTI ICE – CAPT + F/O (CAPT + STBY) (F/O + STBY) PITOT HEATFAULTp. 350
ANTI ICE – ALL PITOT HEAT FAULTp. 351
+31 INDICATING/RECORDING SYSTEMp. 353
FWS – FWC 1 + 2 FAULTp. 353
FWS – SDAC 1 + 2 FAULTp. 353
DISPLAY UNIT FAILUREp. 354
DISPLAY UNIT FAILUREp. 356
+32 LANDING GEARp. 359
L/G GRAVITY EXTENSIONp. 359
L/G – GEAR NOT UPLOCKEDp. 359
L/G – GEAR UPLOCK FAULTp. 359
L/G – SHOCK ABSORBER FAULTp. 359
L/G – DOORS NOT CLOSEDp. 360
BRAKES – A-SKID N-WS FAULT or OFFp. 360
BRAKES – HOTp. 360
AUTOBRAKEp. 361
BRAKES – NORM BRK FAULTp. 361
BRAKES – NORM + ALTN FAULTp. 361
BRAKES – RELEASEDp. 361
+34 NAVIGATIONp. 363
Erroneous RA Height Indicationp. 363
NAV – RA 1+2 FAULTp. 363
NAV – IR 1+2 (1+3) (2+3) FAULTp. 363
NAV IR DISAGREEp. 364
NAV – ADR 1+2 FAULTp. 364
NAV – ADR 1+3 FAULTp. 364
NAV – ADR 2+3 FAULTp. 365
ADR 1+2+3 FAULTp. 365
NAV ADR DISAGREEp. 366
UNRELIABLE AIRSPEED INDICATIONp. 367
UNRELIABLE AIRSPEED INDICATIONp. 369
+36 PNEUMATICp. 371
AIR – ENG 1(2) BLEED HI TEMPp. 371
AIR – ENG 1(2) BLEED FAULTp. 371
AIR – ENG 1(2) BLEED ABNORM PRp. 371
AIR – X BLEED FAULTp. 372
AIR – L (R) WING LEAKp. 372
AIR – ENG 1(2) BLEED LEAKp. 372
AIR – ENG 1(2) BLEED LO TEMPp. 373
AIR – ENG 1 + 2 BLEED LO TEMPp. 373
+52 DOORSp. 375
DOOR – DOOR NOT CLOSEDp. 375
+70 POWER PLANTp. 377
ENG COMPRESSOR VANE/ENG STALL on groundp. 377
ENG – FAILp. 377
ENG – SHUTDOWNp. 378
ENG – REV PRESSURIZEDp. 378
ENG – REVERSE UNLOCKEDp. 379
ENG – REVERSER FAULTp. 379
ENG – THR LEVER FAULTp. 380
ENG – THR LEVER DISAGREEp. 380
ENG – OIL HI TEMPp. 380
ENG – FADEC FAULTp. 380
ENG – FADEC HI TEMP (FADEC OVHT)p. 381
ENG – N1 (N2) (EGT) OVERLIMITp. 381
ENG RELIGHT IN FLIGHTp. 382
+90 MISCELLANEOUSp. 387
BOMB ON BOARDp. 387
OVERWEIGHT LANDINGp. 388
REJECTED TAKEOFF WITH ALL ENGINES OPERATIVEp. 389
+NORMAL PROCEDURESp. 391
+Preliminary Pagesp. 391
+GENERALp. 395
+PREFLIGHT CHECKSp. 397
Electricalp. 397
Cockpit Doorp. 397
Braking EfficiencyTestp. 397
+TAKEOFFp. 399
+FLIGHTp. 401
Buffet Onsetp. 401
Flight in SevereTurbulencep. 403
+APPROACH AND LANDINGp. 407
Normal Landingp. 407
Balked Landing (AllEngines Operating)p. 407
Reverse Thrustp. 407
Autobrakep. 407
+22 AUTO FLIGHT SYSTEMp. 409
+22-CONF Demonstrated System Configurationp. 409
AP/FD, Speed modes,Autothrustp. 409
Takeoffp. 409
Climb, Cruise, Descentp. 409
Non Precision Approachp. 409
CAT I ILS Approachp. 409
CAT II ILS Approachp. 410
CAT II/III ILS Approachand Automatic Approachp. 410
Precision ApproachRadar (PAR)p. 410
Go-aroundp. 410
+22-NPA Non Precision Approachp. 411
Generalp. 411
Instrument Approach Using NAV Modep. 411
+22-PA Precision Approachp. 413
CAT II and CAT IIIApproach and/or Automatic Landingp. 413
Required Equipmentfor CAT II and CAT III Approach and Landingp. 414
+28 FUELp. 417
+30 ICE AND RAIN PROTECTIONp. 419
Operations in IcingConditionsp. 419
Rain Repellent (IfActivated)p. 419
+31 INDICATING/RECORDING SYSTEMp. 421
+34 NAVIGATIONp. 423
Ground ProximityWarning System (GPWS)p. 423
Inertial ReferenceSystem (IRS)p. 423
Reduced VerticalSeparation Minimum (RVSM)p. 423
Windshear Warningand Guidance Systemp. 424
Integrated Standby Instrument System (ISIS)p. 424
+49 AUXILIARY POWER UNITp. 425
Auxiliary PowerUnit (APU)p. 425
+PERFORMANCEp. 427
+Preliminary Pagesp. 427
+GENERALp. 431
Introductionp. 431
Aircraft Configurationp. 432
Maximum Demonstrated Crosswind at Takeoff and Landingp. 432
+AIRSPEED AND ALTITUDE CALIBRATIONp. 433
+TAKEOFFp. 433
Speed Corrections in Ground Effectp. 433
Speed Corrections out of Ground Effectp. 434
Altitude Correctionsp. 437
+CRUISE (Clean Configuration)p. 441
Speed and Mach Correctionsp. 441
Altitude Correctionsp. 441
+LANDINGp. 443
Speed Corrections in Ground Effectp. 443
Speed Corrections Out of Ground Effectp. 444
Altitude Correctionsp. 446
+TAKEOFF PERFORMANCEp. 449
Speeds Definitionsp. 449
Distances Definitionsp. 450
Takeoff Performancep. 451
Takeoff Flight Pathp. 452
+IN FLIGHT PERFORMANCEp. 453
In-Flight Performancep. 453
+LANDING PERFORMANCEp. 455
Approach Climb and Landing Climbp. 455
Approach and Landing Speeds Definitionp. 456
Landing Distance Definitionsp. 457
Landing Performancep. 457
Autoland Landing Distance Incrementsp. 458
+PERFORMANCE DATABASEp. 463
Performance Databasep. 463
Performance Databasep. 464
+ENGINE MANAGEMENTp. 465
Takeoff Thrustp. 465
Maximum Continuous Thrustp. 467
Go-Around Thrustp. 468
+REDUCED THRUST TAKEOFFp. 471
Reduced Thrust Takeoffp. 471
+APPENDICES AND SUPPLEMENTSp. 473
+Preliminary Pagesp. 473
+EXTERNAL NOISEp. 477
Generalp. 477
External Noisep. 478
+TRAFFIC ALERT AND COLLISION AVOIDANCE SYSTEMp. 483
Generalp. 483
Proceduresp. 483
+DISPATCH WITH INOPERATIVE ITEMSp. 485
Generalp. 485
Performancep. 485
+FLIGHT WITH LANDING GEAR DOWNp. 487
+GENERALp. 487
+LIMITATIONSp. 489
+EMERGENCY PROCEDURESp. 491
+ABNORMAL PROCEDURESp. 493
F/CTL FLIGHT CONTROLS FAILUREp. 493
+NORMAL PROCEDURESp. 495
+PERFORMANCEp. 497
+APPENDICES AND SUPPLEMENTSp. 499
Appendices and Supplementsp. 499
+ENGINE INTERMIXp. 501
+GENERALp. 501
+LIMITATIONSp. 503
+ABNORMAL PROCEDURESp. 505
ENG RELIGHT IN FLIGHT in case of SAC/DAC intermixp. 505
ENG RELIGHT IN FLIGHT in case of SAC-TI intermixp. 506
+NORMAL PROCEDURESp. 507
+TAILWIND OPERATIONp. 509
Generalp. 509
Limitationsp. 509
Normal Proceduresp. 510
+TAWS-GPWSp. 511
Generalp. 511
Generalp. 511
Limitationsp. 512
Normal Proceduresp. 512
+NARROW RUNWAYp. 515
Generalp. 515
Limitationsp. 515
Proceduresp. 515
Performancep. 516
+OPERATIONS ON WET GROOVED/PFC RUNWAYSp. 517
Generalp. 517
Performancep. 517
+MASTER CONFIGURATION DEVIATION LISTp. 519
+Preliminary Pagesp. 519
Table of Contentsp. 521
Summary of Highlightsp. 529
+GENERALp. 531
+Introductionp. 531
+Limitationsp. 533
+Performancep. 535
Performance Determination Methodp. 535
Performance Penalties published in the Airplane Flight ManualMCDL Chapterp. 535
Performance Penalties calculated with AFM_OCTO Softwarep. 536
Performance Penalties calculated with AFM_OCTO Softwarep. 536
+21 AIR CONDITIONINGp. 537
+21-01 Ram Air Inlet Flapp. 537
Ram Air Inlet Flapp. 537
Illustration Ram Air Inlet Flapp. 538
+21-03 Ram Air Inlet Leading Edgep. 539
Ram Air Inlet Leading Edgep. 539
Illustration Ram Air Inlet Leading Edgep. 540
+23 COMMUNICATIONp. 541
+23-01 Static Dischargerp. 541
Static Dischargerp. 541
Illustration Static Dischargerp. 542
+27 FLIGHT CONTROLp. 545
+27-01 Flap Track Fairingp. 545
Flap Track Fairingp. 545
Illustration Flap track fairingp. 546
+27-03 Slat Track Closing Platep. 547
Slat Track Closing Platep. 547
Illustration Slat track closing platep. 548
+27-05 Access Panel for Bearings at Elevatorp. 549
Access Panel for Bearings at Elevatorp. 549
Illustration Access panel for bearings at elevatorp. 550
+27-06 Flap Track Fairing Rear Top Cover and Tail Conep. 551
Flap Track Fairing Rear Top Cover and Tail Conep. 551
Illustration Flap track fairing rear top cover and tail conep. 552
+27-07 Rubber Seal under Slatp. 553
Rubber Seal under Slatp. 553
Illustration Rubber seal under slatp. 554
+27-08 Seal Between Inboard and Outboard Flapp. 555
Seal Between Inboard and Outboard Flapp. 555
Illustration Seal Between Inboard and Outboard Flapp. 556
+27-09 Inboard Aileron Edge to Wing Sealp. 557
Inboard Aileron Edge to Wing Sealp. 557
Illustration Inboard Aileron to Wing Sealp. 558
+27-10 Slat End Seal and Weather Sealp. 559
Slat End Seal and Weather Sealp. 559
Illustration Slat End Seal and Weather Sealp. 560
+27-11 Slat Track Filler Blockp. 561
Slat Track Filler Blockp. 561
Illustration Slat track filler blockp. 562
+27-12 Slat Track Sealing Packerp. 563
Slat Track Sealing Packerp. 563
Illustration Slat track sealing packerp. 564
+27-13 Inter-flap Cushion Sealp. 565
Inter-flap Cushion Sealp. 565
Illustration Inter-flap cushion sealp. 566
+27-14 Flap Track Moveable Fairing Sealp. 567
Flap Track Moveable Fairing Sealp. 567
Illustration Moveable flap track fairing sealp. 568
+27-15 Flap Track Fixed Fairing Sealp. 569
Flap Track Fixed Fairing sealp. 569
Illustration Fixed flap track fairing sealp. 570
+27-16 Flap Track Moveable Fairing Pivot Coverp. 571
Flap Track Moveable Fairing Pivot Coverp. 571
Illustration Flap Track Moveable Fairing Pivot Coverp. 572
+28 FUELp. 573
+28-01 Refuel/Defuel Coupling Cap 101 QM Or 41 QMp. 573
Refuel/Defuel Coupling Cap 101 QM Or 41 QMp. 573
Illustration Refuel/Defuel Coupling Cap 101 QM or 41 QMp. 574
+28-02 Refuel Panel Door 192MBp. 575
Refuel Panel Doorp. 575
Illustration Refuel Panel Door 192MBp. 576
+30 ICE AND RAIN PROTECTIONp. 577
+30-01 Icing Indicatorp. 577
Icing Indicatorp. 577
Illustration Icing Indicatorp. 578
+32 LANDING GEARp. 579
+32-03 Nose Wheel Hubcapp. 579
Nose Wheel Hubcapp. 579
Illustration Nose Wheel Hubcapp. 580
+32-04 Nose Fitting Towingp. 581
Nose Fitting Towingp. 581
Illustration Nose Fitting Towingp. 582
+33 LIGHTSp. 583
+33-01 Wing/Engine Scan light Cover 3LX, 4LXp. 583
Wing/Engine Scan Light Cover 3LX, 4LXp. 583
Illustration Wing/Engine Scan light Cover 3LX, 4LXp. 584
+33-02 Taxi Light Lamp 8LRp. 585
Taxi Light Lamp 8LRp. 585
Illustration Taxi Light Lamp 8LRp. 586
+33-03 Rear Navigation Light Lens 15LAp. 587
Rear Navigation Light Lens 15LAp. 587
Illustration Rear Navigation Light Lens 15LAp. 588
+33-04 Upper 7LV and Lower 6LV Anti-Collision (Beacon) Light Coverp. 589
Upper 7LV and Lower 6LV Anti-collision (Beacon) Light Coverp. 589
Illustration Upper and Lower Anti-Collision ( Beacon) LightCoverp. 590
+33-05 Logo Light Lens (Cover) 3LY, 4LYp. 591
Logo Light Lens (Cover) 3LY, 4LYp. 591
Illustration Logo Light Lens (Cover) 3LY, 4LYp. 592
+33-07 Landing Light Lens 7LB, 8LBp. 593
Landing Light Lens 7LB, 8LBp. 593
Illustration Landing Light Lens 7LB, 8LBp. 594
+33-08 Turn OFF Light Lamp 3LC1, 3LC2p. 595
Turn OFF Light Lamp 3LC1, 3LC2p. 595
Illustration Turn OFF Light Lamp 3LC1, 3LC2p. 596
+33-09 Takeoff Light Lamp 7LRp. 597
Takeoff light lamp 7LRp. 597
Illustration Takeoff Light Lamp 7LRp. 598
+49 APUp. 599
+49-01 APU Overpressure Release Doorp. 599
APU Overpressure Release Doorp. 599
Illustration APU Overpressure Release Doorp. 600
+51 STRUCTUREp. 601
+51-01 Radome Conductive Stripp. 601
Radome conductive stripp. 601
Illustration Radome Conductive Stripp. 602
+51-02 Passenger Door Scuff Platep. 603
Passenger Door Scuff Platep. 603
Illustration Passenger Door Scuff Platep. 604
+51-03 Bulk Cargo Door Scuff Platep. 605
Bulk Cargo Door Scuff Platep. 605
Illustration Bulk Cargo Door Scuff Platep. 606
+51-04 Fairing Aft Safety Stay Point 311 ALp. 607
Fairing Aft Safety Stay Point 311 ALp. 607
Illustration Fairing Aft Safety Stay Point 311ALp. 608
+52 DOORSp. 609
+52-01 Toilet Servicing and Drainage Doorp. 609
Toilet Servicing and Drainage Doorp. 609
Toilet Servicing And Drainage Door 172 ARp. 609
Illustration Toilet Servicing and Drainage Doorp. 611
+52-02 Access Door to Hydraulic Ground Connectors 197 CB – 197 EB – 198 CBp. 613
Access Door to Hydraulic Ground Connectors 197 CB – 197 EB- 198 CBp. 613
Access Door To Hydraulic Ground Connectors 197 CB – 197 EB- 198 CBp. 613
Illustration Access Door to Hydraulic Ground Connectors 197CB – 197 EB – 198 CBp. 615
+52-03 Access Door to Potable Water Filling and Drainagep. 617
Access Door to Potable Water Filling and Drainagep. 617
Access Door To Potable Water Filling And Drainage 133 AL -171 AL – 192 NBp. 617
Illustration Access Door to Potable Water Filling and Drainagep. 619
+52-04 Access Door to Opening Control of Landing Gear Doors on Ground 195 BB – 196 BBp. 621
Access Door to Opening Control of Landing Gear Doors on Ground195 BB – 196 BBp. 621
Access Door To Opening Control Of Landing Gear Doors On Ground195 BB – 196 BBp. 621
Illustration Access door to opening control of landing geardoors on ground 195 BB – 196 BBp. 623
+52-05 Access Door to Air Conditioning Ground Supply 191 CBp. 625
Access Door to Air Conditioning Ground Supply 191 CBp. 625
Access Door To Air Conditioning Ground Supply 191 CBp. 625
Illustration Access door to air conditionning ground supply191 CBp. 626
+52-07 External Power Ground Connection Access Door Assy 121 ALp. 627
External Power Ground Connection Access Door Assy 121 ALp. 627
Illustration External Power Ground Connection Access Door Assy121 ALp. 628
+52-08 Access Door of Cargo Opening System 134 AR – 154 ARp. 629
Access Door Of Cargo Opening System 134 AR – 154 ARp. 629
Illustration Access Door of Cargo Opening System 134 AR – 154ARp. 630
+52-09 Nose Landing Gear Main Door (713, 714)p. 631
Nose Landing Gear Main Door (713, 714)p. 631
Illustration Nose Landing Gear Main Door (713, 714)p. 632
+52-10 Nose Landing Gear Aft Door (715, 716)p. 633
Nose Landing Gear Aft Door (715, 716)p. 633
Illustration Nose Landing Gear Aft Door (715, 716)p. 634
+52-11 Nose Landing Gear Leg Door (712)p. 635
Nose Landing Gear Leg Door (712)p. 635
Illustration Nose Landing Gear Leg Door (712)p. 636
+52-12 Main Landing Gear Door (732, 742) (flight with gear up)p. 637
Main Landing Gear Door (732, 742) (flight with gear up)p. 637
Illustration Main Landing Gear Door (732, 742)p. 638
+52-13 Main Landing Gear Door (733, 743) (flight with gear up)p. 639
Main Landing Gear Door (733, 743) (flight with gear up)p. 639
Illustration Main Landing Gear Door (733, 743)p. 640
+52-14 Main Landing Gear Door (732, 742) (flight with gear down)p. 641
Main Landing Gear Door (732, 742) (Flight with gear down)p. 641
Illustration Main Landing Gear Door (732, 742)p. 642
+52-15 Main Landing Gear Door (733, 743) (Flight with gear down)p. 643
Main Landing Gear Door (733, 743) (Flight with gear down)p. 643
Illustration Main Landing Gear Door (733, 743)p. 644
+52-16 Main Landing Gear Door (734, 744) (Flight with gear down)p. 645
Main Landing Gear Door (734, 744) (Flight with gear down)p. 645
Illustration Main Landing Gear Door (734, 744)p. 646
+52-18 Main Landing Gear Door : Seal on Secondary Hinged Fairingp. 647
Main Landing Gear Door : Seal On Secondary Hinged Fairingp. 647
Illustration Main Landing Gear Door : Seal on Secondary HingedFairingp. 648
+52-19 Pax Door Upper Cover Platep. 649
Pax Door Upper Cover Platep. 649
Illustration Pax Door Upper Cover Platep. 650
+52-20 Access Door to HP Air Ground Connector 191 DBp. 651
Access Door to HP Air Ground Connector 191 DBp. 651
Access Door To HP Air Ground Connector 191 DBp. 652
Access Door to HP Air Ground Connector 191 DBp. 652
Illustration Access Door to HP Air Ground Connector 191 DBp. 653
+52-21 Blue Hydraulic Access Door 197 FBp. 655
Blue Hydraulic Access Door 197 FBp. 655
Illustration Blue Hydraulic Access Door 197 FBp. 656
+52-22 Forward Cargo Door Access Cover Panel 825 ARp. 657
Forward Cargo Door Access Cover Panel 825 ARp. 657
Illustration Forward Cargo Door Access Cover Panel 825 ARp. 658
+52-23 Aft Cargo Door Access Cover Panel 826 ARp. 659
Aft Cargo Door Access Cover Panel 826 ARp. 659
Illustration Aft Cargo Door Access Cover Panel 826 ARp. 660
+53 FUSELAGEp. 661
+53-01 Belly Fairing Vent Louver Vanep. 661
Belly Fairing Vent Louver Vanep. 661
Illustration Belly Fairing Vent Louver Vanep. 662
+53-03 Root Fillet Fairingp. 663
Root Fillet Fairingp. 663
Illustration Root Fillet Fairingp. 664
+54 NACELLE / PYLONp. 665
+54-01 Nacelle Strakep. 665
Nacelle Strakep. 665
Illustration Nacelle Strakep. 666
+54-03 Pylon Pressure Relief Door 413(423) BL – 414(424) BRp. 667
Pylon Pressure Relief Door 413(423) BL – 414(424) BRp. 667
Illustration Pylon Pressure Relief Door 413(423) BL – 414(424)BRp. 668
+54-04 Pylon Access Door 415(425) AL – 415(425) ARp. 669
Pylon Access Door 415(425) AL – 415(425) ARp. 669
Illustration Pylon Access Door 415(425) AL – 415(425) ARp. 670
+54-05 Pylon Fairing Sealp. 671
Pylon Fairing Sealp. 671
Pylon Fairing sealp. 671
Illustration Pylon Fairing Sealp. 672
Illustration Pylon Fairing Sealp. 673
+54-06 Aerodynamic Sealp. 675
Aerodynamic Sealp. 675
Illustration Aerodynamic Sealp. 676
+57 WINGSp. 677
+57-01 Wing Tip Fencep. 677
Wing Tip Fencep. 677
Illustration Wing Tip Fencep. 678
+57-02 Belly Fairing Sliding Panelp. 679
Belly Fairing Sliding Panelp. 679
Illustration Belly Fairing Sliding Panelp. 680
+57-03 Outboard Flaps Rubbing Stripp. 683
Outboard Flap Rubbing Strip Items 10, 15, 20,40p. 683
Illustration Outboard Flap Rubbing Stripp. 684
+57-04 Inboard Flap Rubbing Stripp. 685
Inboard Flap Rubbing Strip items 1, 5, 10, 30p. 685
Illustration Inboard Flap Rubbing Stripp. 686
+57-05 Vortex Generatorp. 687
Vortex Generatorp. 687
Illustration Vortex Generatorp. 687
+71 POWER PLANTp. 689
+71-01 Frangible Drain Mastp. 689
Frangible Drain Mastp. 689
Illustration Frangible Drain Mastp. 690
+71-09 Fan Cowl Hold Open Rodp. 691
Fan Cowl Hold Open Rodp. 691
Illustration Fan Cowl Hold Open Rodp. 692
+78 EXHAUSTp. 693
+78-09 Thrust Reverser 11 and 1 O'clock Strutsp. 693
Thrust Reverser 11 and 1 O'clock Strutsp. 693
Illustration Thrust Reverser 11 and 1 O'clock Strutsp. 694
+78-11 Thrust Reverser Lockout Fairingp. 695
Thrust Reverser Lockout Fairingp. 695
Illustration of the Thrust Reverser Lockout Fairingp. 696
+SUPPLEMENTARY PERFORMANCEp. 697
+Preliminary Pagesp. 697
+CONTAMINATED RUNWAYp. 701
+GENERALp. 701
+LIMITATIONSp. 703
+PERFORMANCEp. 705
Introductionp. 705
Aircraft Configurationp. 705
Takeoff and Landing Performancep. 706
Buy the Airbus A320-214 Airplane Flight Manual
With this Airbus A320-214 Airplane Flight Manual (AFM) on hand you can look up the approved limitation before a dispatch decision, run the correct emergency or abnormal procedure for the failure in front of you, confirm the takeoff or landing performance figure that applies to the actual weight, configuration and runway state, and check the MCDL dispatch condition for a missing item instead of guessing. That matters because the correct limit, speed, procedure sequence or performance figure is what keeps the aircraft inside its certified envelope and keeps the paperwork defensible. The manual is delivered as an instant PDF download after payment – no shipping, no waiting, no physical media. Open it on a laptop, tablet or phone, search within it, and print only the pages you need for the flight deck or the hangar.
Reviews
There are no reviews yet.
