Alenia Aermacchi F260D SF260D SF260F F260EU SF260FH Aircraft Maintenance Manual – Change 8 2010

Description

Alenia Aermacchi F260D/SF260D/SF260F/F260EU/SF260FH Aircraft Maintenance Manual

This is the complete Alenia Aermacchi F260D/SF260D/SF260F/F260EU/SF260FH Aircraft Maintenance Manual, updated through Change 8 (1 July 2010), originally issued 2 May 1992 by the Alenia Aermacchi Technical Publications Department under SCM A2142. The F260 series Maintenance Manual is built for a trained mechanic who needs to service, troubleshoot, functionally check, and repair aircraft systems and units in the field or hangar, covering the aircraft as delivered to the customer.

File Details

• Manual type: Aircraft Maintenance Manual
• Aircraft: Alenia Aermacchi F260D / SF260D / SF260F / F260EU / SF260FH
• Document reference: SCM A2142
• Original issue: 2 May 1992
• Latest revision: Change 8, 1 July 2010
• Language: English
• Format: PDF file
• Structured in two volumes plus a Supplemental Maintenance Manual addendum

Aircraft Applicability

The F260D/SF260D/SF260F/F260EU/SF260FH Maintenance Manual applies to a defined set of serial number ranges across the family:

• F260D (serials 766-772, 783, 785-799)
• SF260D (773-782, 800-811, 813-829, and 840-848)
• SF260F (3001-3006)
• F260EU (2001-2059 across several sub-blocks)
• SF260FH (3007-3024)

Any procedure not tied to a specific applicability code applies across the whole aircraft family covered by this manual.

Chapters Covered

• Aircraft General: Time Limits/Maintenance Checks, Dimensions and Areas, Lifting and Shoring, Leveling and Weighing, Towing and Taxiing, Parking and Mooring, Required Placards, Servicing
• Airframe Systems: Standard Practices Airframe, Air Conditioning, Communications, Electric Power, Equipment/Furnishings, Flight Controls, Fuel (0-540-E4A5 and AEIO-540-D4A5 engine variants), Indicating/Recording, Landing Gear, Lights, Navigation, Vacuum, Electrical/Electronic Panel
• Structures: Structures, Doors, Fuselage, Stabilizers, Windows, Wings
• Propeller: Propeller
• Power Plant: Power Plant, Engine Fuel and Control, Ignition, Engine Controls, Engine Indicating, Exhaust, Oil, Starting (0-540-E4A5 and AEIO-540-D4A5 Avco Lycoming engine variants)
• Appendix A: Equipment Reference Designators Cross Reference (aircraft applicability code I only)

Together these chapters walk a technician from airframe general data and dimensions through every major aircraft system, the structural airframe, propeller, and the two Avco Lycoming power plant fits used across the F260 family, following the manual’s own chapter/section/subject numbering system for description and operation, troubleshooting, and maintenance practices.

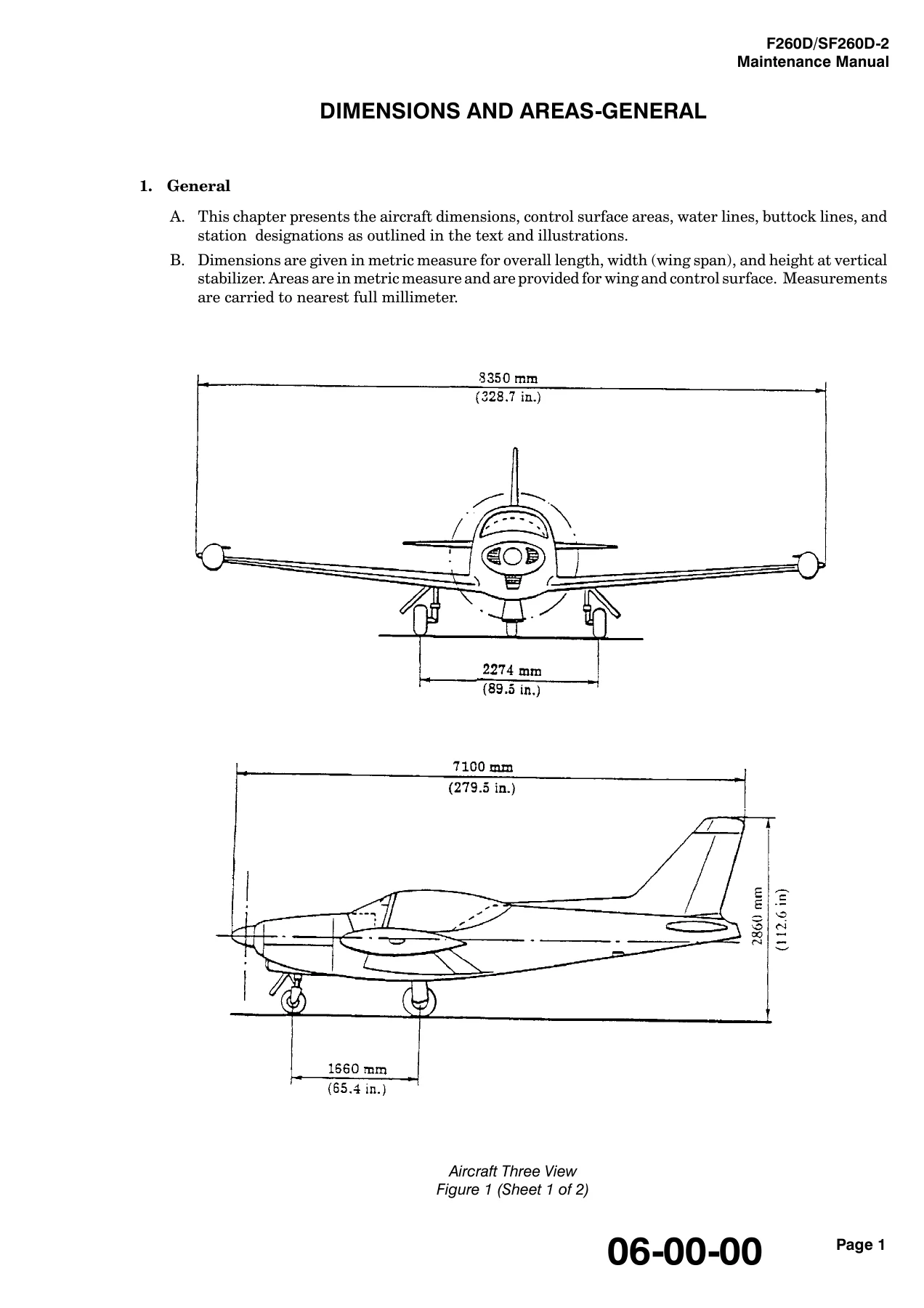

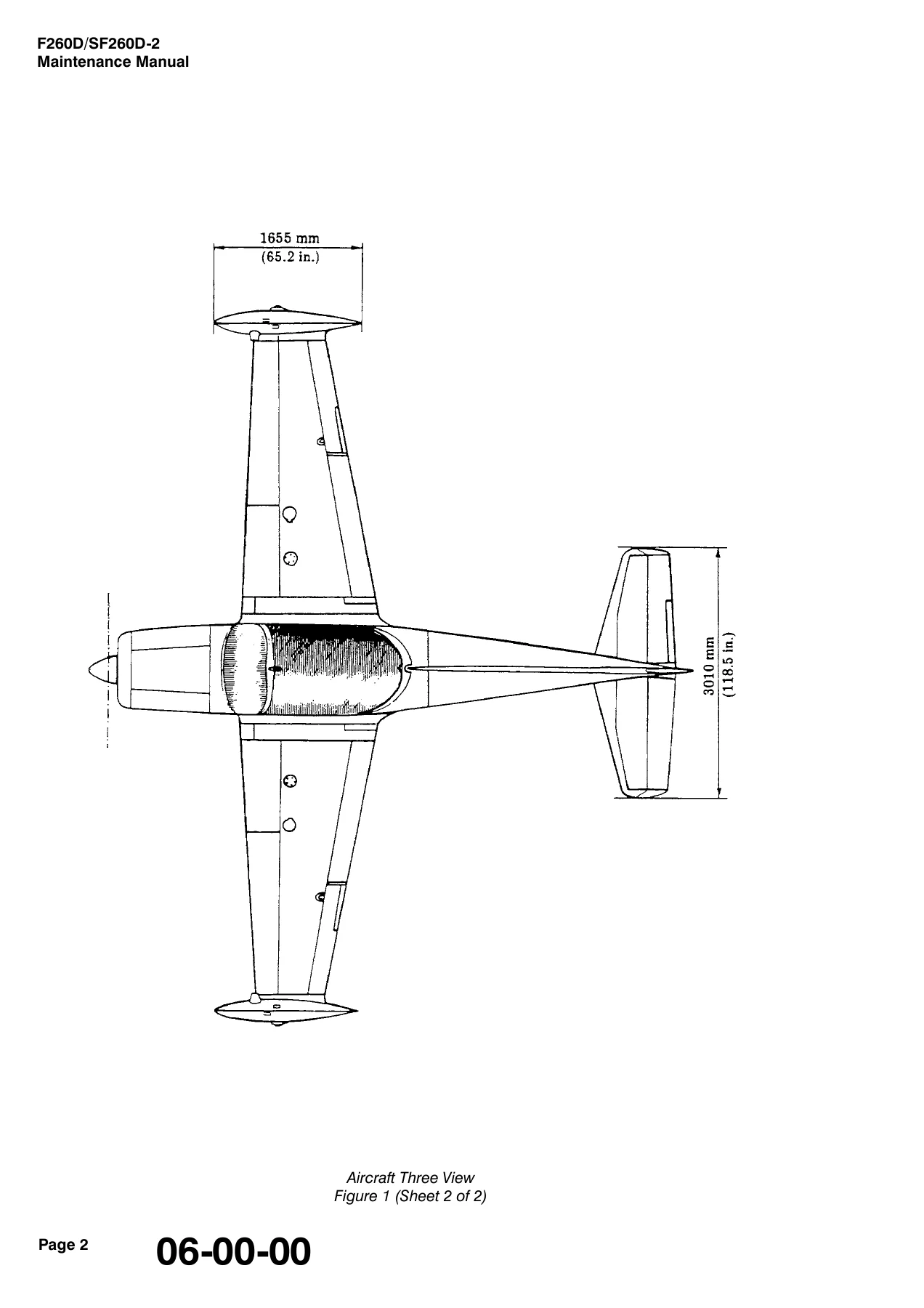

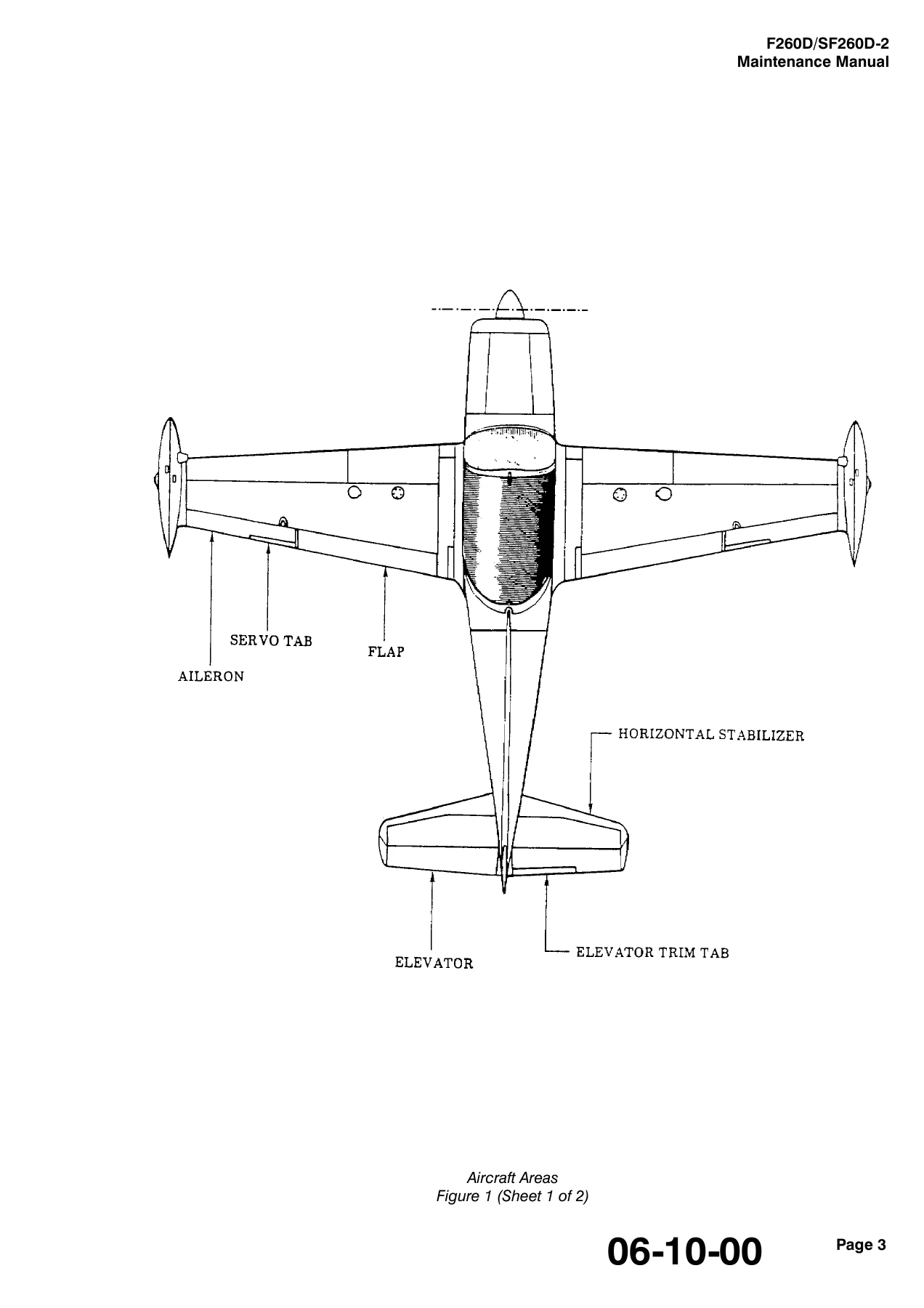

IMAGES PREVIEW

Why Mechanics Use This F260 Maintenance Manual

This Alenia Aermacchi F260D/SF260D/SF260F/F260EU/SF260FH Maintenance Manual supports the day-to-day work of servicing, troubleshooting, functional checks and minor repair on the F260 airframe, airframe systems, structures, propeller and power plant. It uses the manual’s own three-element page numbering system (chapter/system – section/subsystem – subject/unit) so specific units, subsystems, and full systems can be located quickly, and separates each unit’s data into description and operation, troubleshooting, and maintenance practices blocks. Working from a manual with the correct applicability codes for your specific F260D, SF260D, SF260F, F260EU or SF260FH serial number matters because procedures, adjunct warnings and cautions, and system data are keyed to the aircraft configuration as actually delivered.

This F260 Aircraft Maintenance Manual downloads instantly as a PDF after purchase – no shipping, no waiting. Open it on a laptop, tablet, or phone in the hangar, or print the sections you need at the bench.
