Atlas Copco Boltec 235 Spare Parts Catalogue – Document 8991 9176 00

This is the full Atlas Copco Boltec 235 spare parts catalogue, published under document number 8991 9176 00. It is the parts lookup reference for the Boltec 235 bolting rig, organised into 14 numbered sections that mirror the machine’s own build: hydraulic system, carrier, boom, rock drill, bolting equipment, electrical system, air/water system, lubrication system, cable reel, hose reel, hose connection, hoses, and a cross reference list. Every parts page carries reference numbers, Atlas Copco part numbers, quantity, description (in English and Swedish), and the page each part continues on.

File Details

• Manual type: Spare Parts Catalogue
• Brand: Atlas Copco
• Model: Boltec 235
• Document number: 8991 9176 00
• Language: English / Swedish (bilingual)
• Page count: 1192 pages
• File format: PDF
• Publisher: Atlas Copco Rock Drills AB, Sweden
• Copyright: 2011

Chapters Covered

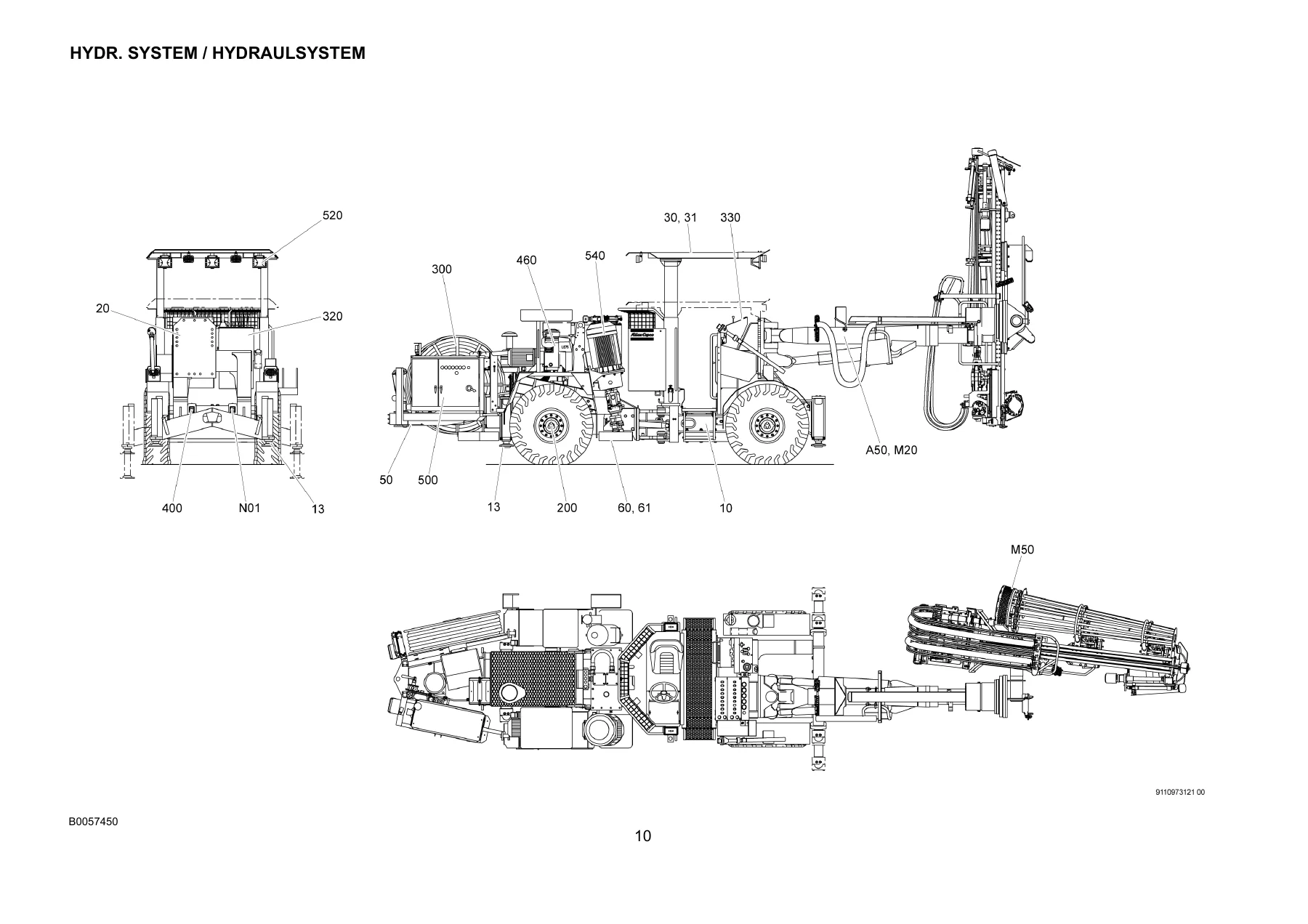

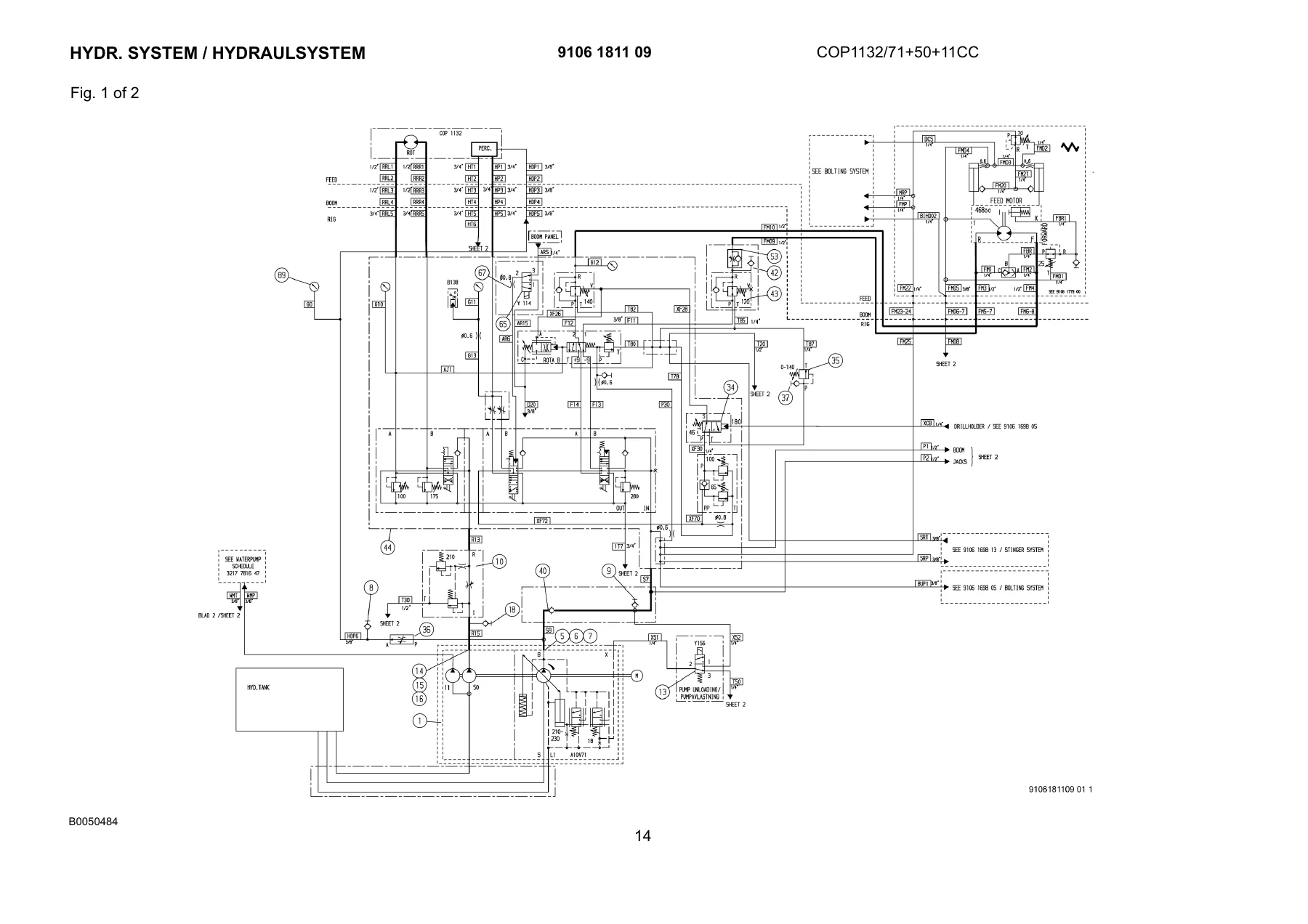

• 1. Hydr. System / Hydraulsystem
• 2. Carrier / Underrede
  • Fire suppression system
  • Hydraulic system
  • Diesel engine unit (DEUTZ D914 L04 2V)
  • Exhaust, wheels, steering, platform and lubrication
• 3. Boom / Bom
  • Basic boom, boom part, boom attachment
  • Rotary unit and turning device
  • Drill setting, hydraulic cylinders, telescope set
  • Hose sets and boom hoses
• 4. Rock Drill / Bergborrmaskin (COP 1132)
  • Front part assemblies, gear housing
  • Cylinder, hydraulic motor, accumulator
  • Seal kits, overhaul kits
• 5. Rock Drill / Bergborrmaskin (COP 1025 / COP 1019)
  • Lower part, rotation chuck, drill holder
  • Hydraulic motor variants, seal kits, conversion kits
• 6. Bolting Equipment / Bultningsutrustning
  • System kit, hydraulic set, air kit
  • Feed beam, drive unit, drill carriage, bolt cradle
  • Magazine unit, bolt handler, drill holder, stinger
• 7. Electr. System / Elsystem
  • Reverse alarm, flashing beacon, horn, brake light
  • Basic electrical cabinet, main switch, emergency stop
  • Electric set, thermal relays, junction boxes
• 8. Air/Water System / Luft/Vattensystem
  • Air/water rig system, lubricant pump, oil reservoir
  • Water inlet, strainer, water pump set
  • Direction and pressure relief valves, ECL set
• 9. Lubr. System / Smörjsystem
  • Manual grease system
  • Drum pump, hose reel, hose set
• 10. Cable Reel / Kabelvinda
  • Cable reel, hydraulic unit, gear housing
  • Swing arm, locking, hasp
  • Reel control, cable steering, commutator, braking chopper

  IMAGES PREVIEW







• 11. Hose Reel / Slangvinda
  • Hose reel, hydraulic unit, gear housing, swivel
  • Swing arm, locking, hasp, cable steering
• 12. Hose Connection / Slanganslutning
  • Full nipple and coupling table
  • Adapter sleeves, cutting rings, cap nuts, plugs
• 13. Hoses / Slangar
  • Complete hose assembly listing (14 sheets)
• 14. Cross Reference List

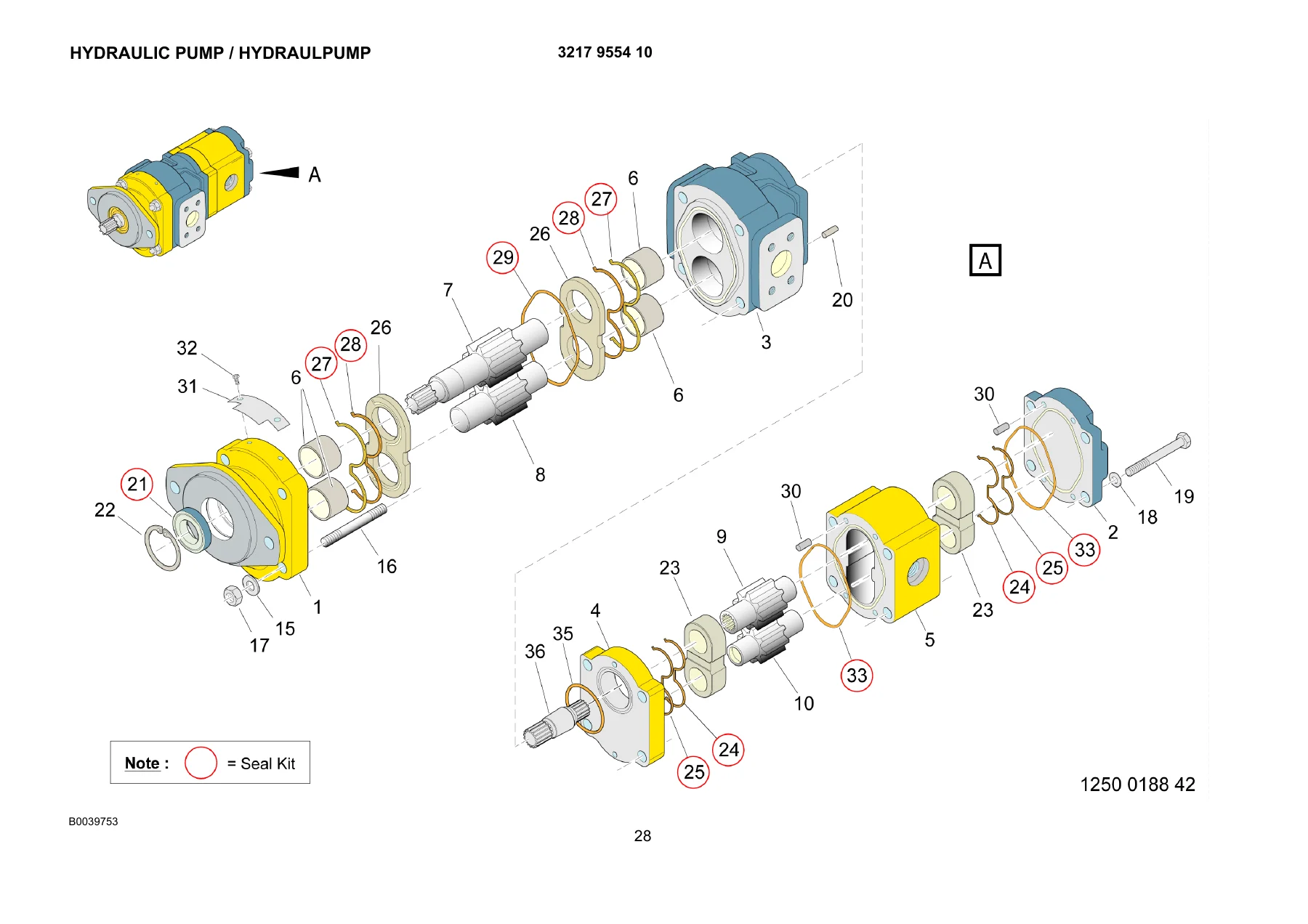

For anyone maintaining, rebuilding or ordering parts for a Boltec 235, this catalogue is the lookup that ties the machine back together. Every assembly – from the hydraulic valve blocks and pumps through the COP rock drills, feed beam, bolt cradle and carousel magazines, right down to individual O-rings, seal kits and circlips – is exploded across its own parts page with reference numbers linking the drawing to the numbered list. The document is bilingual, so the same part is named in both English and Swedish throughout, which is useful when comparing against a workshop’s own stock language or cross-checking a part description on the machine.

What This Catalogue Lets You Do

This Atlas Copco Boltec 235 spare parts catalogue is the practical reference behind every parts order, rebuild and sub-assembly overhaul on the rig. With it you can identify the correct part number for a hydraulic valve section, a rock drill seal kit, a feed beam sliding piece, a magazine bolt handler jaw, a cable reel commutator slip ring, or any of the hundreds of nipples, sleeves, O-rings and lock rings that make up the machine. Each section flows down through system, sub-assembly and component, so you can trace a fault back to the individual part and order it once, correctly, rather than guessing at a description.

Because the catalogue documents the Boltec 235 build in the order Atlas Copco assembled it, it doubles as a disassembly and reassembly map: the exploded views show you how a valve section, cylinder, hydraulic motor or hydraulic pump stack together, and the parts lists give you quantities so nothing is left out. Seal kits, overhaul kits and repair sets are listed as their own line items, which means you can order by kit rather than by individual component when doing a scheduled 400-hour or 800-hour rock drill overhaul.

The cross reference list at the back turns part numbers into page references, so if you already know the Atlas Copco part number you can jump straight to the correct exploded drawing without scrolling through 14 sections. That single cross reference is what saves the most time on a service truck when a part has to be identified and ordered under pressure.

Why Correct Part Numbers Matter on a Boltec 235

The Boltec 235 is a purpose-built bolting rig – hydraulic system, boom, rock drill, bolting head, carousels and cable/hose reels all running in a tight envelope. Fitting a near-match nipple, a wrong-sized O-ring or an incorrect seal kit in a hydraulic circuit is how a rig ends up leaking, overheating or losing pressure mid-shift. Using the genuine part numbers from this catalogue – and matching them against the exact reference on the exploded page – removes that risk. It also prevents a common mistake where a similar-looking part from a different Atlas Copco drill or a different revision of the Boltec is fitted and then fails early.

The document also flags the parts that are not sold separately and the ones that are only available inside a kit, which is essential when planning a repair. You see straight away whether a component is a standalone part number or whether it has to come as part of a seal kit or assembly. That is the difference between a one-part order and a return shipment.
