Atlas Copco PV271 Drilling Rig Parts List – Serial US004466 Parts Catalog PDF

Description

This is the complete illustrated parts list for the Atlas Copco PV271 drilling rig, built specifically for machine serial number US004466. Every assembly on the drill is broken down into exploded-view drawings keyed to numbered reference tables, with each reference matched to a part number, description and required quantity. Because this is a custom-built parts book tied to one serial number, the part numbers you look up here are the exact numbers that belong on this machine — not a generic catalog covering a whole model family.

File Details

• Manual type: Illustrated Parts List / Parts Catalog
• Brand: Atlas Copco
• Model: PV271
• Serial number: US004466
• Language: English
• File format: PDF
• Page count: Approximately 1,028 pages
• Document style: Custom parts book issued per drill serial number, with the serial printed in the header of every parts page

Chapters Covered

• Section A – Frame/Chassis: Mainframe weldment (PV270), decking installation SP, CAT decking assembly, T2 decking installation, rear T2 decking/rail, DCS T2 decking/rail, cab access deck/rail, DC jack deck/rail, DCS decking, CS decking, entry/exit ladder assembly, decking ladder assembly, ladder weldment, deck handrails, tow hooks
• Section B – Undercarriage/Tracks: CAT345XL tracks (20 in. standard), CAT345XL undercarriage, drive group, track group, guard group, front idler group, adjustment group, spring group, idler group, split flange kit
• Section C – Jacks: Four-jack installation, jack assembly, hydraulic cylinder, 7 x 60 jack seal kit, counterbalance valve, 6 x 60 jack assembly PV270, hydraulic cylinder, seal kit, counterbalance valve
• Section D – Cab/Console: Cab installation DTAC AC, bare cab DM45/L, curbside door 2-latch assembly, tower side door assembly, air conditioner assembly, package kit 805 IR, IR AP switch assembly, heater coil assembly, coil assembly, filter with prefilter and elbow, CAT LP gauges/controls, pump controllers, standard CAT wiring, CAT LP nameplates, inclinometer assembly, A/C installation C27 PV270
• Section E – Derrick/Tower: Tower weldment PV-271, pivot block, channel assembly, tower piping PV-271, regen LP valve, tensioner valve, split flange kit, rod changer carousel assembly, seal kit, carousel 8.63 x 6.0 BECO, powerhead mounting group, IR270SP rotary powerhead, powerhead machining, hydraulic motor, drive shaft and bearing, retaining ring kit, servo output, input motor aside servo, barrel holddown assembly, mounting port block assembly, barrel rocker cam and flange assembly, barrel/holdown shaft assembly, rocker cam/stroking assembly, housing/face plate assembly, house assembly, flow control valve, motor control valve, spindle 8.63 with shock sub, 8750 shock sub rebuild kit, angle tower support installation, tower angle support assembly, tower support weldment, trunnion block, angle tower support strut, outer leg assembly, hydraulic cylinder, valve installation, 7-spool stacking valve, 11-spool stacking valve, angle locking piping, angle indicator, tower rest installation, main winch 8000 lb, Braden 8000 lb winch, brake valve assembly, breakout base assembly, wrench assembly, hydraulic cylinder, cylinder seal kit
• Section E (continued): Rod catcher installation, 8.63 rod support assembly, seal kit, tower locking, seal kit
• Section F – Powerpack/Engine: C32 engine assembly, bare C32 1050 HP engine, driveshaft guard assembly, CAT engine coolant heater, radiator piping assembly, PV271 CAC assembly, CAT C27 CAC, CAC C27 support rod assembly, PV270 cooler installation, generic LBH cooler, Tier 2 radiator/COC/HOC cooler, PV271 CAC piping assembly, PV270 C32 exhaust assembly, 4-battery cold weather installation, battery cable assembly, positive battery cable, powerpack base mounting
• Section G – Air Cleaners: XL2600 aircleaner assembly, 08 air filter, C32 aircleaner assembly, air cleaner
• Section H – Fuel System: 350-gallon CAT Tier 2 fuel tank, 350-gallon fuel tank, fuel cooler piping, C27/C32 ether installation, CAT C27/C32 ether kit
• Section I – Compressor/Air System: 2600 CFM compressor assembly, 8-inch butterfly valve, 2600 compressor control piping, COC piping, oil filter, temperature bypass valve, receiver assembly, minimum pressure valve, air system piping assembly, 2600 CFM compressor/receiver piping, stainless disc check valve, main air piping
• Section J – Hydraulic System: 59000 series pump/drive, main hydraulic pump, drive shaft and bearing, retaining ring kit, servo output, electric 5AO pump servo, electric servo without flow meter, C-Force motor, gerotor and barrel holddown, port block/housing assembly, end cap housing, barrel/shaft/cradle assembly, barrel/auxiliary shaft assembly, retainer plate, valve block assembly, 3-hole 59000 series gearbox, feed system installation, sheave assembly, sheave carriage assembly, DMM2SP feed cylinder, guide block assembly, Tier 2 main hydraulic piping, diverter valve assembly, diverter manifold, DR/PR control valve, DR/PR control manifold, 4-way D03 valve, return manifold assembly, cooling control valve, supercharge manifold, split flange kit, hydraulic tank installation, hydraulic oil reservoir assembly, SAE filter, remote propel assembly SPN, pump controller, tower raise cylinders, tower raise cylinder
• Section K – Electrical System: C27 engine wiring, Tier 2 electrical mainframe, Tier 2 electrical box assembly, ground level shutdown, tower electrical installation, 1/4 turn buckle electric box, CAT primer pump wiring, warning horn assembly, night lights 12 VDC halogen
• Section L – Options: 7SB dust collector, size 7SB dust collector, cam ring assembly, 8 GPM water injection with 400-gallon tank, 400-gallon water tank, pump and motor, tower lube system, mainframe lube, engine oil pan heater, 2600 receiver LP heater installation, battery isolator/jump start, dust skirt installation, hydraulic cylinder, seal kit, DHD 60-gallon lube, 60-gallon bit lubricator assembly, DHD lubricator pump, 60-gallon DHD lube tank, fast service 1-fuel/1-water, fast-service lube box, forced air heater installation, 1-fuel tank heater assembly, hydraulic reservoir heater, drill window wiper PV270, drill window wiper DM45, 400-gallon water heater assembly, Proheat 3412E preheater, diesel fired heater, 30 kW AC generator assembly, cold weather breaker box installation, 1-inch clamp assembly, deck/rail assembly, C27/C32 engine prelube, CAT Tier 2 fire suppression
• Section M – Tools/Accessories: International shipping kit, loading clevis assembly, shipping plate/plug, rod seal assembly, rod seal weldment, Spanish PV-270 decals, Spanish safety decal/manual kit, PV270 series safety manual, PV-271 AC decals

What this Atlas Copco PV271 parts list gives a technician is a single structured reference for the entire drill. Instead of chasing individual component numbers across multiple documents, the book walks the machine assembly by assembly: the frame and decking, the CAT345XL tracks and undercarriage, the four-jack leveling system, the operator cab and its air conditioning and gauge panels, the full derrick with powerhead, rod changer carousel, winch, breakout wrench and rod catcher, the C32 engine powerpack with radiator and CAC, the 2600 CFM compressor and air system, the 59000-series hydraulic pump/drive package with its manifolds and stacking valves, the Tier 2 electrical distribution and shutdown, and the long list of cold-weather and dust-control options. Section and page references in the contents map straight to the illustrated pages, so a part found in an exploded view can be matched to its reference number and then to the part number table on the same spread.

How This Parts List Is Organized

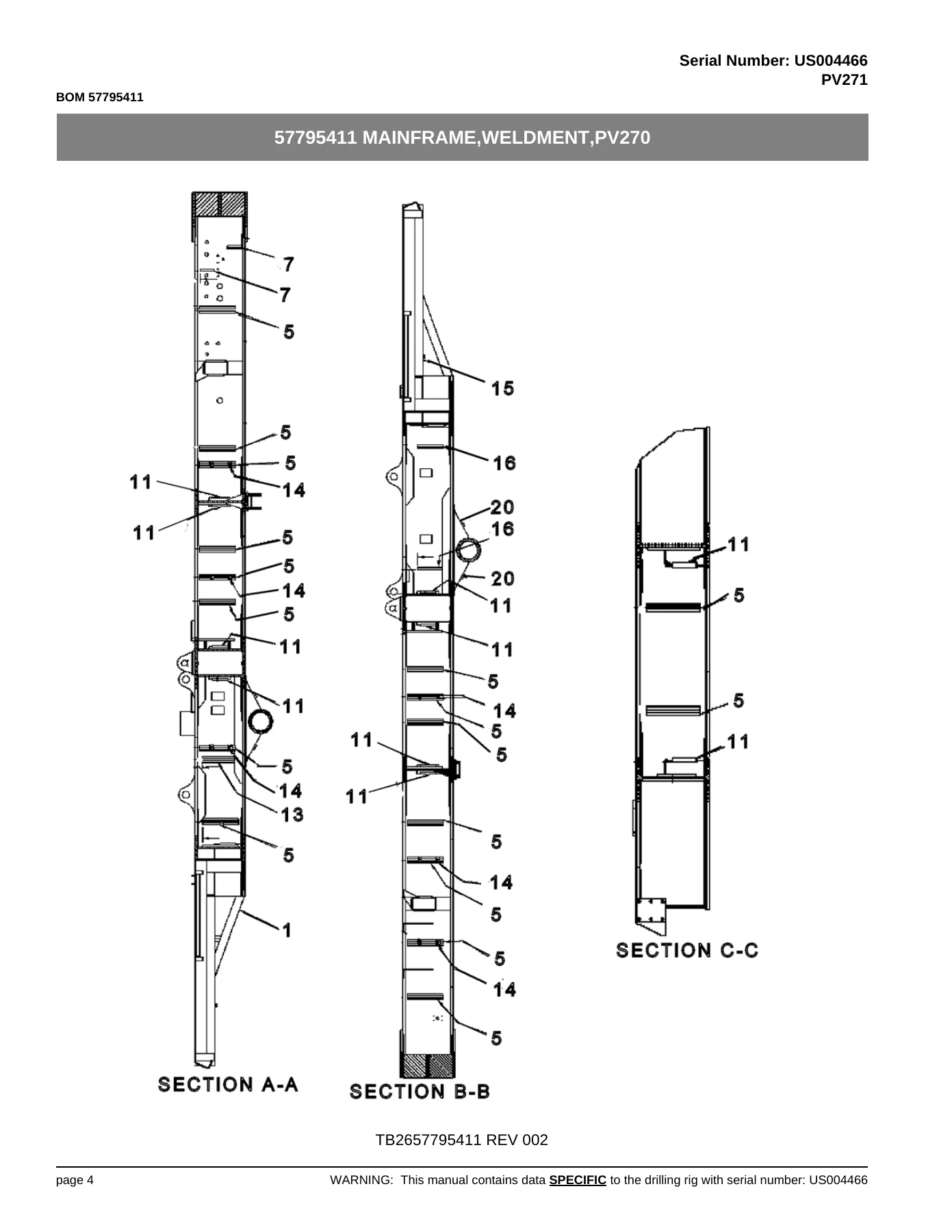

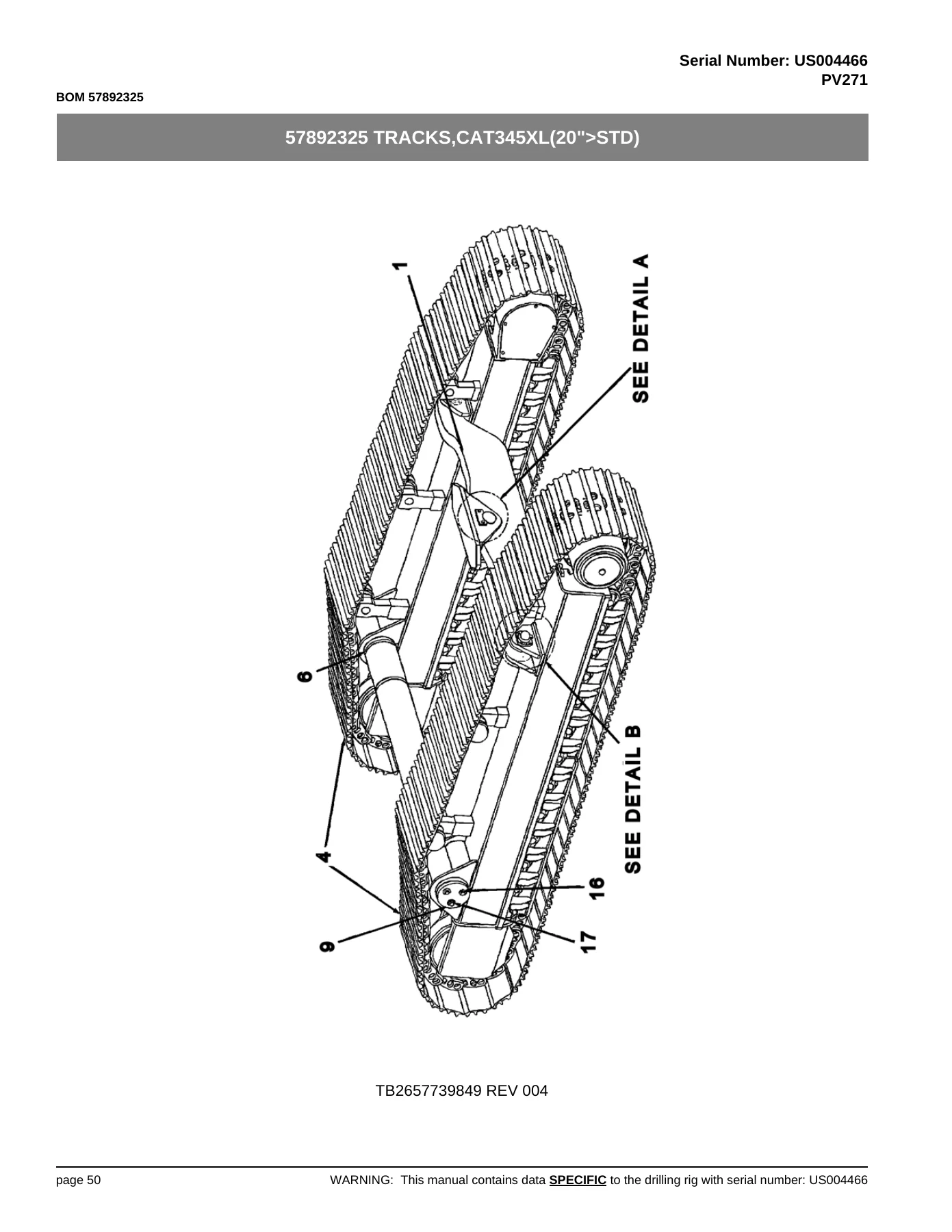

The catalog is built the way Atlas Copco built it for the drill itself. Each section opens with an illustration – a section view, an ISO view or an exploded assembly drawing – with numbered balloons pointing at every serviceable item. The corresponding reference table lists the item number, the Atlas Copco part number, the quantity and the description, and where an assembly is large enough to break into sub-groups, the table points to the child page instead of repeating the detail. Wear items such as seal kits, bearings, O-rings, bushings and filter elements are listed alongside the hard parts, and many assemblies include a linked seal kit or rebuild kit reference so you can order a complete reseal in one go.

Who This PV271 Parts Catalog Is For

This is the right document for a workshop, parts department or owner-operator responsible for keeping a PV271 with serial number US004466 running. It suits:

• Parts managers who need to quote and order the correct component for this specific drill
• Field mechanics rebuilding a hydraulic cylinder, feed system, powerhead or winch and needing the right seal kit and wear parts
• Maintenance planners building a spare parts stock list for tracks, filters, hoses and consumables
• Rebuilders and dealers identifying assemblies across the frame, tower, compressor and powerpack sections

Why the Correct Parts Book Matters

Atlas Copco builds each parts book to a specific drill serial number. Using a parts list from a different serial or a different model can lead to ordering a component that looks correct on the drawing but does not match the build on your machine. This book carries serial US004466 on every parts page, which is what makes the reference numbers in the tables reliable for this rig. Whether the job is a routine filter change, a track undercarriage overhaul, a hydraulic pump reseal, a powerhead service or an electrical fault trace on the Tier 2 wiring, the illustrated breakdowns and part number tables here let you confirm the assembly, find the individual item and order it with the number Atlas Copco assigned to it.

IMAGES PREVIEW

Instant PDF Delivery

The Atlas Copco PV271 parts list for serial US004466 is delivered as a PDF download immediately after checkout. There is no shipping, no waiting for a physical book and no risk of a lost binder. The file opens on any phone, tablet, laptop or workshop PC and can be printed page by page for the bench or the parts counter, so the illustration and its part number table sit side by side while you work.
