Bell B25D & B30D 6X6 Articulated Dump Truck Repair Manual — General & Engine Sections PDF 872118

Bell B25D & B30D 6X6 Articulated Dump Truck Repair Manual — Document 872118

This is the complete Bell B25D & B30D 6X6 Articulated Dump Truck Repair Manual, Document Part Number 872118, Issue 0, covering the General and Engine sections. Written specifically for experienced technicians, this manual delivers the step-by-step procedures, detailed specifications and comprehensive illustrations needed to maintain and repair the B25D 6X6 and B30D 6X6 articulated dump trucks. Whether you are performing routine wheel and axle service, diagnosing transmission faults, overhauling the engine, or working through brake and hydraulic systems, this repair manual provides the vital information to carry out the job correctly and safely.

File Details

• Manual Type: Repair Manual (General and Engine Sections)
• Brand: Bell Equipment
• Models Covered: B25D 6X6, B30D 6X6
• Document Part Number: 872118
• Issue: 0
• Language: English
• File Format: PDF
• Page Count: 200+ pages
• Publisher: Bell Equipment Company, Richards Bay

Chapters Covered

• Chapter 1. Wheels
• Chapter 2. Axles and Suspension Systems
• Chapter 3. Transmission
• Chapter 4. Engine
• Chapter 5. Engine Auxiliary System
• Chapter 7. Transfer Case (Drop Box)
• Chapter 8. Steering System
• Chapter 9. Service Brakes
• Chapter 10. Park Brake
• Chapter 11. Frame and Supporting Structure
• Chapter 12. Operator’s Station
• Chapter 13. Sheet Metal and Styling
• Chapter 14. Main Hydraulic System
• Chapter 15. Pneumatic Systems
• Chapter 16. Haulage Device
• Chapter 17. Dealer Fabricated Tools

Chapter 1. Wheels

Full removal and installation procedures for the wheels, including flange nut torque specifications, wheel lift and safety chain usage, and tyre and rim component identification. Covers deflation, bead seating, inflation safety and the 650 Nm (480 lb-ft) wheel nut torque. Tire and rim weight is approximately 520 kg (1144 lb).

Chapter 2. Axles and Suspension Systems

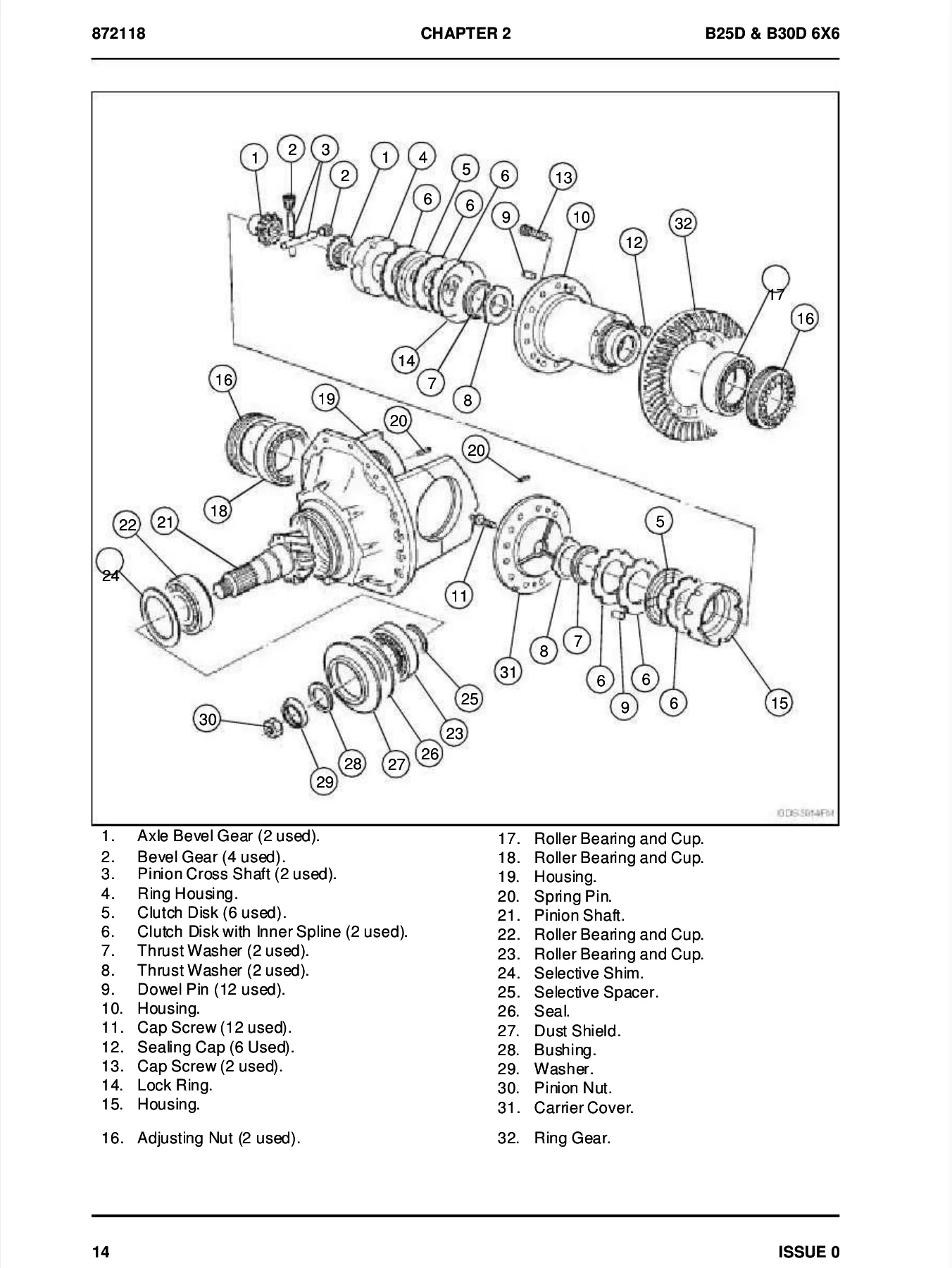

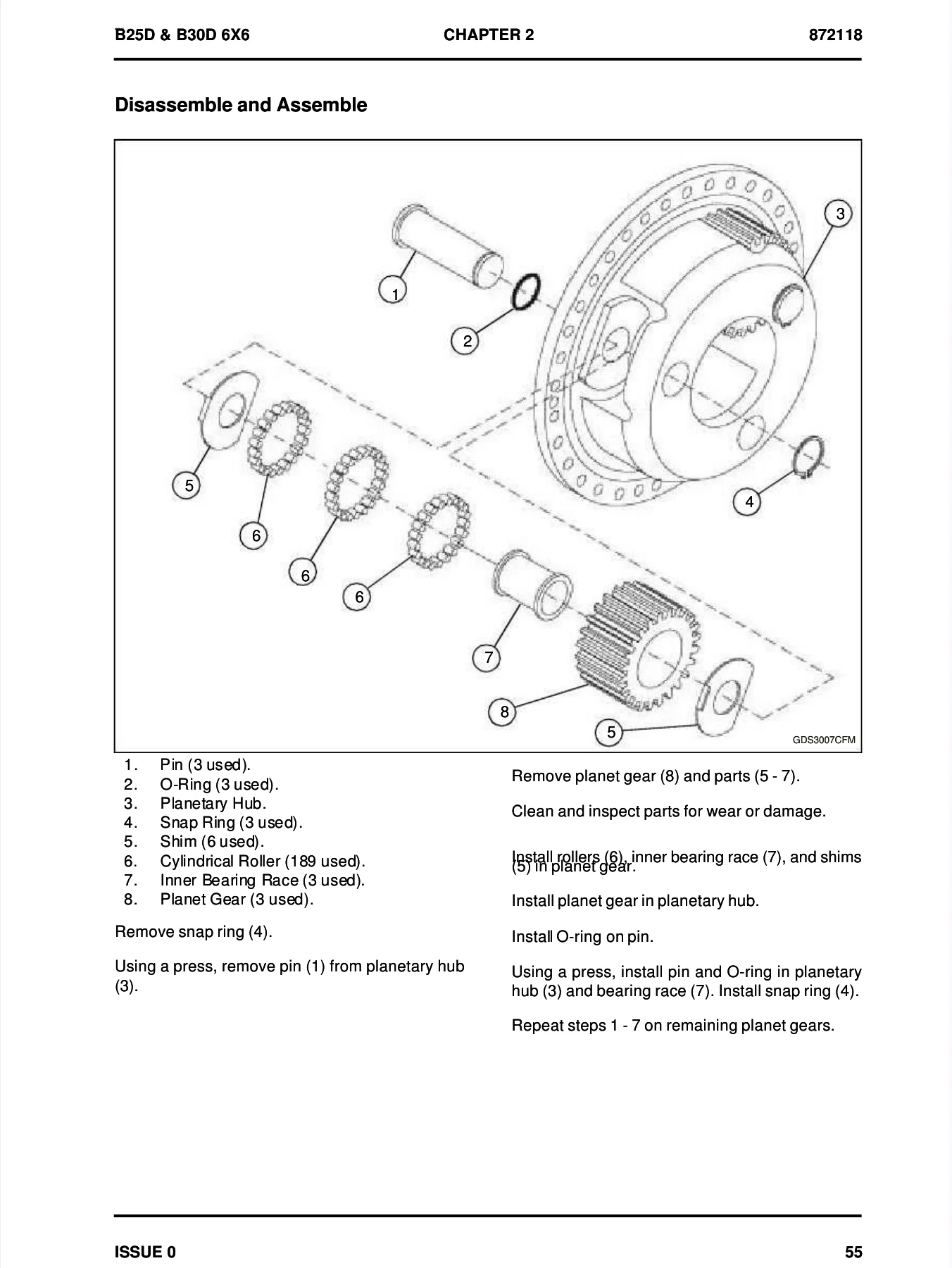

The largest section of the manual, divided into five sub-sections. Covers removal and installation of front, middle and rear axles with weight specifications for each. Detailed procedures for front and rear axle differentials, middle axle differential, drive shafts and U-joints, axle links, stabilizers, struts, walking beams, final drive planetary units, axle shafts, wheel hubs and bearings. Includes axle alignment procedures with shim adjustment, backlash measurement, gear tooth contact pattern checking, and torque values such as the 750 Nm (553 lb-ft) pinion nut and 278 Nm (205 lb-ft) carrier bearing cap screw torque. Front axle weight is 1111 kg (2450 lb); middle axle B25D 930 kg (2050 lb), B30D 1066 kg (2350 lb); rear axle B25D 907 kg (2000 lb), B30D 1043 kg (2300 lb).

Chapter 3. Transmission

Covers transmission removal and installation (engine and transmission removed together), transmission-to-transfer case drive shaft, gear, shaft and power shift clutches, and hydraulic system including transmission oil-to-air cooler removal. Includes transmission disassembly, torque converter removal and measurement, output planetary disassembly, clutch element servicing, valve body and solenoid procedures, and input/output speed sensor adjustment. Transmission weight is 345 kg (760 lb).

Chapter 4. Engine

Comprehensive engine section covering removal and installation, crankshaft, main bearings and flywheel, camshaft and timing gear train, cylinder block, liners, pistons and rods, lubrication system, cylinder head and valves, exhaust system, fuel injection system, air intake manifold system, turbocharger, cooling system, and thermostats, housing and water piping. Includes failure analysis for crankshaft and main bearings, bearing journal measurement specifications, oil clearance values, flywheel and ring gear replacement, timing case removal, oil pan removal and installation, and crankshaft end play measurement. Engine weight is 1087 kg (2400 lb); engine and transmission together weigh 1542 kg (3400 lb).

Chapter 5. Engine Auxiliary System

Engine auxiliary systems including cooling system, air intake system, external exhaust system, engine mounting (engine and transmission mountings), and external fuel supply systems including primary fuel filter. Covers element and connector drive (flexplate) servicing.

Chapter 7. Transfer Case (Drop Box)

Removal and installation of the transfer case (drop box) and servicing of gear shafts and bearings.

Chapter 8. Steering System

Secondary steering system and hydraulic system including steering valve and steering cylinder servicing.

Chapter 9. Service Brakes

Active elements and hydraulic system covering service brakes and brake valve.

Chapter 10. Park Brake

Park brake active elements and servicing procedures.

Chapter 11. Frame and Supporting Structure

Frame installation, welding on machine, and separation of front and rear frames.

Chapter 12. Operator’s Station

Cab mountings, operator’s seat and seat belt, heating and air conditioning including refrigerant cautions and R134a refrigerant oil information.

Chapter 13. Sheet Metal and Styling

Bonnet or engine enclosure removal and installation.

Chapter 14. Main Hydraulic System

Main hydraulic pump, suction strainer and hydraulic system manifold assembly.

Chapter 15. Pneumatic Systems

Pumps and drives (air compressor), control valves, reservoir, filter and trap (air unloader valve with integral air dryer), and cylinders including exhaust brake air cylinder removal and installation.

Chapter 16. Haulage Device

Frames and bin, plus hydraulic system including bin tip cylinder.

Chapter 17. Dealer Fabricated Tools

Dealer fabricated tools including DFT1178 lifting tool, DFT1233 bushing driver and DFT1199 bushing pusher.

Key Specifications at Your Fingertips

Throughout this Bell B25D & B30D repair manual you will find precise torque values, clearances, wear limits and adjustment specifications. Examples include the 650 Nm wheel nut torque, 750 Nm pinion nut torque, 278 Nm carrier bearing cap screw torque, 0.25–0.33 mm ring gear and pinion backlash, 2–3 Nm pinion bearing rolling drag torque, 3500 kPa (35 bar) front suspension strut pressure, and 0.160–0.380 mm crankshaft axial end play. Gear tooth contact pattern checking, shim selection procedures, and precise measurement steps are all documented with illustrations.

Safety and Warnings

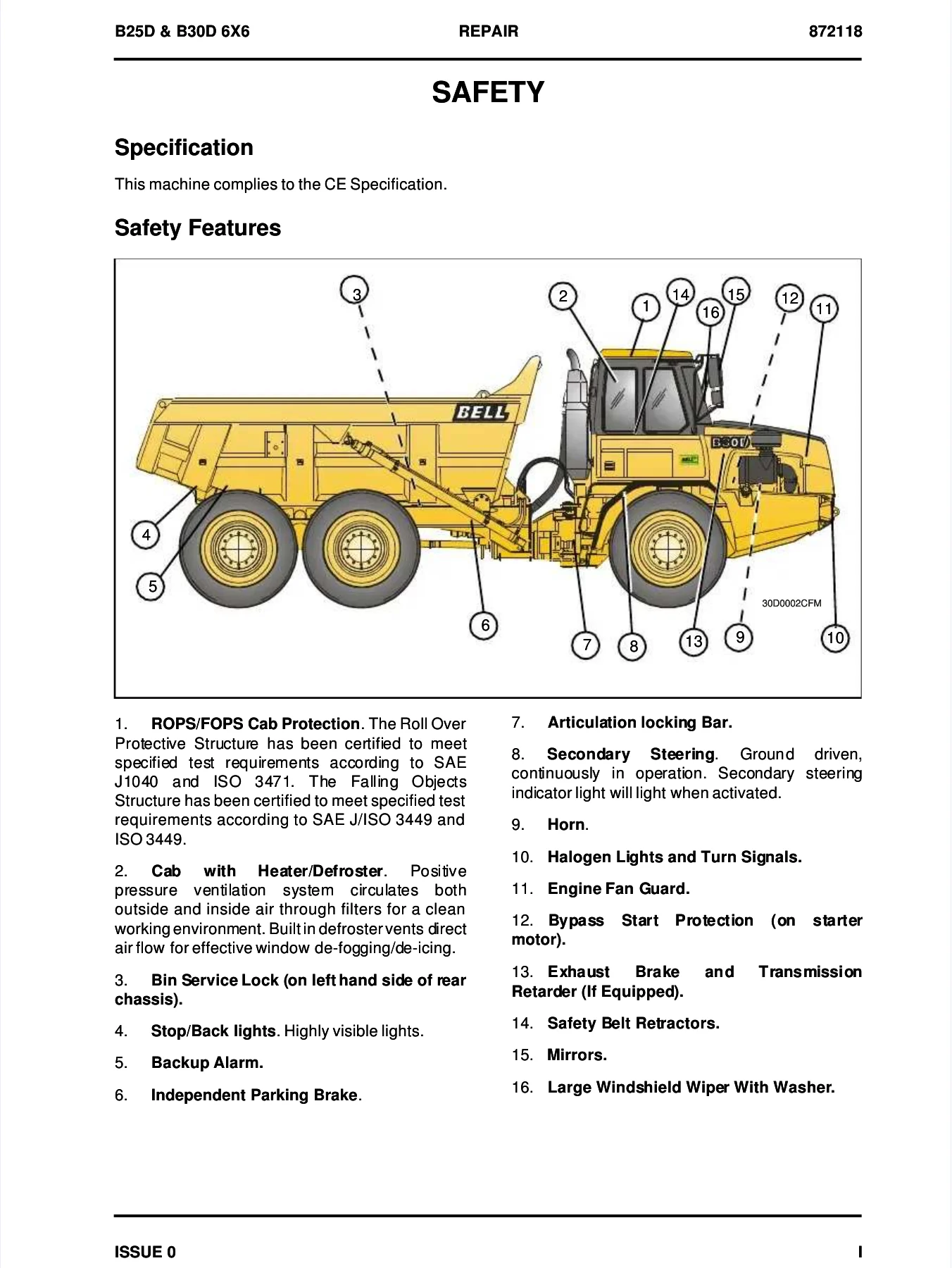

The manual opens with comprehensive safety coverage including ROPS/FOPS cab protection certification, material safety data sheets, noise emission levels, general safety regulations, mounting and dismounting procedures, work site hazard avoidance, overhead power line clearance, operating on solid footing, emergency preparation, backing accident prevention, chemical and flammable fluid handling, battery explosion and acid burn prevention, protective equipment requirements, seat belt usage, high pressure fluid hazards, moving parts safety, toxic fume awareness, waste disposal, starting from operator’s seat, tip-over avoidance, slope operation, welding repair safety, tyre information including explosion hazards, ROPS inspection and maintenance, and metal pin driving safety.

Why This Bell B25D & B30D Repair Manual Matters

When you are responsible for maintaining a Bell B25D or B30D articulated dump truck, having the correct repair procedures and specifications is not optional — it is essential. This manual gives you the exact sequences, torque values, clearances and diagnostic steps that Bell Equipment specified for these machines. From removing a front axle (1111 kg / 2450 lb) to adjusting middle and rear axle alignment, from disassembling the differential to checking gear tooth contact patterns, from overhauling the engine to bleeding the service brake hydraulic system — every major procedure is documented with step-by-step instructions and supporting illustrations.

Whether you are a professional technician in a workshop, a fleet maintenance manager, or an owner-operator who does their own repairs, this Bell B25D & B30D 6X6 repair manual provides the depth and detail needed to complete jobs correctly. The manual covers the General and Engine sections for both the B25D 6X6 (E410814) and B30D 6X6 (E409836), making it an indispensable reference for any serious repair or maintenance task on these articulated dump trucks.

IMAGES PREVIEW

Delivered as an instant PDF download, this manual is available immediately after purchase — no shipping, no waiting. Access it on any device, print the pages you need for the workshop, and keep the complete manual on hand for every job. This is the documentation you need to keep your Bell B25D or B30D running reliably and safely.
