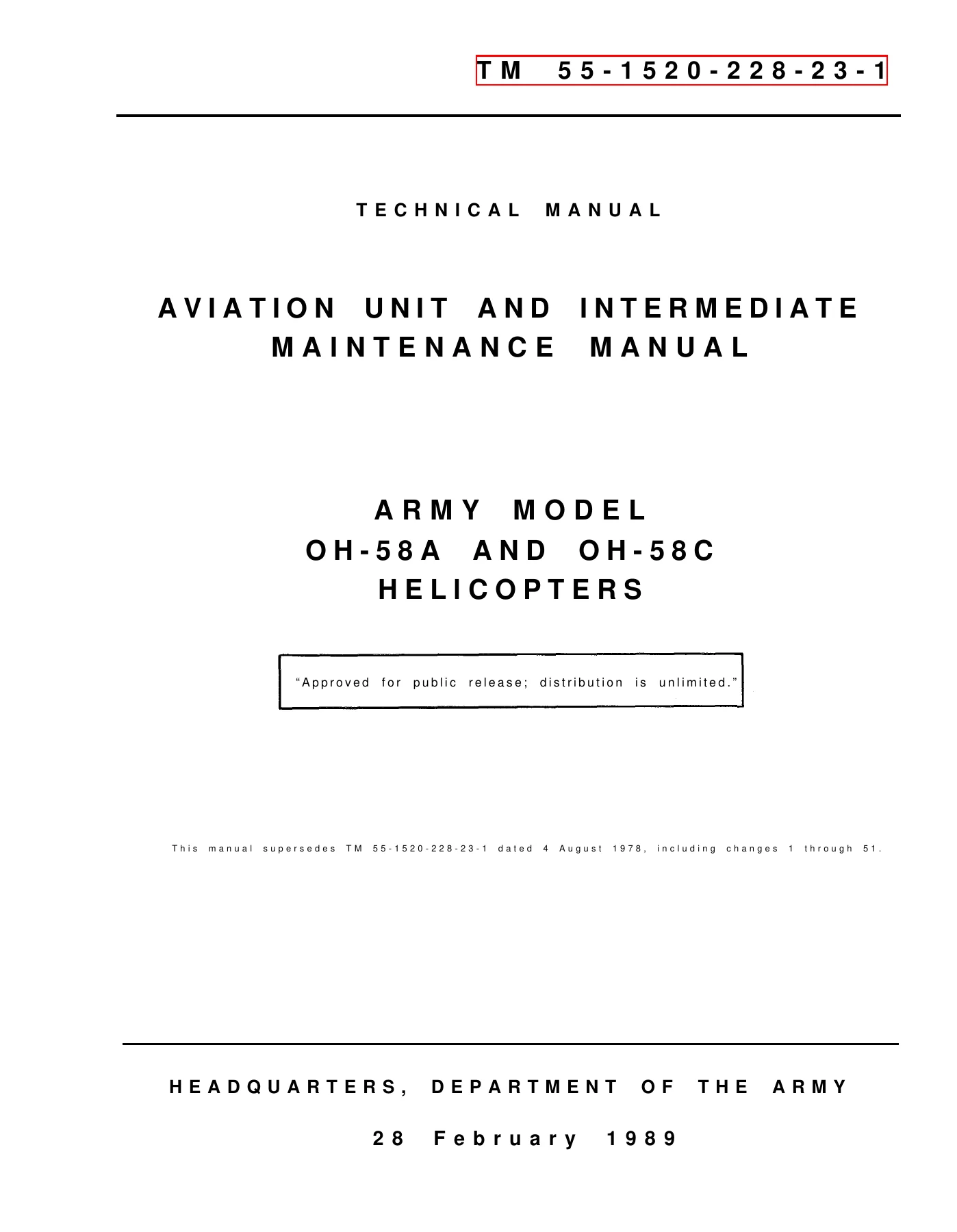

Bell OH-58A and OH-58C Helicopters Aviation Unit and Intermediate Maintenance Manual TM 55-1520-228-23-1

Description

Bell OH-58A and OH-58C Helicopters Aviation Unit and Intermediate Maintenance Manual TM 55-1520-228-23-1

This technical publication serves as the authoritative Aviation Unit Maintenance (AVUM) and Aviation Intermediate Maintenance (AVIM) manual for Army Model OH-58A and OH-58C helicopters. Containing comprehensive engineering and operational instructions consolidated through Change 30, this Bell OH-58A and OH-58C maintenance manual provides technicians and repair facilities with verified factory-level maintenance procedures, system descriptions, structural repair methods, and critical wear limits necessary to maintain mission readiness and flight safety across all operational environments.

File Details

• Manual Type: Aviation Unit and Intermediate Maintenance Manual
• Brand & Model: Bell Helicopter / Army Model OH-58A and OH-58C
• Document Number: TM 55-1520-228-23-1
• Publication Date: 28 February 1989, Incorporating Change 30 (13 June 2003)
• Language: English
• Page Count: 1080 pages
• File Format: Portable Document Format (.pdf)
• Distribution: Statement A: Approved for public release; distribution is unlimited

Chapters Covered

• Chapter 1 – Aircraft General:
  • Section I: Servicing (Fuel, Engine Oil, Transmission, Tail Rotor Gearbox, Hydraulic System, Battery, and Tires)
  • Section II: Lubrication Requirements and Lubrication Maintenance Charts

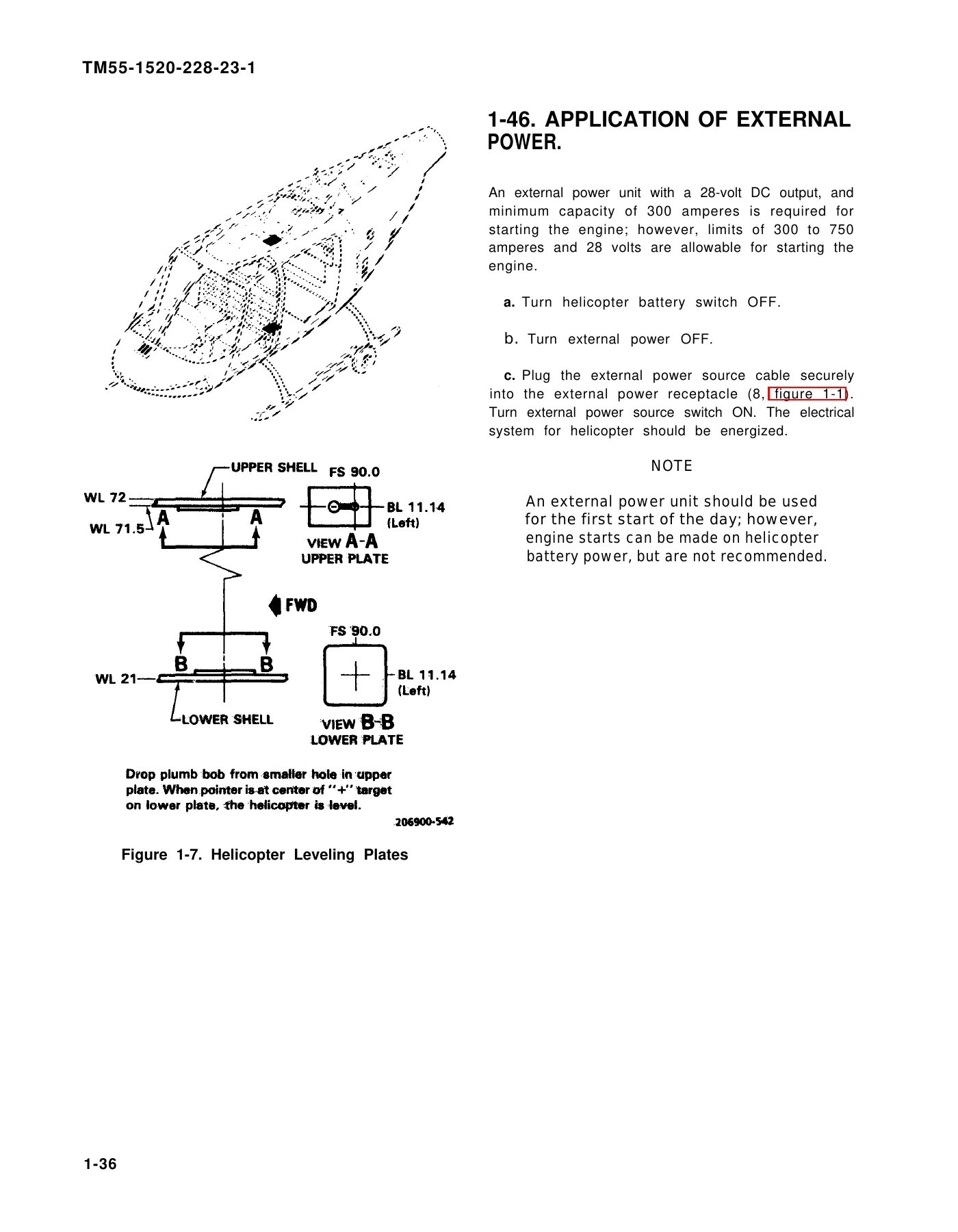

  • Section III: Ground Handling, Jacking, Mooring, Hoisting, and Sling Loading Operations
  • Section IV: Inspection Requirements, Standards of Serviceability, and Special Inspection Checklists
  • Section V: Overhaul and Retirement Schedule (Finite Life Component Limits)

  IMAGES PREVIEW







• Chapter 2 – Airframe:
  • Section I: Fuselage Structures, Panels, and Bulkheads
  • Cabin Entrance Doors, Latch Mechanisms, and Hinge Clearances
  • Emergency Door Jettison Systems, Linkages, and Safety Rigging
  • Instrument Panels, Consoles, Shrouds, and Upper Roof Beams
  • Engine and Transmission Cowling, Induction Fairings, and Reverse Flow Inlets
  • Drip Pan, Engine Deck Frame Assemblies, and Passive Armor Panels
  • Structural Inspection Panels, Access Doors, and Passenger Entrance Scuff Plates
  • Crew and Passenger Seating, Raschel Knit Covers, and Honeycomb Panels
  • Restraint Equipment, Safety Belts, Inertia Reels, and Shoulder Harness Assemblies
  • Airframe Structural Repair Materials, Patch Fabrication, and Doubler Bonding

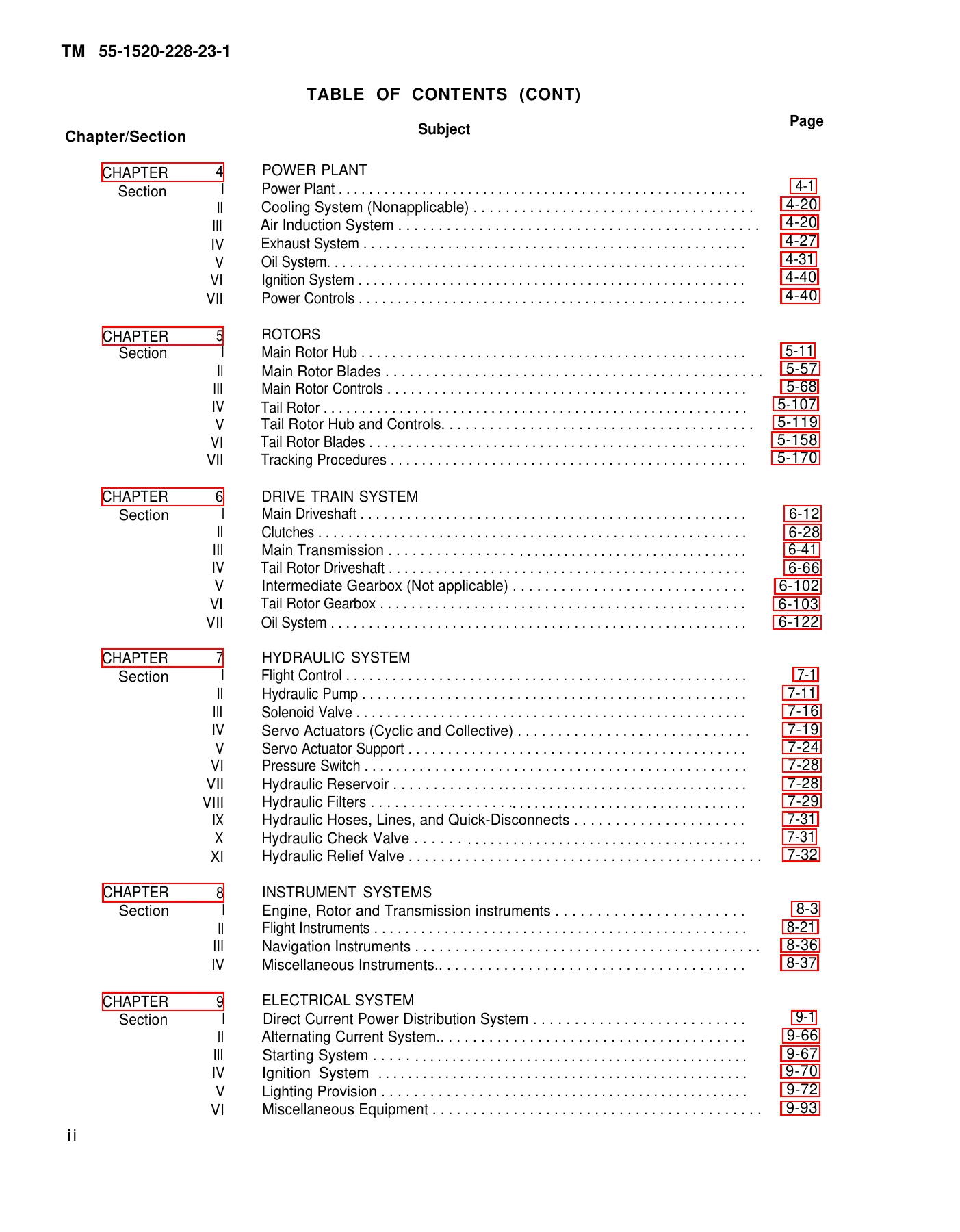

• Volume Reference Coverage (Chapters 3 through 9 Overview):
  • Chapter 3: Alighting Gear (Landing Gear, Crosstubes, and Floats)
  • Chapter 4: Power Plant (Engine Mounts, Induction, Exhaust, and Controls)
  • Chapter 5: Rotors (Main Rotor Hub, Blades, Controls, Tail Rotor, and Tracking)
  • Chapter 6: Drive Train System (Main Driveshaft, Clutches, Transmission, Tail Rotor Driveshaft, and Gearbox)
  • Chapter 7: Hydraulic System (Flight Control Servos, Pump, Reservoir, and Filters)
  • Chapter 8: Instrument Systems (Engine, Transmission, Flight, and Navigation Indicators)
  • Chapter 9: Electrical System (DC Distribution, Starting, Ignition, and Lighting)

Together, these sections provide maintenance personnel with clear step-by-step instructions, troubleshooting standards, fit tolerances, and inspection checklists. Rather than generic guidance, the manual details exact clearance dimensions, torque specifications, and repair workflows grounded in military aviation doctrine to ensure thorough servicing and reliable airworthiness.

General Servicing, Fluid Capacities, and Operating Specifications

The TM 55-1520-228-23-1 technical manual details specific fluid capacities, operating limits, and servicing instructions for primary helicopter systems. The single-cell crashworthy fuel system has a capacity of 71.5 U.S. gallons of JP-8 jet fuel (MIL-T-83133) and supports both closed-circuit refueling (regulated up to 125 psi) and gravity refueling. The engine oil system utilizes synthetic turbine oil conforming to MIL-L-23699 or MIL-L-7808, holding a normal tank capacity of 11.2 pints checked via a trapped-ball sight gage. The main transmission holds 4.0 U.S. quarts of lubricating oil (DOD-L-85734 preferred, or MIL-L-23699 / MIL-L-7808), with levels checked through a housing sight glass. The tail rotor gearbox has a capacity of 0.375 U.S. pint (6 fluid ounces), maintained to the indicator line for standard landing gear and 1/8 inch below the line for high skid gear or float configurations. The hydraulic system is serviced to the overflow lip of the forward-mounted reservoir using MIL-H-5606 or fire-resistant MIL-H-83282 hydraulic fluid. Ground handling truck assembly tires require inflation pressure maintained at 90 psi.

Special Inspection Requirements and Incident Protocols

Technicians must adhere to rigorous special inspection checklists following specific environmental or operating events. Following a hard landing, maintenance personnel are required to evaluate airframe alignment, cap angles, transmission isolation mount supports, drag pin stops, tailboom longerons at station 167, and perform a six-point diametrical micrometer check of the main rotor mast (where opposing variances exceeding 0.002 inch require depot condemnation). Following pylon whirl events—defined by low rotor speeds below 330 RPM (93%) accompanied by high collective blade angles—inspectors must check for mast bumping, transmission drag pin yielding, swashplate-to-cowling interference, and tailboom skin wrinkling above waterline 61.76. Dedicated procedures also govern after-sudden-stoppage inspections for main and tail rotors, overspeed situations exceeding 390 main rotor RPM (110%), lightning strike continuity and residual magnetism checks, and post-flight decontamination after exposure to salt spray or volcanic ash.

Hardware Standards, Torque Limits, and Airframe Maintenance

The manual provides complete standard fastener torque schedules in Table 1-1 for tension-type (Part I) and shear-type (Part II) cadmium-plated and molybdenum disulfide-coated nuts ranging from thread size 8-36 to 1-1/4-12. Detailed instructions cover measuring fastener running drag torque to establish proper clamp-up and performing the standard 10% backoff torque verification check. Airframe servicing procedures in Chapter 2 outline crew and passenger door adjustment criteria (requiring 0.090 to 0.140 inch clearance between the latch roller assembly and rear striker housing wall), hinge pin hole reaming and bushing repairs up to 0.375 inch using NAS 42 DD6-8 spacers, emergency jettison mechanism rigging (verifying 0.500 inch minimum rod engagement through door hinges), passenger scuff plate replacements at station 96.22, raschel knit crew seat deflection verifications (maximum 2.000 inches deflection under a 166-pound load), and inertia reel strap testing requiring 2 to 6 pounds of pull tension.
