BEML BH100 Rear Dumper MTU Engine Parts Catalog 953PAR2306

This is the illustrated parts catalogue for the BH100 Rear Dumper equipped with an MTU engine and BEML transmission. It is issued under document number 953PAR2306 and applies specifically to equipment serial numbers 1085 and 1087 supplied to the Krishnasheela Project, NCL, Singrauli. Every figure in the catalogue presents an exploded or assembly view with item balloons cross-referenced to a table listing the part number, description, quantity and, where relevant, remarks such as MTU supply scope.

File Details

• Manual type: Illustrated Parts Catalogue
• Brand: BEML
• Equipment: BH100 Rear Dumper
• Engine / transmission fitment: MTU engine with BEML transmission
• Document number: 953PAR2306
• Applies to equipment serial numbers: 1085 & 1087 (Krishnasheela Project, NCL, Singrauli)
• Language: English
• Page count: 534
• File format: PDF

Chapters Covered

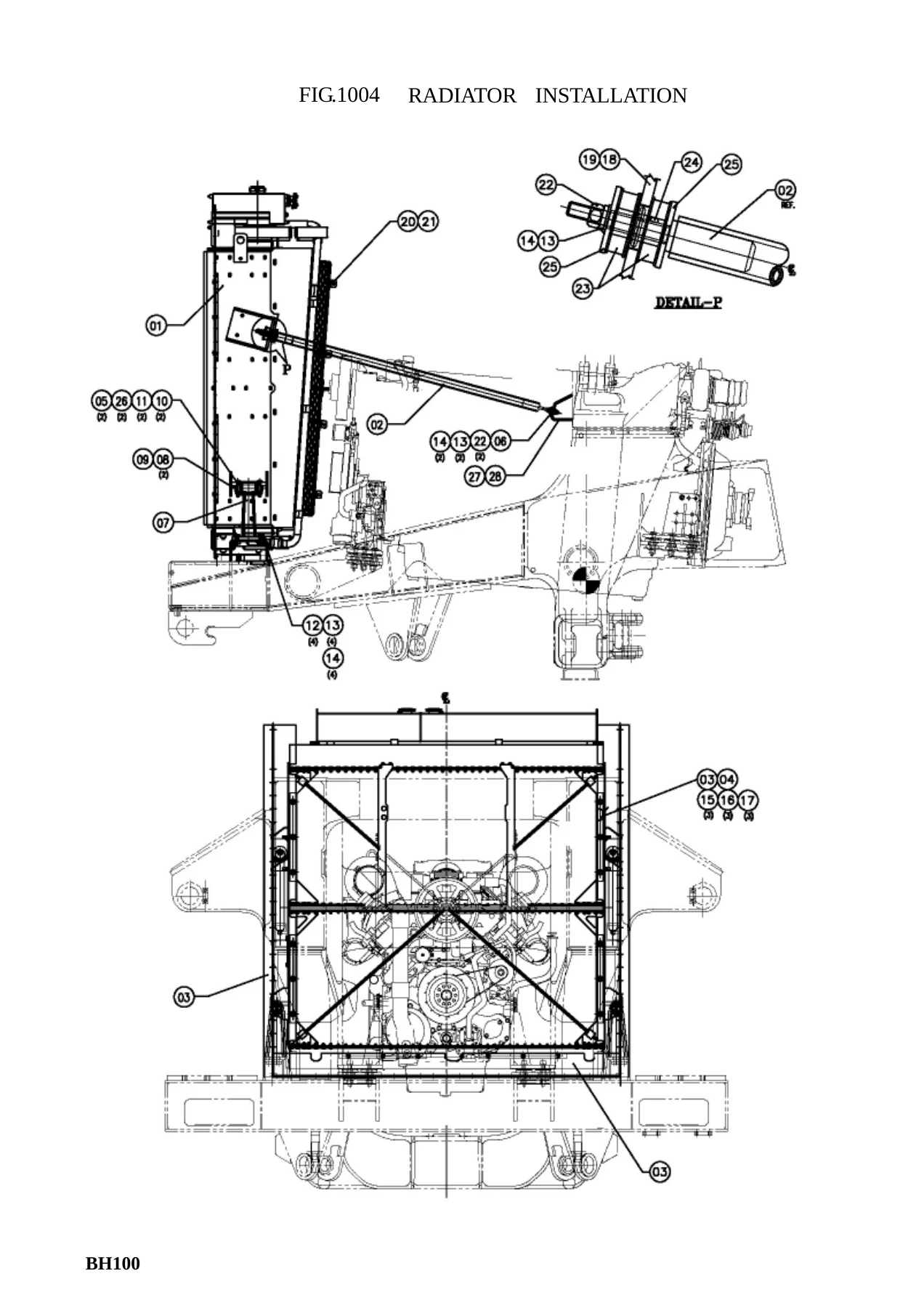

• I. Engine Related Parts — output shaft assembly, brake oil cooler assembly, BOC support system, radiator installation, fuel tank & piping (1/2 and 2/2), fuel tank additional mounting, exhaust system installation (two figures)
• II. Electrical System — instrument panel (1/2, 2/2), unified electronic controller, payload monitoring system, auto emergency steering installation, sensor & switch installation, interface of Murphy system, interface of MTU engine with equipment, battery installation, anti-collision system, ABS/ASR system (optional), final drive lamp assembly (optional), rear/front camera (optional), lighting system installation, brake-by-wire (optional), ground level battery cut-off and engine shut-off with ladder light, auto dimmer, seat belt, power window, wire harness with circuit breakers & relays, dump control system, hoist limit system, transmission control system
• III. Powertrain, Driveshaft & Transmission Assembly — engine/transmission assembly, damper installation, front propeller shaft and guard, rear propeller shaft and guard, transmission mounting, torque converter case, torque converter, torque converter valve, torque converter lubricating valve, transmission case, oil pan and filler, lubricating valve and piping, high clutch, low clutch, 4th clutch, 3rd and reverse clutch, 2nd and 1st clutch, output shaft, transmission control valve, PCMV assembly, F/R valve assembly, transmission control system

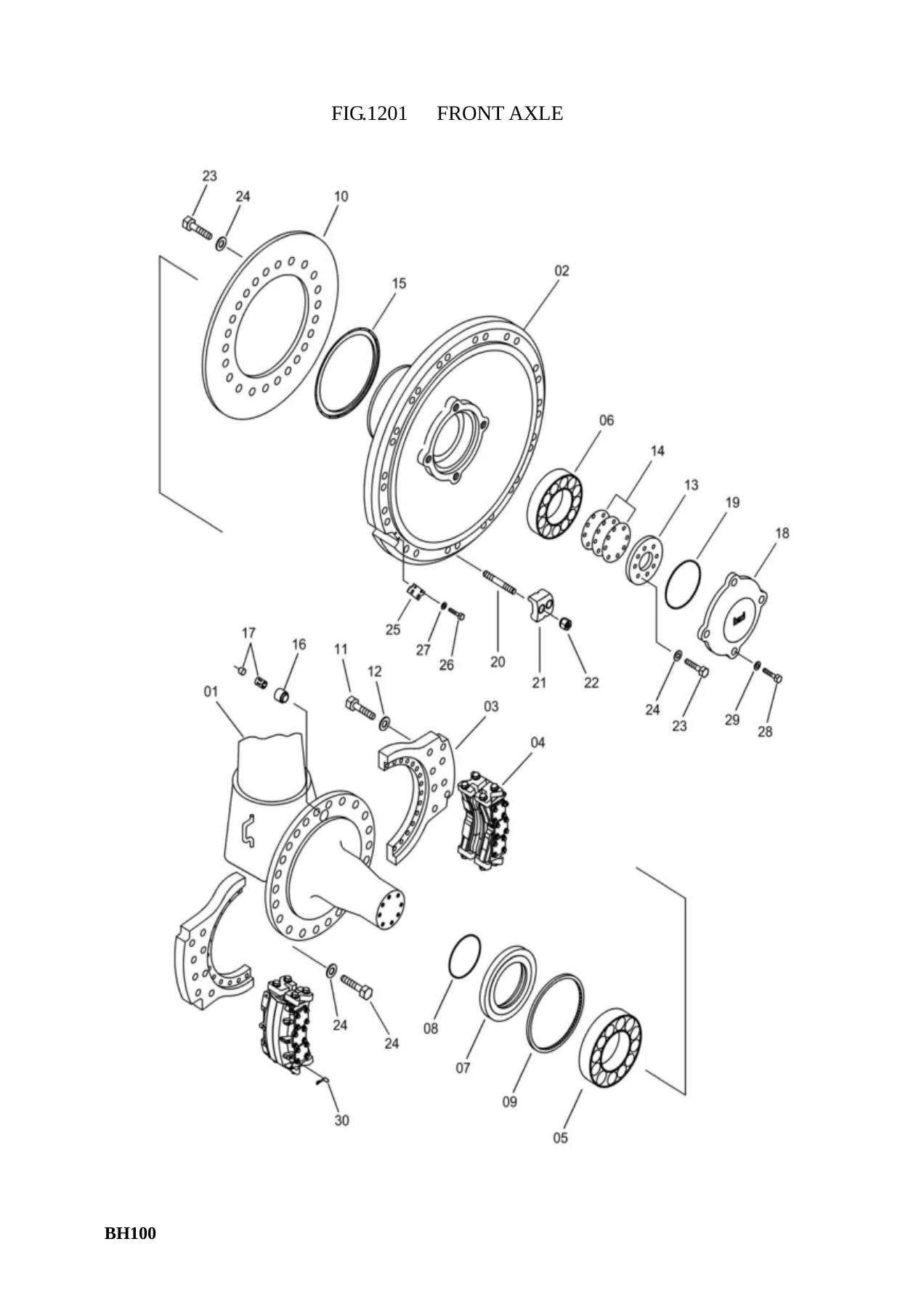

• IV. Front, Rear Axle & Wheel Assembly — front axle, brake head assembly, rear axle support, parking brake mounting, parking brake, front wheel, rear wheel, rear axle assembly with ABS/ASR, axle beam assembly, differential assembly, rear brake assembly with ABS/ASR, final drive assembly with ABS/ASR
• V. Air System — air piping sections, air horn circuit, joint assemblies, parking brake circuit, shut-off cock installation, brake oil piping front, air system circuit of ABS/ASR, dual brake valve, retarder valve, graduated hand control valve for emergency brake, hand control valve, front brake chamber, rear brake chamber, slack adjuster, double check valve, limiting & quick release valve, shut-off cock, RE6 relay emergency valve, inversion valve, D2 governor valve, air dryer, ABS/ASR circuit diagram
• VI. Steering and Control System — steering column, wheel, drive assembly & bracket installation, steering linkage installation, steering lock system, steering control unit
• VII. Frame & Guards — main frame, front suspension, rear suspension, front fenders and rear support, radiator grill support, center deck, floor structure, grill structure, handrails and mirror mounting, front handrail, mud guard, ladder assembly, fuel tank ladder, wheel stopper, heat guard, engine guard, rear view mirror, ROPS cabin assembly, cabin installation, seat belt and seat installation, cabin door with power window, transmission guard, rear split-type mud flap
• VIII. Hydraulic System — hydraulic tank assembly (split tank), hoist valve assembly, hoist cylinder assembly, high pressure filter assembly, column assembly stub, dual relief valve, return line filter assembly, steering cylinder assembly, hydraulic pump assembly, relief valve, work equipment control, steering piping installation (four sections), emergency steering piping installation, hoist cylinder installation, hoisting piping installation, brake oil cooler installation (five sections), oil cooler piping installation, transmission cooling piping with dual filters, hoist delivery piping, steering delivery piping
• IX. Body — body installation, body support installation, body down position indicator (mechanical, optional)
• X. Fire Protection System — electrical system in cabin, hose routing from DCP cylinder in truck, sensor routing
• XI. Centralised Lubrication System — electrical accessories, pump station assembly, front injection lines, hose assembly routing, rear injection lines, injectors, hose routing from tank, air pressure regulator
• XII. Air Conditioner / Heater Installation
• XIII. Decal Installation & Tools — decals, retro reflector, tool kits
• XIV. Service Kit
• XV. Indexing

Across its fifteen sections the BEML BH100 Rear Dumper MTU Engine Parts Catalog 953PAR2306 gives a parts counter or workshop a complete, serial-specific breakdown of the machine as built. Engine-related figures sit alongside the electrical architecture, the full BEML transmission internals — from clutch packs and output shaft through to the transmission control valve, PCMV and F/R valve assemblies — and the axle, air and hydraulic systems. Assembly-level detail such as the torque converter case, differential, final drive, hoist cylinder and steering cylinder is shown as exploded diagrams so individual components can be identified rather than ordered as a single lump. Optional equipment (ABS/ASR, brake-by-wire, rear/front camera, final drive lamp, body down position indicator) is flagged in the remarks column, and MTU-supplied items are identified where the engine manufacturer’s scope takes over. A dedicated indexing section at the back lets you look a part number up against its figure and item reference.
