Bobcat 963 G-Series Skid Steer Loader Parts Manual 2002 – PDF Download

Description

Bobcat 963 G-Series Parts Manual – Complete Illustrated Parts Catalog

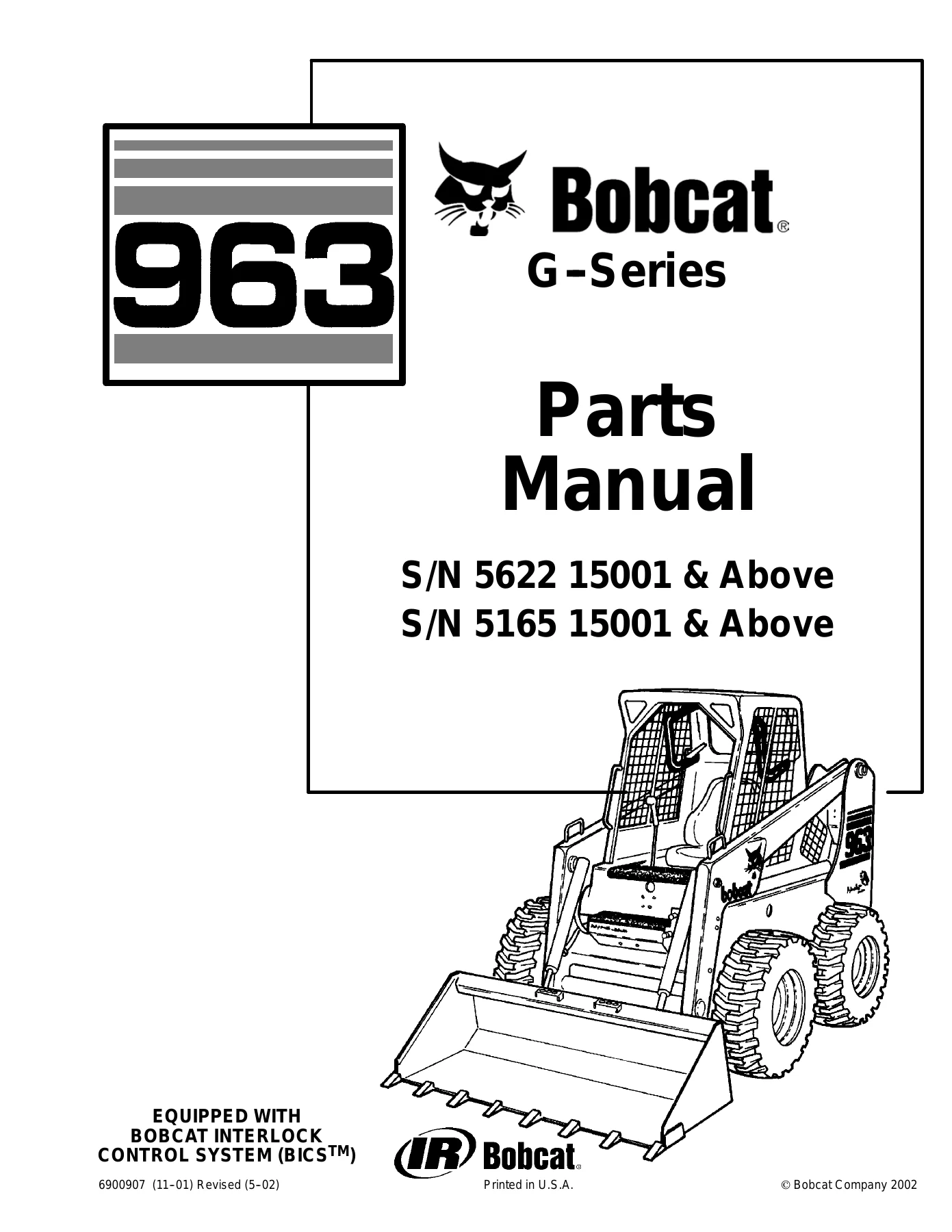

The Bobcat 963 G-Series Parts Manual (document 6900907, dated 2002) is the complete illustrated parts catalog for the 963 G-Series skid steer loader, covering machines from serial number 5622 15001 & Above and 5165 15001 & Above. Every assembly on the machine is broken down into exploded views with reference numbers, part numbers, descriptions, remarks and required quantities, so you can pinpoint exactly the component you need and order it correctly the first time.

This is the same parts breakdown used to identify components across the entire loader – from the mainframe and operator cab through the hydrostatic drive system, hydraulic control valve, engine, cooling system and every accessory option. Whether you are rebuilding a worn hydraulic pump, replacing a cracked cab window, matching a fastener, or chasing a superseded part number, the Bobcat 963 G-Series Parts Manual 2002 puts the full parts hierarchy in front of you in one PDF.

File Details

• Manual type: Illustrated Parts Manual (Parts Catalog)
• Brand: Bobcat
• Model: 963 G-Series Skid Steer Loader
• Document number: 6900907
• Date: 2002
• Language: English, with general-information and abbreviations sections also provided in French, German, Italian, Spanish and Dutch
• File format: PDF
• Page count: Approximately 460 pages
• Serial number coverage: S/N 5622 15001 & Above and S/N 5165 15001 & Above

Chapters Covered

• Mainframe – frame, covers, bushings, brackets, chaincase
• Operator Cab – cab assembly, insulation, gas springs, mounts, covers
• Seat & Seat Bar – seat assemblies, tracks, cushions, seat bar, springs
• Rear Door – door, hinge, latch, striker, seals, covers
• Lift Arms & Bob-Tach – lift arms, pivot assemblies, pins, bushings, stops, handles
• Bob-Tach – frame, levers, wedges, springs, pivots, wipers
• Panels – side panels, floor, lever covers, shields, insulation
• Fuel System – tank, hoses, filler tube, caps, sender, brackets, insulation
• Drive System – drive train, sprockets, chains, chaincase, covers
• Disc Brake – pedal, mount, angle, switch, spring
• Gearbox – gearbox assembly, gears, bearings, races, shafts, covers
• Axle – axle shaft, hub, bearings, sprocket, seal, studs
• Hydraulic System – hydraulic circuitry, tube lines, hoses, clamps, couplers
• Manual Lift Release System – release valve, block, knob, seals
• Auxiliary Hydraulic Circuitry – auxiliary lines, couplers, brackets
• Control Pedals – pedal, bellcrank, links, bushings, pins, yoke
• Lift Cylinder – case, piston, rod, head, seal kit
• Tilt Cylinder – case, piston, rod, head, plugs, seal kit
• Hydraulic Control Valve – valve assembly, spools, solenoids, seal kits, coils
• BICS Valve – valve assembly, pilot valve, solenoid valve, check valve, orifice
• Bucket Position Valve – valve, plugs, springs, spools, seal kits
• Hydrostatic System – hydrostatic circuitry, oil cooler, filters, hoses, tank
• Hand Controls – levers, handles, bearings, bellcranks, brackets, shafts
• Controller – controller, plunger kit, boot, guide, spring, plate kit
• Valve Assembly – coils, valves, shuttle valves, directional valves, seal kits
• Hydrostatic Motor – housing, rotary group, shaft, seal kit
• Rear Cover Assembly – housing, plugs, throttle screws, shuttle check valve
• Flushing Valve – plug, shim, poppet, orifice, spring, seal kit
• Hydrostatic Pump – housing, port block, pistons, charge pump, seal kit
• Dual Gear Pump – pump assembly, seals, gears, housings, seal kit
• Hydrostatic Oil Filter – filter assembly, pressure switch, by-pass kit, filter element
• Electrical System – cab electrical circuitry, engine electrical, controls electrical
• Alternator – alternator (Bobcat and 90 amp variants), pulley, rotor, stator, regulator
• Starter – starter, yoke, armature, brushes, solenoid, clutch, housing
• Power Unit – cooling system, engine and attaching parts, engine mounts, throttle
• Hydraulic Fan Motor – flange, seals, gears, coil, end cover, seal kit
• Engine & Gasket Kit – cylinder block, crankshaft, pistons, connecting rods, cylinder head, rocker shaft, timing gears
• Fuel Injector System – injection pump, injectors, pipes, nozzles, solenoid valve
• Lubrication System – oil pan, oil pipes, bridge, dipstick, seals
• Water Pump – water pump, thermostat housing, gaskets, hoses
• Manifold & Turbocharger – intake manifold, exhaust manifold, turbocharger, oil pipes
• Fuel Filters & Pre-Lift Pump – fuel filter, pre-lift pump, water trap, elements
• Air Cleaner – air cleaner assembly, outer and inner elements, dust unloader valve
• Accessories & Options – ACS conversion kit, back-up alarm, battery kit, beacon, block heater, cab door, cab enclosure, cab windows, counterweight kit, decals, deluxe cab, dump restrictor, electrical kits, ether kit, European accessories, fire extinguisher, FOPS kit, flasher lights, hand control kit, heater & A/C, horn kit, lift kits, light kit, Power Bob-Tach kit, muffler purifier, rear auxiliary hydraulics, rear door lock, rear wiper, seat belts, secondary auxiliary hydraulics, sound kit, strobe light, tires and rims, bulk items

The contents read like a full teardown of the machine in catalog form. Rather than describing what a part does, this Bobcat 963 G-Series Parts Manual 2002 shows you where it sits, how many are required, what it is called and what number to quote – which is exactly what you need when a dealer counter, an online parts store or a salvage yard asks for a reference.

How the Parts Breakdown Is Organised

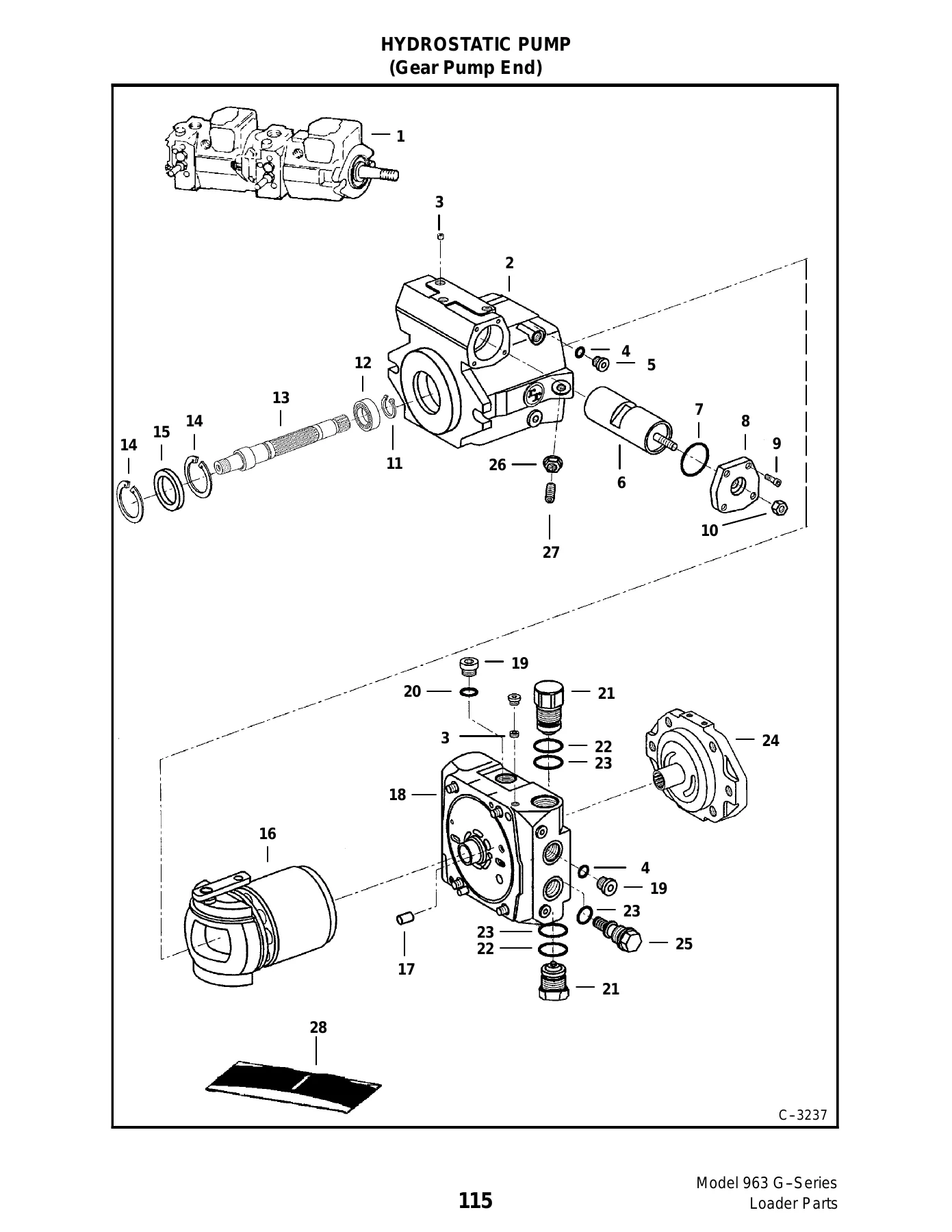

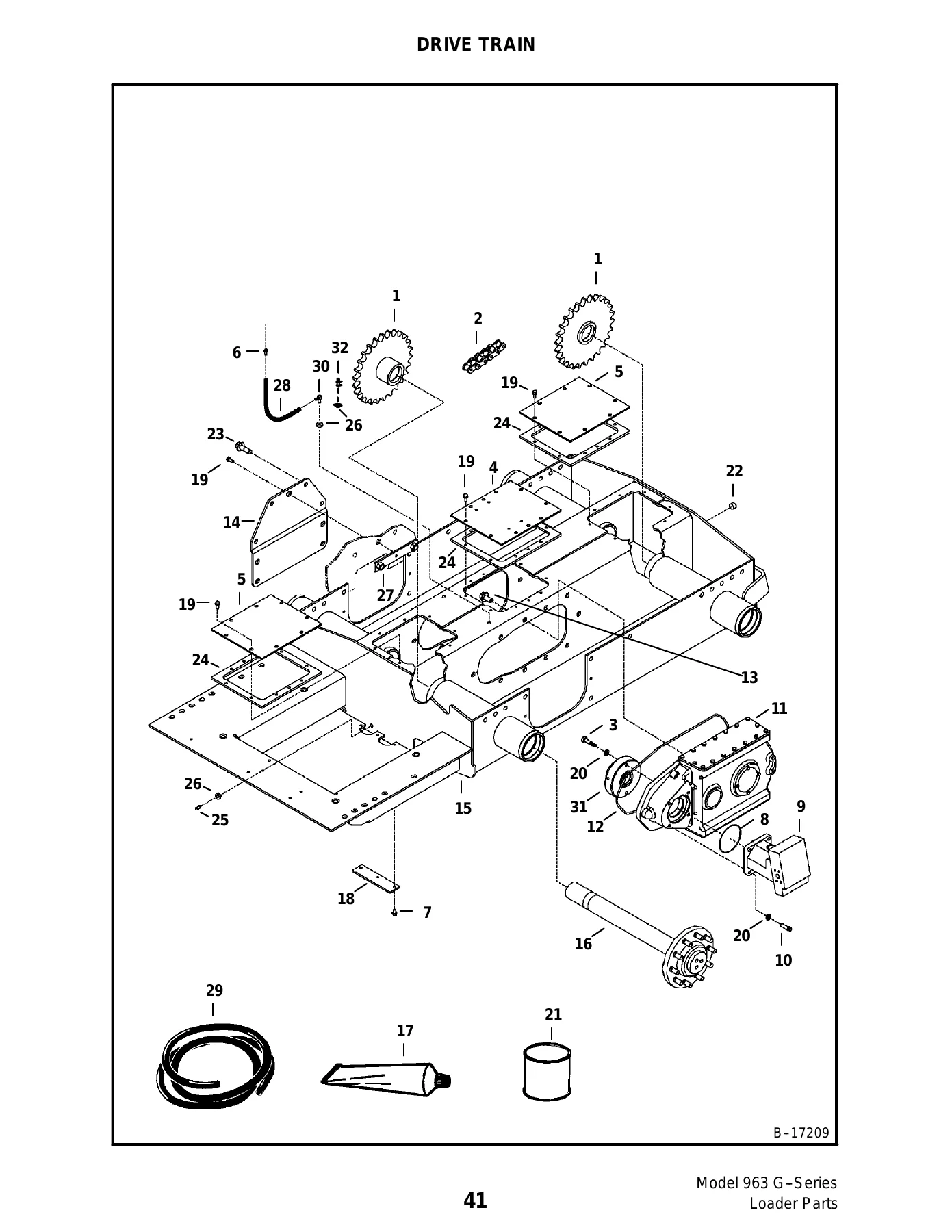

Each section opens with a labelled illustration of the assembly. Every callout on that illustration maps to a line in the accompanying table with the reference number, Bobcat part number, description, remarks and quantity. Where Bobcat changed a part during production, the remarks column carries the disposition codes and the “Was” reference so you can trace both the current number and the number it replaced. Serial-number breaks are listed wherever a component changed mid-production – for example the rear door and latch assemblies, the seat and suspension seat, the cab electrical panel and crossmember, the hydrostatic oil cooler brackets, the hydraulic fan mounting hardware and the fuel tank breather cap.

Serial Number Breaks You Will Find Inside

The manual calls out separate parts for machines built before and after specific serial numbers, including:

• Seat and seat suspension – S/N 5622 15163 & Below / S/N 5622 15164 & Above and the matching 5165 breakpoints
• Rear door and latch – S/N 5622 16268 & Below / 5165 16034 & Below versus later machines
• Disc brake pedal assembly – S/N 5622 15999 & Below / 5165 15999 & Below
• Cab electrical panel and crossmember – S/N 5622 15999 & Below / 5622 16001 & Above
• Oil cooler brackets, fan mounting bolts and fuel tank cap – S/N 5622 16113 & Below / 5622 16114 & Above
• Hydrostatic valve assembly and controller – S/N 5622 16354 & Below / 5165 16056 & Below
• Hand controls and foot pedal assemblies – S/N 5622 16108 & Above / 5165 16012 & Above
• Power Bob-Tach kit – S/N 5622 16258 & Above / 5165 16033 & Above

Because those breaks are listed with the exact serial ranges, you can confirm from your machine’s product identification number which version of a component applies before you order. That single feature prevents most of the wrong-part returns that happen when someone orders from a generic diagram.

Superseded Part Numbers and Disposition Codes

Throughout the tables, remarks include disposition codes – [A] Use Up, [B] Use Up on Other Application, [C] File PDR Report With Bobcat Parts Sales and [D] Part Number Error – together with “Was” references pointing to the earlier number. This is invaluable if you are holding an older part or an old invoice and need to know whether it is still the correct number, has been superseded, or is used on another application.

What This Bobcat 963 G-Series Parts Manual Enables

With the full catalog in hand you can:

• Identify and order the correct part for any assembly on the 963 G-Series loader without relying on guesswork or a phone call
• Trace superseded part numbers back to their current equivalents
• Confirm whether your machine falls on the early or late side of a serial-number break
• Rebuild hydraulic cylinders, hydrostatic motors, hydrostatic pumps, gear pumps, gearboxes and axles using the correct seals, bearings, races and snap rings
• Assemble accessories and option kits – cab doors, cab windows, deluxe cab, heater and A/C, hand control kits, lift kits, light kits, rear auxiliary hydraulics, secondary auxiliary hydraulics, Power Bob-Tach – using the correct hardware, clamps and fittings
• Match fasteners, washers, O-rings, clamps and hose assemblies by number rather than by eye
• Build an accurate shopping list for a rebuild, restoration, salvage repair or inventory audit

Why Correct Part Numbers Matter on a 963 G-Series

The 963 G-Series was built across a long production run with several mid-cycle changes to hydraulic, electrical and cab components. Two machines that look identical can take different rear door latches, different cab panels, different hydrostatic valves or different hand controls. Ordering the wrong variant wastes time, freight and money. Having the Bobcat 963 G-Series Parts Manual (6900907) on hand means every number you quote carries a serial-number reference and an assembly context, so the part that arrives is the part that fits.

Accessory and Option Coverage

Beyond the base machine, the manual carries dedicated pages for the option and accessory kits that were offered on the 963 G-Series – ACS conversion, back-up alarm, dual battery kit, rotating beacon, block heater, Bob-Tach conversion, cab door, cab enclosure, cab windows (including rear external removal kit), counterweight kit, decals, deluxe cab, dump restrictor kit, electrical connector kit, electrical controls kits, ether kit, European accessories and rear door lights, fire extinguisher, FOPS kit, flasher lights, hand control kit, heater and A/C (heater kit, heater plumbing, heater assembly, blower assembly, blower seal kit, insulation, heater coil kit, A/C kit, HVAC assembly), horn kit, 4-point and 2-point lift kits, light kit, Power Bob-Tach kit (hydraulic assisted) with its cylinder and valve assembly, muffler purifier, rear auxiliary hydraulic kit, rear auxiliary valve, rear door lock, rear wiper, seat belts (three-point retractable, 3 in. wide retractable, 3 in. wide), secondary auxiliary hydraulic kit, sound kit, strobe light, tires and rims (including Iatco solid tire assemblies) and bulk items such as paint, anti-freeze, sealant, Black Gold hydraulic/hydrostatic fluid, motor oils, greases and adhesives.

Get the Complete Bobcat 963 G-Series Parts Manual 2002 Today

This Bobcat 963 G-Series Skid Steer Loader Parts Manual 2002 – PDF Download gives you the full illustrated catalog for one specific machine, with every assembly covered from the mainframe through to the bulk-item shelf. Instead of ordering parts from memory, from a photo or from a partial screenshot, you can work from the complete factory parts breakdown – exploded illustrations on one side, part numbers and quantities on the other, serial-number breaks and superseded numbers flagged in the remarks.
