Bobcat S130 Skid-Steer Loader Service Manual 6904121 (2009)

Original price was: $39.95.Current price is: $24.95.

Bobcat S130 skid-steer loader service manual 6904121 (7-09) covering safety and maintenance, hydraulics, hydrostatic drive, chaincase, main frame, BICS electrical analysis, Kubota V2203-M-DI engine work, heater service, and loader specifications for the listed serial ranges.

Instant PDF Download
Available immediately
💾
Save to Your Device
Download & keep forever
🛡️
Antivirus Scanned
100% virus-free
🌍
Trusted Worldwide
175,000+ customers

Description

Bobcat S130 Skid-Steer Loader Service Manual 6904121 (2009)

This Bobcat S130 Skid-Steer Loader Service Manual 6904121 (2009) is the shop-level service book printed as publication 6904121 (7-09) by Bobcat Company in 2009. It is written for the mechanic who must adjust, test, remove, and rebuild the S130 after daily checks in the Operation & Maintenance Manual are no longer enough. The loader covered here is equipped with the Bobcat Interlock Control System (BICS). Serial ranges printed on the title page are S/N 529211001 & Above, S/N 529611001 & Above, S/N A84W11001 & Above, S/N A1Z711001 – A1Z759999, S/N A8NW11001 & Above, and S/N A8KA11001 – A8KA59999.

File Details

  • Manual type: Service Manual
  • Brand / model: Bobcat S130 Skid-Steer Loader
  • Publication: 6904121 (7-09), printed U.S.A., copyright Bobcat Company 2009
  • Language: English
  • Page count: 764
  • File format: PDF

Which S130 This Book Matches

Always use the loader serial number when ordering parts or choosing a procedure. The plate sits on the outside of the loader frame. The four-digit model/engine combination and five-digit production sequence together identify the machine. The engine serial number is stamped near the injection pump, and the engine model number is on the valve cover. Early and later machines in the ranges above can use different parts, so the serial list on the cover of the Bobcat S130 Skid-Steer Loader Service Manual 6904121 (2009) is the first check before a teardown.

The powerplant identified in Engine Information is the Kubota V2203-M-DI direct-injected, liquid-cooled four-cylinder diesel. Displacement is 134 cu. in. (2.2 L). SAE net output is 46 HP (34 kW / 34.3 kW @ 2800 RPM in the loader specification table) with SAE net torque of 103.5 ft.-lb. (140.4 N·m) @ 1700 RPM. Rotation is counter-clockwise from the flywheel side. Glow plugs assist cold starts. A hydraulic-motor-driven cooling fan is controlled by engine coolant and hydraulic/hydrostatic fluid temperature sensors. Closed crankcase ventilation, a dry dual-element air cleaner, and a gear-pump pressure lubrication system with filter are specified.

Complete PDF Bookmark Tree

Complete Bookmarks

The complete bookmarks in the “Bobcat S130 Skid-Steer Loader Service Manual 6904121 (2009)” are as follows:

MAINTENANCE SAFETYp. 3
ALPHABETICAL INDEXp. 5
CONTENTSp. 7
FOREWORDp. 8
SAFETY INSTRUCTIONSp. 11
FIRE PREVENTIONp. 13
Maintenancep. 13
Operationp. 13
Electricalp. 13
Hydraulic Systemp. 13
Fuelingp. 13
Startingp. 13
Spark Arrestor Exhaust Systemp. 13
Welding And Grindingp. 14
Fire Extinguishersp. 14
SERIAL NUMBER LOCATIONSp. 15
Loader Serial Numberp. 15
Engine Serial Numberp. 15
DELIVERY REPORTp. 16

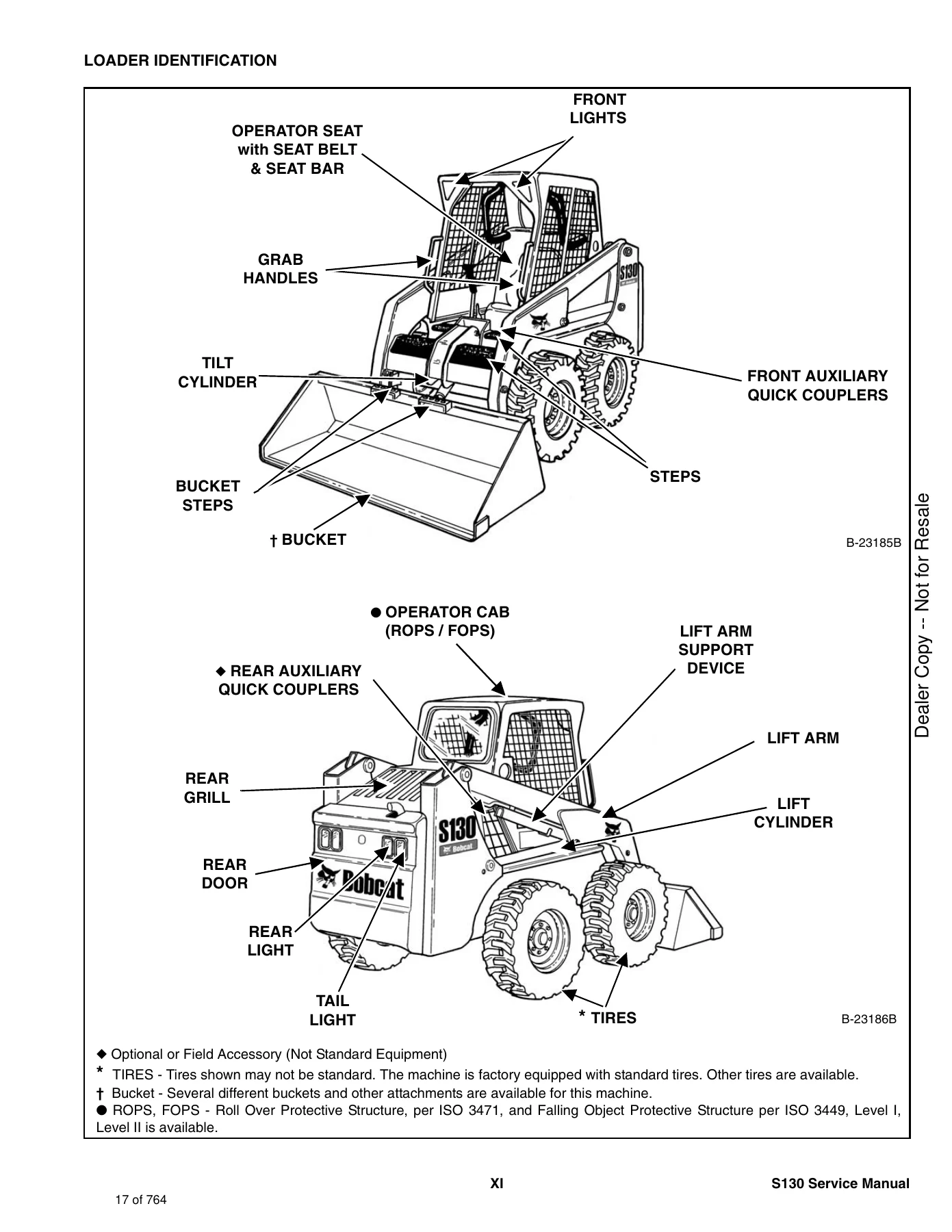

LOADER IDENTIFICATIONp. 17
SAFETY AND MAINTENANCEp. 19
LIFTING AND BLOCKING THE LOADERp. 23
Procedurep. 23
LIFT ARM SUPPORT DEVICEp. 25
Installingp. 25
Removingp. 26
OPERATOR CABp. 27
Descriptionp. 27
Raisingp. 28
Loweringp. 29
Cab Door Sensorp. 30
Special Applications Kitp. 30
Special Applications Kit Inspection And Maintenancep. 30
TRANSPORTING THE LOADER ON A TRAILERp. 31
Loading And Unloadingp. 31
Fasteningp. 31
TOWING THE LOADERp. 33
Procedurep. 33
REMOTE START TOOL KIT-MEL1563p. 35
Remote Start Tool – MEL1563p. 35
Service Tool Harness Control – MEL1565p. 36
Service Tool Harness Communicator – MEL1566p. 37
Remote Start Procedurep. 38
REMOTE START TOOL (SERVICE TOOL) KIT – 6689779p. 41
Descriptionp. 41
Remote Start Tool (Service Tool) – 6689778p. 42
Loader Service Tool Harness – 6689747p. 43
Computer Service Tool Harness – 6689746p. 44
Remote Start Procedurep. 45
SERVICE SCHEDULEp. 49
Chartp. 49
AIR CLEANER SERVICEp. 51
Replacing Filter Elementsp. 51
ENGINE COOLING SYSTEMp. 53
Cleaningp. 53
Checking Levelp. 53
Removing And Replacing Coolantp. 54
FUEL SYSTEMp. 55
Fuel Specificationsp. 55
Biodiesel Blend Fuelp. 55
Filling The Fuel Tankp. 56
Fuel Filterp. 57
Removing Air From The Fuel Systemp. 57
ENGINE LUBRICATION SYSTEMp. 59
Checking And Adding Engine Oilp. 59
Engine Oil Chartp. 59
Removing And Replacing Oil And Filterp. 60
HYDRAULIC / HYDROSTATIC SYSTEMp. 61
Checking And Adding Fluidp. 61
Hydraulic / Hydrostatic Fluid Chartp. 61
Removing And Replacing Hydraulic Fluidp. 62
Removing And Replacing Hydraulic / Hydrostatic Filterp. 63
Removing And Replacing Case Drain Filtersp. 64
Removing And Replacing Hydraulic Charge Filterp. 65
Breather Capp. 66
FINAL DRIVE TRANSMISSION (CHAINCASE)p. 67
Checking And Adding Oilp. 67
Removing And Replacing Oilp. 67
BOB-TACH (HAND LEVER)p. 69
Inspection And Maintenancep. 69
BOB-TACH (POWER)p. 71
Inspection And Maintenancep. 71
LUBRICATING THE LOADERp. 73
Lubrication Locationsp. 73
TIRE MAINTENANCEp. 75
Wheel Nutsp. 75
Rotatingp. 75
Mountingp. 76
SPARK ARRESTOR MUFFLERp. 77
Cleaning Procedurep. 77
PIVOT PINSp. 79
Inspection And Maintenancep. 79
LOADER STORAGE AND RETURN TO SERVICEp. 81
Storagep. 81
Return to Servicep. 81
STOPPING THE ENGINE AND LEAVING THE LOADERp. 83
Procedurep. 83
Emergency Exitp. 84
HYDRAULIC SYSTEMp. 85
HYDRAULIC / HYDROSTATIC SCHEMATICSp. 89
HYDRAULIC SYSTEM INFORMATIONp. 93
Glossary Of Hydraulic/Hydrostatic Symbolsp. 93
Troubleshootingp. 97
CYLINDER (LIFT)p. 99
Testingp. 99
Removal And Installationp. 100
Parts Identificationp. 101
Disassembly And Assemblyp. 102
CYLINDER (TILT)p. 105
Testingp. 105
Removal And Installationp. 105
Rod End Pivot Pin Bushing And Seal Removal And Installationp. 107
Base End Pivot Pin Removal And Installationp. 107
Parts Identificationp. 108
Disassembly And Assemblyp. 109
CYLINDER (BOB-TACH)p. 113
Testingp. 113
Removal And Installationp. 114
Parts Identificationp. 115
Disassembly and Assemblyp. 116
MAIN RELIEF VALVEp. 119
Descriptionp. 119
Testingp. 119
Adjustingp. 120
Removal and Installationp. 121
HYDRAULIC CONTROL VALVE (STANDARD)p. 123
Descriptionp. 123
Removal And Installationp. 123
Identification Chartp. 128
Lift Load Check Valve Removal And Installationp. 129
Load Check Valve Removal And Installation (Tilt & Auxiliary)p. 130
Anti-Cavitation Valve Removal And Installation (Lift, Rod End)p. 130
Port Relief/Anti-Cavitation Valve Removal And Installation (Lift, Base End)p. 131
Port Relief/Anti-Cavitation Valve Removal And Installation (Tilt, Base End)p. 132
Port Relief/Anti-Cavitation Valve Removal And Installation (Tilt, Rod End)p. 132
Port Relief Valve Removal And Installationp. 133
Plug Removal And Installationp. 134
Rubber Boot Removal And Installationp. 135
End Cap/Spool Lock Block Removal And Installationp. 135
Lift Spool And Detent Removal And Installationp. 136
Tilt Spool Removal And Installationp. 146
Auxiliary Spool Removal And Installationp. 148
Auxiliary Solenoid Removal And Installationp. 150
Solenoid Removal And Installationp. 151
Lock Valve Removal And Installationp. 152
Lift Arm Bypass Orifice Removal And Installationp. 154
Main Relief Valve Removal And Installationp. 155
Check Valve Removal And Installationp. 156
HYDRAULIC CONTROL VALVE (ACS) OR (SJC)p. 157
Descriptionp. 157
Removal And Installationp. 157
Actuator Removal And Installation (Out of Loader)p. 162
Identification Chartp. 165
Lift Load Check Valve Removal And Installationp. 166
Load Check Valve Removal And Installation (Tilt & Auxiliary)p. 167
Anti-Cavitation Valve Removal And Installation (Lift, Rod End)p. 168
Port Relief/Anti-Cavitation Valve Removal And Installation (Lift, Base End)p. 169
Port Relief/Anti-Cavitation Valve Removal And Installation (Tilt, Base End)p. 169
Port Relief/Anti-Cavitation Valve Removal And Installation (Tilt, Rod End)p. 170
Port Relief Valve Removal And Installationp. 170
Plug Removal And Installationp. 171
End Cap Block Removal And Installationp. 172
Lift Spool And Detent Removal And Installationp. 173
Tilt Spool Removal And Installationp. 178
Auxiliary Spool Removal And Installationp. 180
Auxiliary Solenoid Removal And Installationp. 181
Solenoid Removal And Installationp. 182
Lock Valve Removal And Installationp. 184
Lift Arm Bypass Orifice Removal And Installationp. 186
Main Relief Valve Removal And Installationp. 187
Check Valve Removal And Installationp. 188
LIFT ARM BYPASS CONTROL VALVEp. 189
Descriptionp. 189
Testingp. 189
Removal and Installationp. 189
Disassembly And Assemblyp. 190
HYDRAULIC PUMP (STANDARD)p. 191
Descriptionp. 191
Pump Test At Quick Couplersp. 191
Direct Pump Test (Standard Section)p. 192
Direct Pump Test (Charge Section)p. 193
Removal And Installationp. 197
Hydraulic Pump Start Upp. 199
Parts Identificationp. 200
Disassembly And Assemblyp. 201
HYDRAULIC PUMP (SJC)p. 209
Descriptionp. 209
Pump Test At Quick Couplersp. 209
Direct Pump Test (Standard Section)p. 210
Direct Pump Test (Charge Section)p. 212
Removal And Installationp. 214
Hydraulic Pump Start Upp. 214
Parts Identificationp. 215
Disassembly And Assemblyp. 216
HYDRAULIC/HYDROSTATIC FILTERSp. 217
Descriptionp. 217
Housing Removal And Installationp. 217
Charge Filter Housing Removal And Installationp. 219
HYDRAULIC FLUID RESERVOIRp. 221
Descriptionp. 221
Removal And Installationp. 221
Hydraulic Fluid Screenp. 222
OIL COOLERp. 223
Descriptionp. 223
Removal and Installationp. 223
BUCKET POSITION VALVEp. 225
Descriptionp. 225
Solenoid Removal And Installationp. 225
Solenoid Testingp. 226
Removal And Installationp. 226
Disassembly And Assemblyp. 228
REAR AUXILIARY DIVERTER VALVEp. 231
Descriptionp. 231
Solenoid Testingp. 231
Removal And Installationp. 231
Disassembly And Assemblyp. 234
BOB-TACH (POWER) BLOCKp. 241
Descriptionp. 241
Removal And Installationp. 241
Disassembly And Assemblyp. 243
FRONT AUXILIARY HYDRAULIC COUPLER BLOCKp. 247
Descriptionp. 247
Removal and Installationp. 247
Disassembly And Assemblyp. 247
HYDROSTATIC SYSTEMp. 249
HYDROSTATIC SYSTEM INFORMATIONp. 251
Troubleshootingp. 251
Descriptionp. 252
HYDROSTATIC MOTORp. 253
Descriptionp. 253
Removal And Installationp. 253
Parts Identificationp. 256
Disassembly And Assemblyp. 257
HYDROSTATIC MOTOR CARRIERp. 263
Descriptionp. 263
Shaft Seal Removal And Installationp. 263
Removal And Installationp. 265
Parts Identificationp. 267
Disassembly and Assemblyp. 268
HYDROSTATIC MOTOR CARRIER (SJC)p. 273
Descriptionp. 273
Shaft Seal Removal And Installationp. 273
Removal And Installationp. 275
Parts Identificationp. 277
Disassembly and Assemblyp. 278
CHARGE PRESSUREp. 283
Descriptionp. 283
Testingp. 283
Sender Removal And Installationp. 285
Adjustingp. 286
HYDROSTATIC PUMPp. 287
Descriptionp. 287
Replenishing/High Pressure Relief Valve Removal And Installationp. 288
Removal And Installationp. 289
Hydrostatic Pump Start Upp. 290
Parts Identification (Left Half)p. 291
Parts Identification (Right Half)p. 292
Disassemblyp. 293
Assemblyp. 299
HYDROSTATIC PUMP (SJC)p. 307
Descriptionp. 307
Hydraulic Controller Removal And Installationp. 308
Removal And Installationp. 310
Hydrostatic Pump Start Upp. 311
Parts Identificationp. 312
High Pressure Relief and Bypass Valvep. 313
Charge Relief Valvep. 314
Disassembly And Assemblyp. 315
Mechanical Neutral Adjustmentp. 331
Hydraulic Controller Neutral Adjustmentp. 334
DRIVE BELTp. 337
Descriptionp. 337
Shield Removal And Installationp. 337
Adjustingp. 337
Belt Removal And Installationp. 339
Tensioner Pulley Removal And Installationp. 340
Tensioner Pulley Parts Identificationp. 341
Tensioner Pulley Disassemblyp. 342
Tensioner Pulley Assemblyp. 343
CASE DRAIN FILTERp. 345
Descriptionp. 345
Disassembly And Assemblyp. 345
DRIVE SYSTEMp. 347
BRAKEp. 349
Descriptionp. 349
Disk Removal And Installationp. 350
DRIVE COMPONENTSp. 351
Descriptionp. 351
Axle Seal Removal And Installationp. 352
Axle Sprocket And Bearings Removal And Installationp. 354
Chain Removal And Installationp. 359
CHAINCASEp. 361
Descriptionp. 361
Front Cover Removal And Installationp. 361
Center Cover Removal And Installationp. 362
Rear Cover Removal And Installationp. 363
MAIN FRAMEp. 365
SEAT BARp. 369
Descriptionp. 369
Removal And Installationp. 369
Disassembly And Assemblyp. 370
Compression Spring Disassembly And Assemblyp. 372
OPERATOR CABp. 373
Gas Cylinder Removal And Installationp. 373
Gas Cylinder Bracket Disassembly And Assemblyp. 375
Removal And Installationp. 376
OPERATOR SEATp. 379
Removal And Installationp. 379
Seat Belt Removal And Installationp. 379
OPERATOR SEAT (SUSPENSION)p. 381
Removal And Installationp. 381
Slide Rail Removal And Installationp. 382
Seat Belt Removal and Installationp. 382
Lower Cushion Removal And Installationp. 382
Back Cushion Removal And Installationp. 384
Shock Removal And Installationp. 384
3-Point Seat Belt Removal And Installationp. 385
BOB-TACH (HAND LEVER)p. 387
Descriptionp. 387
Removal And Installationp. 387
Lever And Wedge Disassembly And Assemblyp. 390
Bob-Tach Stopsp. 391
Pivot Pin Bushing And Seal Removal And Installationp. 392
BOB-TACH (POWER – OPTION)p. 393
Descriptionp. 393
Removal And Installationp. 393
Lever And Wedge Disassembly And Assemblyp. 395
Bob-Tach Stopsp. 396
Pivot Pin Bushing And Seal Removal And Installationp. 397
LIFT ARMSp. 399
Removal And Installationp. 399
REAR GRILLp. 405
Removal And Installationp. 405
REAR DOORp. 407
Removal And Installationp. 407
Striker Removal and Installationp. 408
Striker Disassembly and Assemblyp. 408
Striker (Adjusting)p. 408
Latch Removal And Installationp. 409
FUEL TANKp. 411
Removal And Installationp. 411
Fuel Level Sender Removal And Installationp. 412
Fuel Fill Screen Removal And Installationp. 412
CONTROL PEDALS AND LINKAGESp. 413
Descriptionp. 413
Pedal Removal And Installationp. 413
Linkage Removal And Installationp. 414
Pedal (Adjusting)p. 416
CONTROL PEDALS (ACS)p. 417
Descriptionp. 417
Foot Sensor Removal And Installationp. 417
Foot Pedal Removal And Installationp. 418
Foot Pedal Linkage Disassembly And Assemblyp. 419
CONTROL PANELp. 421
Descriptionp. 421
Removal and Installationp. 422
Shock Removal And Installationp. 425
Shaft Removal And Installationp. 425
Shaft Disassembly And Assemblyp. 426
Linkage Removal And Installationp. 427
Pintle Arm Disassembly and Assemblyp. 431
Linkage Neutral Adjustingp. 433
Linkage Travel Adjustingp. 437
CONTROL PANEL (SJC)p. 441
Descriptionp. 441
Removal And Installationp. 441
CONTROL HANDLE/LEVERp. 443
Descriptionp. 443
Lever Removal And Installationp. 443
Boot Removal And Installationp. 443
CONTROL HANDLE/LEVER (ACS)p. 445
Descriptionp. 445
Handle Sensor Removal And Installationp. 445
Handle Removal and Installationp. 448
Handle Disassembly and Assemblyp. 449
Lever Removal and Installationp. 449
Boot Removal And Installationp. 451
CONTROL HANDLE/LEVER (SJC) (S/N 529214883 & Above, S/N 529611919 & Above)p. 453
Descriptionp. 453
Joystick Testingp. 453
Joystick Removal And Installationp. 454
Removal And Installationp. 455
WINDOW (REAR)p. 457
Removalp. 457
Installationp. 457
WINDOW (TOP)p. 459
Removal And Installationp. 459
WINDOW (SIDE)p. 461
Removal And Installationp. 461
WINDOW (FRONT DOOR)p. 463
Removal (Standard Window)p. 463
Installation (Standard Window)p. 464
Removal And Installation (Special Applications Window)p. 466
ELECTRICAL SYSTEM & ANALYSISp. 467
ELECTRICAL SCHEMATICSp. 471
ELECTRICAL SYSTEM INFORMATIONp. 483
Glossary Of Electrical Symbolsp. 483
Cab Harness Connectorsp. 486
Mainframe Harness Connectorsp. 487
Descriptionp. 488
Troubleshootingp. 489
Fuse And Relay Location / Identificationp. 490
Solenoid Testingp. 491
BATTERYp. 493
Removal And Installationp. 493
Servicingp. 494
Using A Booster Battery (Jump Starting)p. 495
ALTERNATORp. 497
Belt Adjustmentp. 497
Belt Replacementp. 497
Charging System Inspectionp. 498
Alternator Voltage Testingp. 499
Low Voltage Testingp. 499
High Voltage Testingp. 500
Removal And Installationp. 501
Parts Identificationp. 502
STARTERp. 503
Testingp. 503
Removal And Installationp. 504
Parts Identificationp. 505
INSTRUMENT PANELSp. 507
Left Panelp. 507
Right Panel (Key Switch)p. 508
Right Panel (Keyless)p. 509
Side And Front Panelsp. 511
Removal And Installation (Left And Right)p. 512
Bulb Removal And Installation (Left Only)p. 515
Key Switch Removal And Installationp. 516
Alarm Removal And Installationp. 517
Front Accessory Panel Removal And Installationp. 517
LIGHTSp. 519
Front Removal And Installationp. 519
Rear Removal And Installationp. 520
Cab Light Removal And Installationp. 520
BOBCAT CONTROLLER (MAIN)p. 521
Descriptionp. 521
Connector Identificationp. 522
Removal And Installationp. 524
BOBCAT CONTROLLER (ACS)p. 525
Descriptionp. 525
Connector Identificationp. 527
Removal and Installationp. 528
BOBCAT CONTROLLER (SJC) (DRIVE)p. 529
Descriptionp. 529
Connector Identificationp. 530
Removal and Installationp. 532
SPEED SENSORS (SJC)p. 533
Descriptionp. 533
Testingp. 533
Removal And Installationp. 535
DIAGNOSTICS SERVICE CODESp. 537
Descriptionp. 537
Service Codes Listp. 538
BOBCAT INTERLOCK CONTROL SYSTEM (BICS)p. 543
Descriptionp. 543
Inspecting The BICS Controller (Engine STOPPED – Key ON)p. 544
Inspecting Deactivation Of The Auxiliary Hydraulics System (Engine STOPPED – Key ON)p. 544
Inspecting The Seat Bar Sensor (Engine RUNNING)p. 544
Inspecting The Traction Lock (Engine RUNNING)p. 544
Inspecting The Lift Arm Bypass Controlp. 544
Inspecting Deactivation Of Lift And Tilt Functions (ACS And SJC)p. 544
Troubleshootingp. 545
Troubleshooting Chartp. 546
SEAT BAR SENSORp. 547
Descriptionp. 547
Troubleshootingp. 547
Testingp. 548
Removal And Installationp. 549
Bobcat Interlock Control System (BICS) Circuit Testp. 551
TRACTION LOCKp. 553
Descriptionp. 553
Troubleshootingp. 553
Removal And Installationp. 554
Inspectingp. 558
CONTROL SYSTEM (ACS)p. 559
Descriptionp. 559
Troubleshooting Chartp. 560
Handle Sensor Connector Disassembly And Assemblyp. 561
Switch Handle Removalp. 562
Switch Handle Installationp. 564
Actuator Connector Disassembly And Assemblyp. 567
Handle Lock Solenoid Removal And Installationp. 568
Handle Lock Solenoid Disassembly And Assemblyp. 568
Foot Sensor Disassembly And Assemblyp. 569
Foot Lock Solenoid Removal And Installationp. 570
ELECTRICAL/HYDRAULIC CONTROLSp. 571
Identification Chartp. 571
ELECTRICAL/HYDRAULIC CONTROLS REFERENCE (SJC)p. 573
Identification Chartp. 573
SERVICE PC (LAPTOP COMPUTER)p. 577
Connecting To The Remote Start Toolp. 577
Connecting Remote Start Tool (Service Tool)p. 577
CALIBRATIONp. 579
Descriptionp. 579
Actuator Testingp. 579
Lift And Tilt Calibration (ACS)p. 581
Lift And Tilt Calibration (SJC)p. 583
Hydrostatic Pump Calibration (SJC)p. 585
STEERING DRIFT COMPENSATIONp. 591
Descriptionp. 591
Selecting And Adjustingp. 591
Exiting And Savingp. 592
FLYWHEEL RPM SENSORp. 593
Descriptionp. 593
Adjustingp. 593
CONTROL PANEL SETUPp. 595
Right Panel Setup (Keyless)p. 595
Attachment Control Information (Keyless)p. 596
PASSWORD SETUP (IF EQUIPPED WITH KEYLESS START)p. 597
Password Descriptionp. 597
Changing The Owner And User Passwordsp. 598
Password Lockout Featurep. 599
MAINTENANCE CLOCKp. 601
Descriptionp. 601
Setupp. 602
Resetp. 606
BACK-UP ALARM SYSTEMp. 607
Descriptionp. 607
Inspectingp. 607
Adjusting Switch Positionp. 608
Troubleshooting (Standard and ACS)p. 609
Troubleshooting (Joystick)p. 610
Alarm Removal And Installationp. 611
Switch Removal And Installationp. 611
ENGINE SERVICEp. 613
ENGINE INFORMATIONp. 615
Descriptionp. 615
Specificationsp. 616
Engine Torque Valuesp. 620
Troubleshootingp. 620
Engine Removal And Installationp. 622
Engine Mount Replacementp. 630
Compression – Checkingp. 631
ENGINE SPEED CONTROLp. 633
Removal And Installationp. 633
ENGINE SPEED CONTROL (SJC)p. 635
Removal And Installationp. 635
Disassembly And Assemblyp. 637
MUFFLERp. 639
Removal And Installationp. 639
AIR CLEANERp. 641
Housing Removal And Installationp. 641
ENGINE COOLING SYSTEMp. 643
Radiator Removal And Installationp. 643
Hydraulic Fan Descriptionp. 645
Hydraulic Fan Disassembly And Assemblyp. 645
Blower Housing Removal And Installationp. 646
Fan Removal And Installationp. 648
Hydraulic Fan Motor Removal And Installationp. 648
Water Pump Removal And Installationp. 649
Water Pump Disassembly And Assemblyp. 649
Thermostat Housing Removal And Installationp. 650
LUBRICATION SYSTEMp. 651
Oil Pan Removal And Installationp. 651
Oil Pump Removal And Installationp. 651
Oil Pump Inspectionp. 652
Engine Oil Pressure-Testingp. 653
FUEL SYSTEMp. 655
Fuel Camshaft Removal And Installationp. 655
Fuel Camshaft Governor Disassembly And Assemblyp. 656
Fuel Shutoff Solenoid – Checkingp. 657
Fuel Shutoff Solenoid Removal And Installationp. 657
Fuel Injection Pump Removal And Installationp. 658
Injection Pump – Timingp. 662
Fuel Injector Removal And Installationp. 664
Fuel Injector Nozzle Pressure – Checkingp. 665
Nozzle Spray Conditionp. 666
Valve Seat Tightnessp. 666
CYLINDER HEADp. 667
Glow Plugs – Testingp. 667
Glow Plugs Removal And Installationp. 667
Valve Clearance Adjustmentp. 668
Valve Timing, Checkingp. 669
Cylinder Head Removal And Installationp. 670
Cylinder Head Disassembly and Assemblyp. 673
Cylinder Head – Servicingp. 673
Cylinder Head Top Clearancep. 674
Valve Guide-Checkingp. 674
Reconditioning The Valve And Valve Seatp. 675
Valve Springp. 677
Valve Tappetsp. 678
Rocker Arm And Shaft Checkingp. 678
CRANKSHAFT AND PISTONSp. 679
Piston And Connecting Rod Removal And Installationp. 679
Piston And Connecting Rod – Servicingp. 681
Cylinder Bore- Checkingp. 683
Connecting Rod Alignmentp. 684
Crankshaft And Bearings Removal And Installationp. 684
Crankshaft And Bearings – Servicingp. 686
CAMSHAFT AND TIMING GEARSp. 691
Timing Gearcase Cover Removal And Installationp. 691
Timing Gears Backlash – Checkingp. 693
Idler Gear And Shaft Removal And Installationp. 694
Camshaft – Servicingp. 695
Idler Gear And Shaft Servicingp. 696
FLYWHEEL AND HOUSINGp. 697
Flywheel Removal And Installationp. 697
Ring Gear Removal And Installationp. 697
Housing Removal And Installationp. 698
HEATERp. 701
HEATER SYSTEMp. 703
Descriptionp. 703
REGULAR MAINTENANCEp. 705
Filter Elements Removal And Installationp. 705
Cleaning The Heater Coilp. 706
TROUBLESHOOTINGp. 707
Blower Motor Does Not Operatep. 707
Blower Motor Operators Normally, But Air Flow Is Insufficientp. 707
Electrical Systemp. 708
Engine Coolant Bypassing The Heater Valvep. 712
Heater Valve Not Opening Or Closingp. 713
HEATER UNITp. 715
Removal And Installationp. 715
HEATER COILp. 717
Removal And Installationp. 717
HEATER FANp. 719
Blower Removal And Installationp. 719
Disassembly And Assemblyp. 720
Connector Identificationp. 722
HEATER VALVEp. 723
Removal and Installationp. 723
Disassembly And Assemblyp. 724
SPECIFICATIONSp. 725

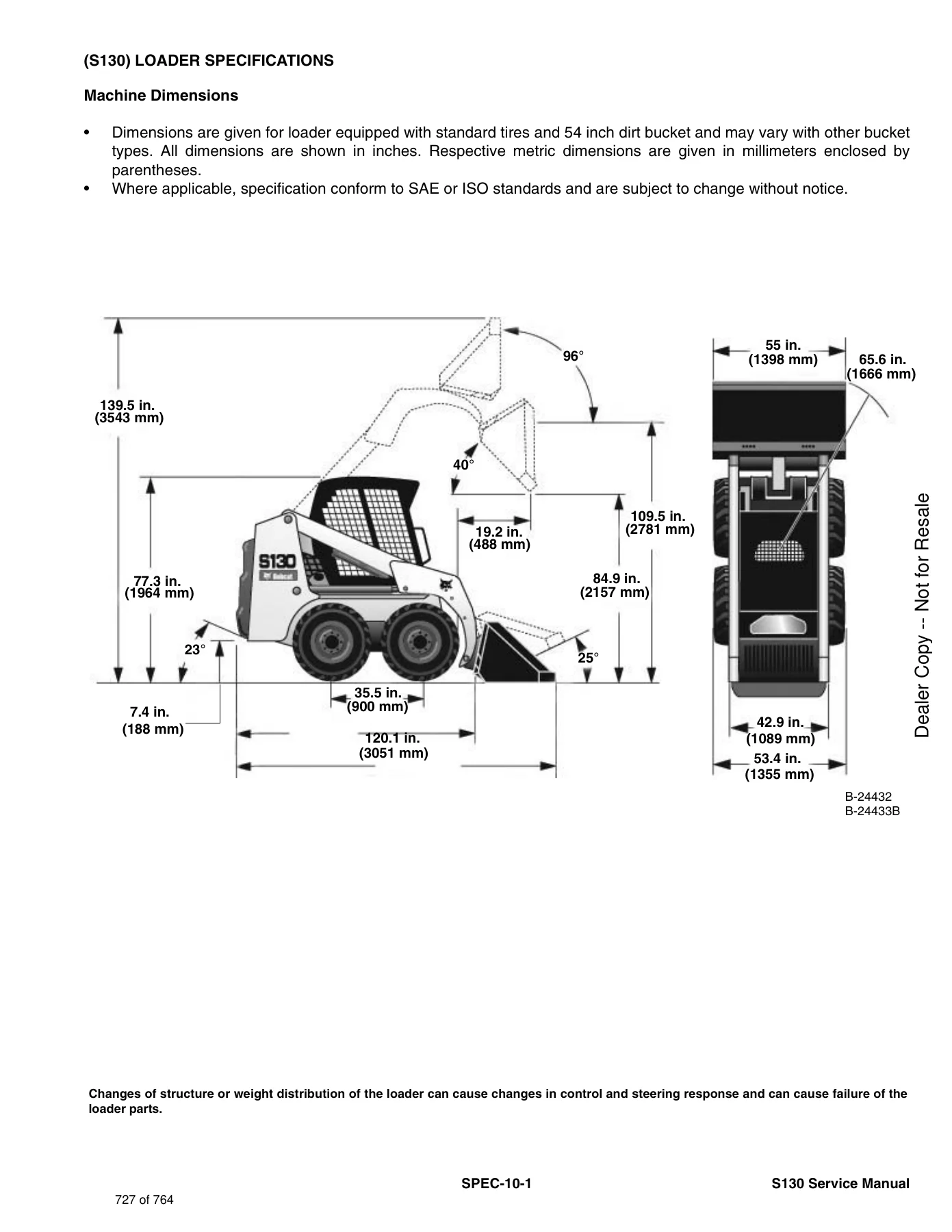

(S130) LOADER SPECIFICATIONSp. 727
Machine Dimensionsp. 727
Performancep. 728
Controlsp. 728
Enginep. 728
Hydraulic Systemp. 729
Electricalp. 729
Drive Systemp. 730
Capacitiesp. 730
Tiresp. 730
TORQUE SPECIFICATIONS FOR BOLTSp. 731
Torque For General SAE Boltsp. 731
Torque For General Metric Boltsp. 732
HYDRAULIC CONNECTION SPECIFICATIONSp. 733
O-ring Face Seal Connectionp. 733
Straight Thread O-ring Fittingp. 734
Tubelines And Hosesp. 734
Flare Fittingp. 735
Port Seal Fittingp. 736
HYDRAULIC/HYDROSTATIC FLUID SPECIFICATIONSp. 737
Specificationsp. 737
CONVERSIONSp. 739
Decimal And Millimeter Equivalent Chartp. 739
U.S. To Metric Conversion Chartp. 739
SERVICE MANUAL REVISIONp. 741
Revision No: S130 – 1p. 741
Revision No: S130 – 2p. 743
Revision No: S130 – 3p. 745
Revision No: S130 – 4p. 747
Revision No: S130 – 5p. 749
Revision No: S130 – 6p. 751
Revision No: S130 – 7p. 753
Revision No: S130 – 8p. 755
Revision No: S130 – 9p. 757
Revision No: S130 – 10p. 759
Revision No: S130 – 11p. 761
Revision No: S130 – 12p. 763

Chapters Covered

  • Foreword, safety instructions, fire prevention, serial number locations, delivery report, loader identification
  • Safety and Maintenance — lifting and blocking; lift arm support device; operator cab raise/lower and cab door sensor; transporting on a trailer; towing; remote start tool kits MEL1563 and 6689779; service schedule; air cleaner service; engine cooling and lubrication; fuel system; hydraulic/hydrostatic fluid, filters, and breather; chaincase oil; Bob-Tach (hand lever and power); lubricating the loader; tire maintenance; spark arrestor muffler; pivot pins; storage and return to service; stopping the engine and leaving the loader
  • Hydraulic System — system information and symbol glossary; main relief valve; lift, tilt, and Bob-Tach cylinders; standard control valve; ACS or SJC control valve; lift arm bypass control valve; hydraulic pump (standard) and hydraulic pump (SJC); hydraulic/hydrostatic filters; reservoir; oil cooler; bucket position valve; rear auxiliary diverter valve; Power Bob-Tach block; front auxiliary coupler block
  • Hydrostatic System — system information, charge pressure, drive belt, hydrostatic pump (standard and SJC), hydrostatic motor and motor carrier (standard and SJC), case drain filter
  • Drive System — parking brake disc, drive components (axle seals, sprockets, bearings, chain), chaincase covers
  • Main Frame — operator cab, seat and seat bar, control handles/levers and pedals (standard, ACS, SJC), control panels, lift arms, fuel tank, rear door and grill, windows, Bob-Tach
  • Electrical System & Analysis — electrical information, instrument panels, BICS, main / ACS / SJC (drive) controllers, diagnostics service codes, calibration, battery, alternator, starter, lights, traction lock, seat bar sensor, flywheel RPM sensor, wheel speed sensors (SJC), steering drift compensation, password setup for keyless start, Service PC connection, back-up alarm, mainframe wiring schematics
  • Engine Service — engine information and specifications, removal and installation, compression check, speed control (standard and SJC), muffler, air cleaner housing, cooling system and hydraulic fan, lubrication system and oil pump, fuel injection pump and nozzles, cylinder head and valves, crankshaft and pistons, camshaft and timing gears, flywheel and housing
  • Heater — system description, regular maintenance, troubleshooting, heater unit, coil, fan, and valve
  • Specifications — S130 loader specifications, bolt torque charts, hydraulic connection specs, hydraulic/hydrostatic fluid specs, conversions

Taken together, the book is a complete shop path from parking and blocking the machine through filter and fluid service, pump and valve testing, chaincase work, cab and control removal, controller diagnostics, and in-frame or out-of-frame engine rebuild data for the V2203-M-DI.

Safety, Cab, and Service Setup

The opening safety pages set the ground rules used everywhere else in the Bobcat S130 Skid-Steer Loader Service Manual 6904121 (2009). Lift arms must be on an approved lift arm support device before anyone works under them. Jackstands go under the front axle tubes and the rear corners of the frame before the engine is run for service. The operator cab (ROPS per ISO 3471 and FOPS per SAE J1043 / ISO 3449 Level I, with Level II available) is raised only with the engine stopped; front corner nuts torque to 40–45 ft.-lb. (54–61 N·m) on reassembly. A cab-door sensor, when fitted, deactivates lift and tilt until the door is closed. Remote start tool kits MEL1563 and 6689779 plus the communicator and control harnesses are documented so a technician can run the machine with the cab raised. Trailer loading is backward with an empty bucket, the trailer rear blocked, and chains at the printed tie-down points.

Maintenance Rhythm Printed in the Schedule

The service schedule chart groups work at 8–10, 50, 100, 250, 500, and 1000 hours. Daily-range items include engine oil level, air-cleaner restriction, cooling-system debris and cold coolant level, fuel-filter water drain, grease at lift-arm, cylinder, Bob-Tach pin and wedge fittings, tire condition and sidewall-maximum pressure, seat bar and BICS function (lift and tilt must not operate with the seat bar raised), safety signs and treads, cab fasteners, indicators, hydraulic fluid and lines, and chaincase oil. First-50-hour items include wheel-nut torque and the first hydraulic/hydrostatic filter change. Later intervals cover spark-arrestor cleaning, battery service, steering-lever pivot grease, fuel-filter replacement, engine/hydro drive belt and accessory belts, lift-arm bypass function, charge filter and reservoir breather, engine oil and filter (250 hours under severe conditions), chaincase and hydraulic reservoir fluid, case drain filters, valve-clearance adjustment after the first 500 hours, and coolant replacement every two years. The hydraulic/hydrostatic fluid specified is Bobcat fluid P/N 6903117 (2.5 gal.), 6903118 (5 gal.), and 6903119 (55 gal.). Automatic transmission fluid is prohibited.

Hydraulics, Hydrostatics, and Final Drive

Hydraulic system information opens with a symbol glossary and a troubleshooting chart for no operation, warning-light complaints, slow or rough action, and related faults. The main relief is tested and adjusted at the control valve; system relief at the quick couplers is 2650–2750 PSI (182.7–189.6 bar). Pump capacity is 16.9 GPM (64 L/min.) at 3135 pump RPM and 91 percent efficiency. Separate pump chapters cover the standard gear pump and the SJC pump, each with pump-at-coupler tests, direct tests of the standard and charge sections, start-up after rebuild, parts identification, and disassembly. Lift cylinders (2.00 in. bore, 1.25 in. rod, 26.57 in. stroke), the tilt cylinder (3.50 in. bore, 1.50 in. rod, 14.50 in. stroke with dump and rollback cushioning), and the Power Bob-Tach cylinder each have leak-down testing plus seal-level rebuild. Standard and ACS/SJC control valves are broken down to individual spools, detents, port-relief and anti-cavitation valves, load checks, lock valves, solenoids, and the lift-arm bypass orifice. Related hardware includes the lift-arm bypass control valve, bucket position valve, rear auxiliary diverter, Power Bob-Tach block, front auxiliary coupler block, oil cooler, reservoir screen, and charge-filter housing.

The hydrostatic section treats the tandem piston pumps, motors, motor carriers (including the SJC carrier), charge pressure, drive belt, and case drain filter. Drive-system work continues into the sealed chaincase: #80 HS endless roller chain and sprockets, 33:1 engine-to-wheel reduction, 2.00 in. (50.3 mm) axles, eight 9/16 in. wheel bolts per hub, axle-seal and bearing service, chain replacement, cover removal, and the mechanical disc parking brake.

IMAGES PREVIEW

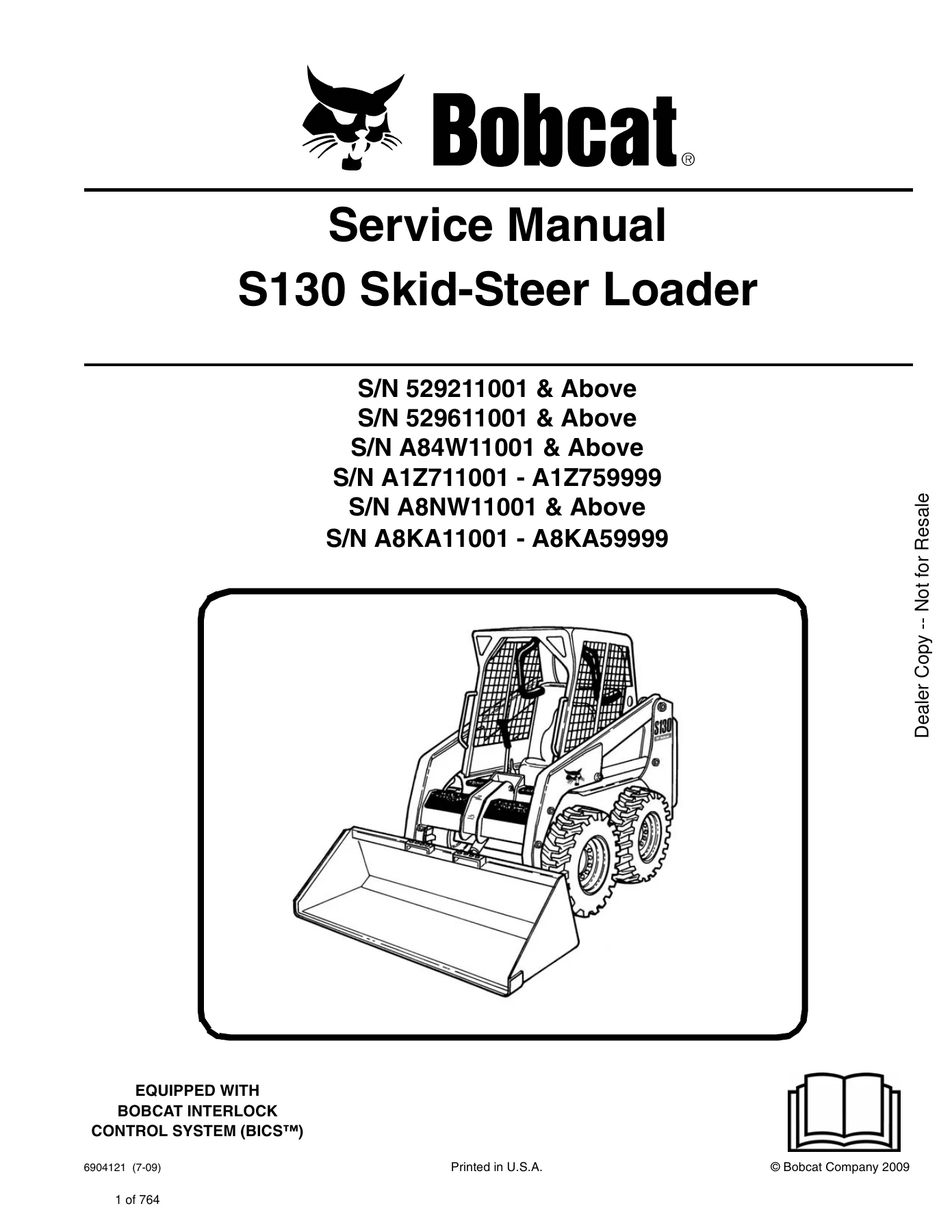

Bobcat S130 Skid-Steer Loader Service Manual 6904121 (2009) — PDF page 1 preview
Bobcat S130 Skid-Steer Loader Service Manual 6904121 (2009) — PDF page 17 preview
Bobcat S130 Skid-Steer Loader Service Manual 6904121 (2009) — PDF page 727 preview

Electrical Analysis and Engine Rebuild Data

Electrical coverage runs from battery, 90-amp belt-driven alternator, and 4.02 HP (3 kW) gear-reduction starter through instrument panels, BICS lamps, ACS and SJC controllers, diagnostic service codes, calibration, traction lock, seat-bar sensor, flywheel RPM sensor, SJC wheel-speed sensors, steering drift compensation, keyless-start password setup, and Service PC connection through the remote start tool. Mainframe wiring schematics are printed for split serial groups, including S/N 529211001–529214882 / 529611001–529611918 and the later group S/N 529214883 & Above, 529611919 & Above, A8NW11001 & Above, A1Z711001–A1Z759999, A8KA11001–A8KA59999, and A84W11001 & Above.

Engine Service supplies the numbers a rebuild actually uses. Fuel-nozzle opening pressure is 2702–2916 PSI (186–201 bar). Injection timing is 6.2–8.2 degrees BTDC. High idle is 2860–3000 RPM and low idle is 1075–1225 RPM. Compression is 427–469 PSI (29.4–32.4 bar) with a 341 PSI (23.5 bar) limit and a 10 percent cylinder-to-cylinder difference. Cold valve clearance is 0.0071–0.0087 in. (0.18–0.22 mm). Cylinder bore is 3.4252–3.4261 in. (87.00–87.022 mm). Oil pressure at rated speed is 43–64 PSI (3–4.4 bar). Thermostat opening is 176.9°–182.3° F (80.5°–83.5° C), fully open at 203° F (95° C). Procedures include glow-plug testing, valve and seat reconditioning, piston and crankshaft service, timing-gear backlash checks, injection-pump timing, nozzle spray and seat tests, oil-pump inspection, hydraulic-fan motor service, and full engine R&I.

S130 Capacities and Performance Snapshot

Loader specifications list a rated operating capacity of 1300 lb. (590 kg), tipping load 2634 lb. (1195 kg), operating weight 5235 lb. (2375 kg), lift breakout 2800 lb. (1270 kg), tilt breakout 3000 lb. (1361 kg), push force 3400 lb. (1542 kg), and travel speed 7.3 mph (11.8 km/h). Capacities are cooling system 12 qt. (11.4 L) without heater or 12.6 qt. (11.9 L) with heater, fuel 13.3 gal. (50.4 L), engine oil with filter 9.2 qt. (8.7 L), hydraulic reservoir 14 qt. (13.3 L), hydraulic/hydrostatic system including reservoir 6 gal. (22.7 L), and chaincase 7.5 gal. (28.4 L). Electrical system is 12 volt with a 600 CCA battery. Standard tires are 10.00-16.5; flotation 31.5×13-16.5 is listed. Function times are lift 2.7 s, lower 1.8 s, dump 2.2 s, rollback 1.9 s. Dimension drawings are given for a machine on standard tires with a 54 inch dirt bucket.

Use This Manual on the Job

The Bobcat S130 Skid-Steer Loader Service Manual 6904121 (2009) supports the jobs a working S130 actually generates: verifying BICS before returning a machine, setting main relief and measuring pump flow, rebuilding lift and tilt cylinders, testing charge pressure and hydrostatic components, opening the chaincase for chain or axle-seal work, reading service codes and following wiring by serial group, and measuring compression, valve clearance, and injector opening pressure on the Kubota V2203-M-DI. Those printed pressures, clearances, and torque values are what keep a repair from being a guess. After payment you receive the PDF immediately — no shipping wait — to open on a phone, tablet, or shop computer and print the pages you need at the bench.

Reviews

There are no reviews yet.

Be the first to review “Bobcat S130 Skid-Steer Loader Service Manual 6904121 (2009)”

What Our Customers Say

★★★★★ Live reviews from customers
Loading customer reviews...
0
    0
    Your Cart
    Your cart is emptyReturn to Shop
    🛒
    Recently Purchased
    🕒 verified order
