Calder Brothers Mauldin M413XT Maintainer Owner Operator & Parts Manual 2008 PDF

Description

File Details

• Manual Type: Owner / Operator / Parts Manual
• Brand: Mauldin by Calder Brothers
• Model: M413XT Maintainer
• Language: English
• Page Count: 130
• File Format: PDF
• Publication Date: 12/17/2008
• Publisher: Pavement Services, Inc. (PSI)

Chapters Covered in the M413XT Maintainer Manual

• Section A & Safety: safety alert symbols, mandatory safety shutdown procedure, additional safety reminders, modifications, nameplates and markings, safety guards and warning devices, safety decal locations
• Section B & Specifications: drive system and engine, hydraulic system, fuel system, electrical system, safety equipment, standard and optional equipment, weights and overall dimensions, moldboard dimensions, scarifier, loader assembly, minimum turning radius
• Section C & Controls & Accessories: operator’s station indicators and switches, ignition key switch, battery charge lamp, engine oil pressure gauge, water temperature gauge, hourmeter, horn, fuel level gauge, hydraulic filter restriction indicator, high/low drive switch, optional cab environment switches, frame and body indicators, dual direction/speed control pedal, steering, park brake switch, moldboard and attachment controls
• Section D & Operations: pre-start checks, engine break-in, startup, after-start checks, cold start with grid heaters, stopping the engine, working application tips, using the front-end loader, loading the bucket, using the scarifier, end of work session
• Section E & Fuels & Lubrication: fuel handling, lubrication, recommended lubricants, hydraulic system filter elements and fluid, greases, greasing points for the boom and bucket, front axle and frame, and moldboard
• Section F & Transportation & Theft Deterrents: loading using ramps, in-transit guidelines, unloading, theft deterrents
• Section G & Troubleshooting: engine start, run and performance problems, hydraulic oil temperature, blade side shift, jerky accessory operation, unit will not move, transmission pump noise, hydraulic fluid overflow, steering problems, drive system responsiveness, two-speed operation, brakes
• Section H & Service: general precautions, work area precautions, operator’s servicing duties, pump pressures, fuse, hydraulic fluid level, radiator coolant level, battery, power wheel hubs, air cleaner and element, engine oil and filter, fuel filter and bleeding, hydraulic fluid filters and replacement, cutting edges and ripper points, exterior cleaning, fuel injectors, injection pump timing, jump starting, maintenance logs
• Section I & Storage: preparation for storage, during storage, returning to service
• Section J & Parts Manual: body group, drive group, bucket and boom assembly, tool bar assembly, quick tach assembly, moldboard assembly, operator station assembly, foot pedal assembly, steering console, steering column, grader controls, cab and enclosure panels, decals, power pack group, engine assembly, radiator assembly, engine intake, engine exhaust, engine wiring hookup, air conditioning wiring, dash harness, intermediate harness, engine harness, drive group hydraulics, drive motors plumbing, steering control plumbing, blade manifold plumbing (left bank), auxiliary controls plumbing (right bank), open loop hydraulic schematic, torque specifications
• Section K & Warranty Statement

The M413XT Maintainer owner, operator and parts manual is a single 130-page reference that follows the machine through every stage of ownership, from the mandatory safety shutdown procedure at the front of the book to the full parts breakdown and warranty terms at the back. Sections A through I cover what an operator needs in the seat and what a technician needs under the hood: daily and periodic service intervals, engine and hydraulic system specifications, lubrication points, ramp loading and tie-down procedure, and a troubleshooting chapter organised by symptom for both the engine and the hydrostatic drive. The parts manual that follows is broken down by assembly group, so components can be located without wading through unrelated pages.

What the Parts Manual Section Covers

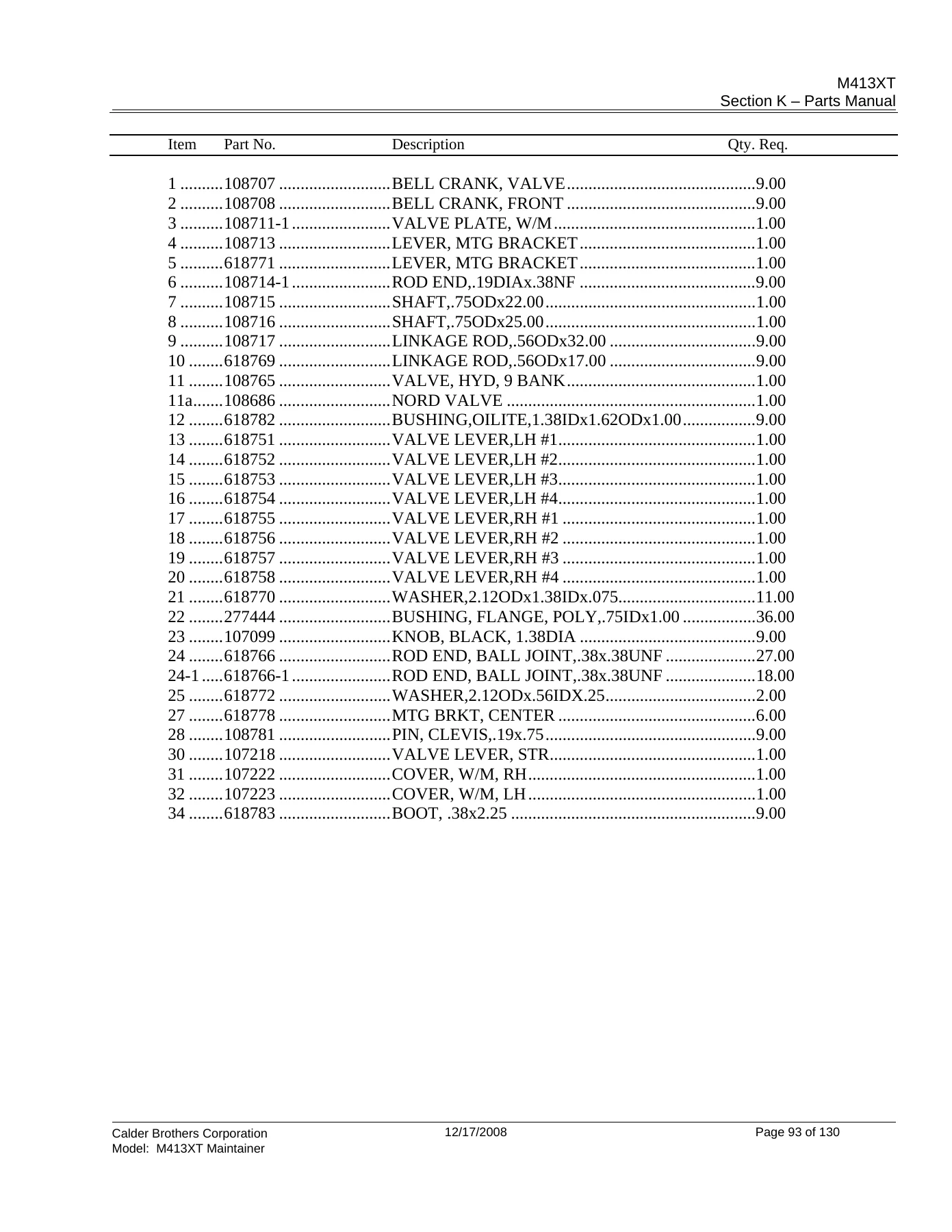

The M413XT parts manual occupies the bulk of the book and is arranged into assembly groups rather than one long list. The Body Group carries the main frame weldment, front axle pivot, left and right axle boxes, king pin bearings, and the related hardware. The Drive Group lists the fixed and variable drive motors, wheel drives, tyre and rim assemblies, and wheel motor brakes. The Bucket & Boom, Tool Bar, Quick Tach, and Moldboard groups each carry their own exploded views with itemised part numbers, covering boom lift and tilt cylinders, scarifier shanks and ripper tips, moldboard cutting edge, blade tilt and side shift cylinders, and the push block and push bar weldments. Operator Station and Cab sections list the seat, foot pedal assembly, steering console and steering column, grader control levers, glass and door weldments, mirrors, and beacon. The Power Pack chapters cover the engine assembly, radiator and CAC cores, engine intake and exhaust assemblies, engine wiring hookup, air conditioning wiring, and the dash, intermediate, and engine harnesses. The hydraulics chapter continues with drive motors plumbing, steering control plumbing, blade manifold plumbing on the left bank, auxiliary controls plumbing on the right bank, and an open loop hydraulic schematic. Torque specifications for standard machine hardware close out the section.

Specifications Covered

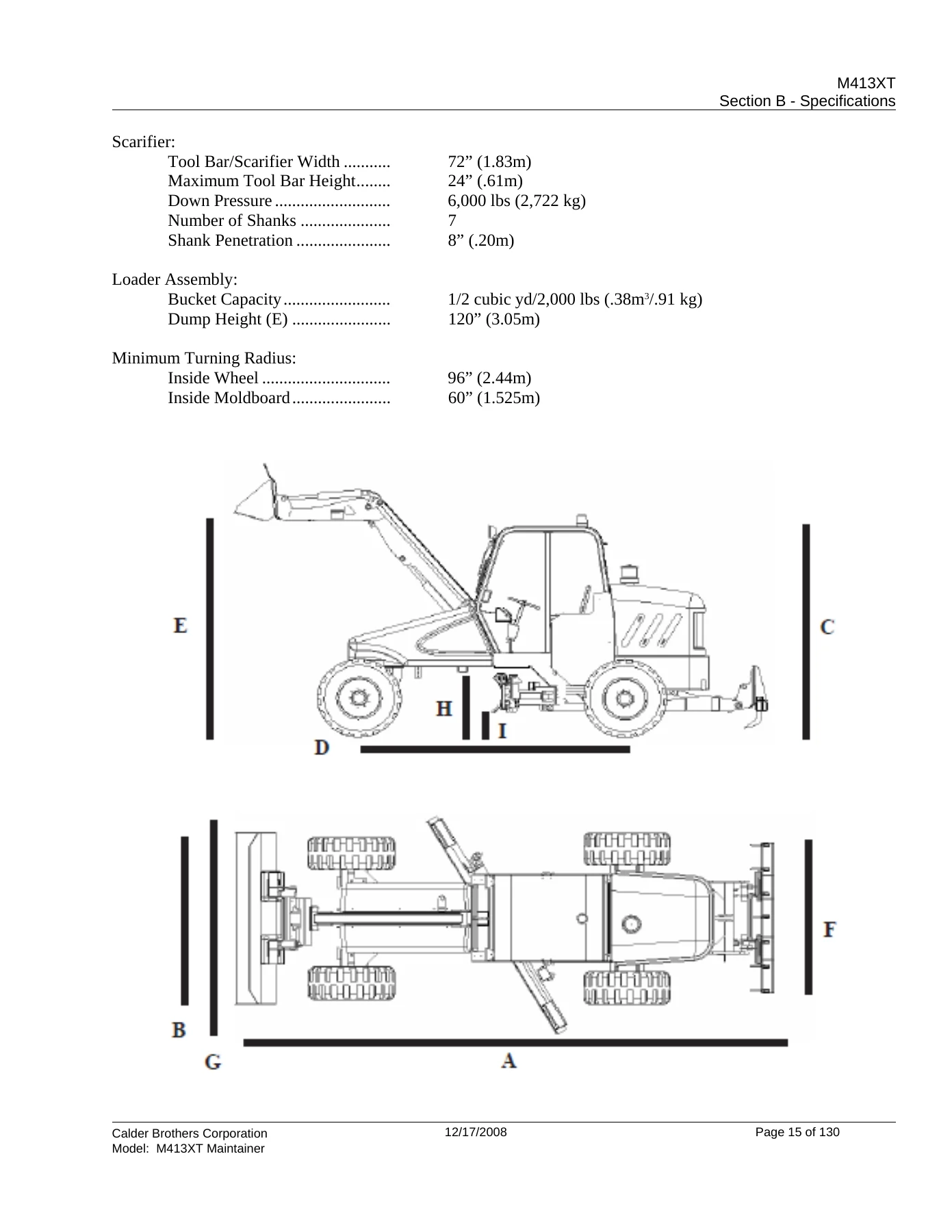

The Specification section lays out the machine’s working envelope: operating weight, front and rear axle weights, overall length, width at tyres, height, wheelbase, dump height, moldboard dimensions and side shift, scarifier and loader assembly ratings, ground pressure per tyre, and the low- and high-range travel speeds. Hydraulic reservoir capacity, fuel capacity, electrical system ratings, and pump pressures are also listed. These figures are what make the M413XT maintainer manual useful beyond the parts list, because they are the numbers a technician needs when setting up, adjusting, or diagnosing the machine.

Who This Manual Is For

The M413XT Maintainer owner, operator and parts manual is written for the person who runs the machine and the person who keeps it running. Operators get the pre-start walk-around, the startup and shutdown sequence, and the application tips for grading, ditching, back-blading, and scarifying. Service technicians and shop staff get the specifications, the periodic maintenance intervals, the troubleshooting tables, and the full exploded parts views with part numbers. Owners get the warranty statement and the maintenance logs needed to keep a service record.

IMAGES PREVIEW

Instant PDF Delivery

Every procedure in this M413XT Maintainer manual depends on getting the details right: the correct shutdown sequence before servicing, the correct hydraulic filter interval, the correct torque value, the correct cylinder for the correct side. Having the manual on hand means the job is done once, with the right part and the right specification, instead of guessing and re-doing the work. This listing delivers the complete manual as an instant PDF download after payment, with no shipping and no waiting. Read it on a phone, tablet, laptop, or desktop, and print any page you want to keep on the bench.
