Terex TW110 Wheeled Excavator Service Manual (2017 Edition) – PDF

Description

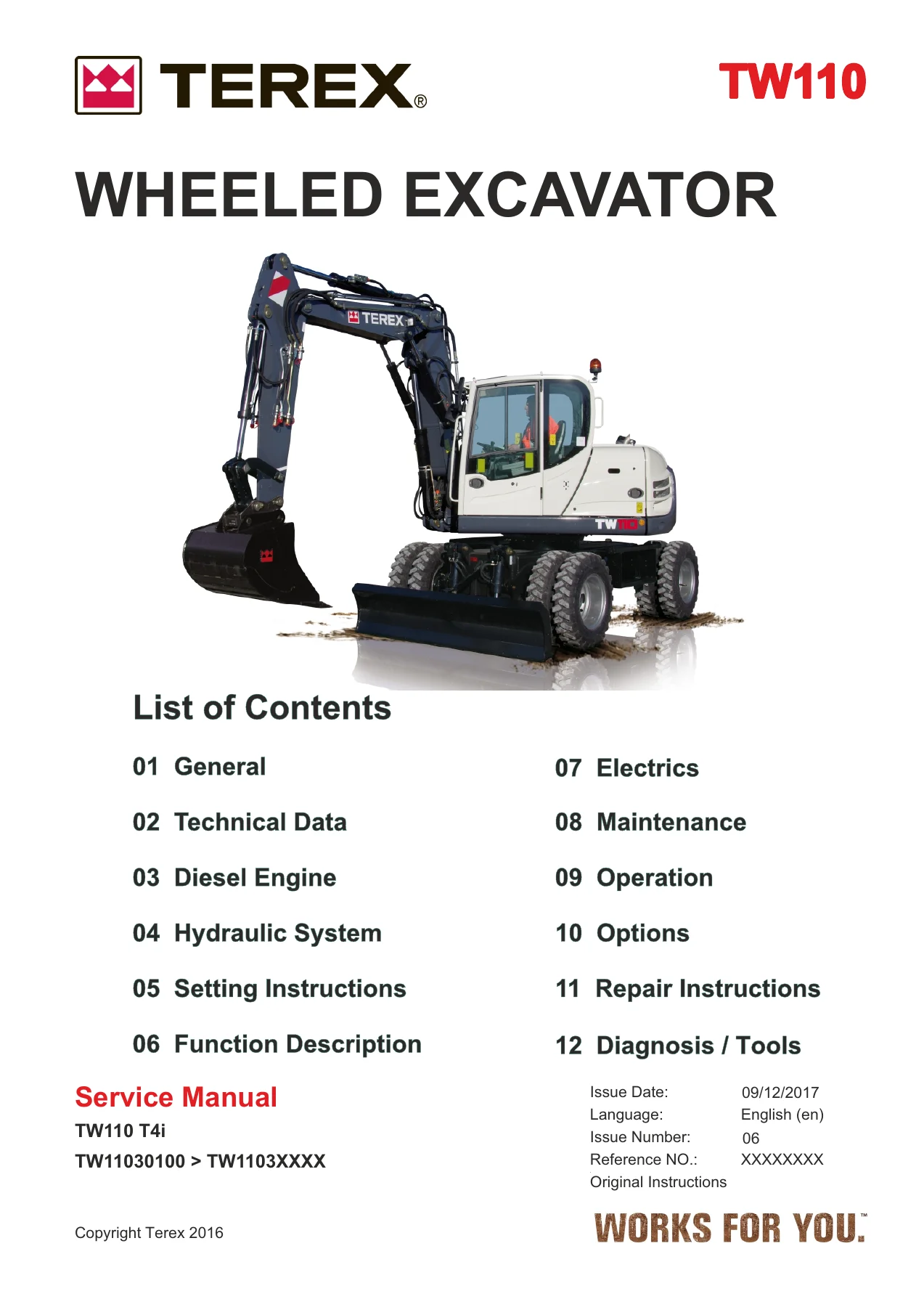

Terex TW110 Wheeled Excavator Service Manual (2017 Edition)

This Terex TW110 wheeled excavator service manual is the full factory-style workshop reference issued by Terex for the TW110, covering machines from serial TW11030100 through TW1103XXXX. Reissued in September 2017, this Terex TW110 service manual walks through every major system on the machine using the same twelve-chapter structure Terex technicians use in the field, so anyone maintaining a TW110 can find the correct data, torque figure, or pressure setting without digging through unrelated documentation.

• Manual type: Service/Workshop Manual
• Brand/Model: Terex TW110 (TW110, TW110AL, TW110S variants referenced)
• Serial coverage: TW11030100 to TW1103XXXX
• Language: English
• Page count: 229 pages
• File format: PDF
• Issue Number: 06, Issue Date: 09/12/2017

Chapters Covered

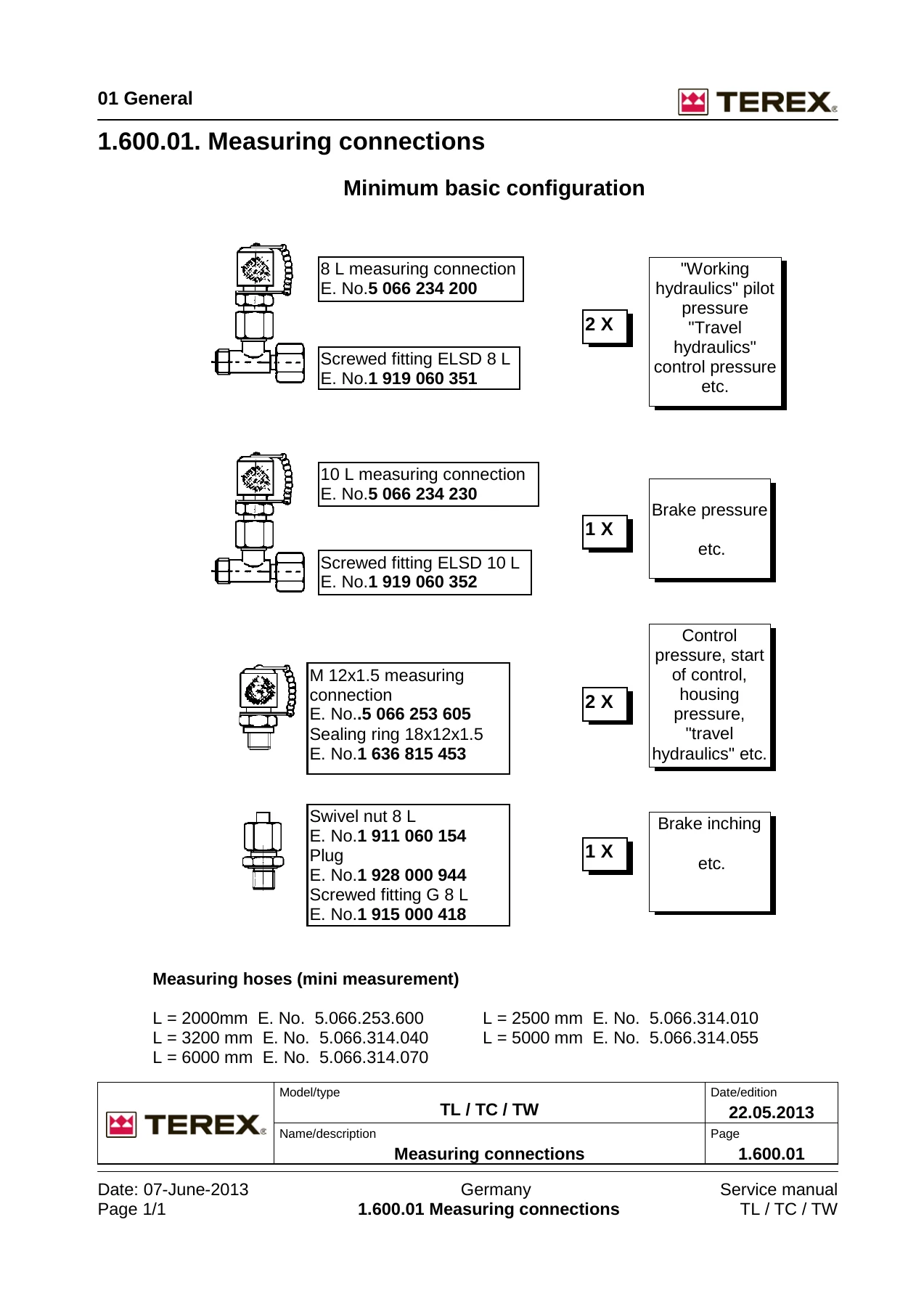

• 01 General – introduction, safety and accident prevention, tightening torques for pistons/piston nuts and guide bushings, pictograms, measuring connections, units
• 02 Technical Data – tightening torques, full technical data (Deutz TCD 3.6 L4 engine, electrical system, travel drive, travel range, steering, working hydraulics, rotation drive, axles, brakes, lubricants, fluid capacities), drift values
• 03 Diesel Engine – Deutz TCD 3.6 L04 (Tier 4i) operation manual and workshop manual references
• 04 Hydraulic System – circuit diagrams/schematics for the intermediate boom and ISO-SAE changeover
• 05 Setting Instructions – general setting instructions, Hydromatik tightening values, travel hydraulics, control valve SX14 (Rexroth) and DPX100/6+1 (Walvoil), working hydraulics, variable displacement pump A11VO95LR3S
• 06 Function Description – installation overviews of hydraulic components (undercarriage, uppercarriage, floor frame, oil tank), pilot control 4TH6, slewing relay valve
• 07 Electrics – installation overviews of electrical components across the machine, cable colors, fuse and relay assignment, control unit structural diagrams
• 08 Maintenance – consumable/fuel/lubricant specifications and inspection plans
• 09 Operation – keypad operation and display instructions
• 10 Options – all-wheel steering hydraulic circuit, front dozer blade pressure setting
• 11 Repair Instructions – tilting the cab, cab window adhesive kit
• 12 Diagnosis/Tools – special tools and diagnostic/programming port purchased parts

Together these chapters give a technician everything needed to service the TW110 correctly the first time, from checking a torque spec on the diesel engine mounting to reading pressure settings on the DPX100/6+1 valve bank or tracing an electrical fault through the fuse and relay assignment tables.

Key Technical Data Included

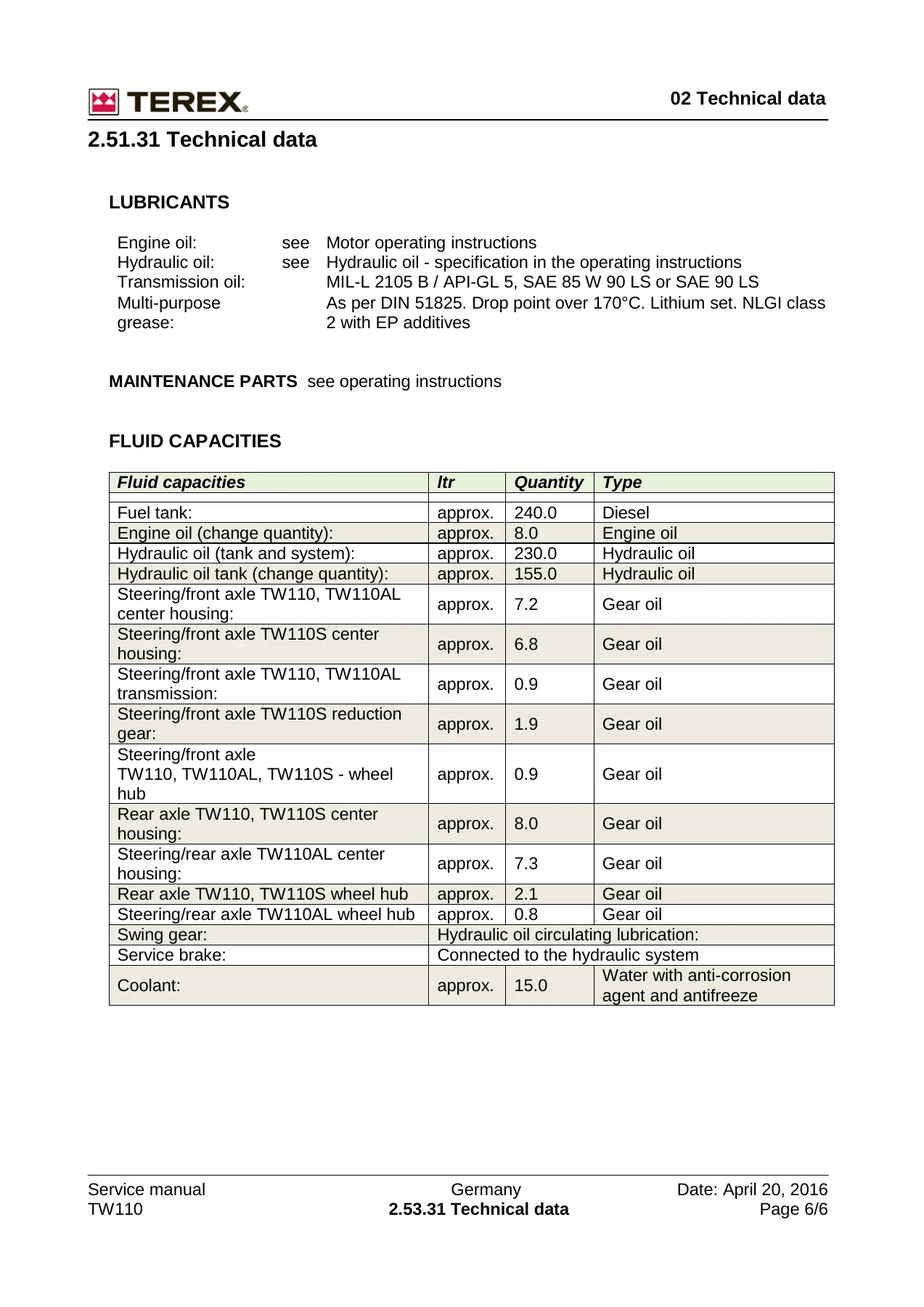

The Technical Data chapter of this Terex TW110 service manual is unusually deep for a manual this size. It documents the Deutz TCD 3.6 L4 Tier 4 interim engine (85 kW/115.57 HP at 2,000 min⁻¹, 3,600 cm³ displacement, common rail injection), the A4VG90 travel pump and A6VM travel motors, steering pressures on the Rexroth LAGU 160/80 unit, working hydraulics on control valves 1 and 2 (Rexroth SX14 and Walvoil DPX100/6+1), rotation/slewing drive pressures, DANA front and rear axle part numbers, WABCO brake system pressures, and a full fluid capacity table covering fuel, engine oil, hydraulic oil, gear oil, and coolant quantities for each TW110 variant.

IMAGES PREVIEW

Why This TW110 Manual Matters

Working from the manufacturer’s own tightening torques, hydraulic pressure settings, and component types removes the guesswork that leads to leaks, premature wear, or an out-of-spec repair. Whether you’re setting the load sense pressure on the working hydraulics, torquing the variable displacement pump mounting bolts, or confirming which axle and brake components are fitted to a given TW110, this service manual gives you the exact figures Terex published for these machines.

Get This Terex TW110 Service Manual Instantly

This Terex TW110 wheeled excavator service manual downloads immediately as a PDF after checkout — no shipping, no waiting. Save it to a laptop, tablet, or phone for shop-floor reference, or print the pages you need. It works on any device with a PDF reader, making this TW110 manual a practical, always-available reference for keeping the machine running to spec.
