Caterpillar EP16KT EP18KT EP20KT Chassis Mast & Controller Service Manual

Description

Caterpillar EP16KT EP18KT EP20KT Chassis Mast & Controller Service Manual – PDF DOWNLOAD

CATERPILLAR EP16KT EP18KT EP20KT CHASSIS MAST & CONTROLLER SERVICE MANUAL:

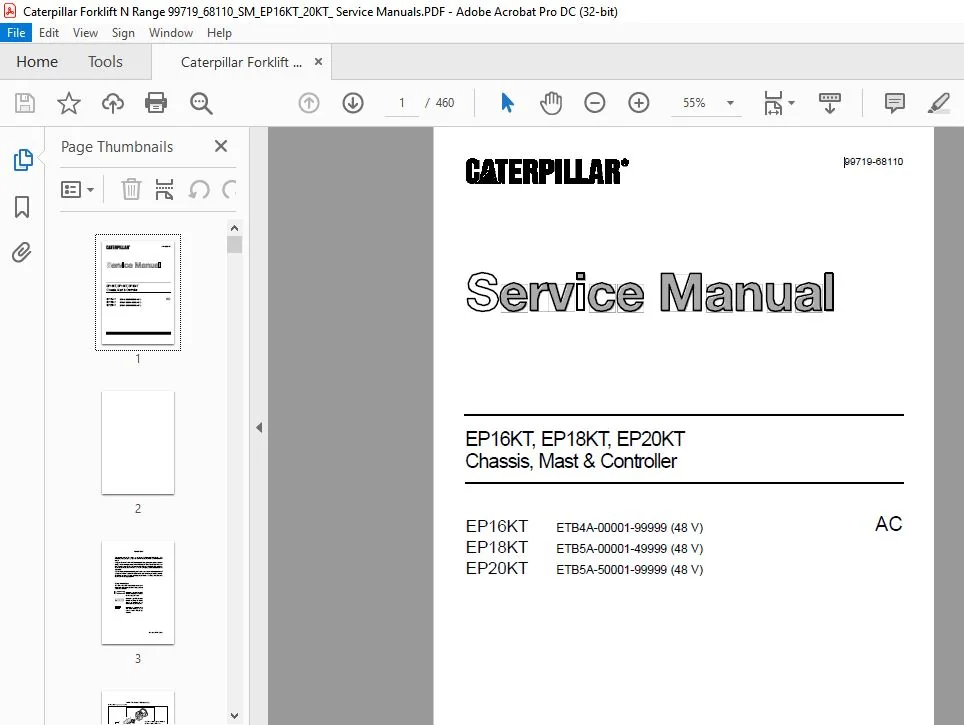

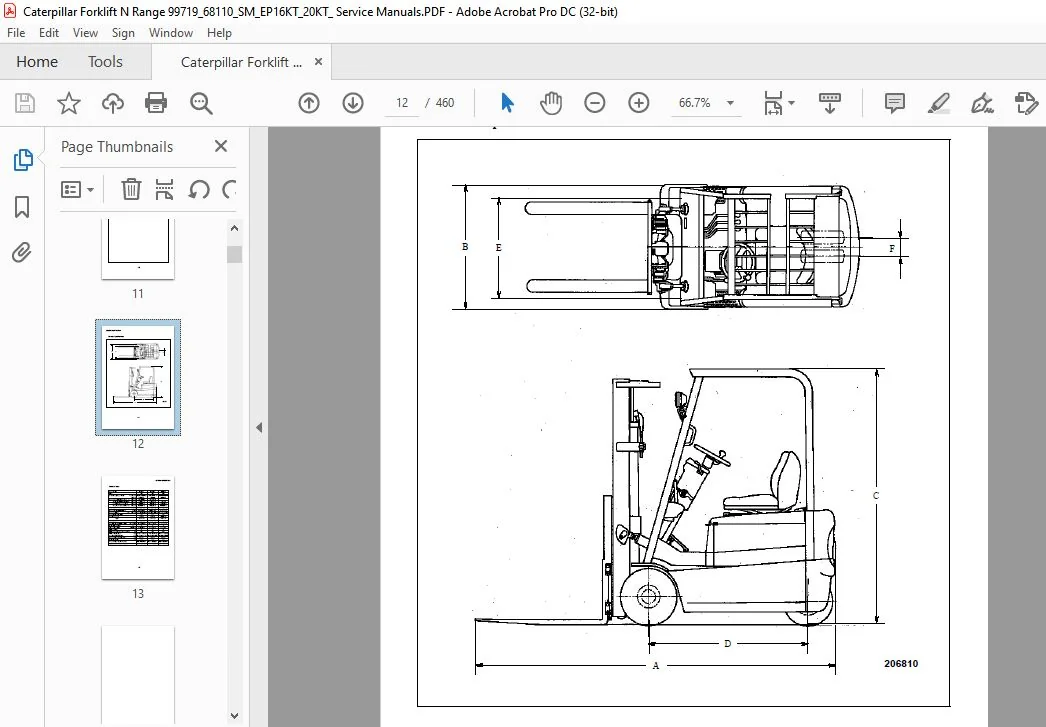

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Caterpillar EP16KT EP18KT EP20KT Chassis Mast & Controller Service Manual – PDF DOWNLOAD

EP16KT ETB4A-00001-99999 (48 V) AC
EP18KT ETB5A-00001-49999 (48 V)
EP20KT ETB5A-50001-99999 (48 V)

FOREWORD:

This service manual is a guide to servicing of Caterpillar Lift Trucks. The instructions are grouped by systems to serve the convenience of your ready reference. Long productive life of your lift trucks depends to a great extent on correct servicing — the servicing consistent with what you will learn from this service manual.

• We hope you read the respective sections of this manual carefully and know all the components you will work on before attempting to start a test, repair or rebuild job.
• The descriptions, illustrations and specifications contained in this manual were of the trucks of serial numbers in effect at the time it was approved for printing. Caterpillar reserves the right to change specifications or design without notice and without incurring obligation.

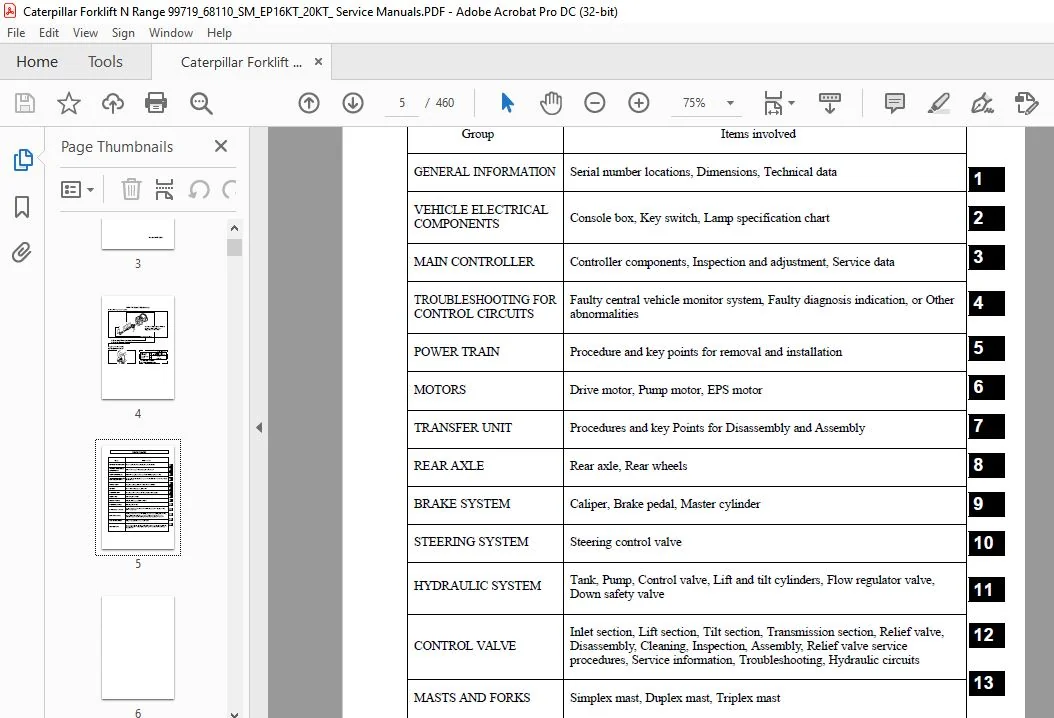

TABLE OF CONTENTS:

Caterpillar EP16KT EP18KT EP20KT Chassis Mast & Controller Service Manual – PDF DOWNLOAD

GENERAL INFORMATION Serial number locations, Dimensions, Technical data
VEHICLE ELECTRICAL
COMPONENTS Console box, Key switch, Lamp specification chart
MAIN CONTROLLER Controller components, Inspection and adjustment, Service data
TROUBLESHOOTING FOR Faulty central vehicle monitor system, Faulty diagnosis indication, or Other
CONTROL CIRCUITS abnormalities
POWER TRAIN Procedure and key points for removal and installation
MOTORS Drive motor, Pump motor, EPS motor
TRANSFER UNIT Procedures and key Points for Disassembly and Assembly
REAR AXLE Rear axle, Rear wheels
BRAKE SYSTEM Caliper, Brake pedal, Master cylinder
STEERING SYSTEM Steering control valve
HYDRAULIC SYSTEM Tank, Pump, Control valve, Lift and tilt cylinders, Flow regulator valve,
Down safety valve
Inlet section, Lift section, Tilt section, Transmission section, Relief valve,
CONTROLVALVE Disassembly, Cleaning, Inspection, Assembly, Relief valve service
procedures, Service information, Troubleshooting, Hydraulic circuits
MASTS AND FORKS Simplex mast, Duplex mast, Triplex mast
Inspection standards, Periodic replacement of parts, Lubrication standards,
SERVICE DATA Main component weight, Tightening torque for standard bolts and nuts,
Special tools

PLEASE NOTE:

• This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
• This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
• Require some other service manual or have any queries: please WRITE to us at [email protected]
