Cesab C3E100R C3E130R C3E150R Electric Forklift Service Manual – 036-0424-02

Description

Cesab C3E100R C3E130R C3E150R Electric Forklift Service Manual

This Cesab C3E100R C3E130R C3E150R Electric Forklift Service Manual is the complete workshop reference for the 1.0, 1.25 and 1.5 tonne AC electric counterbalance trucks. Published under document number 036-0424-02, it covers every major assembly on the machine — from the chassis and drive motor through the transmission, brakes, steering, electric system, hydraulics and mast group. Whether you are a workshop technician, a fleet maintenance engineer or an owner-operator handling your own repairs, this manual provides the procedures, torque values, specifications and diagnostic guidance needed to service the C3E100R, C3E130R and C3E150R correctly.

File Details

• Manual Type: Service / Workshop Manual
• Brand: Cesab (BT)
• Models Covered: C3E100R, C3E130R, C3E150R
• Application: 1.0 t, 1.25 t, 1.5 t AC Electric Forklift Trucks
• Document Number: 036-0424-02
• Language: English
• Page Count: 396
• File Format: PDF

Chapters Covered

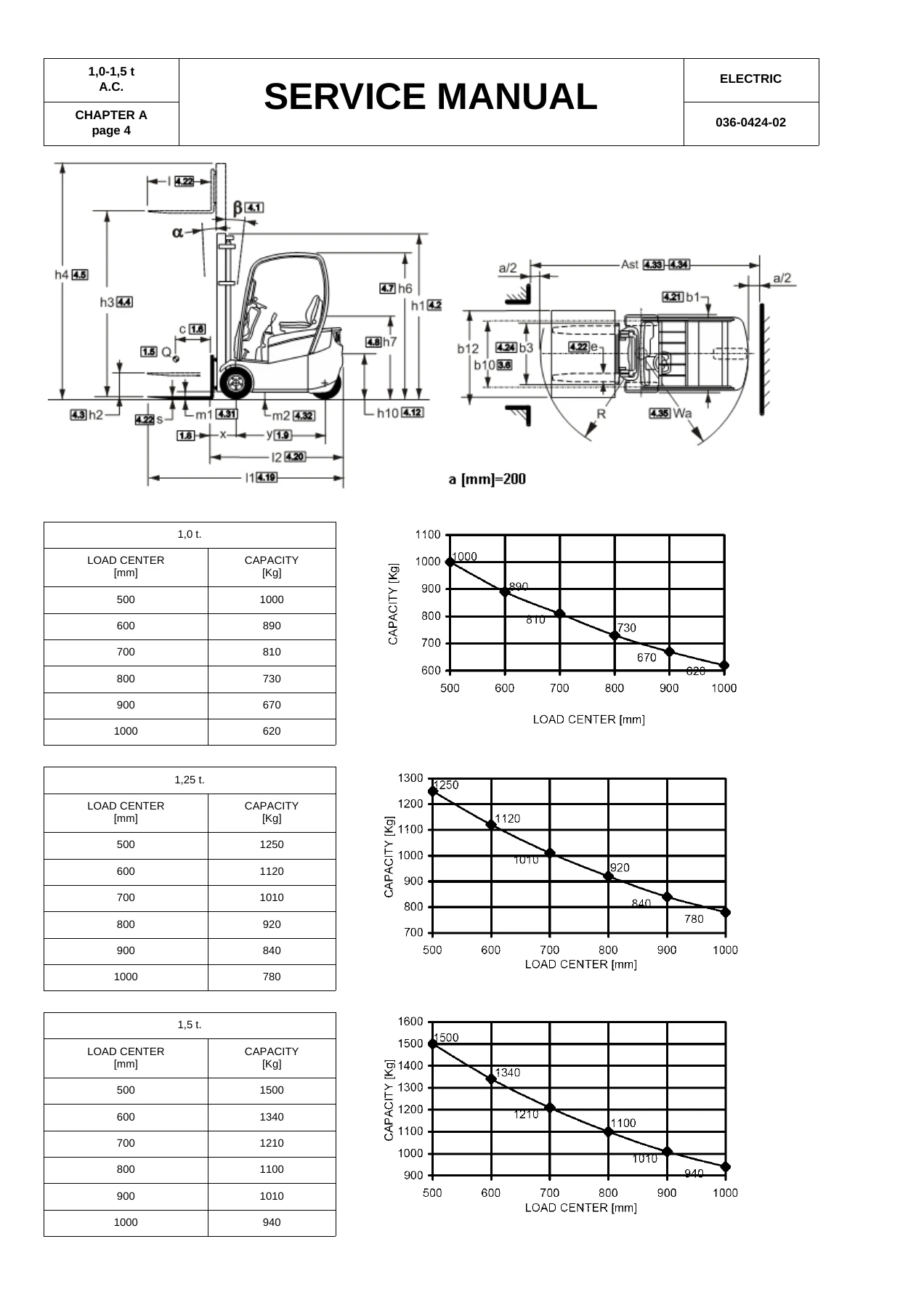

• General Information (Chapter A) — technical data, vehicle layout, capacities, operating tips, tightening torque tables
• Chassis (Chapter 0000) — vehicle layout, models, chassis number, jack-up points, lifting, member weights, towing, battery cover, counterweight, operator seat, fuses
• Motors / Engines (Chapter 1000) — drive motor general and specifications, encoder, traction encoder replacement, traction temperature sensor, lifting motor general and specifications, encoder replacement, temperature sensor replacement

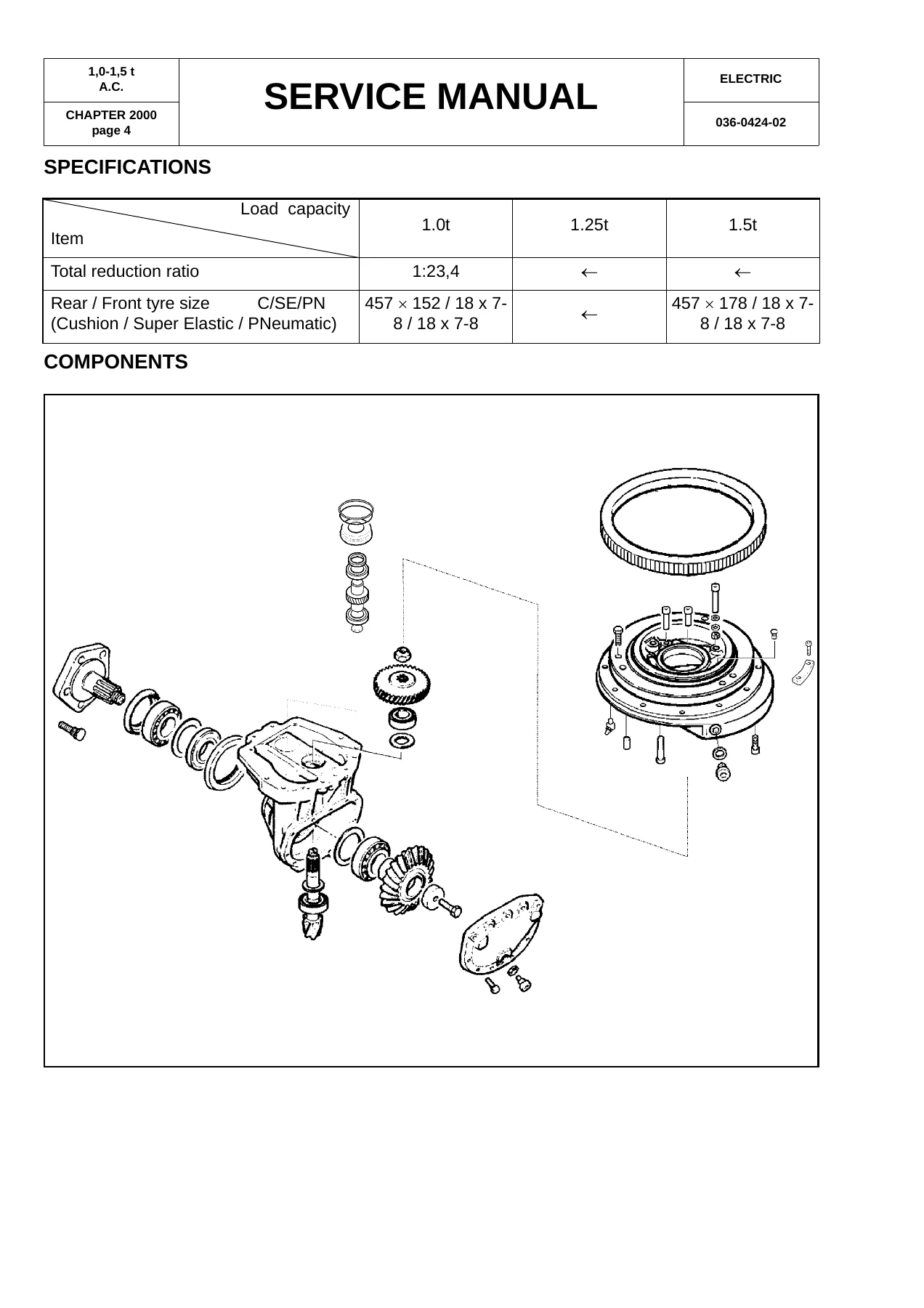

• Transmission / Drive Gear (Chapter 2000) — general, specifications, components, rear axle and drive unit removal and installation
• Brakes / Wheels (Chapter 3000) — brake system general and specifications, parking brake, brake pedal, front brake, brake group, brake shoes and brake cylinder, brake pedal adjustment, parking brake adjustments, brake fluid tank, wheels and tyres
• Steering System (Chapter 4000) — general, hydraulic diagram, power steering (orbitrol), specifications, hydrostatic power steering troubleshooting, relief pressure inspection and adjustment, priority valve, rear axle, steering hydraulic motor, steering potentiometer, rear axle and drive unit
• Electric System (Chapter 5000) — battery compartment and required weight, service standards, display, troubleshooting, battery inspection, traction logic unit, lifting logic unit, I/O card, Mhyrio, armrest board, contactor panel, inspection, motor phase balancing, fuses, display, accelerator potentiometer adjustment, brake switch adjustment, tester parameter descriptions, console menus, learning procedures, wiring diagrams
• Hydraulic / Pneumatic System (Chapter 6000) — hydraulic circuit diagrams, components, steering system, mast configurations, hydraulic oil and filter, lifting load down test, tilting load forward test, oil leak test, lifting cylinders, tilting cylinders, service pump, mechanical control valve, electric control valve (fingertips and joystick), pressure relief valve adjustment, mast performance tables, lifting locking and unlocking screw, levers
• Mast Group (Chapter 7000) — mast 2M TV, mast 2M FFL, mast 3M FFL, fork carriage, chain and chain wheel, mast and fork carriage rollers, mast chains, fork, lift cylinder general and specifications, lowering valve, tilt cylinder
• Attachment (Chapter 8000)
• Options (Chapter 9000)
• Maintenance Tables (Chapter B) — oils and greases specifications, standard tyres, tightening torques, running-in maintenance time table, maintenance times tables
• Safety Information (Chapter C) — work clothes, work place, lifting the truck, operations on the mast, electrical parts, welding, truck washing

The scope of this manual is genuinely comprehensive. It is not a generic electric forklift guide — every procedure, specification and diagnostic code is specific to the Cesab C3E100R, C3E130R and C3E150R. The electric system chapter alone runs to roughly 190 pages and includes full wiring diagrams, logic unit connector pinouts, error code lists with fault conditions and remedies, console menu navigation for parameter changes and learning procedures. The hydraulic chapter provides circuit diagrams, component breakdowns, relief valve adjustment procedures and mast performance tables. The mast chapter covers 2M TV, 2M FFL and 3M FFL configurations with chain adjustment, roller inspection and cylinder removal procedures. Throughout, tightening torques are given in Nm with tolerances, and exploded assembly drawings accompany the major removal and installation sequences.

What This Manual Enables You to Do

With this Cesab C3E100R C3E130R C3E150R service manual on hand, you can confidently tackle jobs that would otherwise require guesswork or dealer support. The drive motor and lifting motor sections walk through encoder replacement, temperature sensor replacement and motor removal — including the correct tightening torques for the six fixing screws (40 Nm for the drive motor, 15 Nm for the lifting motor cables). The transmission chapter covers rear axle and drive unit removal with a torque of 140 Nm for the six drive unit screws, and specifies the correct gear oil (Mobilube HD 80 W-90, 4.2 litres). Brake work is supported by a full teardown of the brake group, brake shoe inspection limits (5 mm standard thickness, 1 mm limit), and parking brake adjustment to the notch. The steering chapter includes relief pressure testing (approximately 100 bar), priority valve removal with a 12 Nm torque for the four Allen screws, and rear axle removal. The electric system chapter is the deepest part of the manual: it provides the complete error code list for the traction logic unit, lifting logic unit, Mhyrio unit, dashboard and I/O control board, along with the condition for each error and the corrective action. It also includes connector pinout tables for the traction logic unit, lifting logic unit, I/O card, Mhyrio and armrest board, plus the console menu structure for parameter changes, tester functions, alarm logbooks and potentiometer learning. Wiring diagrams are supplied for the complete machine. The hydraulic section gives you the pressure relief valve adjustment procedure (screwing in increases pressure, screwing out decreases), the lifting load down test limit (100 mm over 10 minutes), the tilting load forward test limit (0.5°/min), and mast performance tables for all three capacity classes. The mast chapter covers chain inspection — replace when 33 pitches are found in a 34-pitch section — chain tension adjustment, roller clearance (0.2–0.4 mm), fork inspection criteria and lifting cylinder removal.

Why This Manual Matters

Electric forklift repair without the correct procedures and specifications is risky. The C3E series uses AC inverter-controlled motors, a CAN-bus communication network between the traction logic unit, lifting logic unit, Mhyrio unit, armrest board and dashboard, and a hydrostatic power steering system. Guessing at a fault code, torquing a fastener to the wrong value or adjusting a potentiometer without the learning procedure can turn a straightforward repair into an expensive one. This manual gives you the exact figures: the drive motor is rated 5.1 kW at 16 V with a maximum nominal current of 267 A and 1335 rpm; the lifting motor is 7.5 kW at 16 V with 375 A and 2030 rpm. The battery compartment requires a minimum weight of 372 kg for 1.0 t models, 600 kg for 1.25 t and 676 kg for 1.5 t, with maximum weights of 420 kg, 690 kg and 780 kg respectively. Counterweight bolts torque to 340 Nm in sequence V1–V2–V3–V4, with the two OHG bolts at 83 Nm. Mast fixing bolts are 83 Nm, tilting cylinder pin safety plate screws are 24 Nm, and the tilting cylinder rod lock nut is 300 Nm. These are the values that keep the truck safe and reliable.

Delivery

IMAGES PREVIEW

This Cesab C3E100R C3E130R C3E150R Electric Forklift Service Manual is delivered as an instant PDF download. No shipping, no waiting. Once payment is confirmed, you can download the file immediately and access it on any device — laptop, tablet or smartphone. The PDF is printable, so you can take the relevant pages into the workshop, mark them up, and keep them with the machine. The file is fully text-based, allowing you to search for specific model codes, torque values, error codes or component names. Whether you need to service one truck or maintain a fleet of C3E100R, C3E130R and C3E150R forklifts, this manual is the single most useful reference you can have.
