Cessna 207 & T207 Series Parts Catalog 1969-1984

The Cessna 207 & T207 Series Parts Catalog 1969-1984 is the definitive factory-issued guide for identifying and ordering parts for the entire family of Cessna 207 and turbocharged T207 aircraft. This comprehensive manual, officially designated as the 207 and T207 Parts Catalog, provides the detailed illustrated breakdowns and part numbers essential for mechanics, owners, and restorers working on these versatile utility aircraft.

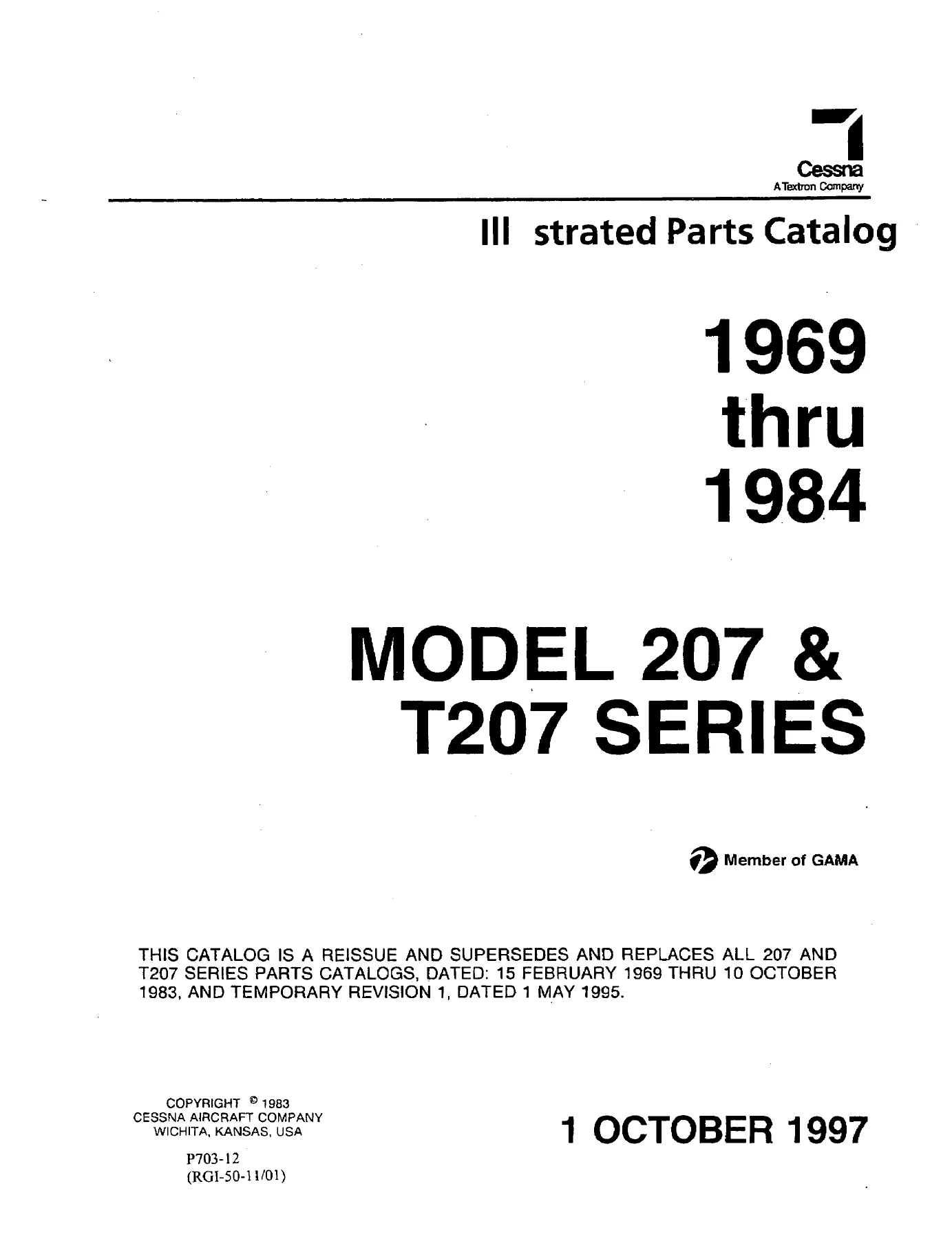

This is a complete reissue that supersedes all earlier catalogs from February 1969 through October 1983, as well as Temporary Revision 1 from May 1995. It incorporates all outstanding revisions and changes, making it the single most current and reliable source for parts information across the entire production run.

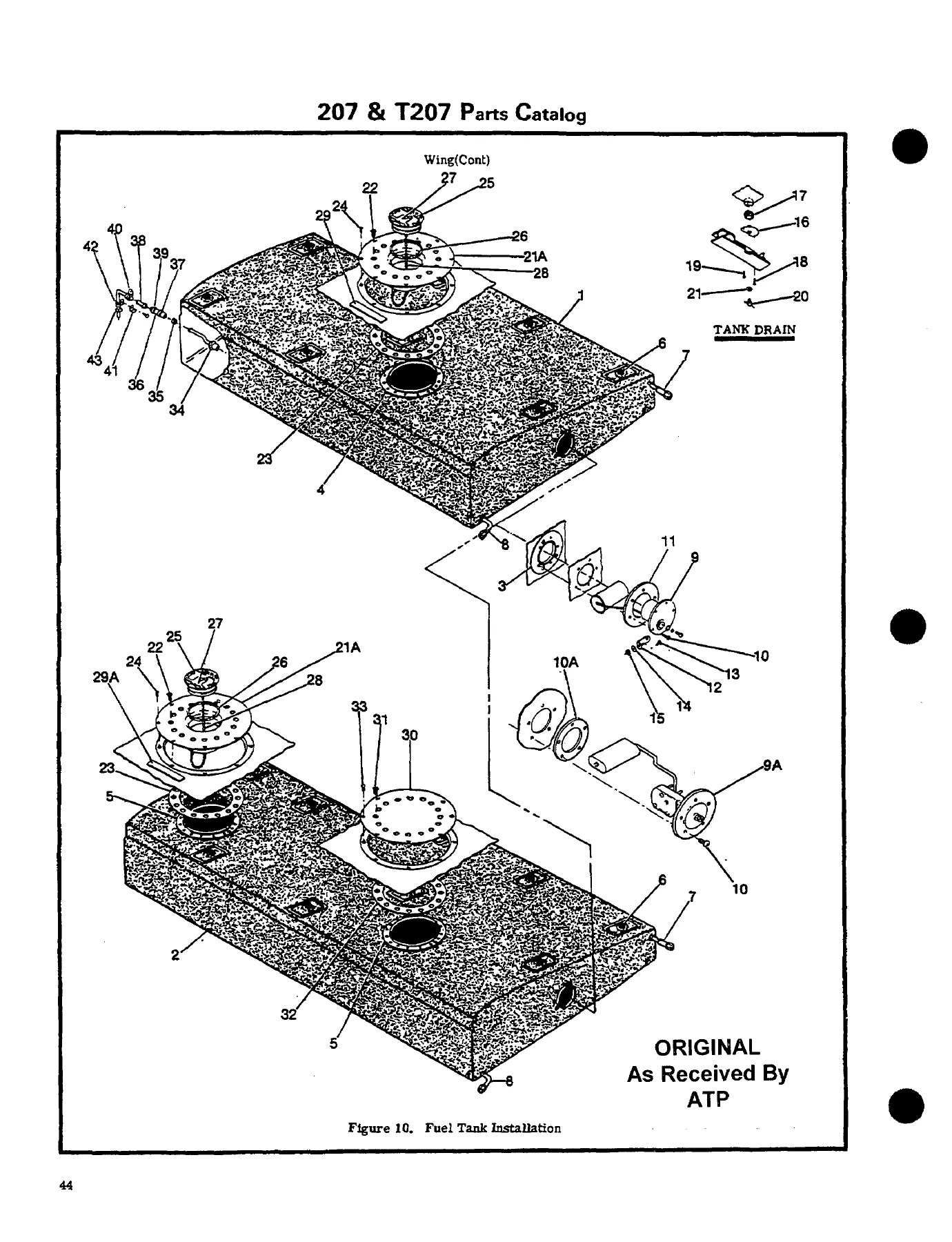

Inside this 772-page PDF, you’ll find a comprehensive system-by-system breakdown of the aircraft. Detailed illustrations accompany every major assembly and component, from the nose gear to the tailcone, making part identification straightforward. The catalog includes specific parts lists for each figure, complete with Cessna part numbers, descriptions, and the quantities used per assembly. The ‘Usable On Code’ system clearly indicates which parts apply to specific serial numbers or model years, allowing for precise ordering.

Whether you’re performing a full restoration, troubleshooting a specific system, or simply need to order the correct replacement part for your 207 or T207, this catalog is an indispensable resource.

What This Cessna 207 Parts Catalog Covers

The detailed contents of this manual are organized into comprehensive sections, covering every aspect of the aircraft:

IMAGES PREVIEW

• Introduction & How to Use: Detailed information on using the catalog, understanding part numbers, revision status, and how to identify the correct parts for your specific aircraft serial number.
• Finish & Trim & Paint Code Charts: Year-specific color code charts for interior and exterior paint schemes (1969-1984). Covers how to interpret the Finish and Trim plate for your aircraft.
• Alphabetical & Numerical Indexes: Comprehensive indexes to quickly locate any part by name or number across the entire catalog.
• Wing Structure & Components: Breakdowns of the wing structure, including spars, ribs, leading edges, skins, stringers, flaps, ailerons, and balance weights. Covers standard and extended-range wing variants.
• Fuselage Structure & Components: Exploded views and parts lists for the entire fuselage, including forward and lower structures, firewalls, floorboards, cabin sections, doorposts, and baggage compartments.
• Landing Gear Systems: Complete parts information for the nose gear, including the shock strut, steering, wheels/tires, and shimmy dampener. Also includes main landing gear wheel and brake assemblies.
• Doors & Windows: Detailed breakdowns of the cabin doors (LH and RH), cargo doors, windshields, and window assemblies, including latches, handles, hinges, and seals.
• Upholstery & Interior Trim: Parts listings for the complete interior, including seats (pilot, co-pilot, middle, and aft), headliners, side panels, carpeting, armrests, and how to order upholstery by color.
• Instrument Panel & Electrical: Detailed illustrations and part numbers for the instrument panel, avionics equipment, switches, circuit breakers, post lighting, and the entire electrical system (including alternators, batteries, and wiring).
• Engine & Propeller: Exploded views of the engine installation, including Continental IO-520F (normally aspirated) and TSIO-520 (turbocharged) engine components, baffles, exhaust systems, induction, turbocharger, and propeller assemblies (two and three-bladed).
• Power Plant Systems: Detailed parts information for all engine-related systems, including fuel, oil, heating/defrosting, and the vacuum system. Includes fuel pumps, selectors, strainers, oil coolers, and filters.
• Flight Controls: Comprehensive breakdowns of the entire flight control system, including aileron, elevator, flap (electric), and rudder controls, plus trim systems and wing leveler components.
• Brake System: Illustrated parts listing for the entire brake system, including master cylinders, calipers, brake discs, hoses, lines, parking brake assembly, and rudder pedals.
• Pitot & Static Systems: Components of the pitot and static systems, including tubing, fittings, and alternate static source valves.
• Equipment & Optional Installations: Parts for various equipment, including oxygen system, cargo pack, ambulance/stretcher provisions, fire extinguisher, and camera plane provisions.

Why You Need This Catalog

For anyone maintaining, repairing, or restoring a Cessna 207 or T207, this catalog is not just helpful—it’s essential. It allows you to:

• Identify Parts Accurately: Use the detailed illustrations and parts lists to identify the exact part number for your aircraft’s serial number, eliminating ordering errors.
• Plan Maintenance and Repairs: Understand the assembly and disassembly of complex systems before you start the work.
• Source Components Correctly: Know precisely which part number to request from your supplier or when searching for used parts.
• Ensure Airworthiness: Using the correct, factory-specified parts is critical for maintaining the safety and performance of your aircraft.

This Cessna 207 & T207 Parts Catalog is the master document for your aircraft. It transforms the complex task of parts identification into a straightforward, visual process, saving you time, money, and frustration. Whether you are a professional A&P mechanic or a dedicated owner-operator, this manual is the foundation for any successful maintenance or restoration project on the Cessna 207 series.

Instant PDF Download

After purchase, you will have immediate access to this complete 772-page parts catalog in PDF format. It is fully printable and viewable on any computer, tablet, or smartphone, giving you the ability to have the information exactly when and where you need it.
