Cessna Model 525A CitationJet Wiring Diagram Manual 525A-0300 & On Rev 19

Description

Cessna Model 525A CitationJet Wiring Diagram Manual 525A-0300 & On Rev 19

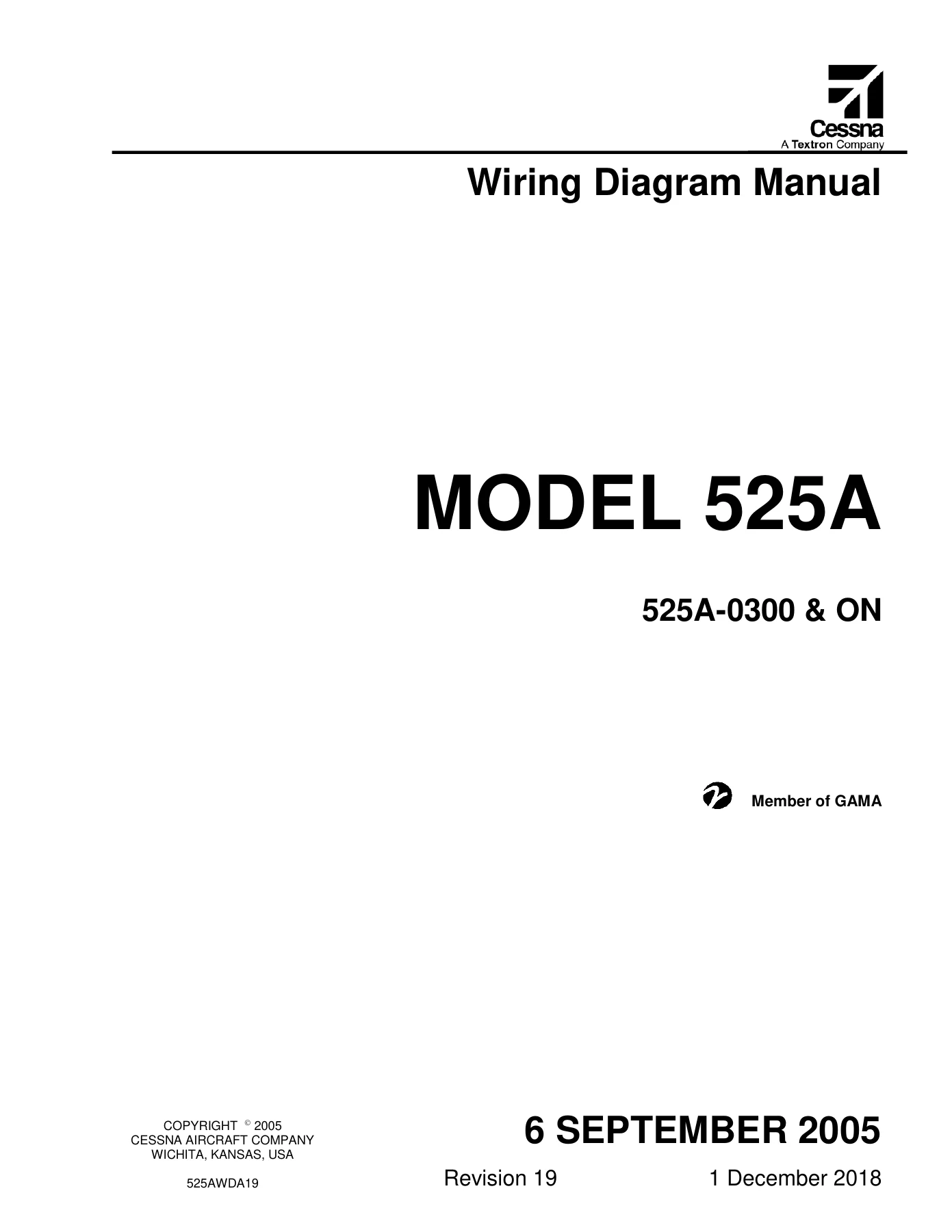

This Cessna Model 525A CitationJet Wiring Diagram Manual 525A-0300 & On Rev 19 is the electrical-circuit reference for U.S. and foreign-certified Model 525A CitationJet airplanes beginning at serial 525A-0300. Cessna Aircraft Company first issued the book on 6 September 2005; the copy documented here is Revision 19, dated 1 December 2018, identified on the title page as 525AWDA19. The publication follows ATA Specification 2200 for manufacturer technical data and is written so a mechanic can trace a circuit, identify a connector or ground, and support removal and replacement of electrical and avionics components.

File Details

• Manual type: Wiring Diagram Manual
• Brand / model: Cessna Model 525A (CitationJet)
• Serial coverage: 525A-0300 and On
• Language: English
• Page count: 1911
• File format: PDF
• Document number: 525AWDA19
• Original issue: 6 September 2005
• Revision: Revision 19 — 1 December 2018

Airplane Effectivity and How to Read a Figure

Each airplane is built to a customer configuration, so the Cessna Model 525A CitationJet Wiring Diagram Manual 525A-0300 & On Rev 19 does not treat every sheet as universal. Diagrams carry effectivity blocks that split serial groups such as 0300–0347, 0348–0438, 0439 and on, 0462–0489, and later blocks shown on chapter contents pages. When a subject uses more than one sheet, the title block lists the sheet number; a cross-reference in the text uses the diagram number only, so the effectivity block is the check that the sheet applies to the airplane on the hangar floor.

Wiring diagram numbers follow ATA practice as three pairs: chapter/system, section/subsystem, and subject/unit. The introduction walks through that scheme with the example 28-21-01 for the fuel boost pump under fuel distribution. Page numbers 1 to 100 number the wiring figures themselves. Chapter 91 adds connector charts for multi-system plugs, ground location lists arranged in alphanumeric order with the associated wire number and system, and related terminal-board data.

IMAGES PREVIEW

Chapters Covered

• Chapter 21 Air Conditioning — instrument cooling fans, pressurization system, Freon air conditioning, air conditioning system, cabin environmental system
• Chapter 22 Auto Flight — flight guidance system
• Chapter 23 Communications — COMM 1/2 VHF-4000, dual audio, cabin headset jacks, HF-9000, RTU and CDU tuning, Aircell ST-3100, cockpit voice recorder FA2100, cabin briefer
• Chapter 24 Electrical Power — left and right power distribution, 500 VA and 1200 VA inverters, avionics master switch, avionics dispatch and ground power, left and right circuit breaker panels, battery temperature monitor and indicator, DC-to-DC converter, power J-box
• Chapter 25 Equipment/Furnishings — ELT Artex C406-N and related cable assemblies
• Chapter 26 Fire Protection — fire warning system, firewall shutoff and fire extinguisher
• Chapter 27 Flight Controls — electric trim, trim control, flap control, speed brakes, rudder bias
• Chapter 28 Fuel — left and right fuel control, fuel system indications
• Chapter 30 Ice and Rain Protection — engine inlet and wing anti-ice, pitot and static heater, tail de-ice, windshield anti-ice bleed air and alcohol
• Chapter 31 Indicating Recording Systems — annunciator panel, switch panels, miscellaneous indicators, clocks and flight hour meter, secondary flight display, test switch, PCB diagnostic interface
• Chapter 32 Landing Gear — landing gear control system, landing gear monitor, brake control, squat switch and proximity-card board grounds
• Chapter 33 Lights — interior lights, cockpit and emergency lighting, exterior lights, baggage compartment lighting, landing/recognition lights with pulse lights, tail flood lights, aisle lighting option, 5 VDC instrument panel lighting
• Chapter 34 Navigation — dual air data ADC-3000, angle of attack and AOA indexer, NAV 1/2, DME, radio altimeter, weather radar, WX-1000E Stormscope, TAWS, EGPWS, TCAS / Skywatch / Collins TTR-4000, dual transponders TDR-94X, FMS-3000 and GPS-500/500W paths, ADS-B Out, XM broadcast weather, standby HSI/RTU
• Chapter 35 Oxygen — oxygen system
• Chapter 44 Cabin Systems — cabin display, PBS 250 cabin briefer
• Chapter 46 Information Systems — file server unit
• Chapter 52 Doors — door handle position switch
• Chapter 74 Ignition — left and right ignitors
• Chapter 76 Engine Controls — throttle quadrant
• Chapter 77 Engine Indicating — engine monitoring system and DCU interface, FADEC engine / airframe / communication interfaces, engine-on-ground and bleed air load
• Chapter 91 Charts — connectors, grounds location and wiring description and operation

Taken together, those ATA chapters give the technician the circuit picture for environmental control, electrical generation and distribution, lighting, landing gear and brakes, fuel and fire protection, ice protection, communications and audio, flight guidance, navigation and surveillance options, cabin systems, door sensing, ignition, throttle, and FADEC-related engine indicating. Front-matter tools sit ahead of Chapter 21: a three-digit zone map of the airframe, a light-bulb replacement table with reference designators and part numbers, a fuse and limiter table (ANL225 crossfeed limiters, ANL80 DC power limiters, ANL100 and ANL35), a service-bulletin incorporation list, an ICA supplement list, a supplier address list, an alphabetical index of diagram subjects, a component index, a 144-page reference designator index, and an 86-page part number index.

Wire Numbers, Grounds, and Drawing Symbols

Wires on the airplane carry a printed, stenciled, or labeled number-letter code. The introduction decodes that string: splice flags, connector identities such as P481 and J482, pin letters (lower-case versus upper-case), wire gage, and shield or twist group marks (SP, ST, SS, TP, TT, CX). Thermocouple leads are banded and color-coded (green tracer alumel, white chromel, yellow constantan, red copper, black iron). STD next to a wire number marks a wire installed as standard so an optional system can be retrofitted later.

Reference designators use two letters plus three digits. The first letter is the component class (A splice, B controller, F light, G ground, H circuit breaker or fuse, J receptacle, K relay, P plug, S switch, and the remaining classes listed in the introduction). The second letter is airframe location (nose, instrument panel, left or right wing, tailcone, nacelle, and so on). Ground blocks use a five-character scheme that encodes location (N/C/T), ground type (DC, AC, SG, CS, LG, GS), system 1 or 2, and block number. Avionics families can also be read from the third digit of selected designators (auto flight and gyros, communications, short- and long-range nav, radar and pulse, power and lighting).

Eleven sheets of electrical symbols define how batteries, buses, remote circuit breakers with current sensors, connectors (gage marks on pins), diodes and varistors, relays and time-delay relays, motors, solenoids, switches including multi-deck rotary and two-stage types, transistors, twisted and shielded wire, and high-temperature wire appear on the figures. Switches and operable devices are drawn de-energized unless a note says otherwise.

Finding a Component on the Airplane

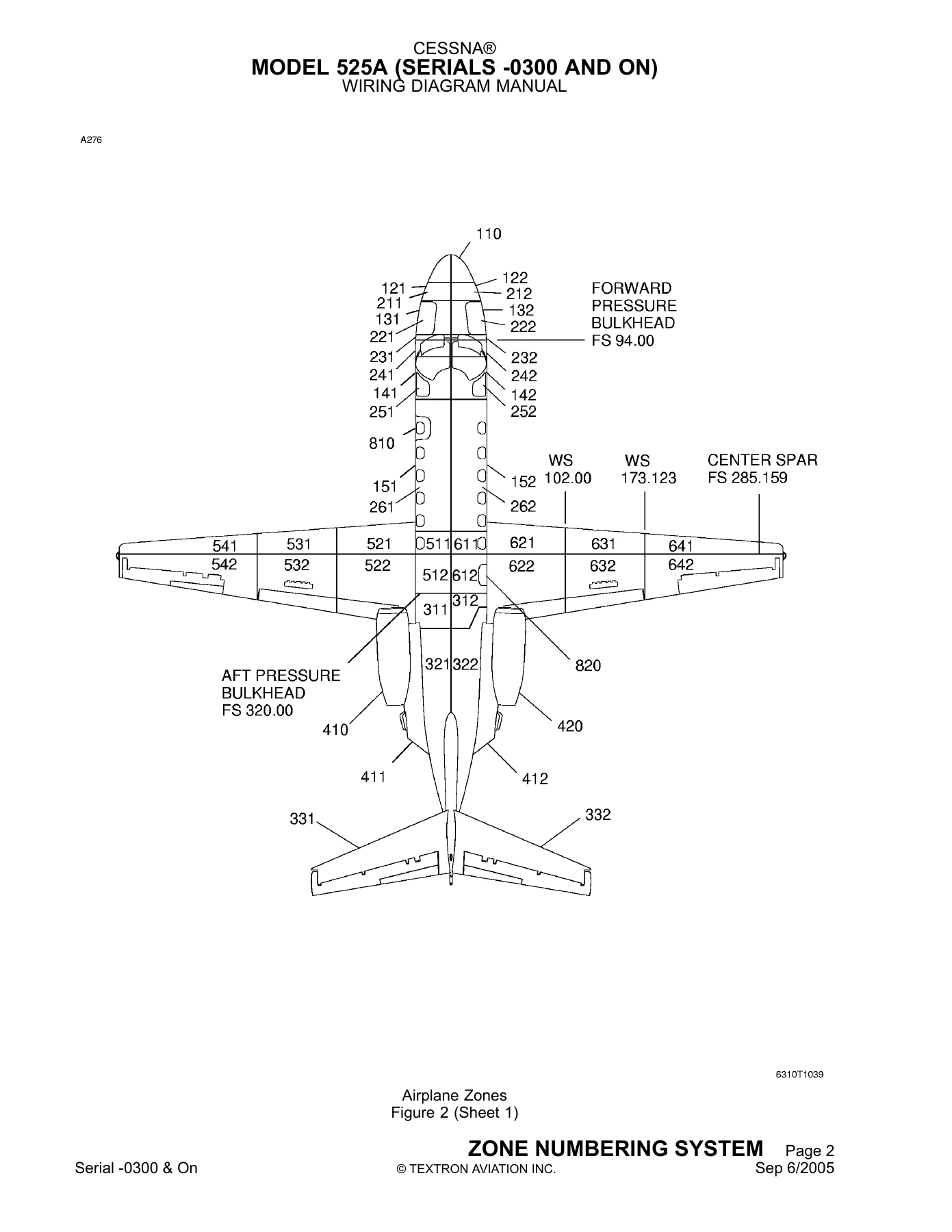

The zone system splits the Model 525A into major areas 100 through 800 (radome and below-floor structure, cabin above the floorboards, empennage, nacelles forward of the firewall, left and right wings, landing gear, and doors). Plan and profile drawings locate sub-zones such as the forward pressure bulkhead at FS 94.00, aft pressure bulkhead at FS 320.00, wing stations, and cockpit panel zones 243–258. After a reference designator is read on a figure, the parts list for that figure gives nomenclature and zone so the same item can be found in the airplane.

Light-bulb and fuse guides sit in the same front section. Exterior lamps include beacon, wing navigation, landing/recognition, tail flood, tail navigation, and wing inspection lights with manufacturer part numbers. Flight-compartment lamps cover master caution and master warning, gear handle, ignition, battery power on, FADEC, and ice-detect indicators. Limiters HZ020–HZ028 and HZ044 identify left and right crossfeed and DC power protection.

What the Diagrams Look Like in Practice

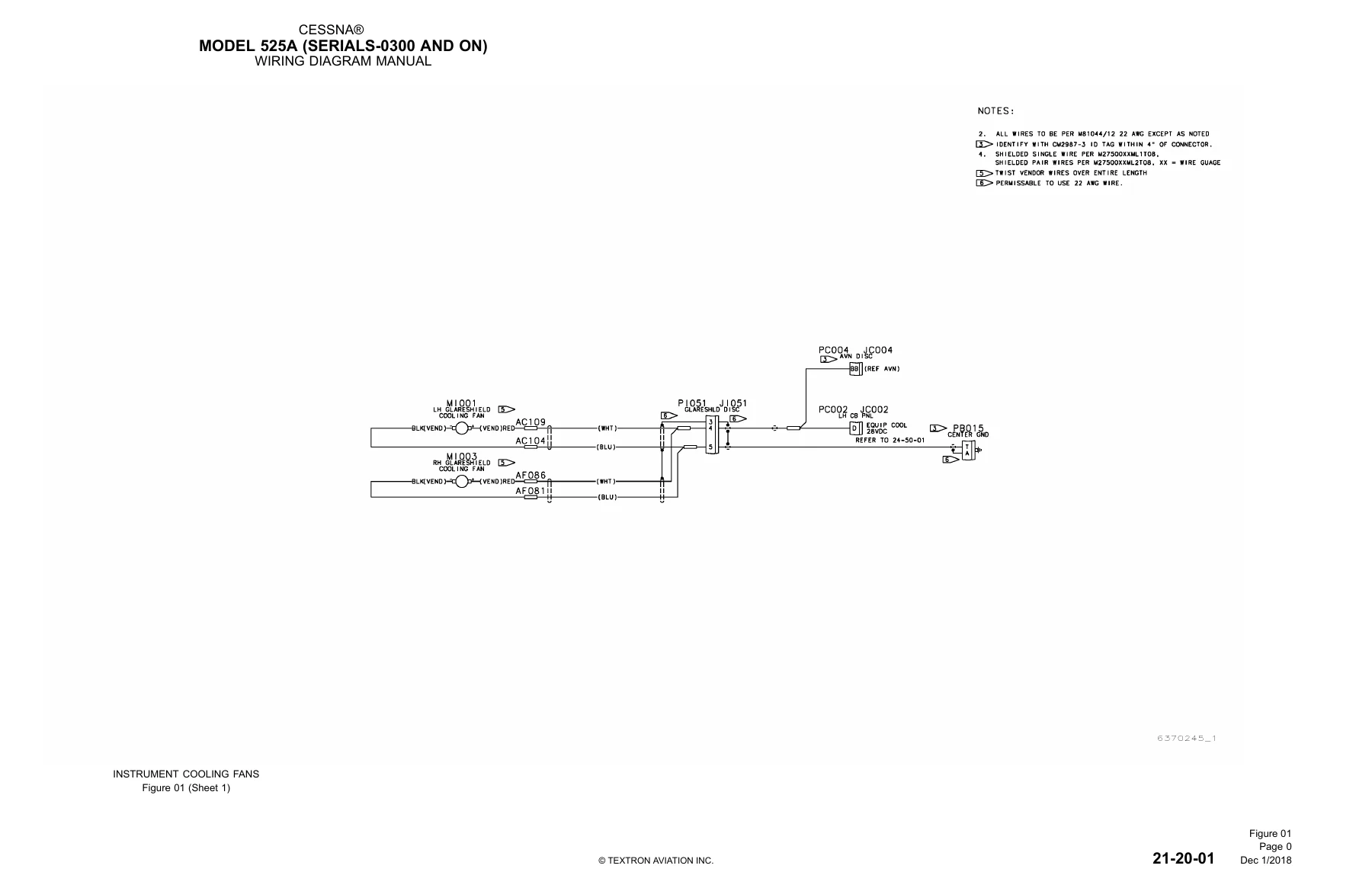

A typical subject opens with a schematic sheet, then a parts list keyed to figure reference designators, part numbers, nomenclature, effectivity from/to, and units per assembly. Instrument cooling fans 21-20-01, for example, show left and right glareshield fans, splices, the left circuit-breaker panel connector, and notes on wire specification M81044/12, shield practice, and permitted 22 AWG substitution. Later sheets in the same chapter change with serial effectivity for pressurization and Freon versus later air-conditioning installations. Navigation and communications chapters repeat that pattern for dual installations, jumper diagrams, and optional trunks (CVR, HF, TAWS, Stormscope, FMS).

The service bulletin and ICA supplement lists record which electrical changes already sit in Revision 19 and which remain pending. Items called out as incorporated by the December 2018 revision include cabin briefer wiring improvement SB525A-25-09 and FADEC interface PCB improvement SB525A-76-02. Those lists keep the Cessna Model 525A CitationJet Wiring Diagram Manual 525A-0300 & On Rev 19 aligned with the configuration mix found on later 525A airplanes.

Use This Manual on the Job

The Cessna Model 525A CitationJet Wiring Diagram Manual 525A-0300 & On Rev 19 supports circuit tracing, connector pin-out confirmation, ground and shield identification, lamp and limiter replacement, and system-level electrical troubleshooting across the ATA chapters listed above. Correct effectivity, wire gage, and pin identity matter because a 525A may carry different air-conditioning, FMS, transponder, or lighting arrangements depending on serial block and options; using the wrong sheet sends a technician to the wrong connector or the wrong serial group. After purchase the file is delivered as an instant PDF download—no shipping delay—so it can be opened on a laptop, tablet, or shop computer and printed for the work package when a paper sheet is needed at the airplane.
