Cirrus SR20 All-Electric Airplane Information Manual (P/N 13999-003, Jan 2005)
This is the full Cirrus SR20 All-Electric Airplane Information Manual, document P/N 13999-003, dated January 2005, covering the Cirrus Design SR20 on Aircraft Serials 1268 and Subsequent. Structured exactly like the SR20 Pilot’s Operating Handbook it was harmonized with, this Airplane Information Manual walks through every operating section a pilot or owner needs for reference: general airplane data, limitations, emergency procedures, normal procedures, performance, weight and balance, and a complete systems description of the all-electric SR20 airframe.
File Details
- Manual type: Airplane Information Manual (POH-format reference)
- Aircraft: Cirrus Design SR20, All-Electric variant
- Applicability: Aircraft Serials 1268 and Subsequent
- Document Number: P/N 13999-003
- Date: January 2005
- Language: English
- Page Count: 402 pages
- File Format: PDF
Chapters Covered

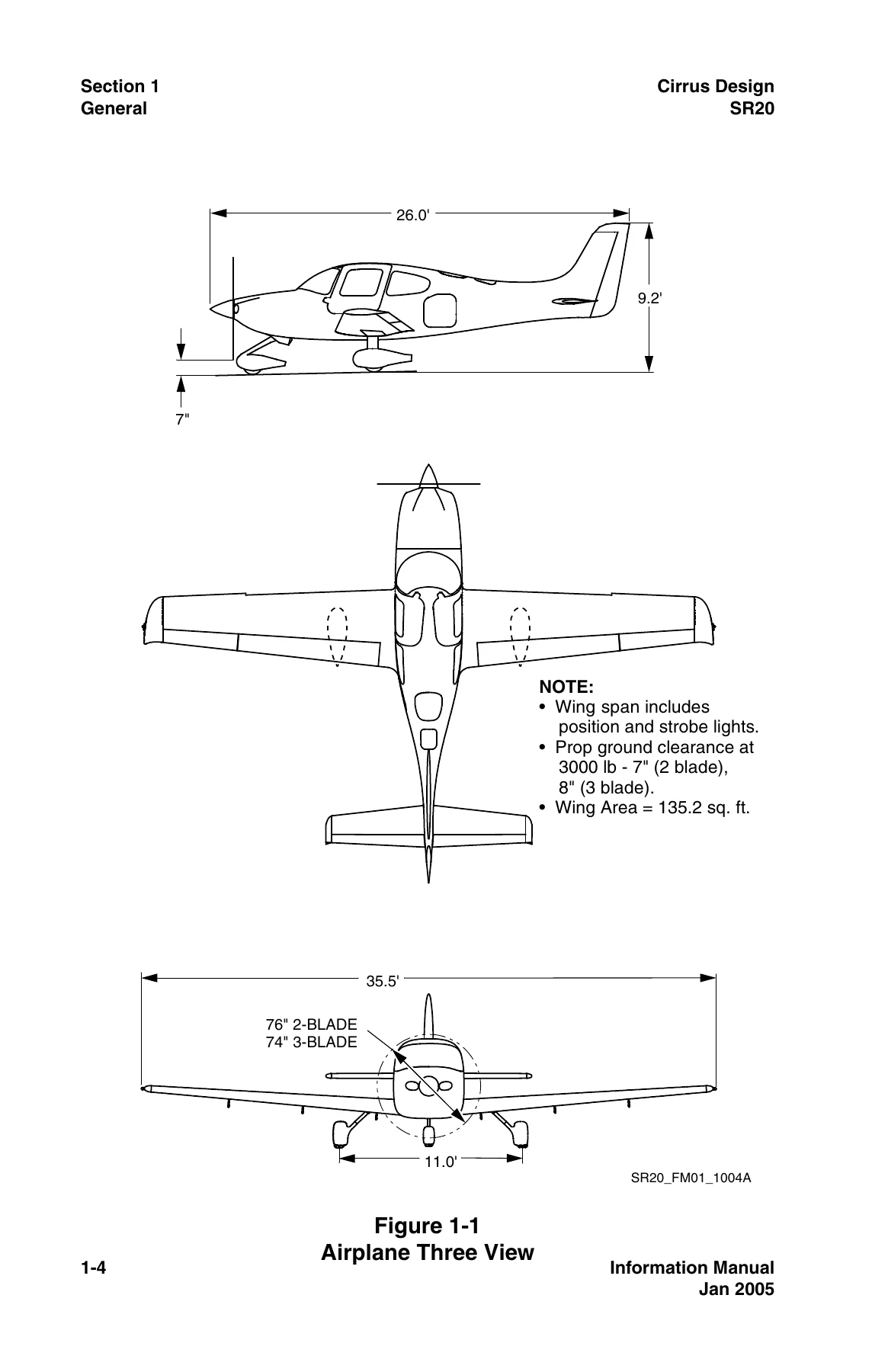

- Section 1 – General: airplane data, engine and propeller specs, fuel and oil capacities, certificated weights, cabin dimensions, symbols and terminology
- Section 2 – Limitations: airspeed limitations, power plant limits, instrument markings, weight and CG limits, CAPS and system limits, kinds of operation, placards
- Section 3 – Emergency Procedures: ground emergencies, in-flight emergencies, engine failure and airstart, fire procedures, CAPS deployment, landing emergencies
- Section 4 – Normal Procedures: preflight walk-around, engine start, taxi, takeoff, climb, cruise, descent, landing, environmental considerations, noise and fuel conservation
- Section 5 – Performance Data: flight planning, sample problems, airspeed and altitude calibration, stall speeds, takeoff and landing distance, climb and cruise performance, range/endurance profiles
- Section 6 – Weight and Balance: airplane weighing procedures, weight and balance record, loading instructions, CG limits, equipment list

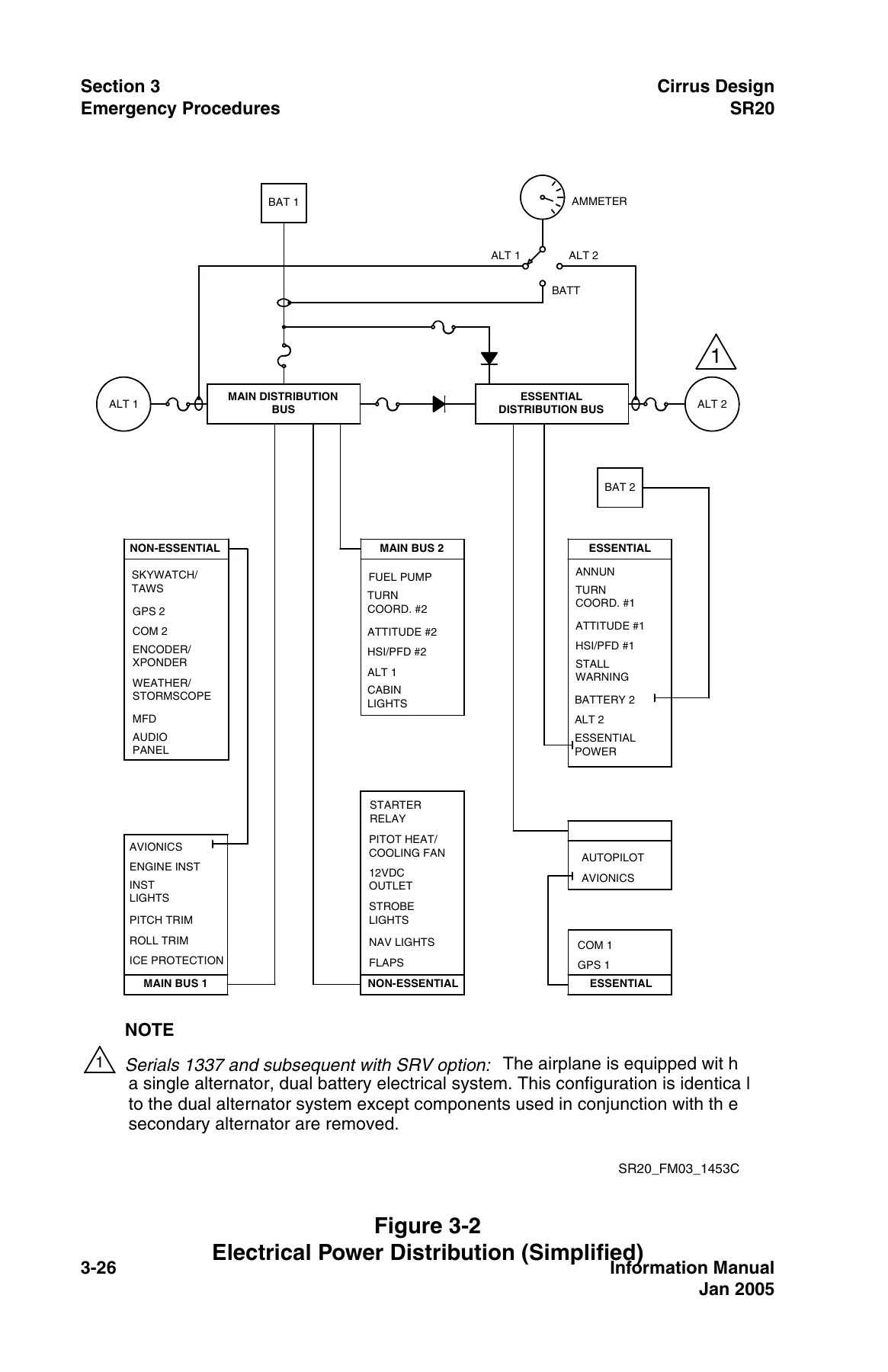

- Section 7 – Airplane and Systems Description: airframe, flight controls, trim systems, flight deck arrangement, cabin, landing gear, engine, propeller, fuel system, electrical system, lighting, environmental system, stall warning, pitot-static system
- Section 8 – Handling, Servicing, Maintenance: airplane records, airworthiness directives, inspection periods, ground handling, servicing, battery service, cleaning and care
- Section 9 – Supplements: log of FAA-approved supplements for optional avionics, autopilot, oxygen, and traffic/weather systems
Together these nine sections give a Cirrus SR20 owner or pilot the same organizational structure as the factory-issued Airplane Information Manual – a single reference for how the all-electric SR20 is built, limited, operated, and maintained.
