Combilift C2500CB Multidirectional Forklift Operation and Service Manual PDF

Description

The Combilift C2500CB Operation and Service Manual is the complete two-in-one reference for this four-directional IC-engine forklift, merging the operator’s handbook and the workshop service guide into a single 127-page PDF. Document reference C2500CB-OM-EN-16 covers safety, day-to-day operation, scheduled maintenance, hydraulic and electrical diagnostics, and the full technical data set for the C2500CB truck.

File Details

• Manual Type: Operation and Service Manual
• Brand: Combilift
• Model: C2500CB
• Document Number: C2500CB-OM-EN-16
• Language: English
• Page Count: 127
• File Format: PDF

Chapters Covered

• Section 1: Safety Information
• Section 2: Basic Information
• Section 3: Components & Controls
• Section 4: Operation Monitoring
• Section 5: Operation
• Section 6: Maintenance
• Section 7: Technical
• Section 8: Appendices

Section 1: Safety Information

Safety statements and the meaning of each signal word, every safety and warning decal used on the truck with its part number, standard and optional safety devices (overhead guard, seat switch, park brake, battery isolator, mast drive cut-out, mast lift cut-out), warning devices, operator qualification and responsibilities, and the workplace operating conditions that affect a multidirectional forklift – minimum power line clearance distances by voltage, gradient limits, adverse weather, exhaust emissions, dock boards, trailers and rail cars.

Section 2: Basic Information

Intended use, a full vehicle description of the standard (0°) and sideward (90°) travel modes, the hydrostatic principle of operation, the location of the serial plate and stamped chassis serial number, rated capacity and stability theory with the see-saw and stability triangle diagrams, load centre and the load chart, approved attachments, and tilting guidelines.

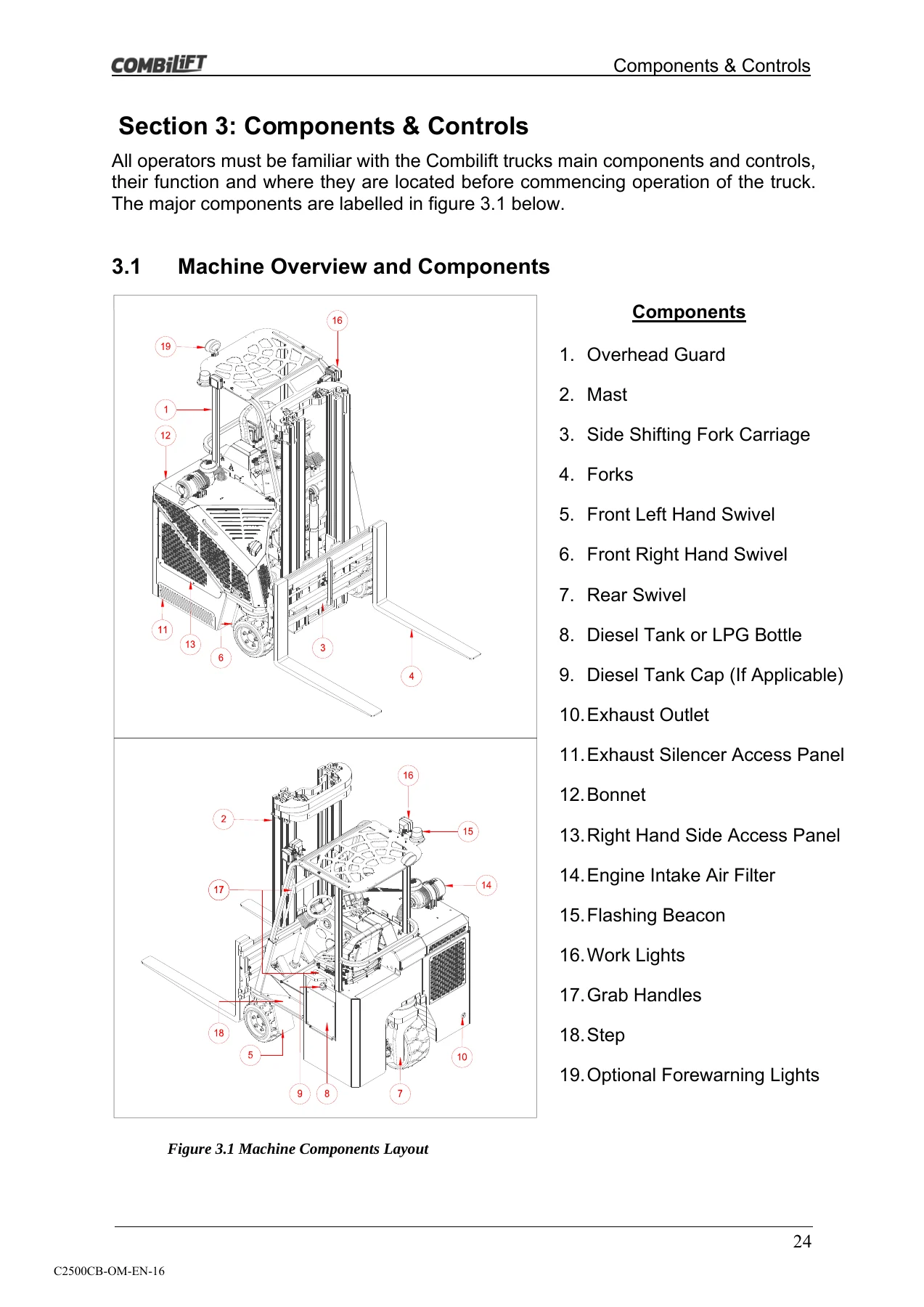

Section 3: Components & Controls

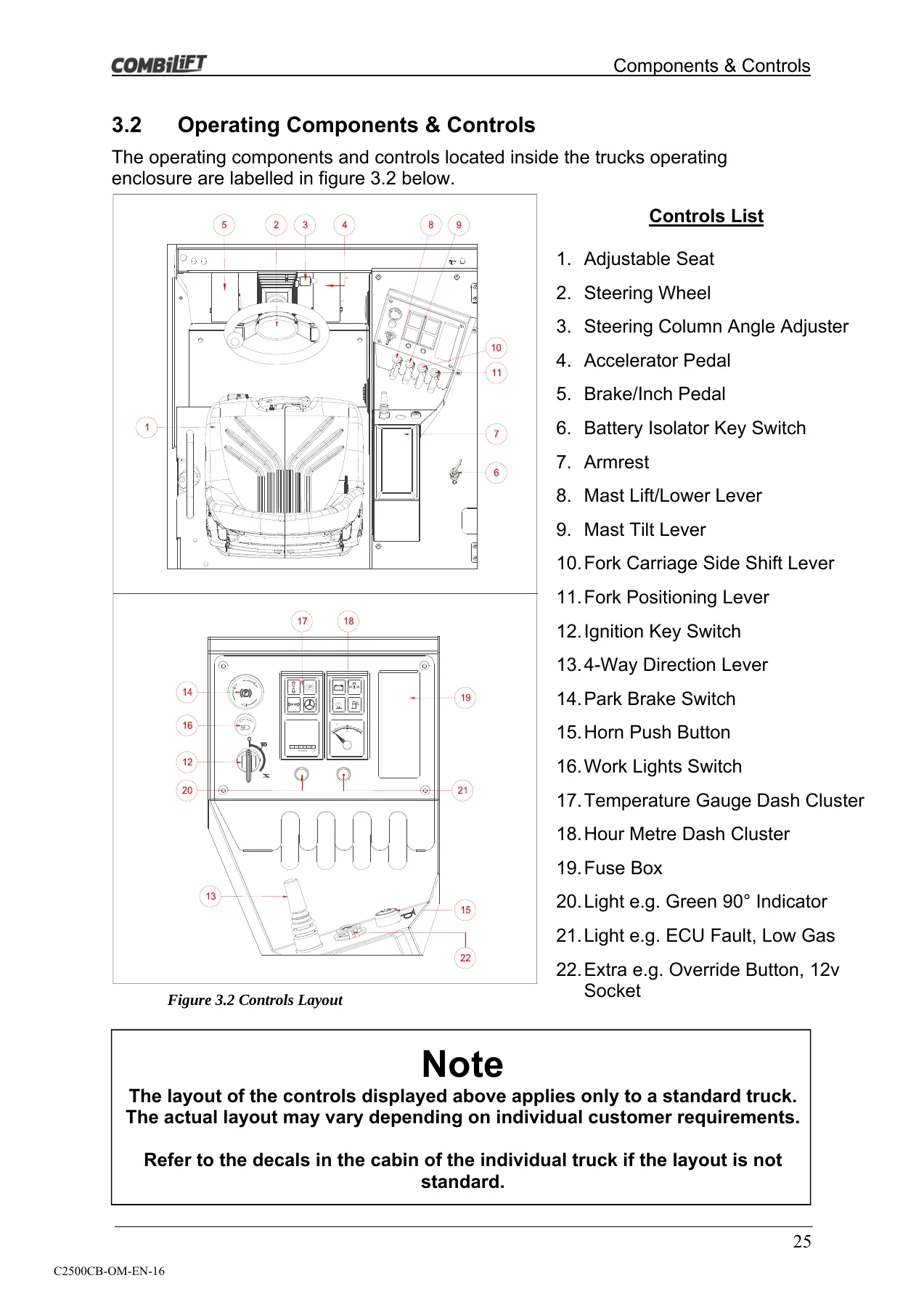

Labelled machine component layouts, the complete operator control set including the Grammar MSG65 seat adjustments, steering column and 4-way direction lever, hydraulic lever operation and, where fitted, the four-way hydraulic joystick with its lift, tilt, side-shift and fork-positioning functions.

Section 4: Operation Monitoring

Both dash display clusters with every instrument and indicator explained – hour meter, temperature gauge, standard and sideward mode indicators, park brake, carousel mode, battery charge, glow plug, engine oil pressure, low fuel, MIL light and fuel gauge.

Section 5: Operation

Pre-use checks, diesel and LP gas refuelling with emergency procedures, engine oil, coolant and hydraulic oil level checks, front wheel alignment, entering and exiting the cabin, diesel and LPG starting procedures, moving off, turning, stopping, changing direction with and without a mode change, attended and unattended parking, loading and unloading including stacking, de-stacking and undercut loads, adjusting the forks, travelling with a load, driving on slopes, towing with the hydrostatic bypass procedure, mechanical park brake release and the diesel particulate filter.

Section 6: Maintenance

Service safety instructions, the 100-hour first inspection, the full maintenance schedule, engine oil and filter change procedures for Kubota diesel, Toyota LPG and GM LPG engines, diesel fuel filters, the LP gas inline filter and pressure regulator oil drain procedures, engine cooling system drain, flush and fill, belt drive tensioning, air filter service, battery electrolyte and charging, hydraulic suction, return and strainer filters plus tank breather, mast and fork carriage chain inspection, chain stretch measurement and adjustment, mast bearing wear pads, fork inspection and the complete grease point chart.

Section 7: Technical

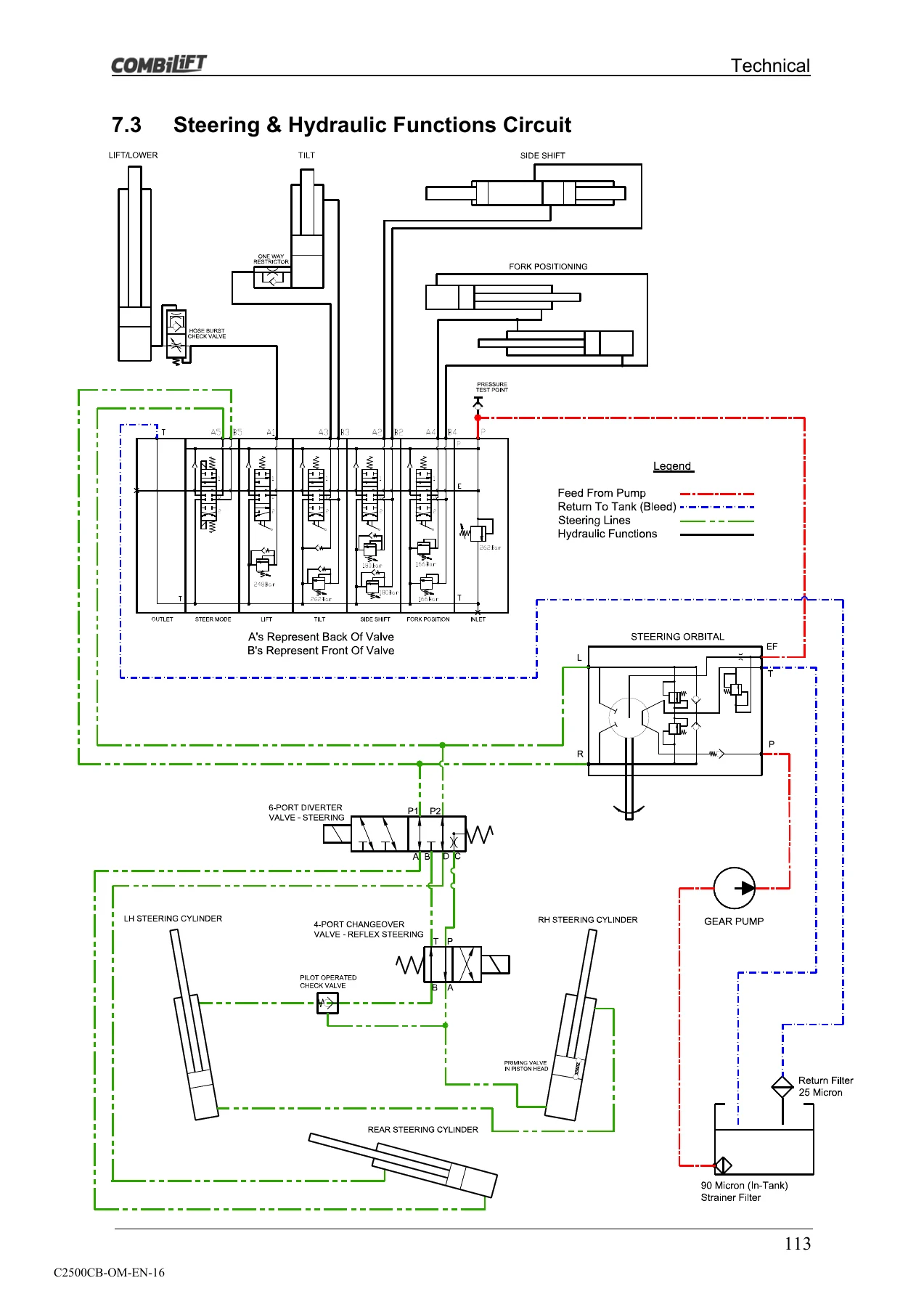

Charge pressure check on port G, the valve chest pressure settings table, the steering and hydraulic functions circuit schematic, the hydraulic drive circuit schematic, the 14-way midi blade fuse box table, engine compartment fuses, relay functions, PLC board layout with every input and output pin, and the PLC diagnostic modes for joystick, proximity sensors, switches and solenoids.

Section 8: Appendices

The California LPG engine emission control warranty statement, general engine warranty, warranty registration form and the operator’s pre-use check sheet.

Key Specifications You Can Work From

Because the manual carries the technical section in full, the C2500CB data set is available directly from the page: main relief pressure set at 262 bar / 3800 PSI, lift at 248 bar / 3600 PSI, tilt back 262 bar / 3800 PSI, side shift 180 bar / 2600 PSI, fork positioning and reach forks at 166 bar / 2400 PSI, charge pressure 22-25 bar / 320-362 PSI, diesel tank 46 litres / 48.5 quarts, hydraulic tank 35 litres / 37 quarts, cooling system 14 litres / 14.8 quarts, 12V 105Ah 735A battery, and a maximum ground speed of 14 km/h (8.7 mph).

What This Combilift C2500CB Manual Lets You Do

Everything the C2500CB needs – from the first pre-use inspection of a shift to a full hydraulic drive pump bypass for towing, from a 100-hour first service to a 2000-hour hydraulic oil change – is written out procedure by procedure. That means an operator can be trained correctly on the four travel modes, a workshop can diagnose a solenoid, proximity sensor or PLC fault without guessing, and a maintenance planner can set intervals against the printed schedule instead of working from memory.

Correct procedures matter on a multidirectional truck. The stability triangle, load centre and load chart sections explain exactly why raising the mast or extending the load centre changes what the truck can lift, and the mast chain, bearing and fork sections give the wear limits – 2% chain elongation for planning replacement, 3% for immediate removal from service, 90% fork thickness, 3° fork angle deviation – that keep the machine inside safe tolerances.

IMAGES PREVIEW

Delivery is instant. This Combilift C2500CB operation and service manual is a downloadable PDF that arrives as soon as payment clears – no shipping, no waiting for a printed binder. It opens on a laptop, tablet or phone in the workshop, and any section can be printed for the bench or the cab. One purchase covers the full 127 pages for the life of the truck.
