Crown WT 3000 Series Maintenance Manual – WT 3020 WT 3040 WT 3060 Electric Pallet Truck Repair PDF

Description

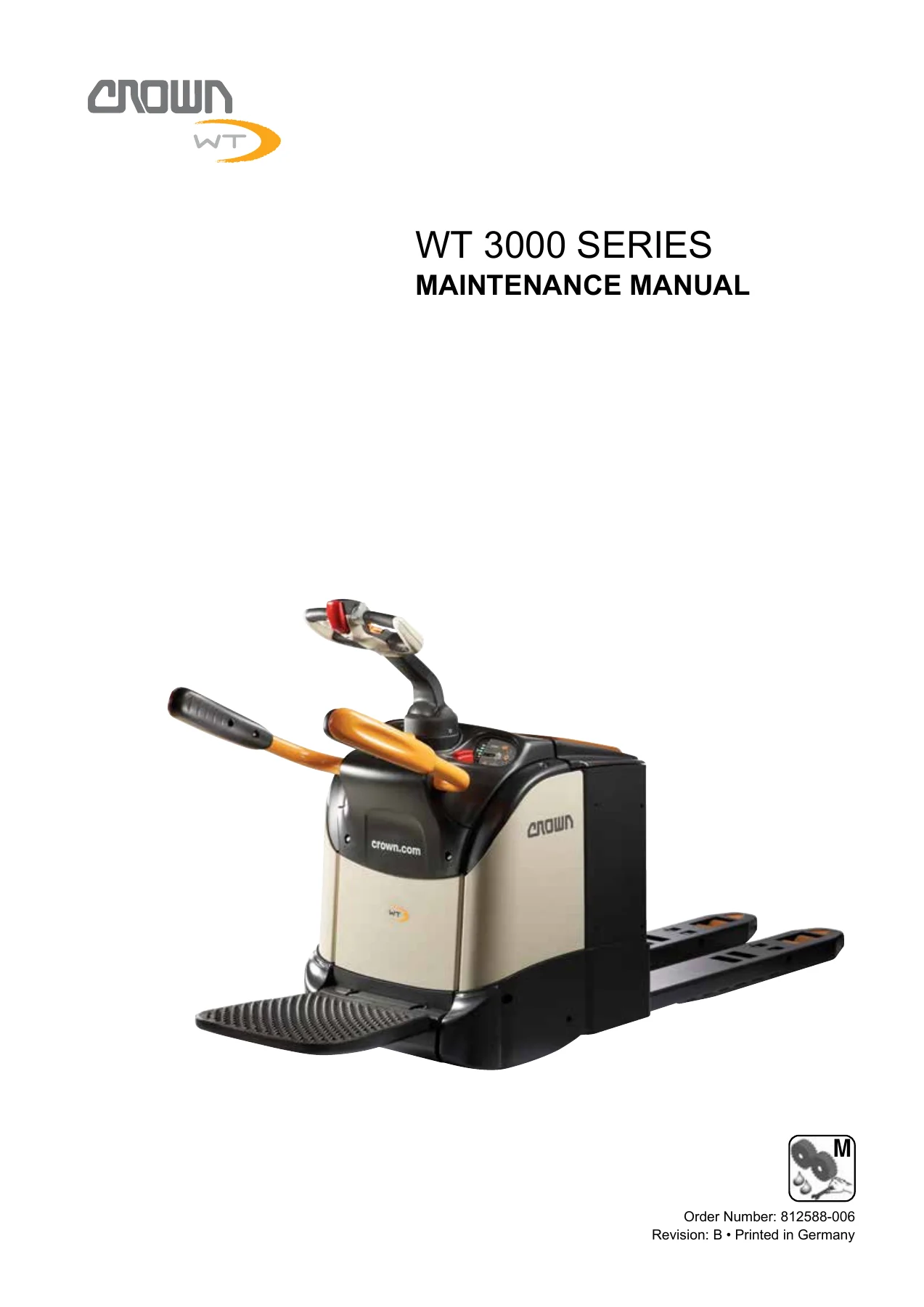

Crown WT 3000 Series Maintenance Manual

This Crown WT 3000 Series Maintenance Manual is the comprehensive service document for the Crown WT 3020, WT 3040, and WT 3060 electric pallet trucks. Covering both mechanical steering (M) and electric steering (E) configurations, this manual provides the complete maintenance and repair procedures required to keep these workhorse trucks operating at peak efficiency. From routine lubrication schedules to complex hydraulic and electrical diagnostics, every procedure is documented with the specifications, diagrams, and step-by-step instructions required to get the job done correctly.

File Details

• Manual Type: Maintenance Manual
• Brand: Crown
• Models Covered: WT 3020, WT 3040, WT 3060
• Document Number: 812588-006
• Language: English
• File Format: PDF
• Page Count: 440+ pages

Chapters Covered

• Introduction
• Safety
• Inspection and Lubrication
• Hydraulic System
• Drive Unit
• Electrical System
• Brake System
• Steering
• Lifting Mechanism
• Cylinders
• Platform
• Schematic Diagrams
• Hydraulic Schematic

Introduction and Important Information

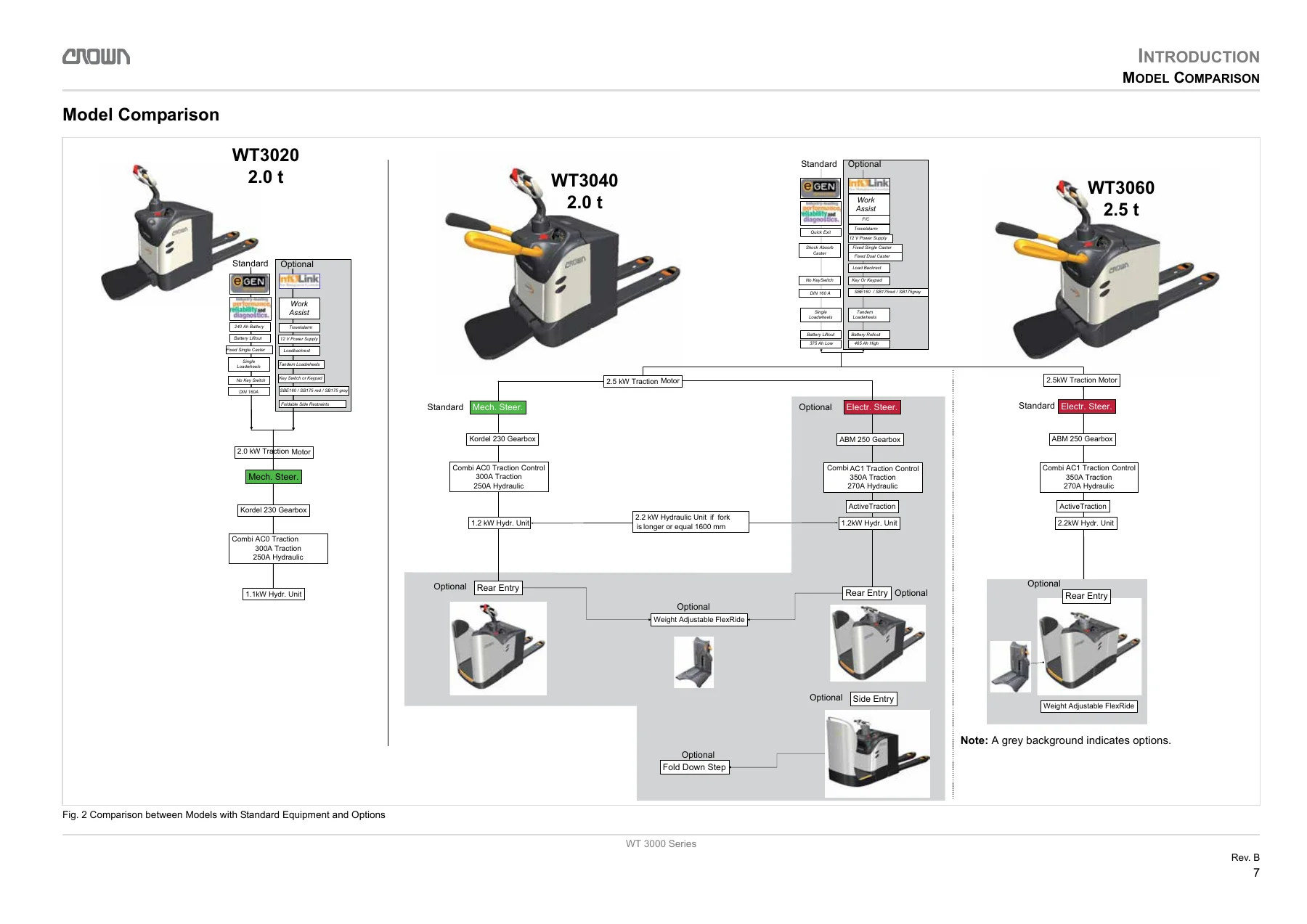

The opening chapters establish the scope of the manual, covering service personnel qualifications, spare parts ordering, documentation ordering, and the manual’s structure and conventions. The model comparison section provides a detailed breakdown of the WT 3020, WT 3040, and WT 3060 specifications, including standard equipment and available options such as mechanical versus electric steering, hydraulic unit sizes (1.2 kW and 2.2 kW), traction motor ratings (2.0 kW and 2.5 kW), and gearbox types (Kordel 230 and ABM 250). The truck data number structure is explained in detail, allowing technicians to decode model capacity, steering type, battery tray size, straddle width, fork length, load wheel configuration, and operator position version.

Safety

A comprehensive safety chapter covers basic safety notices, organisational measures, personal protective equipment, and hazard protection. Specific attention is given to stored energy hazards, including high-pressure hydraulic oil and capacitor discharge requirements. The chapter details safety mechanisms and protective guards, including the emergency disconnect, safety reverse switch, brake switch, finger guard, and entry bar. Procedures for handling batteries, cleaning work, and restoring the truck to service after maintenance are all documented.

Inspection and Lubrication

This chapter provides complete lifting, towing, jacking, transporting, and storage procedures for all WT 3000 Series models, including specific instructions for fixed platform, rear entry, side entry, and folding platform trucks. The lubricants and consumables section lists approved products for normal and cold store applications, including transmission oils, grease, hydraulic oils, and anti-corrosion agents. A detailed maintenance schedule covers planned maintenance intervals, with separate inspection and lubrication items for the lifting mechanism, drive system, wheels, and covers. The finger guard and entry bar inspection procedures are fully described with adjustment and repair instructions.

Hydraulic System

The hydraulic system chapter covers the complete maintenance and repair of the hydraulic unit, including removal and installation procedures for both the 1.2 kW and 2.2 kW configurations. Relief valve replacement, adjustment, and testing are documented with detailed specifications. Hydraulic oil replacement and system bleeding procedures ensure proper operation. A drift test procedure identifies internal leakage, and a comprehensive troubleshooting table addresses common hydraulic system symptoms including noisy pumps, foaming oil, overheating, low flow rate, and pressure issues.

Drive Unit

This chapter details the drive unit components for both mechanical and electrical steering trucks, including the brake, traction motor, live ring bearing, drive gear unit, and drive wheel. The drive wheel replacement procedure covers disassembly and assembly with torque specifications. Gear oil changing procedures are provided for both mechanical steering (0.9 litres) and electric steering (1.6 litres) trucks, with specific oil type requirements. The dust shield ring replacement procedure addresses serial numbers from 5A605126 onward.

Electrical System

The electrical system chapter is the most extensive section of the manual, covering software versions, menu structures, analyzer menus, calibration procedures, features, hour menus, event menus, performance menus, and utilities. The event codes section provides detailed troubleshooting for every fault code, organized by module: Access 1 (display), Access 2 (hydraulic control module/HCM), Access 3 (traction control module/TCM), and Access 5 (steering control module/SCM). Each event code entry includes the display indication, service LED status, operator LED status, explanation, possible causes, and step-by-step remedy procedures. The chapter also covers control module PMT testing, general DC motor maintenance, traction motor repair, pump motor servicing, steer motor repair, BDI setting adjustment, load profile configuration, battery information, and system modifications.

Brake System

The brake system chapter covers both the service brake (regenerative braking via the drive motor) and the parking brake (electromechanical). Parking brake servicing includes air gap measurement (replace if > 0.5 mm), troubleshooting procedures, and complete replacement instructions with torque specifications. Braking distance testing procedures and tables provide maximum braking distances for all WT 3020, WT 3040, and WT 3060 configurations in both rider and pedestrian modes.

Steering

Steering system coverage includes the steering assembly components, steering transmission repair, SAHS sensor replacement and adjustment (35.5 +/- 0.5 mm setting dimension), control handle return spring repair and pre-tension adjustment, tiller handle repair including shell replacement, switch unit replacement, rabbit/turtle toggle module replacement, PC board replacement, traction potentiometer replacement, and brake switch (BRS) replacement. Detailed assembly and disassembly procedures are provided with torque values.

Lifting Mechanism and Cylinders

The lifting mechanism chapter covers fork height adjustment (lowered and raised positions) with specific measurements: 85 +/- 2 mm for lowered forks and 125 +/- 5 mm for raised forks. The lift limit cutout adjustment procedure ensures proper LMS1 switch operation. Fork inspection procedures address crack detection and welding seam inspection. The cylinders chapter covers lift cylinder and traction cylinder repair, including seal removal and assembly using specialized tools. Rod seal installation procedures are detailed with protective sleeve requirements.

Platform

The platform chapter covers folding platform switch adjustment (PLS1 for rider mode, PLS2 for pedestrian mode), spring assembly pre-tensioning, and spring replacement procedures. The platform and side restraint logic tables define the operating modes for WT 3020MO, WT 3040EF, WT 3060EF, and fixed platform trucks, showing platform sensor and side restraint sensor states for pedestrian, comfort, rider, and quick exit modes.

Schematic Diagrams

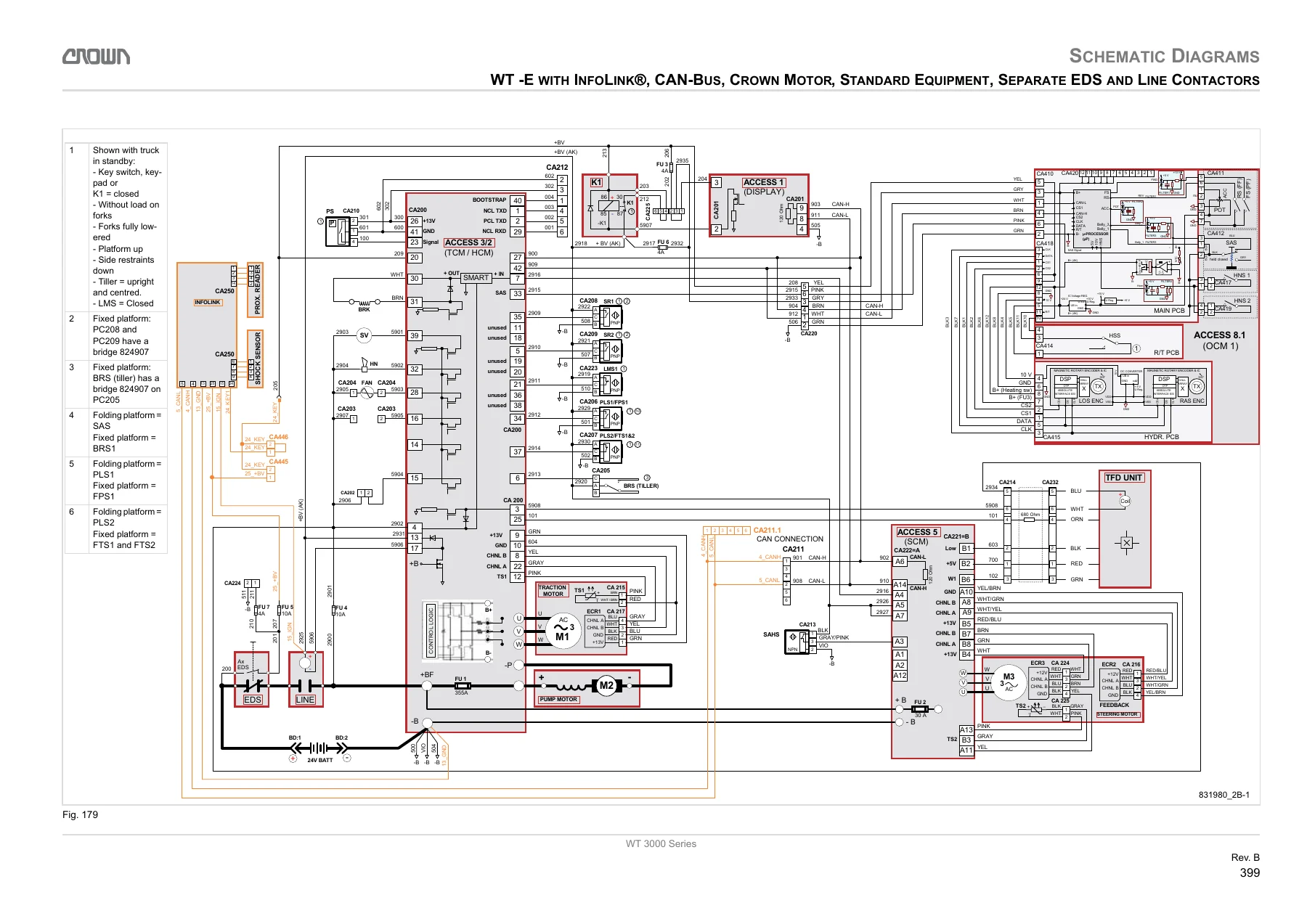

The schematic diagrams section includes the wire colour code system, general contact symbol abbreviations, and complete electrical wiring diagrams for all WT 3000 Series configurations. Diagrams cover WT-M and WT-E trucks with ABM motors, Crown motors, and InfoLink options, with keyless power-up, key switch, and keypad variants. Main wire harness diagrams are provided for different production periods. The hydraulic schematic section includes hydraulic symbols and complete hydraulic diagrams for trucks with and without traction control.

Why This Manual Matters for Your Crown WT 3000

Electric pallet trucks like the Crown WT 3020, WT 3040, and WT 3060 are the backbone of warehouse and logistics operations. When one goes down, productivity stops. This manual gives you the exact procedures, specifications, and diagnostic paths to troubleshoot and repair these trucks correctly the first time. The extensive event code coverage means you can quickly identify fault conditions through the display panel and follow the manufacturer’s diagnostic steps to resolution. Hydraulic and electrical schematic diagrams provide the system-level understanding needed to trace complex faults. Whether you are performing routine maintenance, diagnosing an intermittent electrical issue, or rebuilding a hydraulic unit, the Crown WT 3000 Series Maintenance Manual delivers the technical authority you need.

IMAGES PREVIEW

Instant PDF Delivery

This Crown WT 3000 Series maintenance manual is delivered as an instant PDF download after purchase. No shipping, no waiting, no physical media. Access your manual immediately on any device — laptop, tablet, or smartphone — and print the pages you need for the shop floor. The PDF format lets you search, zoom, and navigate the 440+ pages with ease, making it the practical choice for busy technicians who need answers fast.
