Crown WT 3000 Series Parts Manual — Document 812754-006 RevA

This is the complete Crown WT 3000 Series parts manual, covering the WT 3020, WT 3040 and WT 3060 electric forklifts. Published under document number 812754-006, revision RevA, this 142-page PDF gives you every exploded-view illustration, part number and component listing you need to identify, order and replace parts across the entire WT 3000 range. Whether you are maintaining a single truck or running a fleet, having the correct Crown part numbers on hand eliminates guesswork and wasted time.

File Details

• Manual Type: Parts Manual
• Brand: Crown
• Models Covered: WT 3020, WT 3040, WT 3060
• Document Number: 812754-006
• Revision: RevA
• Language: English
• Page Count: 142
• File Format: PDF

Chapters Covered

• Introduction
• Covers
• Hydraulic System
• Drive Unit
• Electrical System
• Brake System
• Steering
• Lifting Mechanism
• Cylinders
• Platform
• Miscellaneous

Introduction

This opening section explains how the manual is structured and how to use the truck data number to identify the correct specification for your machine. The specification number breakdown covers model number, steering type (M = Mechanical, E = Electric), battery tray size (200–240 Ah, 315–375 Ah, 420–465 Ah), straddle width (520 mm, 540 mm, 560 mm, 670/680 mm or special), fork length (1000 mm through 2400 mm or special), load wheel version (single or tandem) and operator position type (without side restraints, folding platform, rear entry or side entry). This is essential reading before ordering any part, as it ensures the component matches your truck’s exact configuration.

Covers

Body panels, side panels, battery covers and caster assemblies. The covers chapter includes side panels for standard and fixed-platform rear-entry configurations, battery covers for 315–375 Ah and 420–465 Ah battery trays (with and without Work Assist), battery rollers (up to and from serial number 5A600059), caster wheels for the 3020M, caster assemblies for the 3040 and 3060, and sprung caster assemblies for the 3040M, 3040E and 3060E. Every bracket, bushing, spring, pin, roller and fastener is listed with its Crown part number and quantity required.

Hydraulic System

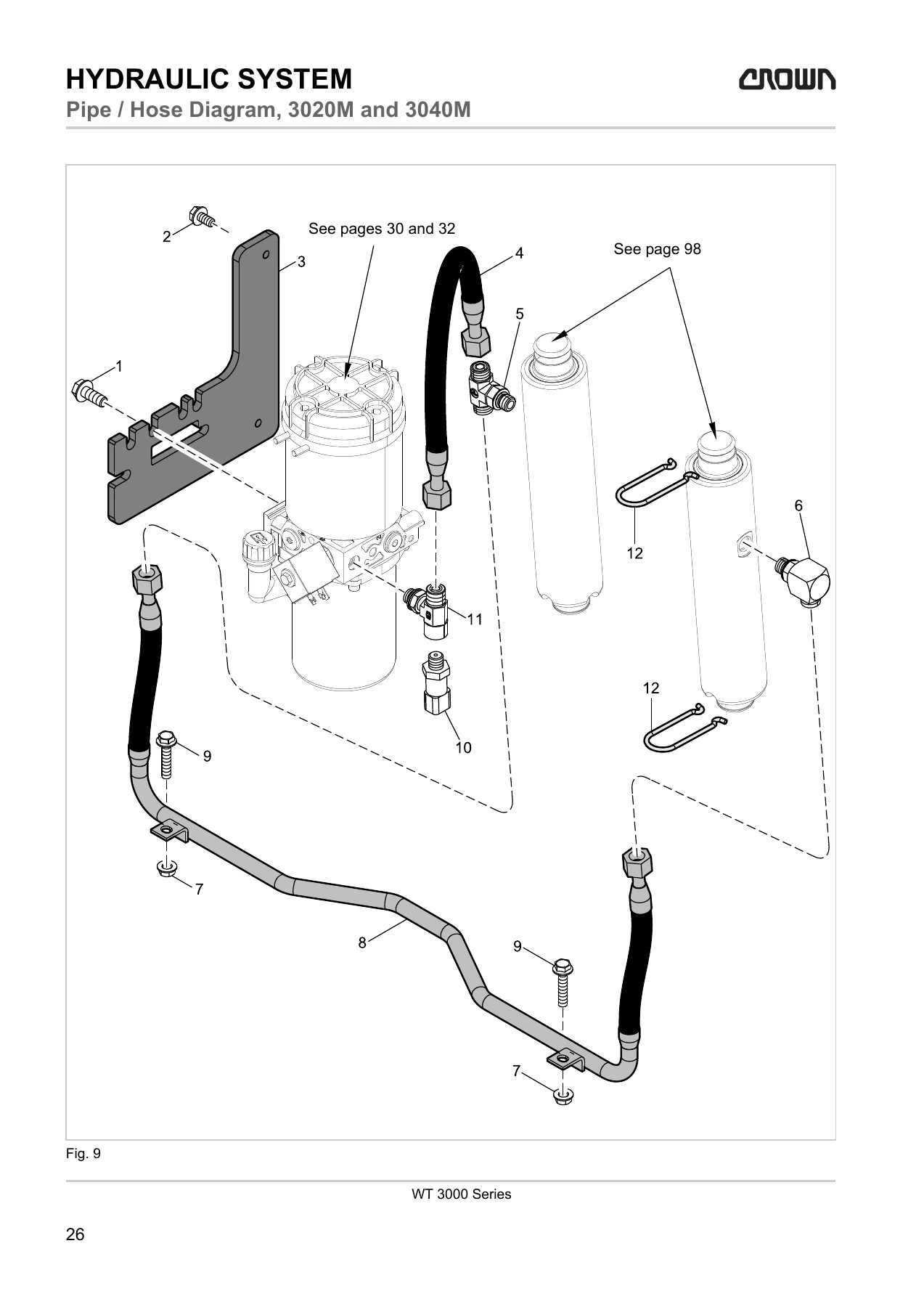

Pipe and hose diagrams for both the 3020M/3040M and the 3040E/3060E, showing the complete hydraulic circuit routing. Separate pump motor and pump assemblies are listed for trucks with fork lengths under 1600 mm and 1600 mm or greater (excluding the 3060E), plus a dedicated pump motor and pump section for the 3060E. Components include hoses, pipes, adapters, pressure sensors, cleats, brackets and mounting hardware. Exploded views of the pump motor show the armature, motor housing, carbon brush set, brush bracket, collector bearing cap, drive bearing cap, pump connecting plate, pump, seal set, pressure relief valve, flow limiting device, check valve, suction line, return line, container, O-ring, reservoir lid and flange.

Drive Unit

Drive unit assemblies for the 3020M and 3040M, and separately for the 3040E and 3060E. The drive unit section covers the motor and brake assembly, motor, brake, brake kit, ring adapter, drive wheel (available in rubber, Vulkollan and Tractothan), stop sleeve, gear unit, rotary table, oil refill plug, oil drain plug and grease nipple. Also included is the frame/drive unit interface with hydraulic damper, guide rods, pusher, spring centring mechanism, bearing housing, grease nipples and all associated bushings, snap rings and deflectors. The control handle knuckle assembly is fully detailed with shims, sleeves, springs, switches, switch actuators, stops, cable guides and mounting hardware.

Electrical System

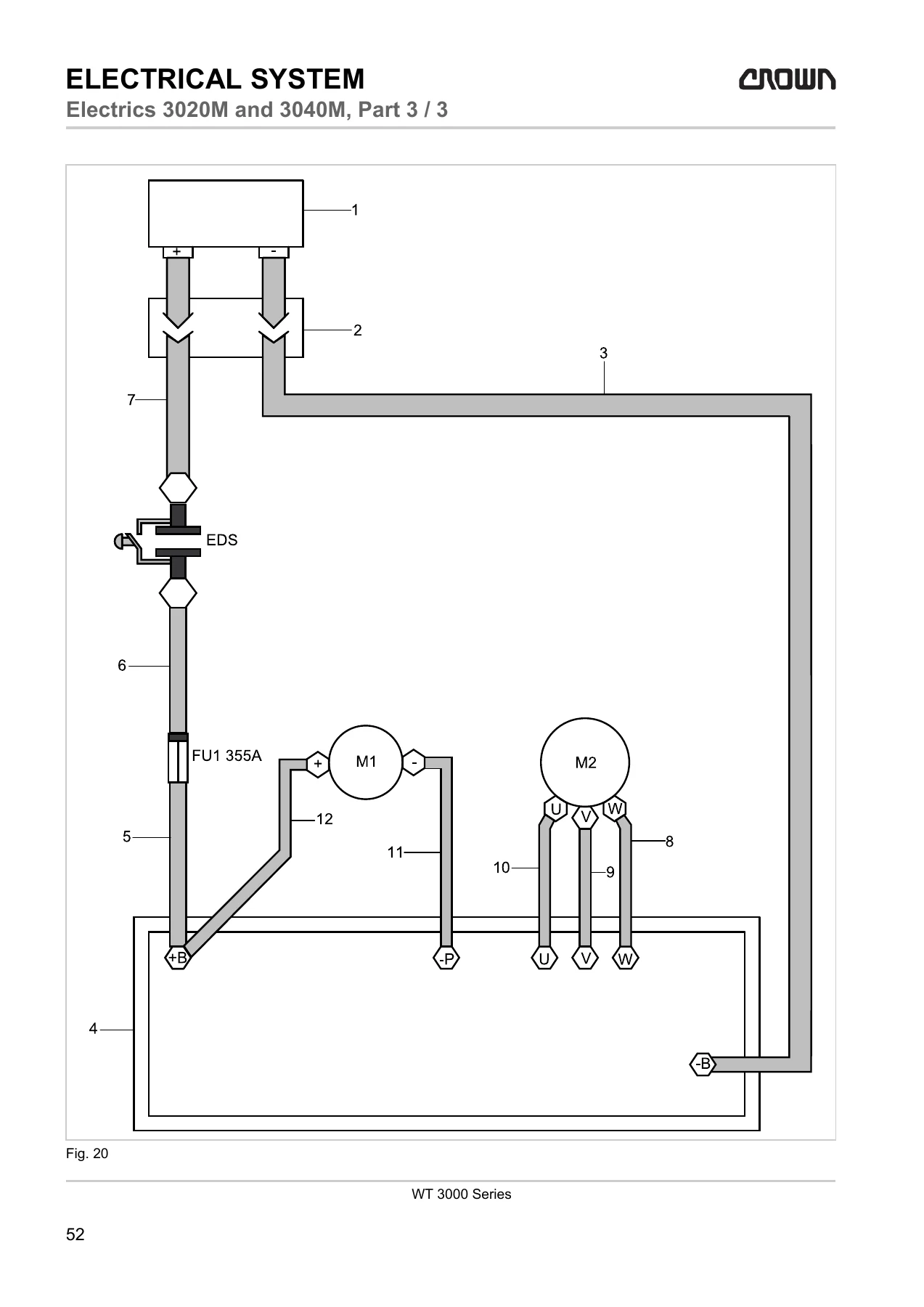

The most extensive section of the manual, covering the complete electrical architecture of the WT 3000 Series. Includes traction and pump controllers (ACCESS 2/3), steering control module (ACCESS 5), assembly boards, fuse boards, fuse holders, fuses (4 A, 10 A, 355 A), fans, fan plates, bus bars, main PC boards, PC board variants for F/C models, potentiometers, switches (HSS, BRK, RAS, LOS1, LOS2), switch caps, springs, shafts, prop bars, retaining rings, bushings and covers for the control handle. Complete wiring diagrams are provided for both manual and electric steering variants, along with connector housings, connectors, wire harnesses, cable guards, edge trim, emergency disconnect switches, safety switches (EDS), lift limit switches, plungers, spacer blocks and brackets. The control handle knuckle, steering axle, TFD module, interface board and horn are also fully covered. Additional components include key switches, displays (3020 and standard), keypads, relays, jumpers, DC/DC converters, travel alarms and battery connectors for SBE 160, SB 175 and DIN 160 batteries.

Brake System and Steering

Brake assemblies and brake kits for the 3020M and 3040M, including brake disks, friction plates and screws. Steering components include the steering axle, TFD module, interface, cable, jumper, housing, rubber socket, bushings (available in Ø 10.5 mm, 11.0 mm, 11.5 mm, 12.0 mm and 12.5 mm), spring, spacer, shim, washers, nuts and retaining rings.

Lifting Mechanism

Fork carriage (available by contacting Crown’s service department), risers, joints for all fork spread widths (520 mm, 540 mm, 560 mm, 670 mm and 680 mm) in both standard and 2.5 t capacity variants, tie rod receptacles, axles, bushings, dowel pins, cotter pins, grease nipples and collars. The load backrest is listed for both 315–375 Ah and 420–465 Ah battery configurations. Complete lifting mechanism assemblies are shown for standard trucks and for trucks equipped with battery rollers, with detailed exploded views of every linkage, pin and fastener.

Cylinders

Lift cylinder assemblies for the WT 3000 Series, with piston ram, deflector, guide rings, backup rings (for fork lengths 1600 mm and greater), seals and cylinder tubes (differentiated by fork length under or over 1600 mm). A complete seal kit is also listed. The traction cylinder for the 3040E and 3060E is covered separately with its cylinder tube, guide ring, seal, deflector and piston ram.

Platform

Platform, rubber mat, side restraints, rear entry (standard and FlexRide), side entry and step board assemblies. This chapter covers the complete operator compartment across folding platform, rear entry and side entry configurations, including switch levers, sensors, armatures, bezels, jumpers, springs, sleeves, cushions, hand grips, pockets, wire covers, covers, mats, brackets, fittings, axles, pipes, bushings and all mounting hardware. The FlexRide rear entry is detailed with its hydraulic damper, guide carriage, ball studs, ball bearings, buffer, springs, levers, pins and retaining rings.

Miscellaneous

InfoLink system with sensor and cable, Work Assist Bracket, Work Assist accessories including clip pads, load storage tray, drink holder, storage pocket, hand scanner brackets and trash bag holder. The decals and labels section covers caution labels, capacity plates, info point labels, warning labels, Crown labels and the Momentum WT decal, with language variants listed for German, French, Spanish, Dutch, Italian, English, Polish, Czech, Danish, Portuguese, Hungarian, Finnish, Norwegian, Swedish, Russian, Turkish, Slovenian, Greek and Chinese.

Why This Parts Manual Matters

Ordering the wrong part for a Crown WT 3000 Series forklift costs time, money and downtime. This manual eliminates that risk by giving you the exact Crown part number for every component, matched to your truck’s specific configuration. The exploded-view diagrams make identification straightforward even for complex assemblies like the drive unit, pump motor or control handle. Whether you are replacing a worn bushing, rebuilding a hydraulic pump, troubleshooting an electrical fault or restoring a damaged platform, the correct part number is here.

For fleet managers and service technicians, having the complete parts breakdown on hand means faster repairs, fewer ordering errors and less time with the truck out of service. The wiring diagrams alone are invaluable for diagnosing electrical faults, while the hydraulic hose and pipe diagrams ensure you route and connect components correctly.

IMAGES PREVIEW

Instant PDF Delivery

This Crown WT 3000 Series parts manual is delivered as an instant PDF download immediately after payment. No shipping, no waiting. Access it on any device — laptop, tablet or smartphone — and print the pages you need for the workshop. The PDF format lets you search, zoom and navigate quickly, so you can find the part you need and get back to work. Whether you are servicing a WT 3020, WT 3040 or WT 3060, this manual is the definitive parts reference for your Crown forklift.
