Cummins MerCruiser Diesel 2.8 ES EI 170 200 Overhaul Service Repair Manual PDF

Description

Cummins MerCruiser Diesel 2.8 ES EI 170 200 Overhaul Service Repair Manual PDF

This comprehensive service reference covers Cummins MerCruiser Diesel 2.8 ES 170, 2.8 ES 200, 2.8 EI 170, and 2.8 EI 200 power packages. It is organized for overhaul, repair, inspection, adjustment, diagnosis, removal and installation work across the engine and its supporting marine systems. The manual separates sterndrive and inboard procedures where the installation differs, while the engine-mechanical, electrical, fuel, cooling, intake/exhaust and diagnostic sections provide the detailed service information needed for the 2.8 ES and 2.8 EI engines.

File Details

• Manual type: Comprehensive overhaul and repair service manual
• Brand: Cummins MerCruiser Diesel
• Models: 2.8 ES 170, 2.8 ES 200, 2.8 EI 170, 2.8 EI 200
• Language: English
• Page count: 706 pages
• File format: PDF
• Document references: CMD-4081954 / 90-866025
• Publication date: February 2006

Model and Serial Number Coverage

The Cummins MerCruiser Diesel 2.8 ES EI 170 200 Overhaul Service Repair Manual PDF identifies both sterndrive and inboard applications and gives model-specific serial ranges. Sterndrive coverage includes 2.8 ES 170 serial numbers 88005200 – 88010000 and 2.8 ES 200 serial numbers 88010001 – 88020000. Inboard coverage includes 2.8 EI 170 serial numbers 88005200 – 88010000 and 2.8 EI 200 serial numbers 88010001 – 88020000. Matching the model and serial range before beginning service helps the technician follow the procedures intended for the correct power package.

Chapters Covered

• 1 – Important Information
  • General Information
  • Maintenance
  • Troubleshooting
• 2 – Removal And Installation
  • Sterndrive Models
  • Inboard Models
• 3 – Engine Mechanical
  • 2.8 ES And 2.8 EI Engines
• 4 – Electrical System
  • Starting System
  • Charging System
  • Instrumentation
  • Wiring Diagrams
• 5 – Fuel System
  • Component Description
  • Fuel Delivery Pump and Fuel Filter
  • Fuel Injectors
  • Fuel Injection Pump
  • ECS Diagnostics
• 6 – Cooling System
  • Closed-Cooling System
• 7 – Intake and Exhaust System
  • Aftercooler
  • Elbows, Risers, Intake and Exhaust Manifold
  • Turbocharger
• 8 – Drive System
  • ZF Marine Transmissions
  • Propeller Shaft Models
• 9 – Power-Assisted Steering System
  • Power-Assisted Steering Pump and Related Components

Together these sections move from routine service and fault finding into complete mechanical repair. The manual includes maintenance schedules, fluid checks and changes, corrosion protection, seawater-system service, storage and recommissioning procedures, engine removal and installation for both sterndrive and inboard arrangements, internal engine repair data, electrical testing, fuel-system service, electronic diagnostics, cooling-system repair, intake and exhaust work, transmission service, propeller-shaft checks and power-assisted steering procedures.

Engine Mechanical Overhaul and Service Data

The engine-mechanical section is one of the deepest parts of this Cummins MerCruiser Diesel 2.8 ES EI service manual. It begins with dimensional specifications and service limits for major components, then follows with removal, inspection, repair and installation procedures. Coverage includes the cylinder heads, rocker arms, valve cover, oil separator and vent system, coolant manifold assembly, engine front bracket and timing gear cover, oil pump, idler gear, oil pan and oil pickup, oil pressure relief valve, oil filter and oil cooler assembly, camshaft and camshaft bearings, valve lifters and push rods, connecting rods, bearings and piston assemblies, rear oil seal, crankshaft and main bearings, piston cooling jets, balance shaft assembly, cylinder liners, flywheel, coupler or drive plate, flywheel housing, and engine mounts and brackets.

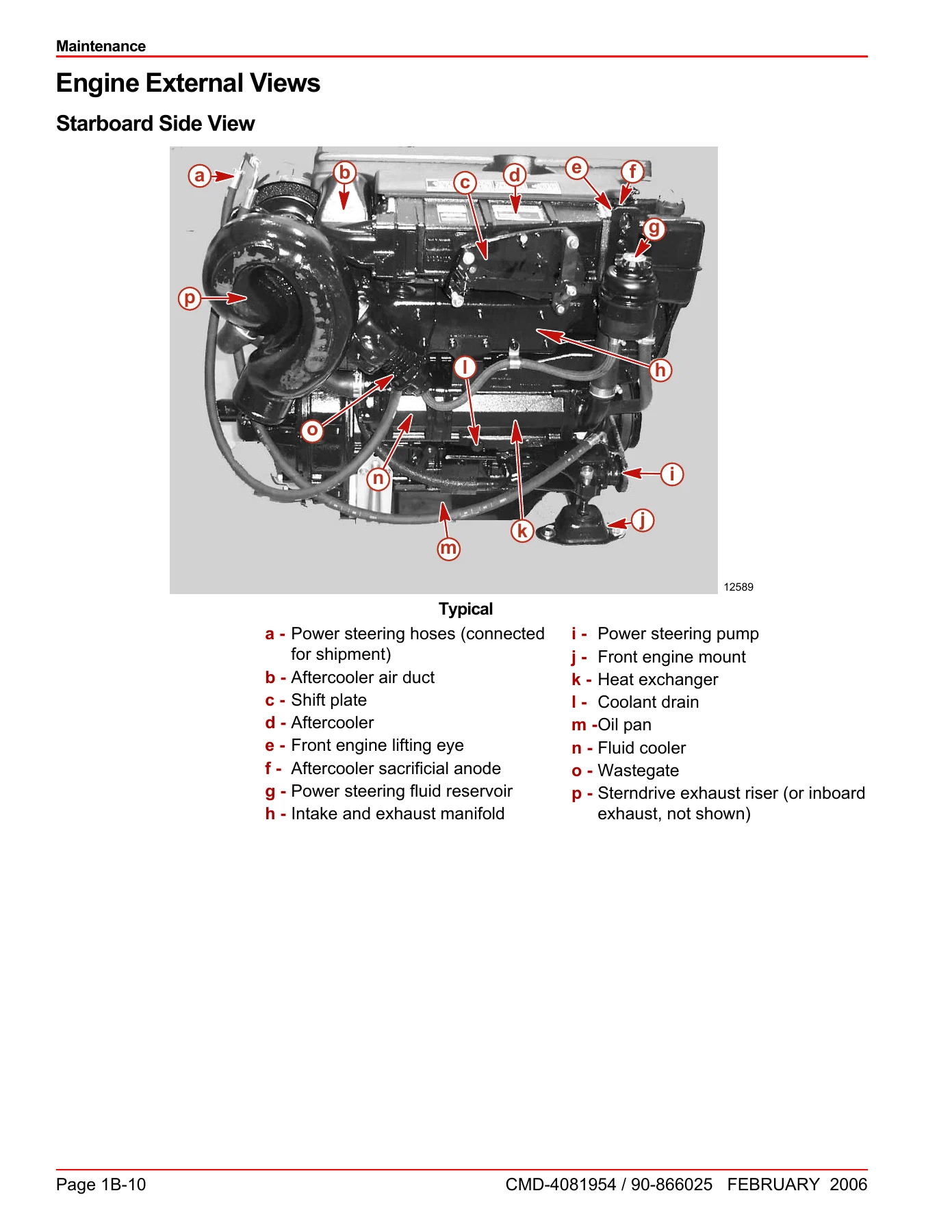

IMAGES PREVIEW

Service specifications are provided for components such as camshaft lobe lift and journal dimensions, cylinder liner diameter and protrusion, connecting rod and bearing clearances, crankshaft journals and end play, piston and piston-ring dimensions, valve and valve-guide dimensions, valve seats and valve springs. The general engine data identifies the 2.8 liter (169 cu. in.) in-line 4 cylinder diesel configuration, 94 mm (3.700 in.) bore, 100 mm (3.937 in.) stroke, 17:1 compression ratio and 1 – 3 – 4 – 2 firing order. The manual also provides procedures for engine compression testing and establishing top dead center, plus tightening values and service limits throughout the repair sections.

Maintenance, Fluids and Marine System Service

Routine and scheduled maintenance are covered separately for sterndrive and inboard models. The schedules include daily and weekly checks as well as work tied to operating hours, annual service and longer intervals. Procedures cover engine oil and filter service, sterndrive gear lube monitoring, transmission fluid, power trim fluid, power-assisted steering fluid, closed-cooling system maintenance, battery checks, water-separating fuel filter service, air-filter cleaning and replacement, seawater-system draining and flushing, corrosion protection, steering and control-cable lubrication, gimbal bearing and driveline lubrication, engine mounts, electrical inspections and drive-belt service.

The manual gives capacity and fluid information that is useful during servicing. Engine oil capacity with filter is listed as 8.9 liters (9.4 U. S. qts.) with 15W40 4-Cycle Diesel Engine Oil, while the closed cooling circuit is listed at 11 liters (11-2/3 U. S. qts.). ZF Marine transmission capacities are also included for 45A, 63A and 63IV models. Storage information covers cold-weather, seasonal and extended lay-up procedures, including draining and protection of the seawater side, followed by recommissioning checks before returning the power package to service.

Troubleshooting and Electronic Diagnostics

The troubleshooting material is built around symptoms a marine technician is likely to encounter. Charts cover poor boat performance, incorrect full-throttle engine RPM, an engine that cranks but will not start or starts hard, starter problems, charging-system faults, poor idle or high-RPM operation, poor fuel economy, black/blue/white exhaust smoke, exhaust gas temperature concerns, turbocharger symptoms, engine noise, abnormal oil pressure, excessive oil consumption, water or coolant in the engine, overheating, power-steering faults, insufficient seawater flow and ZF Marine transmission problems.

ECS diagnostic coverage extends beyond general symptom charts. It includes ECM self-diagnostics, malfunction indicator lamp behavior, reading and clearing codes, scan-tool use, driveability diagnosis, ECM connector and sensor information, and circuit/test guidance for the manifold air pressure, engine coolant temperature, fuel temperature, engine speed and atmospheric pressure inputs. This makes the Cummins MerCruiser Diesel 2.8 ES EI 170 200 overhaul manual useful both for mechanical repair and for structured diagnosis of electronically monitored engine conditions.

Electrical, Fuel, Cooling and Air Systems

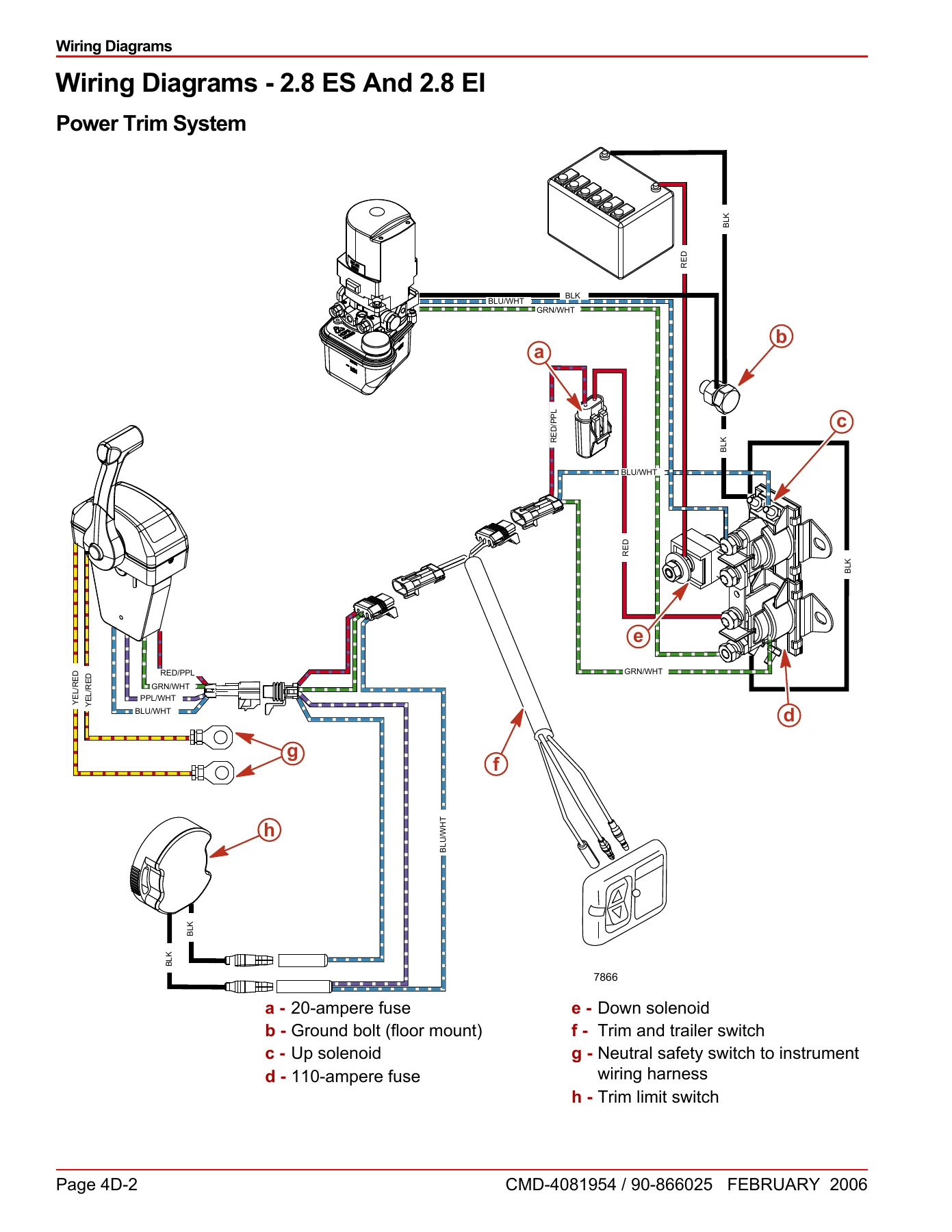

The electrical system covers the starter and starting circuit, alternator and charging system, gauges and senders, audio warning functions, neutral-start circuits and dedicated wiring diagrams for the 2.8 ES and 2.8 EI. Diagram coverage includes the power trim system, MerCathode system, engine wiring, ECM and fuel-system wiring, instrumentation wiring and extension-harness connections.

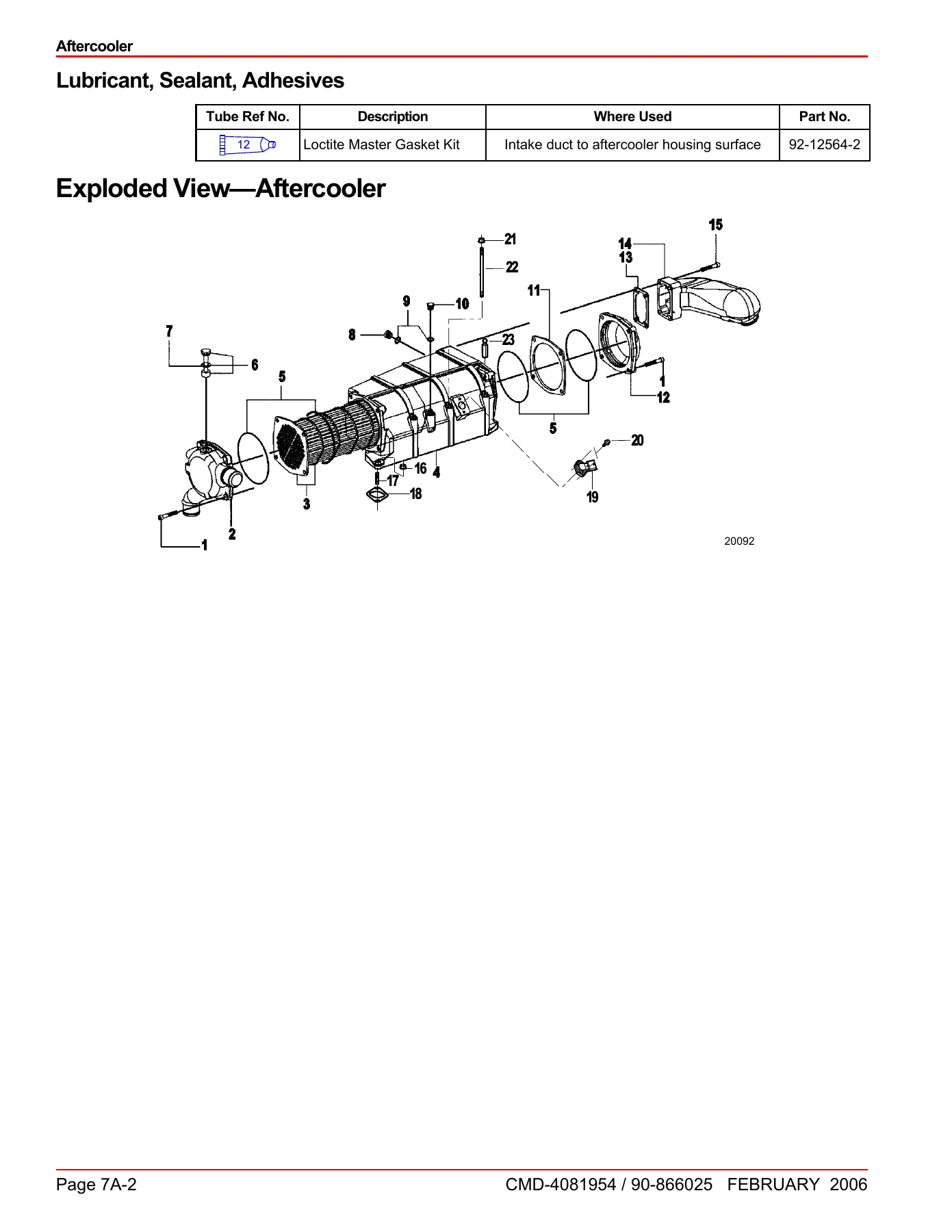

Fuel-system chapters explain ECM and sensor functions, fuel management, the fuel delivery pump and water-separating filter, fuel flow, air purging, the water-in-fuel warning system, injector testing and service, injection-pump removal and installation, and injection-pump timing. The closed-cooling chapter includes cooling-system specifications, component exploded views, flow diagrams, seawater pickup and strainer service, seawater-pump overhaul, pressure and leakage testing, draining, cleaning, expansion-tank service and heat-exchanger work. Intake and exhaust coverage adds the aftercooler, manifolds, elbows and risers, plus turbocharger identification, boost testing, bearing checks, cleaning, inspection and wastegate service.

Sterndrive, Inboard and Drive-System Procedures

Separate removal and installation chapters account for the major differences between sterndrive and inboard power packages. Sterndrive procedures cover engine removal, installation and alignment, seawater connections, power-assisted steering connections, gear-lube monitor routing, fuel and exhaust connections, shift and throttle cable adjustment, electrical connections and the interface to sterndrive installation. Inboard procedures cover engine and transmission removal, initial and final engine-to-propeller-shaft alignment, seawater plumbing, propeller-shaft log seal cooling connections, exhaust and fuel connections, controls and instrumentation wiring.

The drive-system section includes ZF Marine transmissions with operating and pressure specifications, ratios, fluid specifications, transmission and propeller rotation, fluid service, removal and installation, shift control and cable adjustment, and pressure testing. Propeller-shaft model checks are organized for inspections with the boat in the water, with the boat out of the water and shaft installed, and with the shaft removed. The final power-assisted steering section provides pump specifications along with removal, installation and fluid-level procedures.

Repair with the Correct Procedures and Specifications

The Cummins MerCruiser Diesel 2.8 ES EI 170 200 Overhaul Service Repair Manual PDF is built for hands-on servicing of the listed 2.8 ES and 2.8 EI marine diesel power packages. It supports routine maintenance, engine removal and alignment, mechanical overhaul, electrical and charging diagnosis, wiring checks, fuel injection work, ECM-based troubleshooting, cooling-system repair, turbocharger and aftercooler service, transmission work and steering-system repair. Having the correct procedures, tightening information, clearances, capacities, diagnostic charts and system diagrams in one reference helps reduce guesswork and gives the technician a consistent path from inspection through reassembly and testing.

Delivered as an instant PDF after payment, there is no physical shipping or waiting for a printed book. Open the manual on a computer, tablet or phone, keep it available beside the job, and print the pages you need for workshop use.
