Volvo Penta D4 D6 Service and Maintenance Manual 2017 – PDF Download

Description

Volvo Penta D4 D6 Service and Maintenance Manual 2017

This is the complete Volvo Penta D4 D6 Service and Maintenance Manual for the 2017 model year. Written for Volvo Penta service workshops and technically competent owners, it covers every scheduled maintenance operation, service procedure, and component inspection for the D4 and D6 marine diesel engines and their associated drive systems. Whether you are changing engine oil, replacing a seawater impeller, servicing an IPS unit, or troubleshooting a fuel system leak, this manual gives you the exact procedure, torque value, and safety requirement you need.

File Details

• Manual Type: Service and Maintenance Manual
• Brand: Volvo Penta
• Models Covered: D4, D6
• Publication Year: 2017
• Publisher: AB Volvo Penta
• Language: English
• File Format: PDF
• Page Count: 106
• Drive Systems Covered: IPS, Reverse Gear, Sterndrive (DPH, DPR), Aquamatic

Chapters Covered

• Safety Information — DANGER/WARNING/CAUTION priority system, personal safety equipment, fire safety, spare parts safety, used oil and filter disposal, engine immobilization, ventilation, rotating parts and hot surfaces, start spray prohibition, electrical system safety, cooling system safety, fuel system leak detection, battery handling, lifting equipment
• General Information — certified engines, maintenance schedule, genuine Volvo Penta parts, engine oil, coolant, service intervals, component location

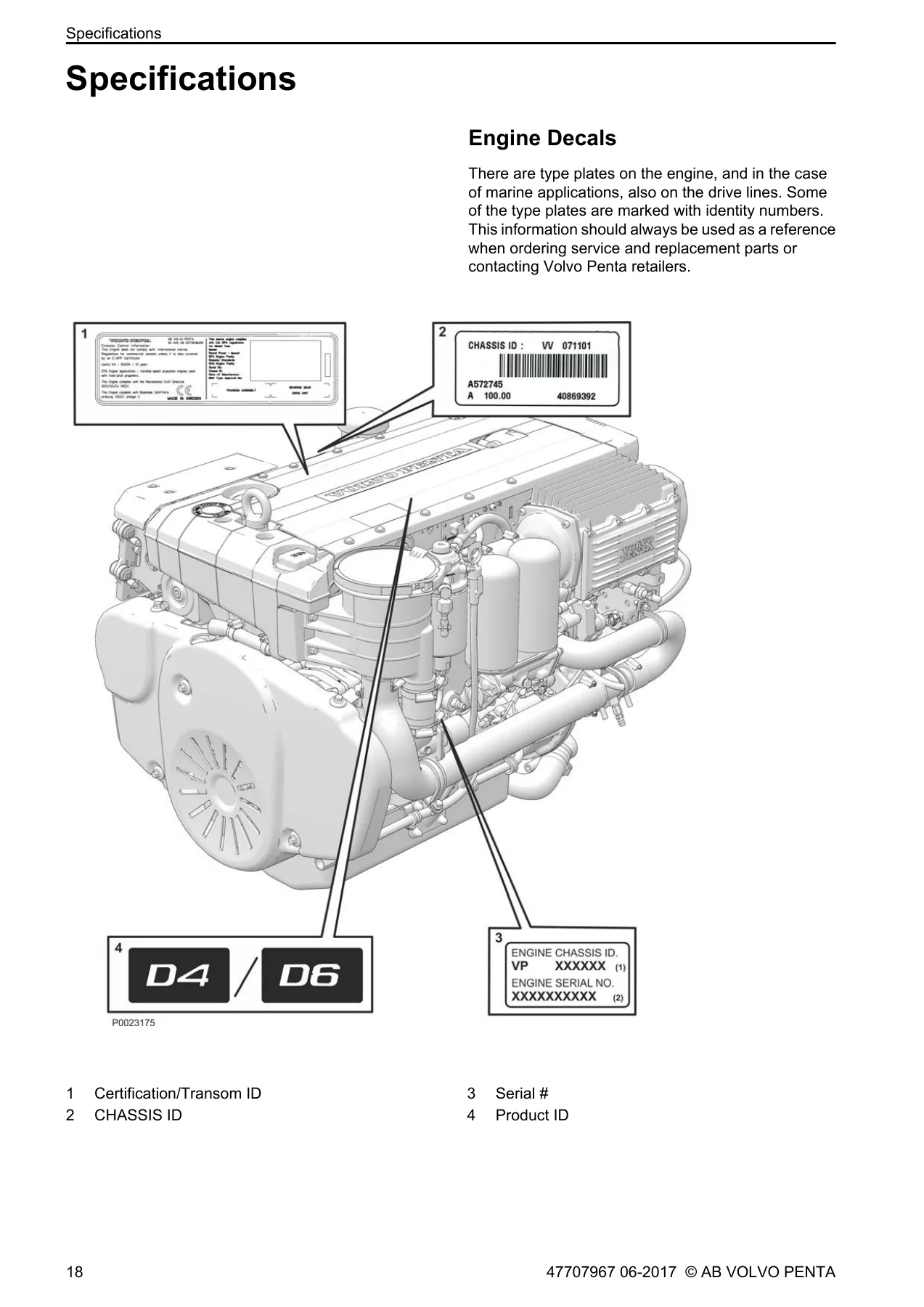

• Engine Decals — certification/transom ID, chassis ID, engine chassis ID, transmission decals, IPS unit, reverse gear, sterndrive ID, electrical rudder actuator
• General Tightening Torques — M6 through M16 standard bolt torque values
• Specifications — engine oil quantities, transmission oil, power trim hydraulic oil, IPS oil, coolant, propeller shaft grease, North American and international part numbers
• Air Filter — replacement procedure
• Crankcase Ventilation — filter change
• Compressor — oil level check, oil change
• Lubrication System — engine oil change, oil filter removal and installation
• Fuel System — general layout, fuel filter change, fuel pre-filter (single and double), filter cartridge replacement, fuel system bleeding, water separation
• Exhaust System — exhaust hose inspection, exhaust bellows, exhaust damper, IPS exhaust plate
• Cooling System — coolant level check and top-up, coolant draining and refilling, drive belt change (D4 and D6 belt routing diagrams)
• Seawater Pump — impeller removal and installation
• Seawater Filter — check and cleaning
• Cooling Water Intake — IPS and sterndrive cock operation, outer grille cleaning
• Anodes — heat exchanger and charge air cooler anodes, replacement procedure
• IPS — component locations, oil drain, oil filter, oil filler, oil level check, anode at exhaust outlet, clamping ring, exhaust plate
• Reverse Gear — oil and filter change, oil volumes for HS45A through HS85IV models
• Sterndrive — hydraulic fluids, oil level, draining, oil filling, bellows inspection, propeller removal and installation
• Propeller — damage check, removal, installation, shaft seal replacement
• Checking Protective Anodes — replacement, salt water vs fresh water anode material
• Painting IPS Drives and Sterndrives — antifouling guidelines, primer and top coat application
• Long-Term Storage — frost protection, fuel tank, battery, impeller, engine preservation
• Cold Weather Precautions — coolant mixture, seawater draining, charge air cooler, heat exchanger
• Checklist — checks when taking boat out of water, engine start every six months
• Battery Maintenance — care, charging, replacement, disconnection and connection sequence

The Volvo Penta D4 D6 service manual opens with a complete safety chapter that establishes the DANGER, WARNING, CAUTION, and IMPORTANT priority system used throughout the document. This is not a generic overview. The safety section covers specific risks tied to these engines: high-pressure fuel jets that can penetrate skin, hot coolant under pressure, rotating turbocharger components, battery electrolyte handling, and the prohibition on start spray. From there, the manual moves into a full maintenance schedule with service intervals determined by operating hours or calendar time, whichever comes first.

What sets this D4 D6 workshop manual apart is the depth of its component-level procedures. The lubrication chapter walks through engine oil extraction using the dedicated drain pipe adjacent to the crankcase filter, oil filter removal with a strap wrench, gasket lubrication, and the exact hand-tightening specification of one-half turn after the filter seats. The fuel system chapter covers both the engine-mounted fine filter and optional pre-filters, including the dual-filter version with a pressure gauge that tells you when to change cartridges. Bleeding the fuel system after a filter change is described step by step: attach a hose to the venting nipple, pump the hand primer until bubble-free fuel flows, then close the screw while still pumping.

The cooling system section includes a complete drain and refill procedure for both D4 and D6 engines, with callouts for every drain point. The drive belt chapter is particularly detailed, showing the double-belt configuration with separate routing diagrams for the D4 and D6 engines, the automatic tensioner operation, and the specific torque values for the tensioning roller bracket. The seawater pump impeller replacement is shown with the glycerine lubrication requirement and the rotating installation method that prevents impeller damage.

For vessels equipped with IPS drives, the Volvo Penta D4 D6 PDF manual provides dedicated coverage that many generic marine engine manuals lack. The IPS section identifies the oil filler, dipstick, oil filter, oil drainage point, and anode locations on the drive unit. It describes the oil level check procedure with the drive stopped for at least 12 hours, the drain plug torque of 48 Nm, and the correct method for filling 14.7 liters of IPS oil. There is also a procedure for cleaning the clamping ring surface between the drive and the transom shield, plus instructions for checking the exhaust damper function and lubricating its shaft.

The sterndrive chapters address both DPH and DPR drive generations. The manual explains that oil level varies by drive generation and that the recommended gear lubricant can differ based on gear ratio. The oil filling procedure requires trimming the drive to approximately 37 degrees so the oil filler duct is horizontal. For DPH-D1 and later drives, the oil level is checked 40 mm below the oil plug contact surface. The draining procedure includes a note to check oil color during the change; light or cloudy oil indicates water intrusion and a failed shaft seal. The propeller removal and installation section provides torque values for the inner propeller nut (200 Nm), outer propeller nut (80 Nm), and cone bolt (48 Nm), plus the propeller shaft spline greasing procedure with Volvo Penta part number 828250.

The reverse gear chapter covers the HS45A, HS63A, HS63IV, HS80A, HS80IV, HS80A-B, HS80IV-B, HS85A, and HS85IV models with specific oil volumes for each. The oil change procedure includes filter replacement, draining through the designated plug or dipstick hole, filling with the correct oil grade, and running the engine at 1500 rpm before rechecking the level. The propeller shaft and water-lubricated shaft sections explain the rubber stuffing box inspection, venting procedure on launching, and the recommendation to press water-resistant grease into the lead-through on starting.

The electrical section covers battery maintenance, including the correct disconnection sequence (negative first) and connection sequence (positive first) to avoid arcing and explosion risk. There is also a section on the electrical rudder actuator with its dipstick location, oil change procedure using suction through the dipstick hole, and linkage inspection. The manual closes with long-term storage and cold weather precautions that describe draining seawater from the heat exchanger and charge air cooler, removing the impeller, filling the fuel tank to prevent condensation, and trickle charging batteries during layup.

Why This Manual Matters

Marine diesel engines operate in a punishing environment. Saltwater, constant vibration, temperature swings, and long periods of storage between seasons all take their toll. The Volvo Penta D4 D6 maintenance manual gives you the manufacturer’s own procedures and specifications so you can perform scheduled service correctly, diagnose problems accurately, and avoid the costly mistakes that come from guesswork. A fuel system that is bled incorrectly can leave air in the lines and cause rough running or no-start conditions. An impeller installed without glycerine lubrication can fail prematurely and leave you stranded. A sterndrive filled with the wrong oil type or to the wrong level can destroy gears and bearings. This manual exists to prevent exactly those outcomes.

Because this is a 2017 publication, it reflects the latest service procedures and specifications for the D4 and D6 engine platforms at that time. The tightening torques, fluid capacities, and component locations are given for the specific engine and drive configurations shown. The manual also distinguishes between older and newer engine variants where procedures differ, such as the note that older engines use green coolant which must not be mixed with newer yellow VCS coolant, or that newer engines have plastic end walls on the heat exchanger and charge air cooler without anodes.

What You Can Do With This Manual

With this Volvo Penta D4 D6 repair and service guide on hand, you can perform the complete range of scheduled maintenance tasks: engine oil and filter changes, fuel filter replacement and system bleeding, coolant drain and refill, drive belt replacement, seawater impeller change, seawater filter cleaning, anode inspection and replacement, and battery maintenance. You can service IPS drives, reverse gears, and sterndrives with the correct oil types and quantities. You can inspect and replace exhaust hoses, bellows, and dampers. You can remove and install propellers to the specified torque values. You can prepare the engine for long-term storage or cold weather operation. And you can do all of this with the confidence that comes from following the same procedures used by Volvo Penta authorized workshops.

The manual also supports troubleshooting and diagnostic work. The general inspection guidance tells you what to look for before and after every run: oil, fuel, and coolant leaks, loose bolts, worn belts, loose cable connections, and damaged hoses. The fuel system leak detection section warns about the extreme pressure in high-pressure circuits and instructs you to wear safety goggles when searching for leaks. The cooling system section explains how to check coolant concentration and when to replace the coolant. These diagnostic and inspection procedures help you catch small problems before they become major failures.

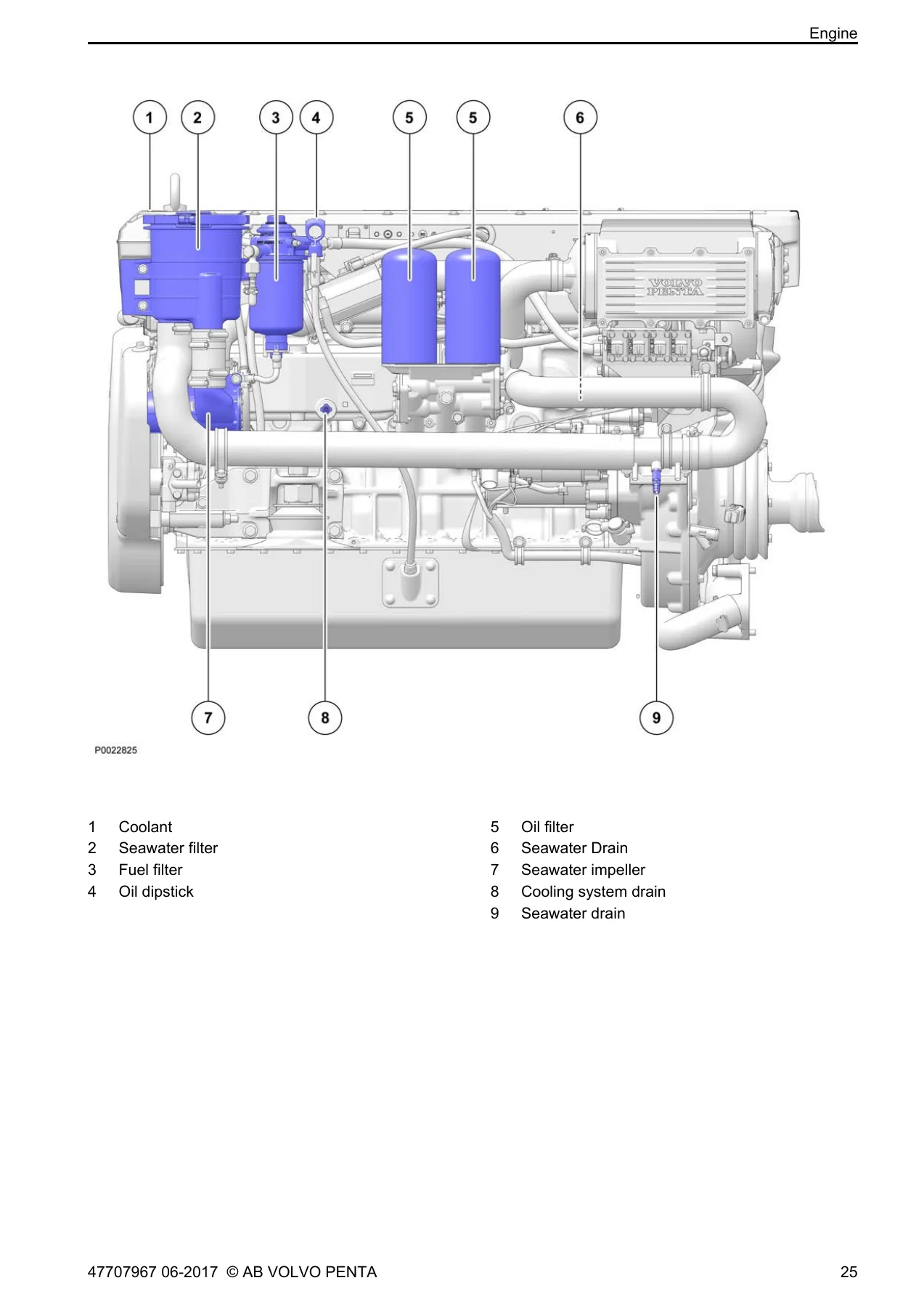

Everything in this Volvo Penta D4 D6 service manual PDF is organized for practical use in a workshop or on board. The component location illustrations show you exactly where to find the oil filler, dipstick, filters, drain points, and anodes on the engine and drives. The step-by-step procedures are numbered and accompanied by illustrations that clarify the sequence. The specification tables give you the fluid capacities, part numbers, and torque values in both metric and imperial units. The safety warnings are placed precisely where they matter, so you cannot miss the precautions that apply to the task at hand.
