Cummins MerCruiser Diesel QSD 2.0 Sterndrive and Inboard Service Manual

Description

Cummins MerCruiser Diesel QSD 2.0 Sterndrive and Inboard Service Manual

This Cummins MerCruiser Diesel QSD 2.0 Sterndrive and Inboard Service Manual is the complete overhaul and repair guide for the 2.0-litre four-cylinder turbocharged and aftercooled marine diesel fitted to both sterndrive and inboard boats. Published by the Cummins MerCruiser Diesel Service Department and running to 716 pages, it covers every major system on the engine, from routine maintenance and fluid specifications through to cylinder head removal, fuel injector service, turbocharger inspection, timing belt replacement, transmission alignment and power-assisted steering repair. Disassembly, inspection, assembly and adjustment procedures are laid out step by step alongside the torque figures, clearances and service limits each job requires.

The QSD 2.0 is a 2.0-litre (122 c.i.d.) in-line four-cylinder diesel with a 16-valve cylinder head, turbocharger and aftercooler, rated for marine use in both sterndrive and inboard configurations. The manual treats each configuration separately where the procedures differ, with dedicated removal and installation sections for sterndrive and inboard models, and shared engine mechanical, fuel, electrical, cooling, intake and exhaust coverage where the hardware is common.

File Details

• Manual type: Service, overhaul and repair manual
• Brand: Cummins MerCruiser Diesel (CMD)
• Models covered: QSD 2.0 Sterndrive (serial 88201000 and above), QSD 2.0 Inboard (serial 88200000 and above)
• Engine: QSD 2.0 in-line 4-cylinder diesel, turbocharged and aftercooled, 16-valve
• Language: English
• Page count: 716
• File format: PDF
• Document number: 90-866942
• Publication date: January 2008

Chapters Covered

• Section 1 – Important Information: General Information; Maintenance; Troubleshooting
• Section 2 – Removal and Installation: Sterndrive Models; Inboard Models
• Section 3 – Engine Mechanical: QSD 2.0 Engines
• Section 4 – Electrical System: Starting System; Charging System; Instrumentation; Wiring Diagrams
• Section 5 – Fuel System: Component Description; Fuel Filter Assembly; Common Rail and Fuel Lines; Fuel Injectors; High Pressure Fuel Pump; ECS Diagnostics; ECS Repair
• Section 6 – Cooling System: Closed-Cooling System
• Section 7 – Intake and Exhaust System: Intake Manifold and Aftercooler Assembly; Exhaust Manifold and Elbow; Turbocharger
• Section 8 – Drive System: Technodrive Transmissions; Propeller Shaft Models
• Section 9 – Power-Assisted Steering System: Power-Assisted Steering Pump and Related Components

Within those nine sections, the Cummins MerCruiser Diesel QSD 2.0 Sterndrive and Inboard Service Manual gives a technician the full working sequence for each repair: how to establish top dead centre and lock the crankshaft, how to select the correct head gasket from piston projection measurements, how to torque the cylinder head in its three-stage sequence, how to time the engine with the camshaft and crankshaft timing tools, how to diagnose the electronic control system through diagnostic trouble codes, and how to align the engine to the sterndrive or propeller shaft after installation.

Engines and Applications

The manual is written specifically for the QSD 2.0 marine diesel in its two factory installation types. Sterndrive models use the engine-mounted seawater pump with a through-hull or through-transom seawater pickup and a block-off plate at the gimbal housing. Inboard models couple the engine to a Technodrive TM345A transmission and a propeller shaft. Both share the same 2.0-litre four-cylinder long block, common rail fuel system, closed cooling circuit, turbocharger and aftercooler, and both are covered by the same engine mechanical and electrical procedures. Where a procedure is configuration-specific, such as engine mounts, exhaust connections, seawater hose routing, or throttle and shift cable installation, the manual separates the sterndrive and inboard steps.

What the Manual Enables You to Do

Using this QSD 2.0 service manual, a technician can carry out the full range of work the engine is likely to need over its service life. Scheduled maintenance tasks are covered with their intervals: oil and filter changes, seawater pump inspection, fuel filter replacement and bleeding, air filter service, coolant changes, timing belt replacement, and aftercooler cleaning. Major mechanical work is covered in full: cylinder head removal and overhaul, camshaft and rocker arm service, valve lash adjuster replacement, piston and connecting rod removal and reassembly, crankshaft and main bearing inspection, balance shaft and engine bed plate removal, flywheel and coupler or drive plate service, and engine mount replacement.

The fuel system section goes deep into the common rail architecture: high pressure fuel pump removal and installation, common rail and high pressure fuel line service, fuel injector removal and ECM injector calibration using the injector metering adjustment (IMA) code, fuel manifold service, and the complete ECS diagnostics and repair material for the electronic control system, including diagnostic trouble code tables, sensor circuit descriptions and test procedures. The electrical section covers the starter and charging systems, instrumentation and SmartCraft gauge wiring, and the full engine, helm and vessel harness wiring diagrams. The cooling section covers the closed cooling circuit, seawater system, heat exchanger, coolant manifold, thermostat, and both Jabsco and Sherwood seawater pumps.

Why Correct Procedures and Specifications Matter

Marine diesel engines work in a corrosive, vibration-heavy environment where incorrect assembly torque, wrong clearances or an overlooked seal can turn a routine repair into a major failure. The QSD 2.0 service manual supplies the values that prevent that: cylinder head bolt torque in three stages, connecting rod bolt torque plus angle, crankshaft main bearing oil clearance, piston ring end gaps, camshaft journal clearance, valve spring free height, fuel system pressure and inlet restriction limits, and cooling system pressure cap ratings. It also supplies the diagnostic paths, with DTC readouts, sensor signal voltage tables and resistance-versus-temperature curves that let a technician isolate a fault instead of replacing parts at random.

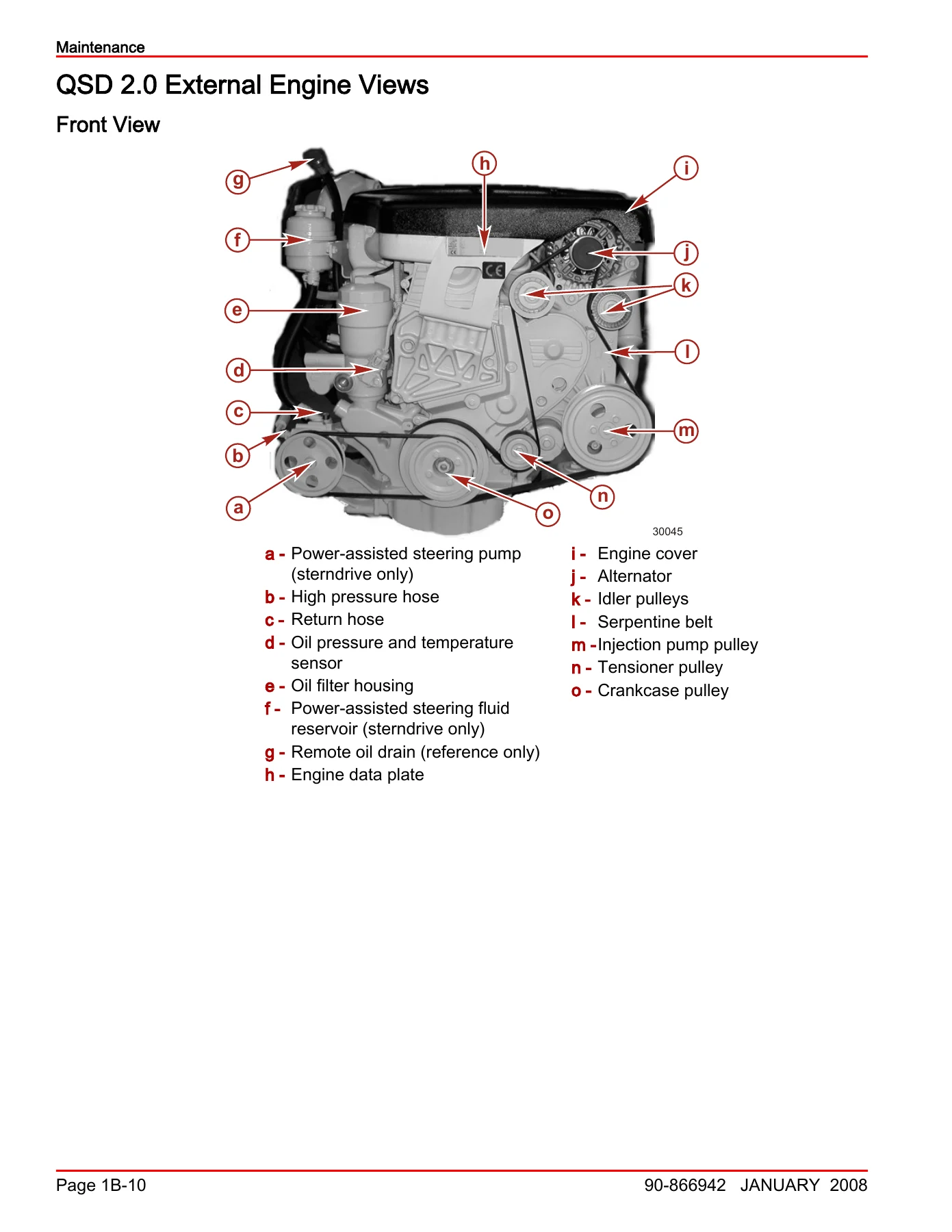

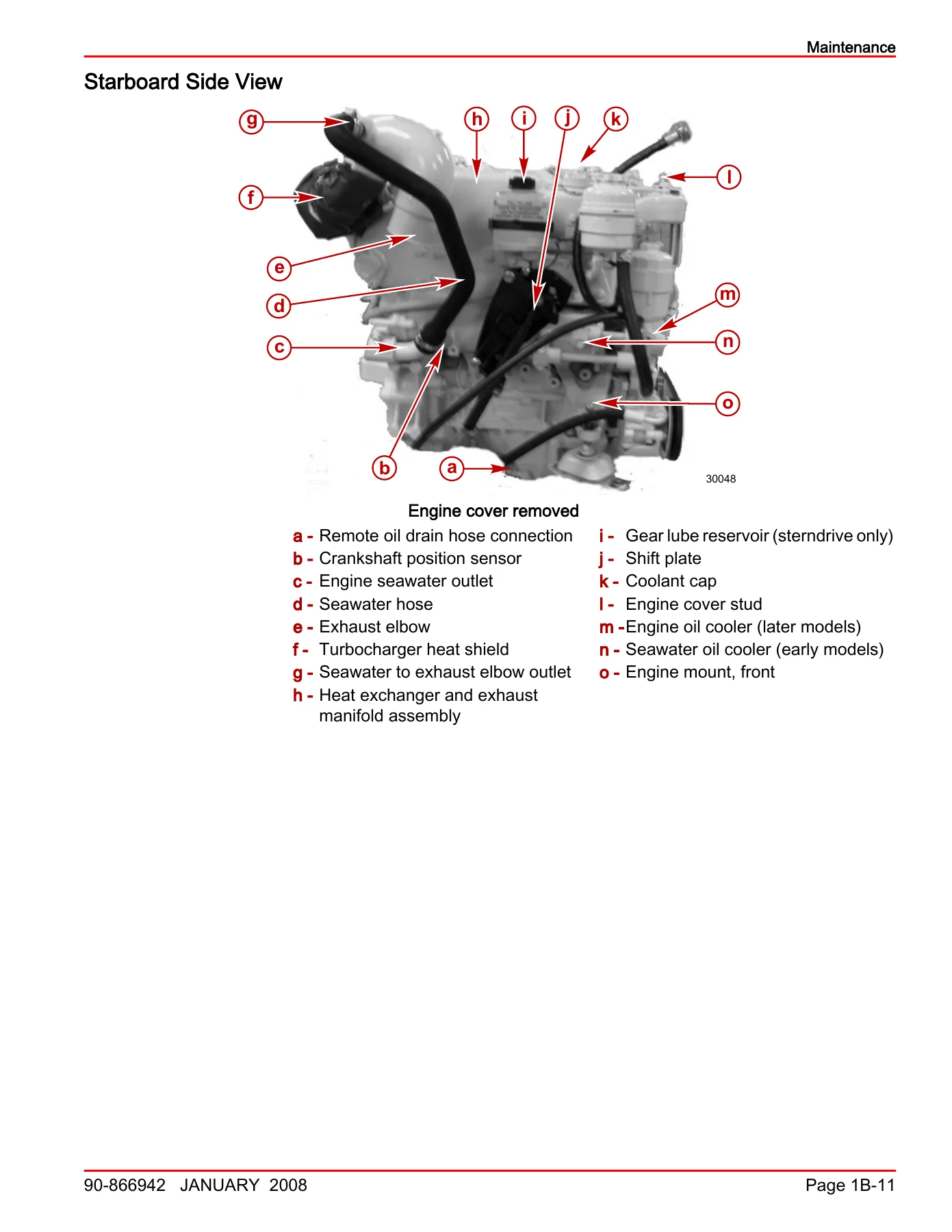

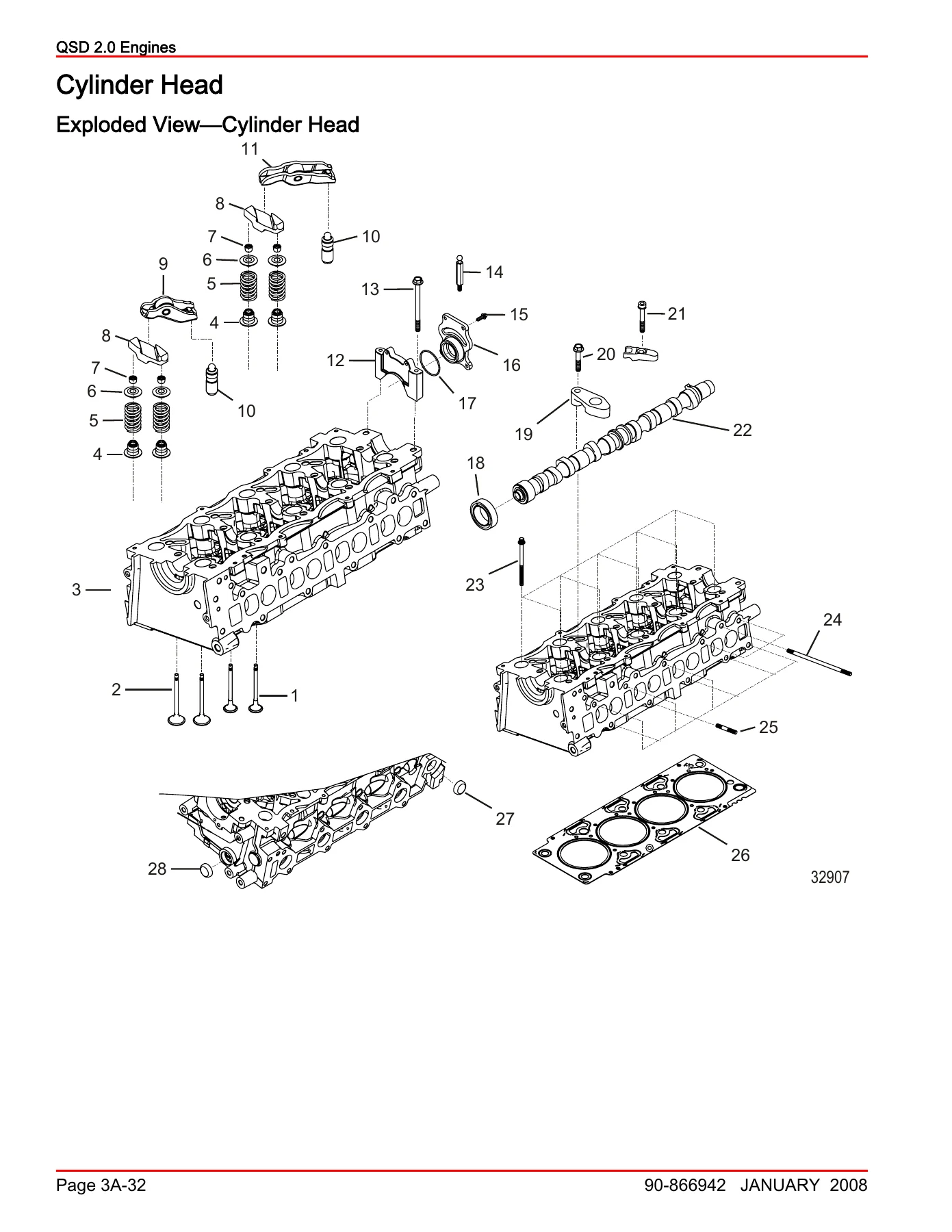

IMAGES PREVIEW

Instant PDF Delivery

The Cummins MerCruiser Diesel QSD 2.0 Sterndrive and Inboard Service Manual is delivered as an instant PDF download after purchase, with no shipping and no waiting for a physical book. It can be viewed on a laptop, tablet or phone in the workshop or on the dock, searched for a specific torque figure or procedure, and printed page by page or in sections to keep beside the engine. With 716 pages covering both sterndrive and inboard QSD 2.0 installations, it is the single reference a technician needs to service, diagnose and rebuild this engine.
