Cushman Hauler 800 ELiTE Lithium Parts Manual 2022+ – 10045789-C PDF

Description

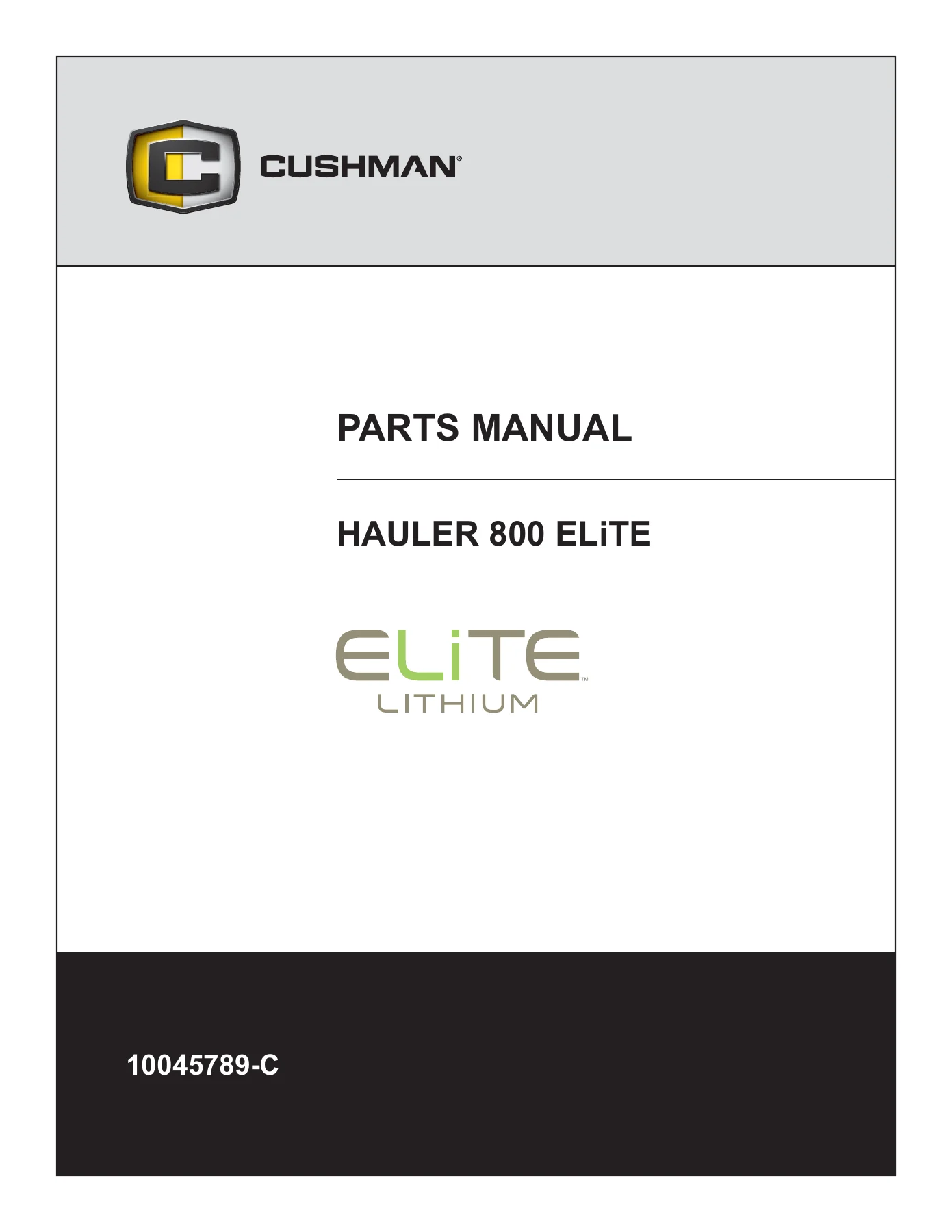

The Cushman Hauler 800 ELiTE Parts Manual – publication 10045789-C – is the illustrated service parts reference for the Hauler 800 ELiTE lithium-powered utility vehicle, covering units built from model year 2022 onward. Every major assembly on the machine is broken down into exploded artwork with numbered callouts and a matching parts list, so a component can be identified, verified against the illustration, and ordered correctly the first time.

File Details

• Manual type: Illustrated Parts Manual (Service Parts Manual)
• Brand / manufacturer: Cushman – Textron Specialized Vehicles
• Model: Hauler 800 ELiTE (ELiTE Lithium, electric powered)
• Model year coverage: Starting model year 2022
• Document number: 10045789-C
• Language: English
• Format: PDF

Chapters Covered

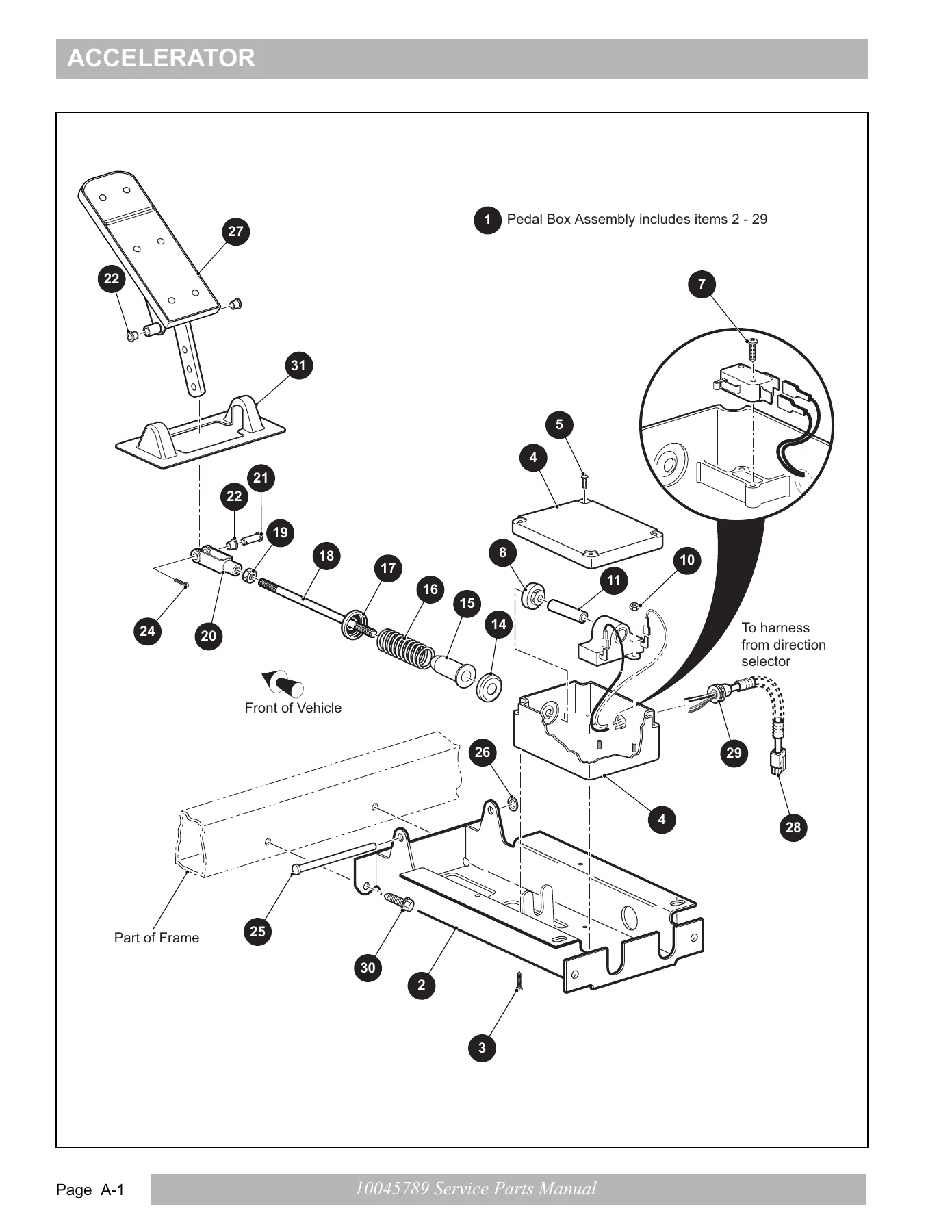

• Accelerator – pedal box assembly, accelerator rod, compression spring, clevis yoke, pivot pin, pedal harness
• Battery Charger – on-board charger with DC-DC converter, off-board charger, charger receptacle, charger cord, receptacle bracket
• Body – cowl, front fascia, brush guard, instrument panel, cup holders, glove box, floor panels, rocker panels, side panels, hitch receiver, rear valance, rear fenders
• Brakes – brake pedal assembly with and without lights, park brake pedal, compensator assembly, brake cables, brake shoes, drums, adjuster assemblies, wheel cylinders
• Cab – ROPS cab kit, utility cab kit, ball cage kit, seat belt kits
• Electrical – main harness assembly, turn signal switch, horn, reverse buzzer, gauge plate with USB and state of charge meter, headlights, LED taillights, seat switch
• Electronic Speed Control – controller assembly, controller brackets, solenoid, battery cables, rubber cover

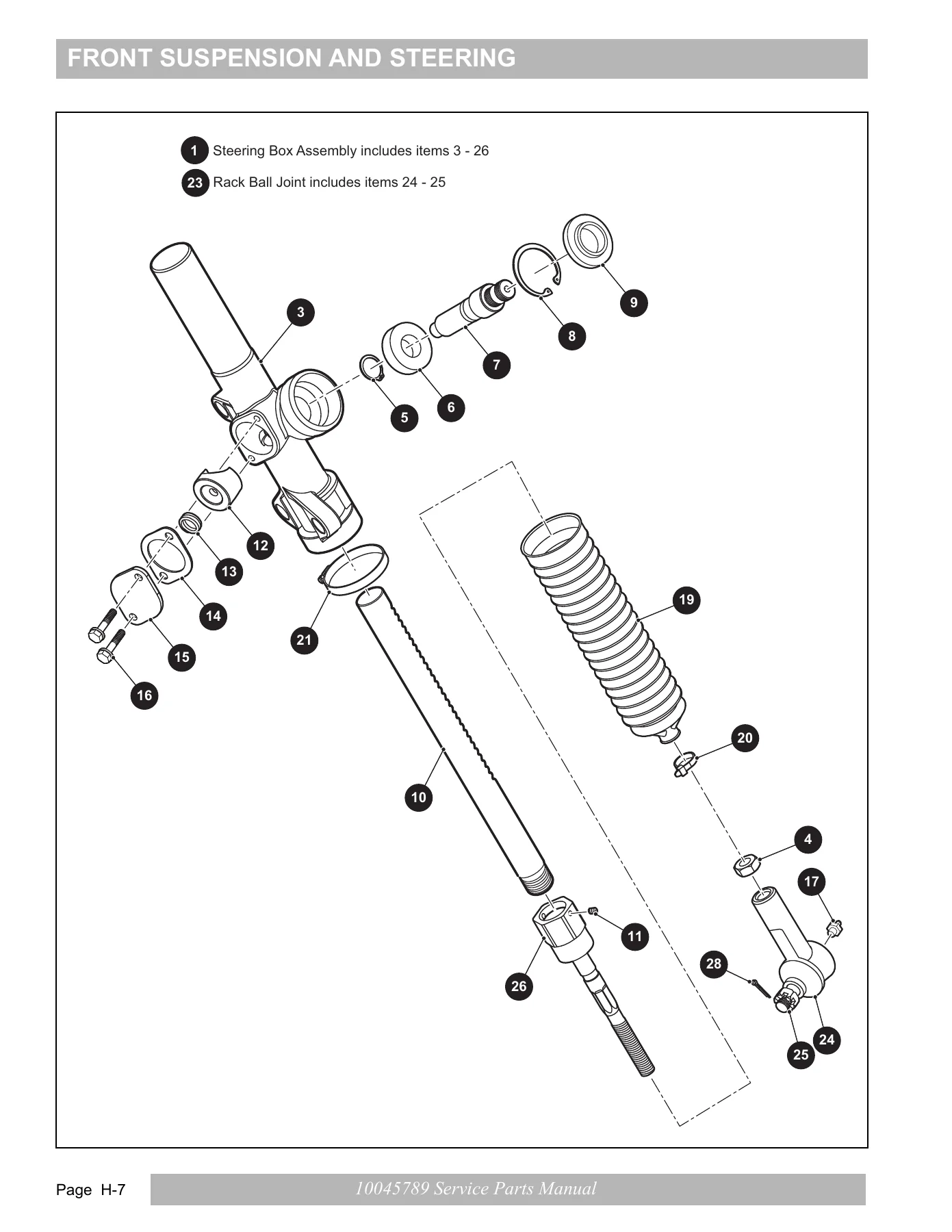

• Front Suspension and Steering – front axle, leaf springs, spindle and hub assemblies, shock absorbers, king pin tube, steering box assembly, steering column, tie rod assembly, rack ball joint
• Motor – 48V AC motor, flex loom, end cap, mounting hardware
• Rear Axle – rear axle with limited slip differential, axle shafts, input gear, differential cover plate, scuff guard
• Rear Suspension – shock absorbers, leaf springs, U-bolts, shackle plates, flanged bushings
• Seating – seat back assembly, seat bottom assembly, vinyl covers, hip restraints, seat hinge, seat back support brackets
• Truck Bed – plastic bed and tailgate, electric dump assembly, manual lift, gas spring, D-ring kit, mesh net kit, tool holder, equipment rack, refresher drop-in ice-bin kit
• Weather Protection – canopy top kits, canopy struts, split windshield kit, full windshield kit, rear view mirror
• Wheels and Tires – wheel and tire assemblies, valve stems, lug nuts, wheel covers, dust caps
• Decals and Labels – cowl decal, warning labels, patent label, bed latch warning, side panel decals

Because this is a parts document rather than a repair guide, its value sits in the accuracy of the breakdown. Each section opens with an exploded illustration that shows how the assembly physically goes together – the order of spacers, washers, bushings, clamps and fasteners included – followed by a parts list giving the item number, part number, description and quantity. That combination lets you confirm you are looking at the right revision of a component before money changes hands, which matters on a lithium vehicle where charger, controller and battery-tray parts are expensive and easy to mis-order.

How the Parts Lists Are Built

The listings follow a deliberate convention. Where an asterisk appears in the part number column, the part shown is not sold separately – you read upward until you reach the lowest assembly that is actually available, and order that. Descriptions are indented under the assembly they belong to, and that assembly is in turn listed beneath the assembly it is fitted to, so the hierarchy runs all the way up to the highest final assembly. Bulk fasteners such as rivets, lock nuts, washers, barrel clips and Torx screws are itemised with their sizes and quantities, and where a part is not illustrated the list says so explicitly.

Color Codes for Body Components

Body panels are handled differently from mechanical parts. The final two digits of a body part number carry the colour code, so you locate the part number for the cowl, rear body, seat pod, side panel or seat wrap and then substitute the two-digit code for your vehicle’s finish. The manual prints the full code table – Black, Patriot Blue Pearl, Inferno Red Metallic, Metallic Charcoal, Safety Yellow, Ivory, Forest Green, Bright White, Flame Red, Electric Blue, Platinum, Burgundy, Almond, Sunburst Orange, Matte Black, Matte Green, Real Tree Xtra Dipped, Jacobsen Orange, A6 Trump Pearl White and Slate Gray – which removes the ambiguity that normally comes with ordering painted panels.

What You Can Do With It

With the Cushman Hauler 800 ELiTE Parts Manual 2022+ open, you can rebuild a brake pedal assembly and its compensator linkage, trace a brake cable run front and rear, replace a spindle and hub on the narrow front axle, service the steering box and tie rod ends, swap out the 48V AC motor or the controller and solenoid pack, identify the correct lithium charger for on-board or off-board configuration, and work through the plastic truck bed’s electric dump or manual lift hardware down to individual clevis pins and torsion springs. It also covers the accessories that tend to go missing – hip restraints, tailgate cables, gas springs, D-rings, Quick Fist clamps and canopy strut hardware.

Order the Correct Component

IMAGES PREVIEW

Buying the wrong part costs time and return shipping, and on a Hauler 800 ELiTE the pricey items – lithium chargers, DC-DC converters, controllers, axle assemblies – are exactly the ones where a visual check against an exploded view pays for itself. This Cushman Hauler 800 ELiTE parts manual gives you the illustration, the item number, the part number, the description and the quantity for every listed component, plus the serial-number guidance needed when variants exist across the production run. It arrives as an instant PDF download after checkout – no shipping, no waiting on a warehouse, no physical binder to keep on the shelf. Open it on a phone, tablet or laptop in the workshop, print the pages you need, and order straight from the list.
