Detroit Diesel 7083 Series 8V-71T Engine Maintenance Manual – TM 9-2815-202-34

Description

Detroit Diesel 7083 Series 8V-71T Engine Maintenance Manual – Direct & General Support (TM 9-2815-202-34)

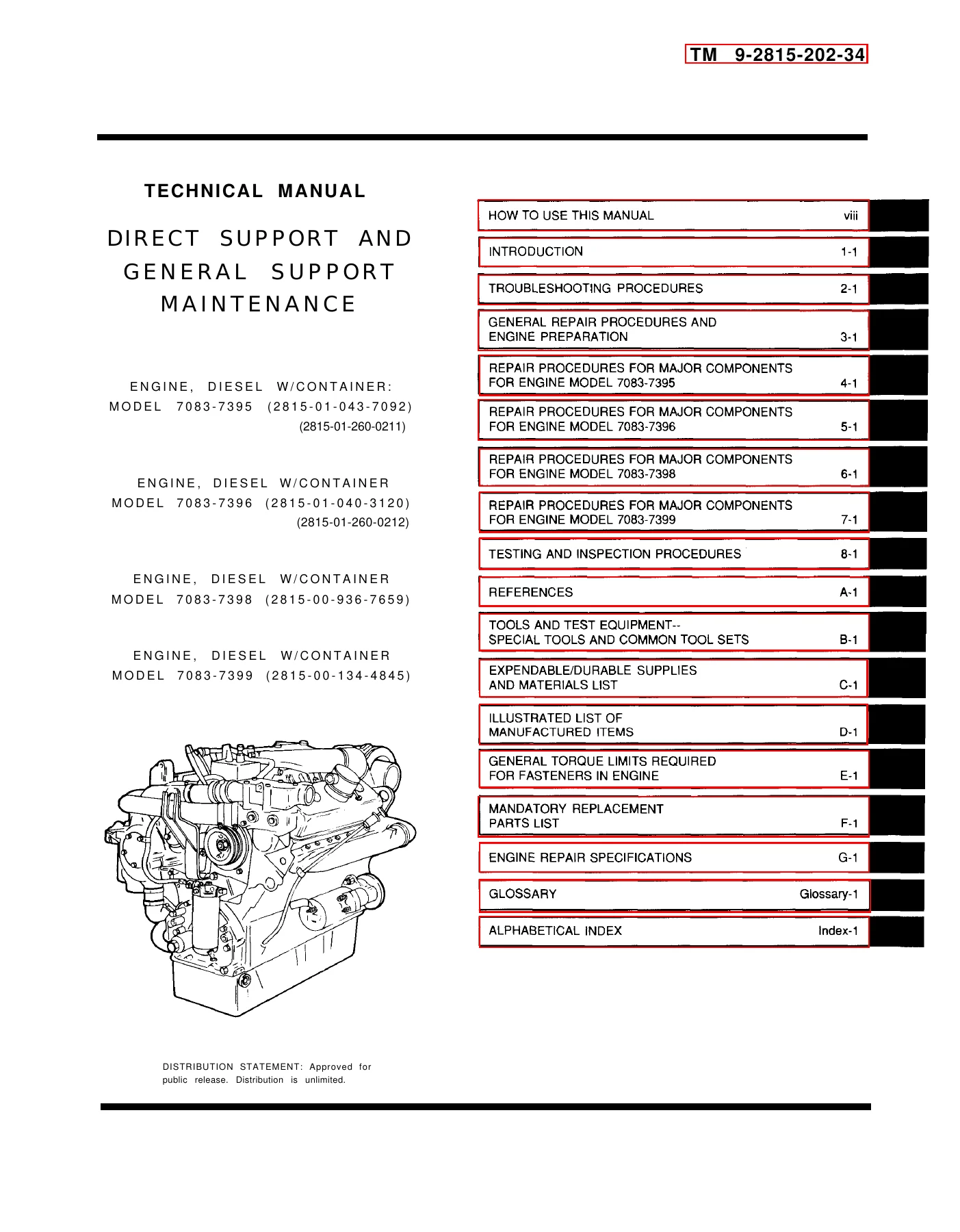

This Detroit Diesel 7083 Series 8V-71T Engine Maintenance Manual is the official U.S. Army Technical Manual TM 9-2815-202-34, covering Direct Support and General Support maintenance for the Detroit Diesel two-cycle, turbocharged 8V-71T diesel engine as installed in five distinct military engine packages: models 7083-7391, 7083-7395, 7083-7396, 7083-7398, and 7083-7399. Dated 20 February 1990 and updated to Change 1, this Detroit Diesel 7083 Series manual was written for mechanics who need to remove, disassemble, repair, and reinstall these engines down to the component level, rather than simple operator-level checks.

File Details

• Manual type: U.S. Army Technical Manual, Direct Support & General Support Maintenance (TM 9-2815-202-34)
• Manufacturer / brand: Detroit Diesel Corporation
• Engine family: 8V-71T two-cycle turbocharged diesel
• Models covered: 7083-7391, 7083-7395, 7083-7396, 7083-7398, 7083-7399
• Language: English
• Page count: 670 pages
• File format: PDF
• Publication date: 20 February 1990 (Change 1)

Chapters Covered

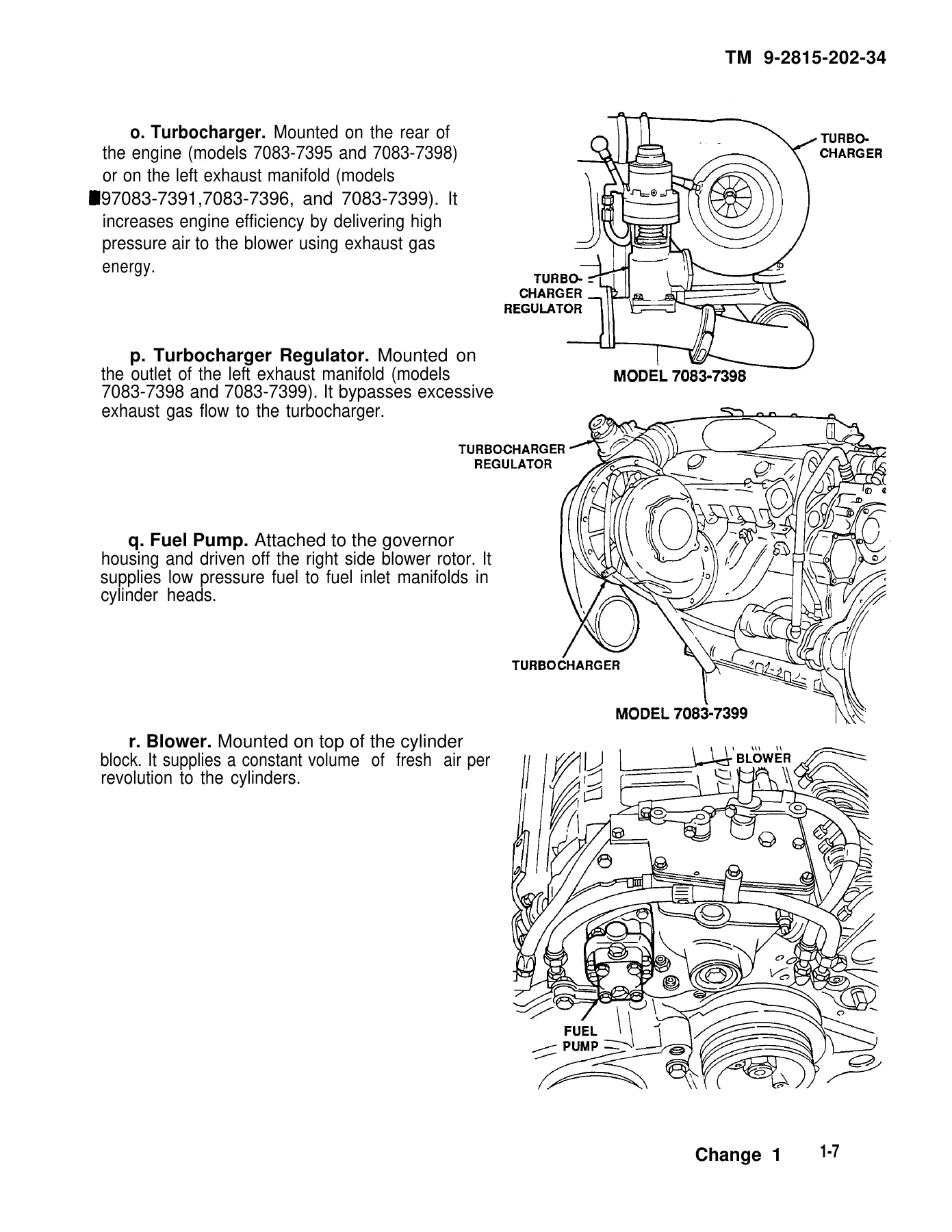

• Chapter 1 – Introduction: scope, equipment description, component locations, differences between models, equipment data, principles of operation
• Chapter 2 – Troubleshooting: symptom index and malfunction/test/inspection and corrective action procedures
• Chapter 3 – General Maintenance Instructions: cleaning and repair instructions, engine removal/installation to and from container, accessory removal prior to maintenance stand, mounting on maintenance stand
• Chapter 4 & 4.1 – Repair Procedures for Major Components, Engine Model 7083-7395: turbocharger, exhaust manifold, fuel system, water pump, air box heater, governor and blower, piston/connecting rod, cylinder liner, crankshaft, cylinder block, turbocharger repair, cylinder head repair, oil cooler, fuel injector, blower, governor, water pump repair
• Chapter 5 & 5.1 – Repair Procedures for Major Components, Engine Model 7083-7396 (with glow plug controller and harness section)
• Chapter 6 – Repair Procedures for Major Components, Engine Model 7083-7398: turbocharger regulator, exhaust manifold, fuel system, water pump, crankcase breather, piston (trunk type), cylinder liner, crankshaft, cylinder block
• Chapter 7 – Repair Procedures for Major Components, Engine Model 7083-7399: turbocharger regulator, exhaust manifold, fuel lines, accessory drive, piston (trunk type), component repair
• Chapter 8 – Engine Preparation and Adjustment: start-up preparation, valve clearance, fuel injector timing, governor gap and buffer screw adjustment, throttle delay, idle and no-load speed adjustment, cylinder compression test, fuel flow/pressure test, crankcase and air box pressure test, run-in procedure
• Appendix A – References
• Appendix B – Tools and Test Equipment
• Appendix C – Expendable/Durable Supplies and Materials List
• Appendix D – Illustrated List of Manufactured Items
• Appendix E – General Torque Limits Required for Fasteners in Engine
• Appendix G – Engine Repair Specifications
• Glossary and Alphabetical Index

IMAGES PREVIEW

Taken as a whole, this Detroit Diesel 7083 Series 8V-71T maintenance manual gives a technician everything needed to diagnose a malfunction using the symptom index in Chapter 2, pull the correct engine model off its container or vehicle mount in Chapter 3, and then work through the model-specific repair chapter (4 through 7) that matches the exact 7083 engine variant on the bench. Chapter 8’s adjustment and test procedures and the torque, tooling, and specification appendices tie the whole document together so that a rebuilt 8V-71T engine can be set up, tested, and run in with confidence rather than guesswork.

Engine Data at a Glance

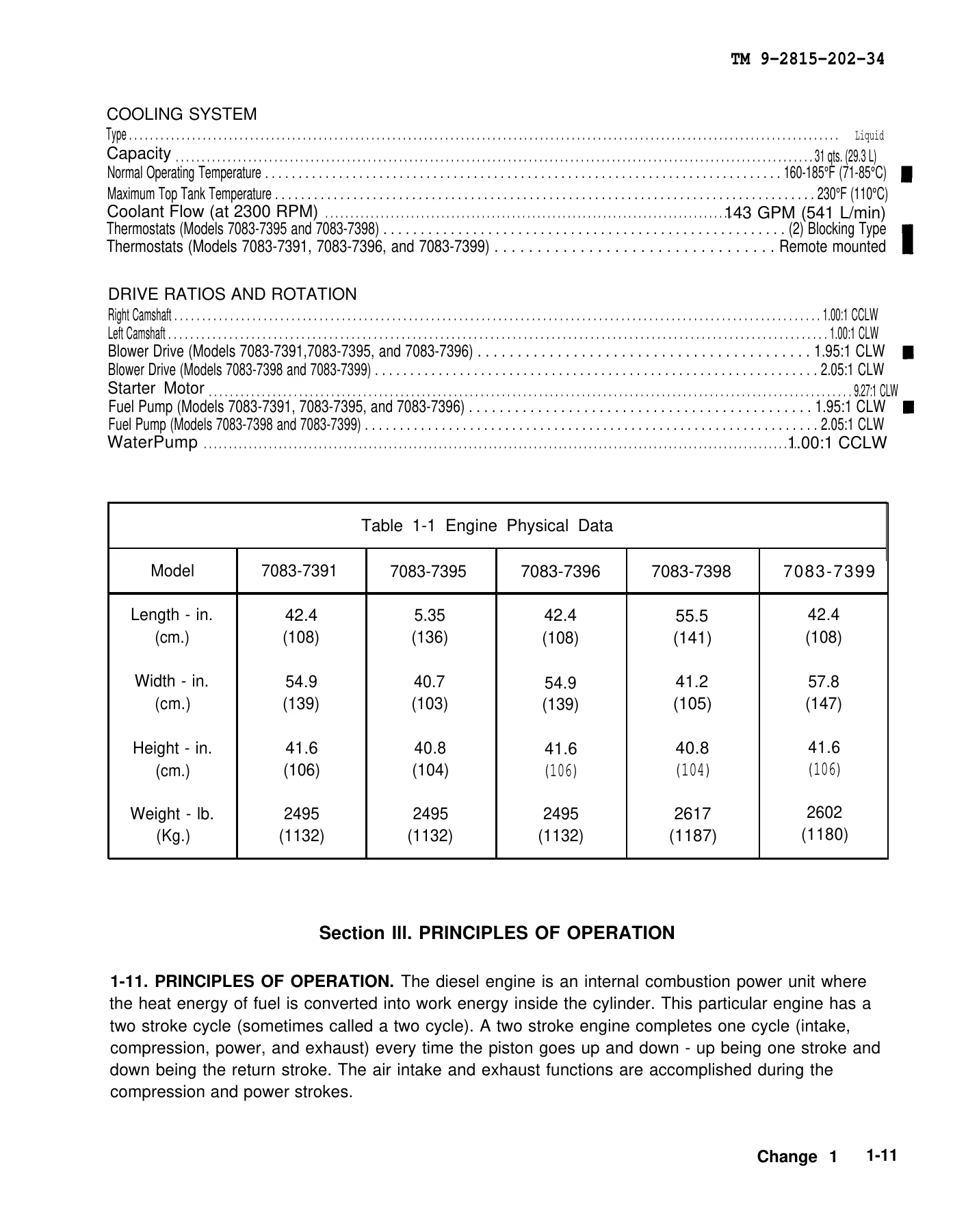

The Equipment Data section of this Detroit Diesel 7083 Series manual documents the 8V-71T as an 8-cylinder, V-type, two-cycle diesel with clockwise crankshaft rotation and a firing order of 1L,3R,3L,4R,4L,2R,2L,1R. Total displacement is 568 cu.in. (9.32L), with a bore of 4.25 in. (108 mm) and stroke of 5.0 in. (127 mm), running a 17:1 compression ratio and a minimum compression pressure of 445 PSI (3068 kPa) at 600 RPM. Maximum brake horsepower is rated at 405 HP at 2300 RPM for all models except the 7083-7391, which is rated at 440 HP at 2300 RPM. Maximum governed full-load speed is 2300 RPM, with idle speed of 600-650 RPM.

Lubrication is a pressure-fed sump system with a 40 qt (38 L) total capacity, operating pressure of 50-70 PSI (345-483 kPa) at 2300 RPM, and a normal operating temperature of 200-250°F (93-121°C). The liquid cooling system holds 31 qts (29.3 L) and runs at a normal operating temperature of 160-185°F (71-85°C), with a maximum top tank temperature of 230°F (110°C). Fuel injectors are the Model N80 unit injector on all models except 7083-7391, which uses the Model 7590 unit injector, with a supply pressure of 50-70 PSI (345-483 kPa) to the injectors and DF2-DF1 grade fuel per specification VV-F-800.

Repair Procedures Covered

Each model-specific chapter of this Detroit Diesel 7083 Series manual walks through removal and installation of the turbocharger, exhaust manifold, fuel lines and fuel pump, engine lifting brackets, water pump, air box heater, rocker arm cover and crankcase breather, blower drive shaft and hub, governor and blower assembly, oil pan, camshaft front gear cover, flywheel assembly and housing, rear oil seal, idler gear, injector control tube, cylinder head assembly, and camshaft and gear assemblies. Full disassembly/assembly coverage is given for the piston and connecting rod (crosshead type on 7083-7391/7395/7396, trunk type on 7083-7398/7083-7399), cylinder liner, crankshaft, and cylinder block, along with component-level repair of the turbocharger, cylinder head, oil cooler assembly, fuel injector assembly, blower, governor, and water pump. Appendix E’s dry-fastener torque table and Appendix G’s engine repair specifications back up every procedure with the exact tightening and tolerance values a technician needs to close the job out correctly.

Why This Detroit Diesel 7083 Series Manual Belongs in Your Shop

Whether you are troubleshooting a no-start complaint with the Chapter 2 symptom index, rebuilding a turbocharger, replacing a cylinder head, or setting fuel injector timing and governor gap on Chapter 8’s adjustment procedures, this Detroit Diesel 7083 Series 8V-71T Engine Maintenance Manual keeps the correct torque values, clearances, and step-by-step sequence in front of you so the job is done to specification the first time. Getting these details right matters: an 8V-71T engine returned to service with the wrong valve clearance, injector timing, or torque value can run rough, lose power, or fail prematurely, and this manual is written specifically to prevent that. As an instant PDF download, it is delivered immediately after purchase with no shipping wait, opens on a phone, tablet, laptop, or desktop, and can be printed a chapter at a time for shop use – making this Detroit Diesel 7083 Series manual a practical, always-available reference for anyone maintaining a 7083-7391, 7083-7395, 7083-7396, 7083-7398, or 7083-7399 diesel engine.
