Detroit Diesel Series 92 Service Manual – 6V-92, 8V-92 & 16V-92 Engine Repair PDF

Description

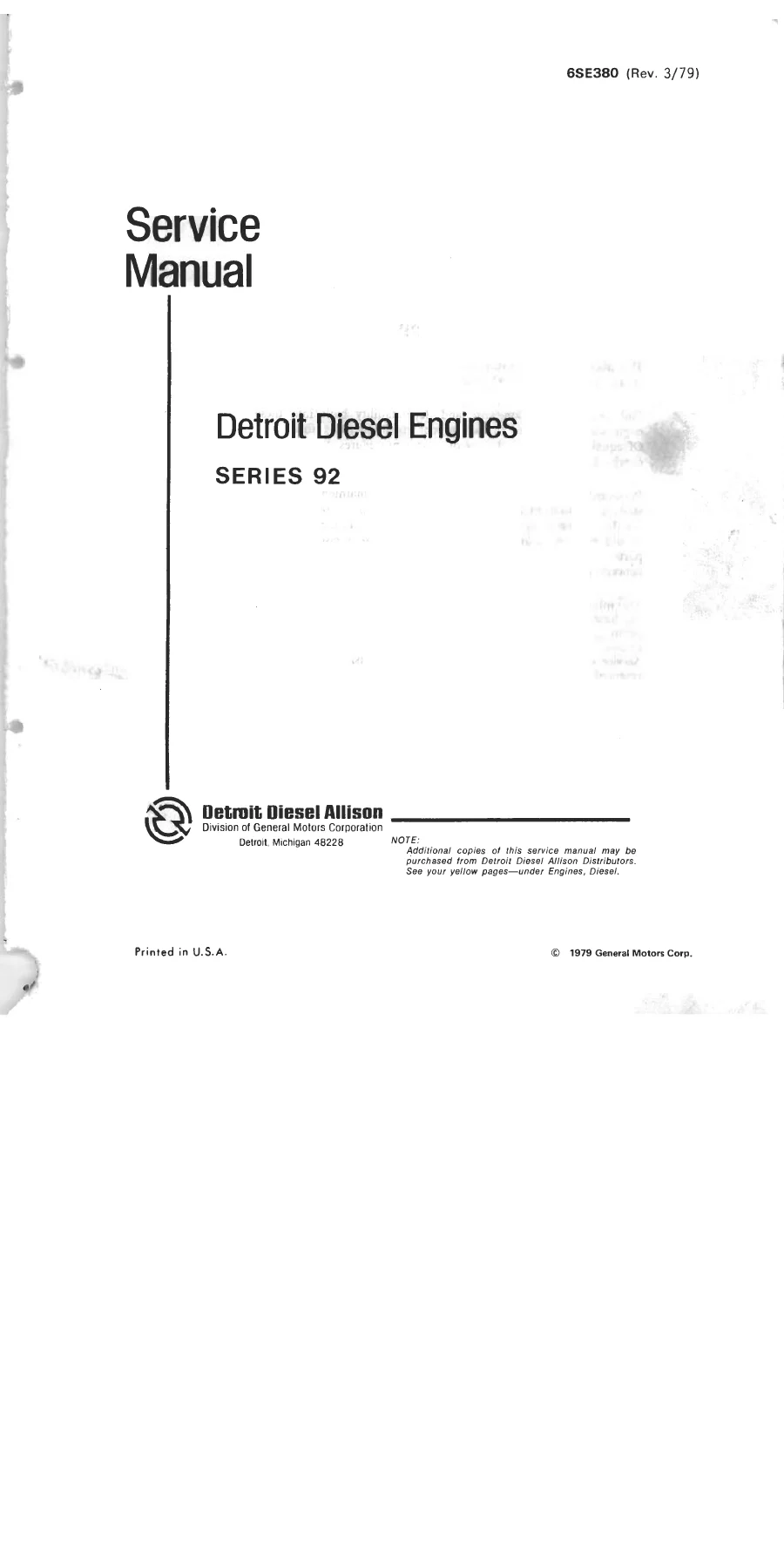

This Detroit Diesel Series 92 Service Manual is the full workshop reference for the two-cycle V-92 engine family, written for the 6V-92, 8V-92 and 16V-92 in naturally aspirated, turbocharged and aftercooled form. Issued by Detroit Diesel Allison as publication 6SE380 (Rev. 3/79), it carries the overhaul, maintenance and operation instructions for the basic V-92 engines, plus complete coverage of the fuel system and governors.

File Details

• Manual type: Service Manual (operation, maintenance, adjustment, repair and complete overhaul)
• Brand: Detroit Diesel – Detroit Diesel Allison Division of General Motors Corporation
• Engine family: Series 92 two-cycle V-type diesel engines
• Models covered: 6V-92, 8V-92, 16V-92
• Document number: 6SE380 (Rev. 3/79)
• Publication date: July 1978; copyright 1977 and 1978 General Motors Corp.
• Language: English
• File format: PDF
• Page count: 663 pages

Chapters Covered

The manual is divided into numbered sections, each opening with its own contents list, specifications table and torque table.

• Section 1 – Basic Engine

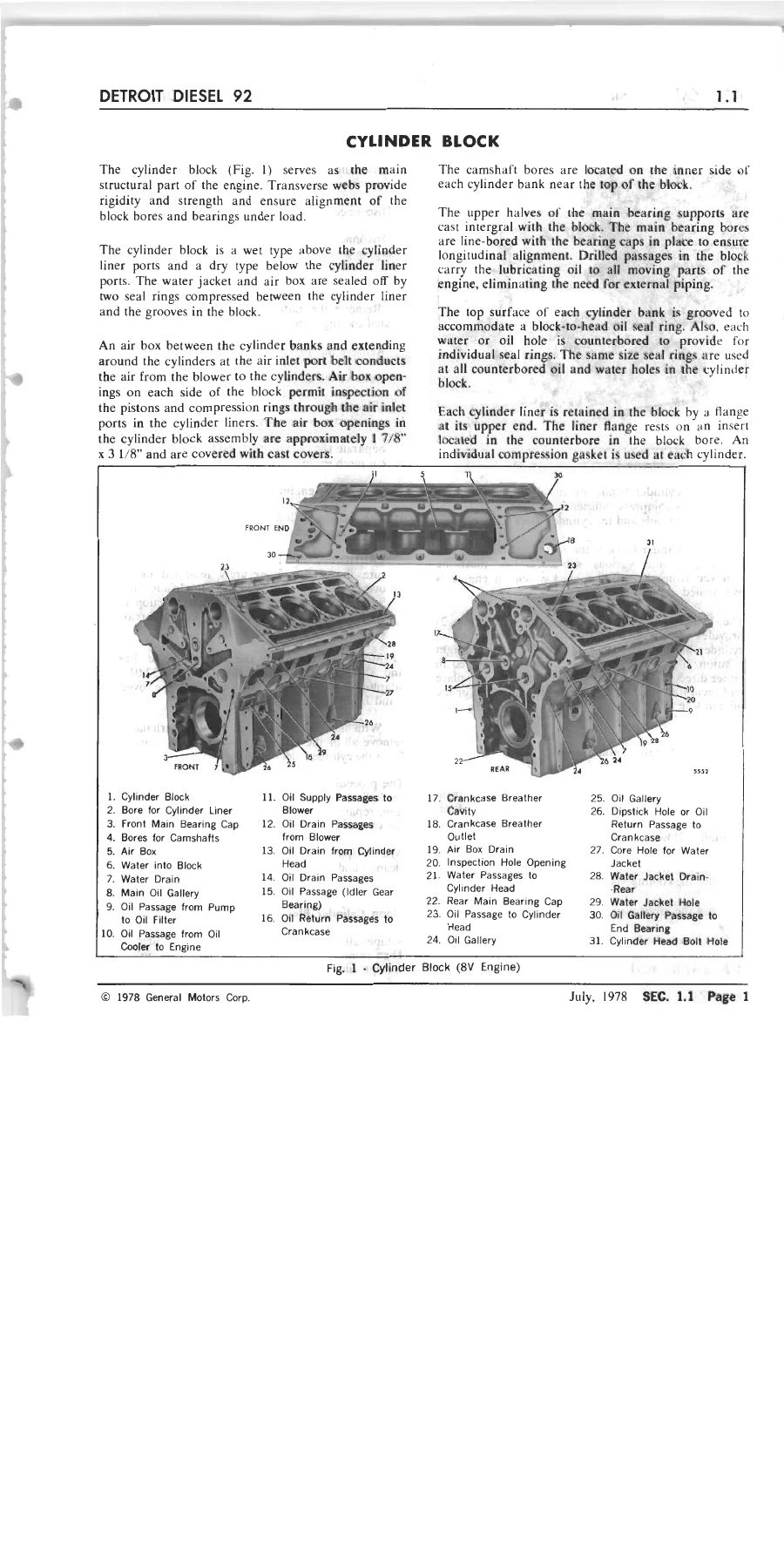

  • 1.1 Cylinder Block – end plates, air box drain tubes

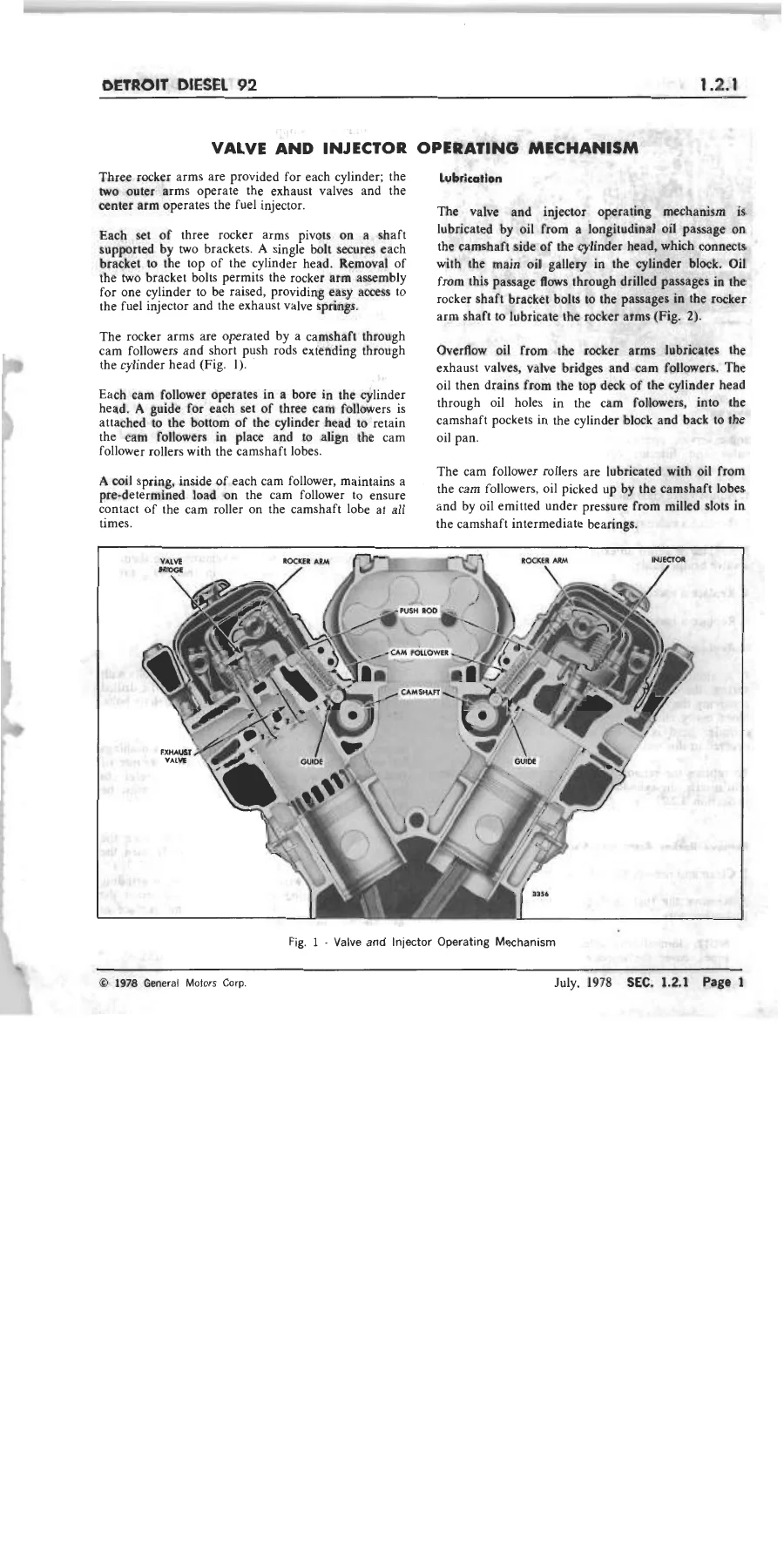

  • 1.2 Cylinder Head – valve and injector operating mechanism, exhaust valves, valve rocker cover
  • 1.3 Crankshaft – oil seals, crankshaft cap, main bearings, front cover, outboard bearing support (trunnion), vibration damper, pulley
  • 1.4 Flywheel – clutch pilot bearing, engine drive shaft flexible coupling
  • 1.5 Flywheel Housing
  • 1.6 Cross-Head Type Piston – connecting rod, connecting rod bearings, cylinder liner
  • 1.7 Engine Balance – gear train and engine timing, camshafts and bearings, camshaft gears, idler gear, crankshaft timing gear, blower drive gear and support assembly, accessory drive, balance weight cover
  • 1.0 Shop Notes, Trouble Shooting, Specifications and Service Tools
• Section 2 – Fuel System and Governors
  • Fuel System layout, inlet and outlet manifolds, restricted fittings
  • 2.1.1 Fuel Injector
  • 2.1.4 Fuel Injector Tube
  • 2.2 Fuel Pump
  • 2.3 Fuel Strainer and Fuel Filter
  • 2.5.1 Fuel Cooler
  • 2.7 Mechanical Governors – 2.7.1 Limiting Speed, 2.7.1.3 Limiting Speed (Variable Low-Speed), 2.7.2 Variable Speed
  • 2.8 Hydraulic Governors – 2.8.1 SG Hydraulic Governor (Variable Speed), 2.8.3 Hydraulic Governor Drive
  • 2.9 Fuel Injector Control Tube
  • 2.0 Shop Notes, Trouble Shooting, Specifications and Service Tools
• Related systems referenced throughout: air and blower system, lubrication system, cooling system, electrical and starting system, tune-up procedures, run-in schedule, lubricating oil and coolant specifications, and preventive maintenance

Working through this Detroit Diesel Series 92 service manual, a technician gets far more than a parts list. Every major assembly is stripped down to component level with the removal sequence, the inspection criteria, the wear limits and the reinstallation torque called out in the same place. Cylinder liner flange height, counterbore depth, main bearing bore diameter, camshaft thrust clearance, idler gear bearing pre-load, cylinder head bolt tightening in fifty foot-pound increments through a numbered sequence, injector control tube rack adjustment – the numbers a rebuild actually depends on are all printed in the text and repeated in the specification tables at the end of each section. The 16V engine gets its own procedures where it differs, including the two-piece crankshaft assembly, the cylinder block alignment tool sequence and the trunnion-mounted vibration damper.

What You Can Do With This Manual

The scope is overhaul-level, not just routine servicing. Inline with that, the manual supports:

• Complete engine removal, stripping and rebuild of 6V, 8V and 16V Series 92 engines
• Cylinder block cleaning, pressure testing for cracks by two documented methods, and inspection of bores, counterbores and main bearing alignment
• Cylinder head pressure testing, fire deck flatness checks, refacing limits, injector tube replacement and water nozzle installation
• Exhaust valve, valve guide, valve seat insert and valve bridge service, including the eccentric grinding method for seat reconditioning
• Crankshaft measurement, crack inspection by magnetic particle, fluorescent magnetic particle and fluorescent penetrant methods, regrinding dimensions and fillet radii
• Main and connecting rod bearing inspection, thickness measurement and clearance checking with a plastic measuring strip
• Piston and ring fitting, ring gap and side clearance measurement, oil control ring expander orientation and piston-to-liner clearance checks
• Cylinder liner removal, honing to break glaze and remove the ridge, and liner-to-block fitting with insert thickness selection
• Gear train timing for 6V, 8V and 16V engines, camshaft and camshaft gear service, idler gear bearing pre-load testing and blower drive gear assembly
• Front and rear accessory drive service for direct-driven, belt-driven and blower-driven accessories
• Fuel system work from injector removal through governor identification, fuel pump, strainer, filter and fuel cooler service
• Diagnosis of exhaust valve failures through the troubleshooting chart mapping each probable cause to a suggested remedy

Why the Correct Procedures and Numbers Matter on a Series 92

The V-92 is a two-cycle engine with a blower-fed air box, wet cylinder liners, unit injectors and four exhaust valves per cylinder. Small deviations have large consequences. A liner flange sitting too high or too low in the counterbore changes compression sealing and water sealing at the same time. A cam follower installed with its oil hole facing the wrong way starves the roller. Cylinder head bolts torqued in one pass instead of the numbered sequence in increments invite compression leaks that no amount of re-torquing will fix. An injector control tube that does not return the racks freely to the no-fuel position is a runaway risk, not a tuning annoyance. This Detroit Diesel Series 92 service manual sets out the tolerances and the sequence for each of those jobs, so the rebuild holds together instead of coming back.

IMAGES PREVIEW

Instant PDF Delivery

The manual arrives as a downloadable PDF the moment your order is complete – no shipping, no waiting on a parcel, no risk of a used print copy with pages missing. Open it on a laptop or tablet in the shop, print the section you are working on and take it to the engine, or print the whole document for the workshop shelf. Whether you are rebuilding a 6V-92 in a truck, servicing an 8V-92 industrial unit, or working on a 16V-92 with the trunnion-mounted front support, this Detroit Diesel Series 92 Service Manual gives you the procedures, clearances and torque figures to do the job to specification.
