Deutz BFM 1015 Engine Workshop Manual – PDF – German Russian English – 0297 7467

Description

DEUTZ BFM 1015 Series Workshop Manual – The Complete Factory Repair Guide

This is the official Deutz BFM 1015 Workshop Manual, document number 0297 7467. It is the comprehensive service and repair manual for the DEUTZ BFM 1015 engine family, covering both 6-cylinder and 8-cylinder variants. This is not a generic aftermarket guide; it is the factory-produced reference used by DEUTZ service technicians worldwide. Presented here as a high-quality PDF, it retains all the original text, illustrations, and technical data in a fully searchable digital format.

File Details

• Manual Type: Factory Workshop Manual / Service and Repair Manual
• Brand: DEUTZ
• Engine Series: BFM 1015
• Models Covered: BF6M 1015 (6-cylinder), BF8M 1015 (8-cylinder)
• Language: German, Russian, and English (Trilingual)
• Total Pages: 1,018 Pages
• File Format: Digital PDF (Instant Download)
• Document Number: 0297 7467
• Edition: 1st Edition, 05/98

Chapters Covered

This manual is meticulously structured to guide you through every aspect of engine service, disassembly, and reassembly. It is divided into logical sections, ensuring you can quickly find the information you need for any repair or maintenance task. The content covers:

Technical Data & General Information

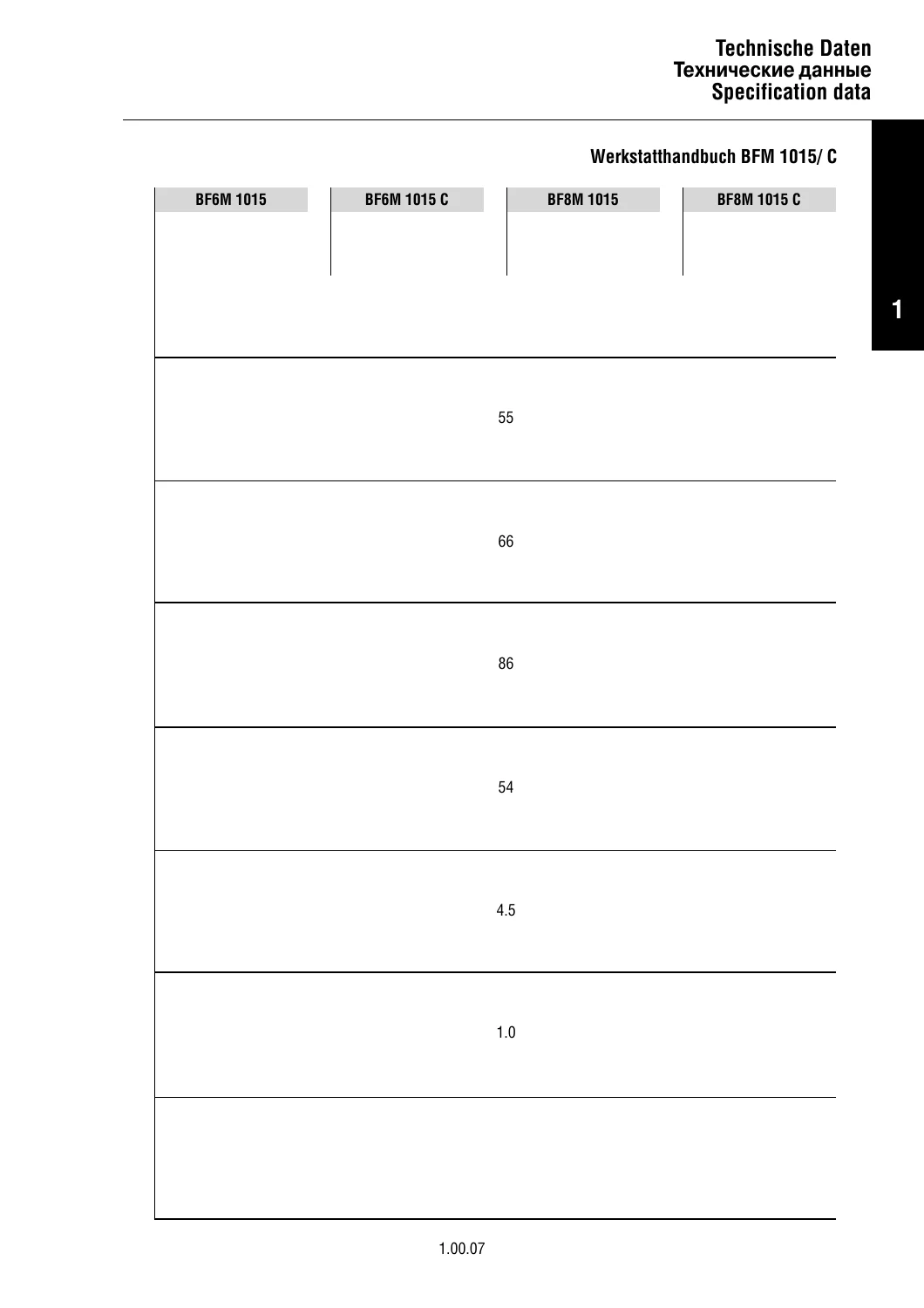

• General Specifications: Engine weight, swept volume, bore, stroke, direction of rotation, rated speed, idle speed, compression ratio, firing order.
• Engine Dimensions: Length, width, height for standard configurations.
• Valve Timing: Opening and closing angles for intake and exhaust valves (without clearance).
• Lube Oil Pressure: Minimum pressure at low idle with SAE 15W/40 oil.
• Key to Symbols: Comprehensive guide to the symbols used throughout the manual for checking, adjusting, repairing, and disassembly.

Checking and Adjusting

• Valve Clearance: Step-by-step procedure with detailed schematics for setting clearance on both 6 and 8-cylinder engines, including overlap and adjustment sequences. (Inlet: 0.25 mm, Exhaust: 0.30 mm)
• Injectors: Complete guide to removing, inspecting, and refitting injectors. Detailed instructions on checking and adjusting opening pressure (290 + 8 bar), performing leak tests, and checking for proper spray pattern and buzzing.
• Commencement of Delivery (FIP Timing): Precise procedure for checking and setting the injection pump timing using a cranking device and measuring equipment.
• Shaft Seals: Replacing front and rear crankshaft oil seals on a complete engine, including special tools and depth installation specifications.
• Thermostats: Replacement procedure for both vertical and horizontal mounting configurations.
• Coolant Pump: Removal and installation steps.
• Flame-Type Heater Plug: Service procedure for the heater plug used for cold starts.

Repair of Components

• Crankcase: Inspection for damage, grinding liner seating surfaces, and measuring/replacing camshaft bearing bushes.
• Crankshaft: Gauging main and crankpin journals, measuring thrust bearing width, and checking for true running/runout.
• Starter Ring Gear / Flywheel: Removal, inspection, and fitting of both shrunk-on and bolted-on ring gears.
• Connecting Rod: Measuring small-end bush and big-end bore, replacing bearing shells, and checking for parallelism and squareness.
• Piston: Inspection, measuring ring gaps and axial play, and using specialized tools to measure trapezoidal groove wear.
• Cylinder Head: Complete disassembly, inspection, and reassembly, including valve, spring, and seat measurements.
• Camshaft: Inspection and replacement of gears.
• Rocker Arm Bracket: Dismantling, inspection, and reassembly of rocker arms, ball pins, and shafts.
• Fan Drive: Inspecting and replacing shaft bearings, seals, and gears.

Disassembly and Reassembly of Complete Engine

This is the core of the manual, providing a master sequence for a complete engine overhaul. It covers the safe and correct procedure for dismantling and rebuilding the entire BFM 1015 engine. The process is covered in detailed steps, including:

• Engine mounting on a stand
• Removing external components (turbocharger, air compressor, pumps, lines, brackets)
• Removing the cylinder head, injectors, and camshaft
• Removing the pistons and connecting rods
• Removing the crankshaft
• Reassembly is then covered in exact reverse sequence, including:
• Installing cylinder liners and cooling oil nozzles
• Camshaft installation and determining end-float
• Installing the crankshaft and determining thrust bearing end-float
• Piston installation and connecting rod torquing
• Determining the correct cylinder head gasket thickness
• Installing the cylinder head with multi-stage torque procedure
• Reassembling all accessory components and setting up the valve gear and injection pump timing

Tools

A dedicated section listing all the commercial and special tools required for the repairs described in the manual, complete with part numbers for ordering.

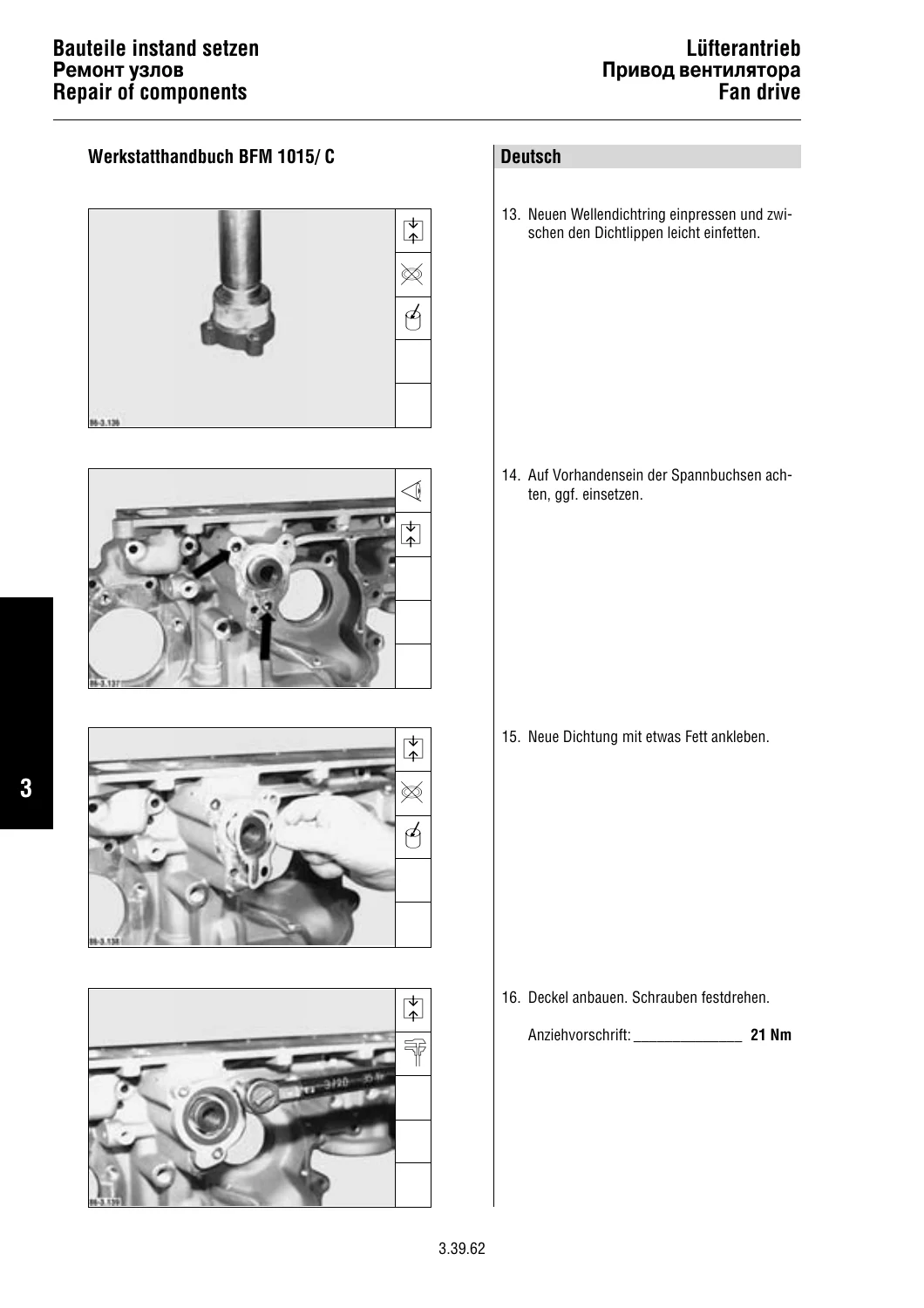

Every procedure is accompanied by clear, high-quality illustrations and diagrams that help visualize the working steps, ensuring even complex repairs are easy to follow. Detailed tightening specifications and torque values are provided for every critical bolt and fastener on the engine, ensuring assemblies are built to factory standards.

IMAGES PREVIEW

What You Can Achieve with This Manual

This workshop manual is your ticket to performing professional-level service, maintenance, and overhauls on the DEUTZ BFM 1015 engine series. Whether you are a professional diesel mechanic, a fleet maintenance manager, or a dedicated equipment owner, having this information at your fingertips is invaluable.

• Complete Overhaul: Rebuild your BFM 1015 engine from the ground up with confidence, following the same sequence as a factory technician.
• Accurate Diagnostics: Quickly pinpoint problems using the correct specifications and tolerances for every engine system.
• Precise Adjustments: Set valve clearances, injection timing, and fuel systems to their exact factory parameters for optimal performance and fuel economy.
• Component Repair: Avoid unnecessary replacements by inspecting, measuring, and repairing components according to factory guidelines.
• Eliminate Guesswork: Every fastener has a specified torque, every part has a wear limit, and every system has a test procedure. No more guesswork.
• Save Money: Perform complex repairs and maintenance yourself, saving thousands in dealer labor costs while ensuring your engine operates reliably for years to come.

Why This Manual Matters

Modern diesel engines are complex, precise machines. Using incorrect procedures or specifications can lead to catastrophic failure and costly downtime. This factory manual provides the authoritative information required to keep your DEUTZ BFM 1015 engine in peak condition. It ensures that the engine is rebuilt or serviced to the exact standards set by the manufacturer, preserving its performance, efficiency, and longevity.

Instant Digital Delivery

Once your order is confirmed, you will receive instant access to download this comprehensive 1,018-page PDF. There is no physical shipping, no waiting time. You can access the manual on your computer, tablet, or smartphone, and print specific pages or sections to use in the workshop. Save it to your device and have the complete knowledge of DEUTZ’s engineering at your command, anywhere, anytime.

This is the complete and authentic workshop manual for the DEUTZ BFM 1015 engine. Secure your copy today and ensure you have the right information to keep your equipment running at its best.
