Deutz BFM 2012 Diesel Engine Workshop Manual – BF4M & BF6M 2012 Series

This Deutz BFM 2012 Workshop Manual (Order No. 0312 0361) is the complete multilingual service, repair and overhaul guide for the BF4M 2012, BF4M 2012 C and BF6M 2012 C four-stroke diesel engines. Published by DEUTZ AG Service-Technik under the third edition dated 06/2004, it lays out every operation a working technician needs to strip, inspect, adjust and rebuild the engine. German, English, French and Spanish text sit in parallel columns on the same page, so the same procedure can be read in the reader’s preferred language while specification values, clearances and tightening torques stay identical across all four versions.

File Details

• Manual Type: Workshop Manual (Werkstatthandbuch / Manuel d’Atelier / Manual de Taller)
• Manufacturer: DEUTZ AG – Service-Technik, Instandhaltungstechnik Motoren, Köln
• Engine Series: BFM 2012
• Engines Covered: BF4M 2012, BF4M 2012 C, BF6M 2012 C
• Order Number: 0312 0361
• Edition: 3rd Edition, © 06/2004
• Languages: German, English, French, Spanish
• File Format: PDF

Chapters Covered

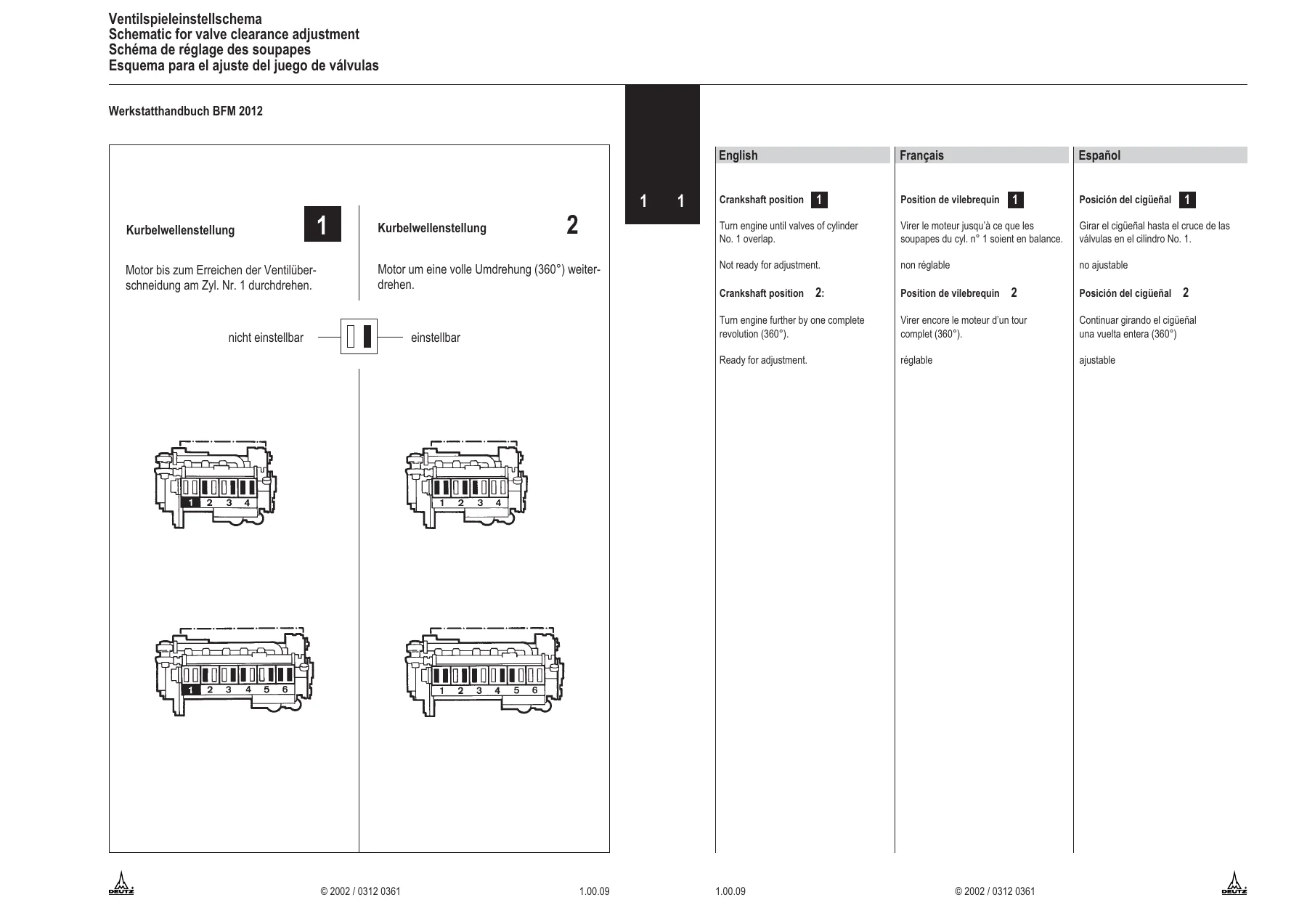

• 1. Specification Data: engine weight, swept volume, bore and stroke, direction of rotation, rated and idle speed, working cycle, combustion principle, compression ratio and pressure, firing order, overall dimensions, valve timing, lube oil pressure, valve clearance adjustment schematic, cylinder head bolt tightening sequence, determination of commencement of delivery, shim thickness tables and EP code tables
• 2. Control and Adjustment: valve clearance setting on the engine (inlet 0.3 mm, exhaust 0.5 mm), injector removal and testing, opening pressure adjustment, leak test, buzzing and spray pattern checks, compression pressure testing, thermostat inspection
• 3. Repair of Components: crankcase, front cover and lube oil pump, crankshaft, starter ring gear and flywheel, connecting rod, piston, cylinder head, timing case, camshaft, rocker arm bracket, injector, control rod, air compressor, mass balancing shaft, hydraulic pump drive, hydraulic pump with fastening flange
• 4. Disassembly and Re-assembly of the Complete Engine: oil injection nozzles, tappets and camshaft, crankshaft bearings, mass balancing shafts, idler gear and governor, control rod, timing case cover, front cover, crankshaft seals front and flywheel-end, pistons with connecting rods, injection pump installation and delivery timing, flywheel, adapter housing, ribbed V-belt pulley and torsional vibration damper, cylinder head, charge air pipe, exhaust manifold, turbocharger, oil return pipe, starter, governor, injectors and injection lines, engine stop, oil cooler housing, coolant preheating, fuel filter housing, water box, cylinder head cover, control line, pressure control valve, fan bracket, coolant pump, generator, fuel pump, tension pulley, fan drive, ribbed V-belt, fan and oil pan
• 5. Removal and Re-installation of Components: front and flywheel-end shaft seals, service replacement of the injection pump, thermostat replacement
• 6. Tools: commercially available tools and DEUTZ special tools with order numbers, cross-referenced to the specific jobs

What sets this Deutz BFM 2012 workshop manual apart from a parts list or a generic service booklet is the way the technical values are embedded directly in the procedures. Torque figures, bearing clearances, wear limits, adjustment values and shim tables appear in the section where the work is actually carried out, so the technician does not have to flip between a separate specification chapter and the repair instructions. For example, the crankshaft bearing section already contains the nominal bore diameters, the bearing shell dimensions and the allowable clearance range; the injector section already carries the opening pressure and tightening torques; the injection pump installation section includes the full delivery timing tables and the EP code look-up used to compute shim thickness.

Engines Covered in Detail

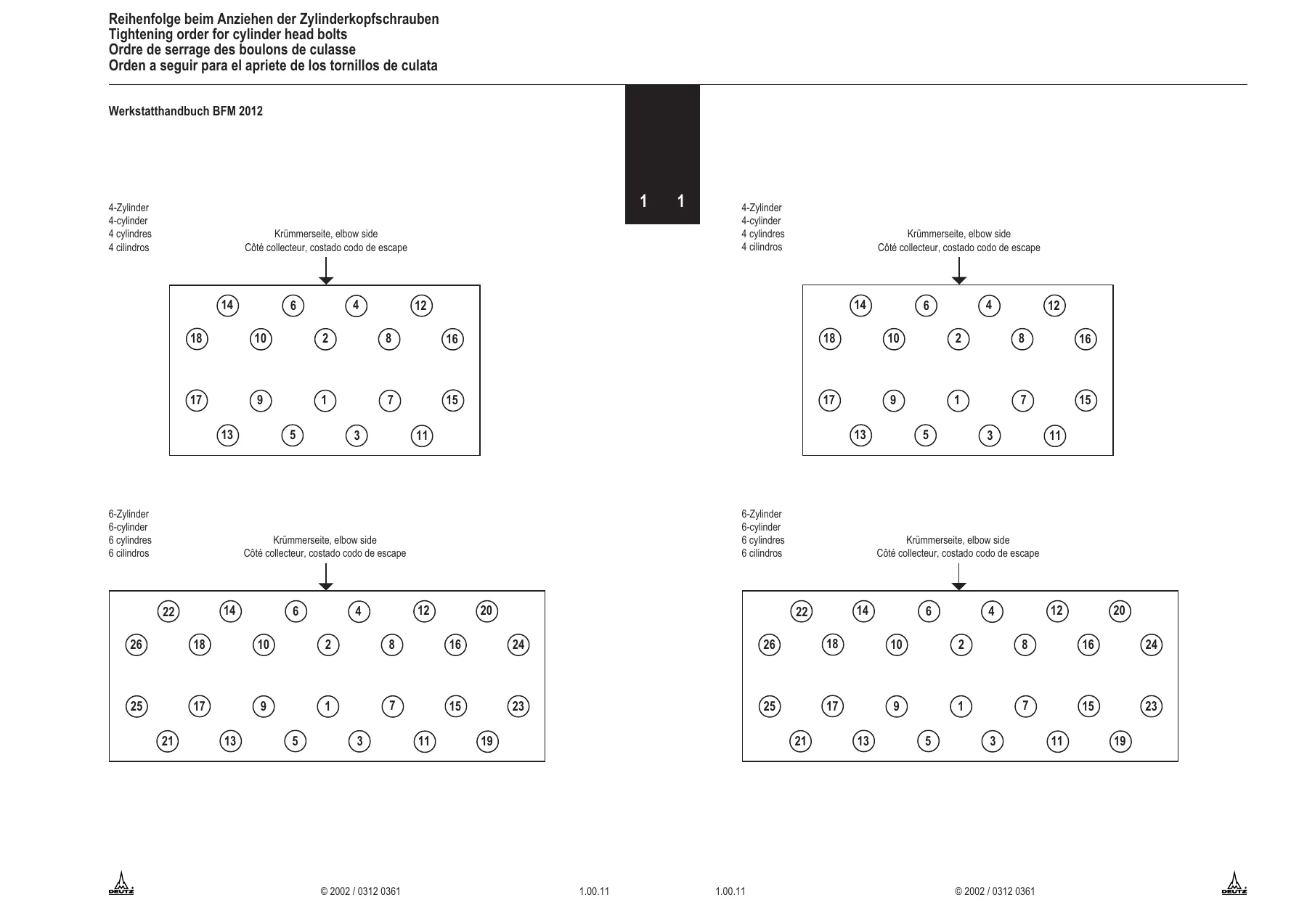

All procedures apply to the four-cylinder and six-cylinder variants of the BFM 2012 family: BF4M 2012, BF4M 2012 C and BF6M 2012 C. Where the four-cylinder and six-cylinder engines differ, the manual presents both cases side by side – for instance the cylinder head bolt tightening order for 4-cylinder (18 bolts) and 6-cylinder (26 bolts) applications, and the flywheel-end guide bush procedure which applies only to BF6M engines. The BFM 2012 is a four-stroke, direct-injection diesel with 101 mm bore, 126 mm stroke and a rated speed of 2500 rpm; the manual treats each subsystem – lubrication, cooling, fuel injection, valve train, timing gear and exhaust turbocharging – in full.

Injection Pump and Delivery Timing Coverage

A substantial part of this Deutz BF4M / BF6M 2012 workshop manual is devoted to the Bosch injection pump: how to determine the piston firing TDC using the measuring bar and dial gauge, how to read the commencement of delivery, how to select the correct shim for each cylinder, how to install or replace the injection pump in service, and how to compute corrected installation dimensions and update the EP code on the engine nameplate. Complete shim thickness tables and camshaft type tables (K, L, H, Q and P) are provided, together with worked calculation examples. This is the level of detail needed when the injection pump is being replaced, when the crankcase, camshaft or roller tappets are being renewed, or when the delivery timing has to be re-established after repair.

Who This Manual Is For

This is aimed at workshop technicians, diesel mechanics, fleet maintenance engineers, agricultural and construction equipment workshops and owner-operators who maintain or overhaul BF4M 2012, BF4M 2012 C and BF6M 2012 C engines. The procedures assume the work will be carried out by qualified personnel using the specified DEUTZ special tools, which are listed with order numbers in Chapter 6. Routine operation and maintenance instructions are not part of this workshop manual and are referenced to the corresponding operation manual, while spare parts are ordered from the separate parts catalogue – the workshop manual is the repair and overhaul reference.

Topics Covered in Practical Terms

• Gauging bearing bores, bearing shells and cylinder bores with the internal dial gauge
• Replacing camshaft, mass balancing and control rod guide bushes
• Assessing and reworking the cylinder head, valve seats and valve guides
• Checking valve stem clearance, valve recess and valve spring length
• Rebuilding the connecting rod / piston assembly with correct ring gap staggering
• Assembling the crankshaft with thrust washers, checking end float and marking camshaft-to-crankshaft alignment
• Timing the mass balancing shafts on BF4M 2012 engines using the adjusting pin and set bolt
• Setting control rod travel and verifying smooth movement of the control rod
• Mounting the flywheel, adapter housing, front cover, timing case cover and ribbed V-belt drive
• Installing the cylinder head with correct gasket thickness based on piston projection
• Torque and angle tightening sequences for main bearing, connecting rod, cylinder head, flywheel and damper bolts
• Injector disassembly, testing, opening pressure adjustment and reinstallation

Why Having the Correct Specifications Matters

The BFM 2012 is a high-speed direct-injection diesel and its reliability depends on precise clearances – a bearing set fractionally too tight, an injector opening pressure slightly off, or a delivery timing error of a couple of degrees is enough to produce hard starting, rough running, premature wear or a failed overhaul. This Deutz BFM 2012 service manual gives the exact values, tightening sequences and adjustment procedures as published by DEUTZ AG, so the work is done to the manufacturer’s specification rather than to a guess. It is the difference between a repair that holds and one that has to be redone.

Delivery

IMAGES PREVIEW

The manual is delivered as an instant PDF download – no shipping, no waiting for a courier, no risk of a paper copy going out of print. Read it on a laptop, tablet or phone in the workshop, search within the document for a specification, print the pages you need and take them to the engine. Once downloaded, the file is yours to keep and consult whenever the next service or repair comes around.
