DEUTZ D 2011 w TD 2011 w TCD 2011 w Diesel Engine Workshop Manual – PDF Download

Description

This is the DEUTZ workshop manual for the D 2011 w, TD 2011 w and TCD 2011 w diesel engines, published under order number 0312 4176 en as the 1st edition dated 12/2008. Where the operation manual tells an operator what to check and when, this DEUTZ D 2011 w TD 2011 w TCD 2011 w workshop manual tells a technician how to actually take the engine apart, measure it, repair it and put it back together to specification – from setting valve clearance through to removing the cylinder head, renewing injection lines and refitting the turbocharger.

File Details

• Manual type: Workshop manual (repair and overhaul documentation)
• Brand / manufacturer: DEUTZ AG, Köln
• Engine models covered: D 2011 w, TD 2011 w, TCD 2011 w
• Document number: 0312 4176 en
• Edition / date: 1st edition, 12/2008
• Language: English
• Page count: 266 pages
• Format: PDF
• Contents structure: Foreword, General, User notes, Technical data, Job card overview, Job cards, Commercial tools, Special tools

Chapters and Job Cards Covered

The manual opens with the general and safety material every technician needs before touching the engine, then moves into the numbered job cards that make up the bulk of the document. The chapter structure is:

• Foreword and General
• User notes – including accident prevention and safety regulations
• Cleanliness instructions and measures for handling the DEUTZ Common Rail System
• Disposal regulations
• Operation manual and workshop manual relationship

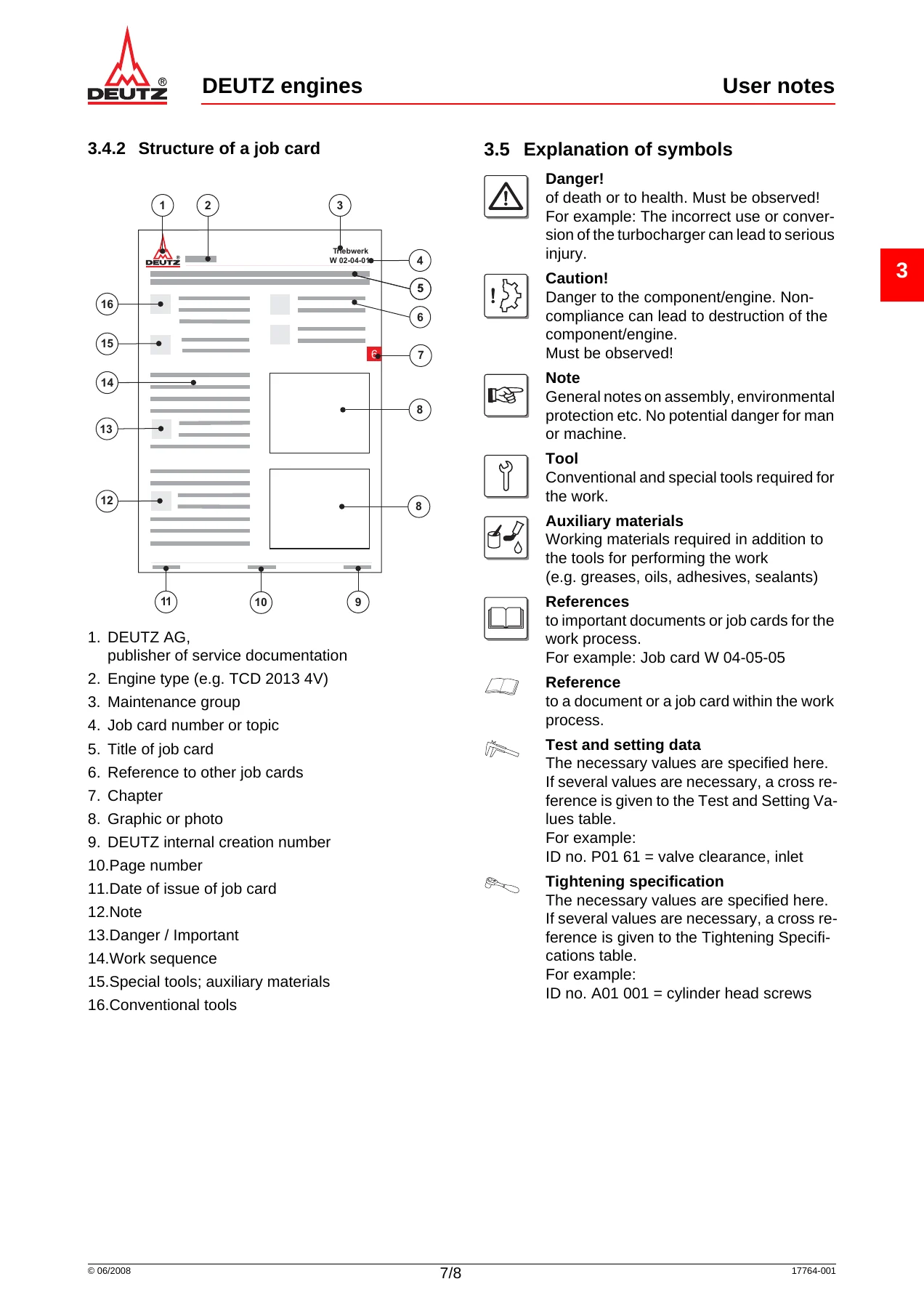

• Job cards – numbering system and job card structure
• Explanation of symbols used throughout the job cards
• Technical data – testing and setting data
• Tightening specifications
• Job card overview – sorted alphabetically
• Job card overview – sorted numerically
• Job cards (the repair procedures themselves)
• Commercial tools
• Special tools

The job card set covers the following work, each identified by its own W-number:

• Checking the compression pressure (W 00-02-06)

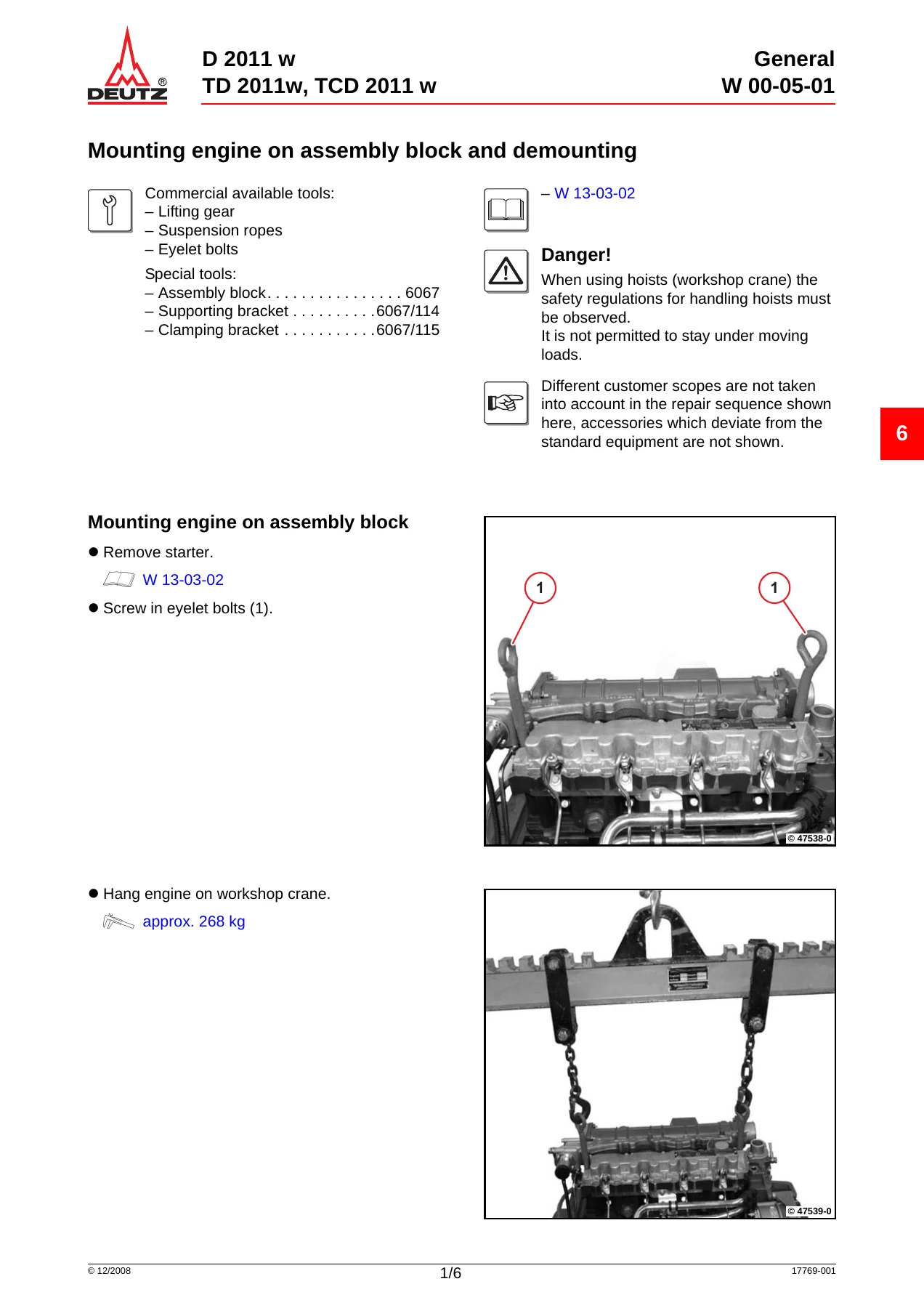

• Mounting the engine on an assembly block and demounting (W 00-05-01)
• Setting valve clearance (W 01-01-01)
• Removing and installing the rocker arm and rocker arm bracket (W 01-02-02)
• Disassembling, assembling and checking the rocker arm and rocker arm bracket (W 01-02-06)
• Removing and installing the cylinder head (W 01-04-04)

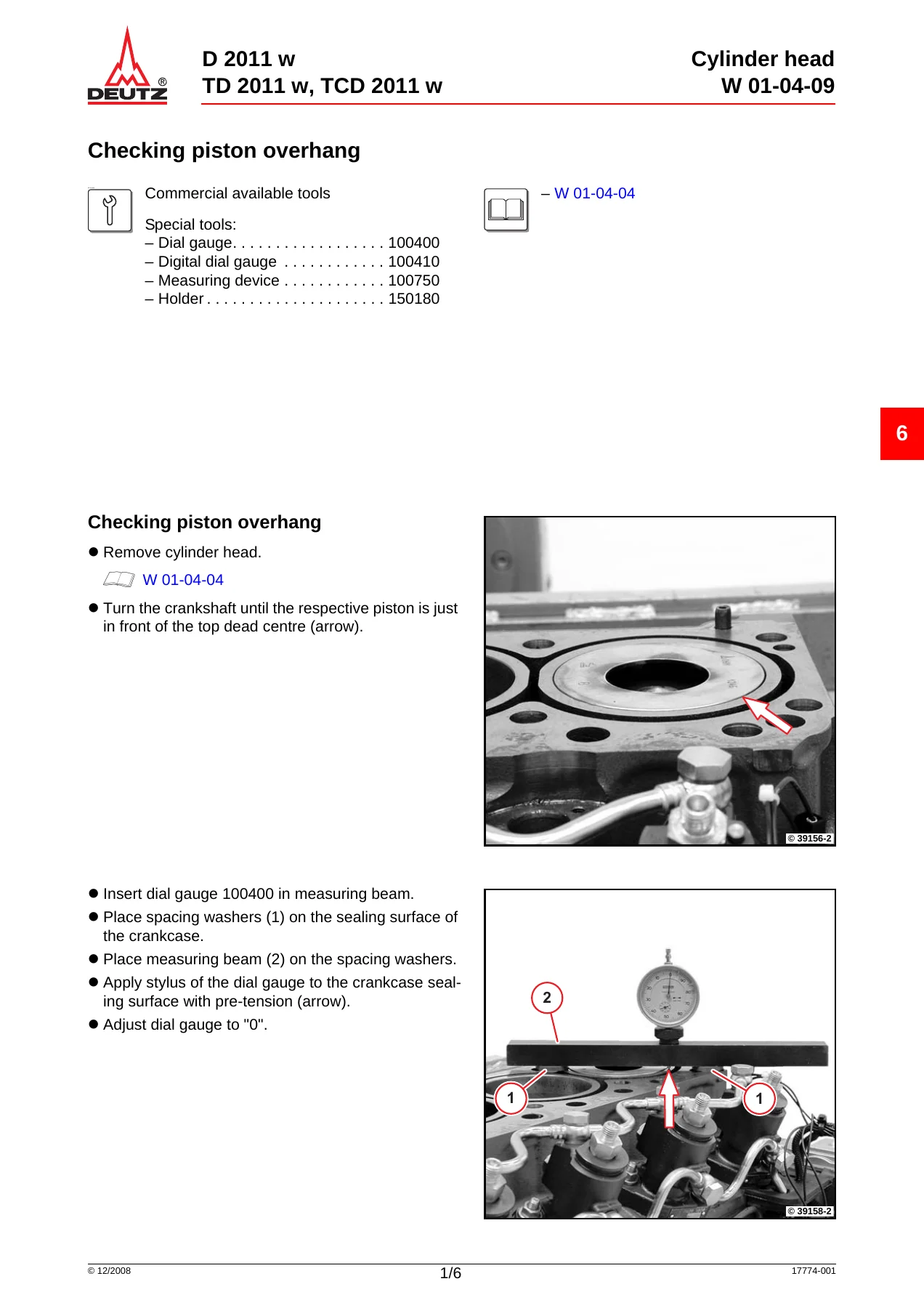

• Checking piston overhang (W 01-04-09)
• Removing and installing the crankcase bleeding (W 03-01-11)
• Removing and installing the exhaust line (W 06-01-05)
• Removing and installing the charge air line (W 06-02-03)
• Removing and installing the turbocharger (W 06-06-04)
• Removing and installing the intake manifold (W 06-07-03)
• Removing and installing the exhaust gas return valve (W 06-09-06)
• Removing and installing the exhaust gas return pipe (W 06-09-07)
• Removing and installing the exhaust gas collection pipe / exhaust gas recirculation (W 06-09-08)
• Removing and installing the lifting magnet, start amount release (W 07-02-07)
• Renewing the injection lines (W 07-03-01)
• Removing and installing the fuel injectors (W 07-07-01)
• Removing and installing fuel pipes (W 07-10-06)
• Removing and installing the lifting magnet, charge air pressure-dependent full load stop (W 07-10-08)
• Installing and removing the charge air pressure-dependent full load stop (W 07-10-08)
• Removing and installing the fuel filter console (W 07-10-08)
• Removing and installing the fuel supply pump (W 07-11-01)
• Removing and installing the lubricating oil cooler (W 08-08-02)
• Removing and installing the oil filter console (W 08-11-07)
• Removing and installing the oil pressure switch (W 08-11-08)
• Removing and installing the thermostat, lubricating oil cooler (W 08-11-12)
• Removing and installing the control line (W 08-16-01)
• Removing and installing the coolant pump (W 09-07-08)
• Checking the thermostat in the removed state (W 09-08-01)
• Removing and installing the thermostat (W 09-08-02)
• Removing and installing the thermostat housing (W 09-08-04)
• Removing and installing the temperature transmitter (W 09-12-01)
• Removing and installing the lifting magnet, engine shutdown (W 11-00-03)
• Removing and installing the V-belt pulley (W 12-01-04)
• Renewing V-belts and checking V-belt tension (W 12-02-01)
• Removing and installing the flywheel (W 12-06-01)
• Removing and installing the hydraulic pump (W 12-08-02)
• Removing and installing the generator (W 13-02-03)
• Removing and installing the starter (W 13-03-02)
• Removing and installing the heating plugs (W 13-06-01)
• Removing and installing the glow plug (W 13-06-02)

Taken as a whole, this DEUTZ workshop manual gives a technician a single, internally consistent repair path for the 2011 w engine family. Every job card is tied back to the testing and setting data and the tightening specifications chapters, so the values a mechanic needs – compression pressure, valve clearance, piston overhang, torque figures and rotation angles – sit in the same document as the procedure that consumes them. The job card numbering is explained in the user notes, so a reader can decode W 02-04-01 style references into documentation type, maintenance group, component grouping and consecutive number without guesswork.

Technical Data Built Into the Manual

The testing and setting data chapter covers compression pressure, ignition sequence, inlet and outlet valve clearance, rocker arm bore and rocker arm pin diameters, piston overhang values for both standard and recess cylinder heads, thermostat opening temperature and stroke, compression spring length, and V-belt tension for individual AVX 10 belts at first assembly and after fifteen minutes running under load.

The tightening specifications chapter is equally detailed and is grouped by model variant, with separate tables for the D 2011 w and for the TD 2011 w / TCD 2011 w where the hardware differs. It covers cylinder head screws in staged torque-plus-angle sequences, rocker arm brackets, injectors, injection lines, fuel supply and return lines, oil filter console, lubricating oil cooler, thermostat housing, coolant pump, flywheel, V-belt pulley and flange hub, hydraulic pump, starter, generator, glow plugs and exhaust gas recirculation pipework.

Tools Referenced in the Manual

Two closing chapters list the tooling the job cards call for. The commercial tool chapter covers items such as a compression pressure tester, hose clip pliers, a claw wrench, assembly pliers, a plier insert, a V-belt tension measuring device, Torx socket inserts, a cleaning brush, a rotation angle disc, clamping tongs, spring band pliers and a special bit. The special tools chapter lists DEUTZ-specific equipment including a connector for the compression tester, dial gauges, a measuring device and holder for piston projection, a puller and slide hammer for fuel injectors, a disassembly tool for O-rings, an assembly tool for glow plugs, a special wrench for filter cartridges, stopper and cap sets for sealing openings in the fuel system, and the assembly block with its supporting and clamping brackets.

Variants and Model Differences

The manual is written for three engine variants that share a platform but differ in induction and cooling. Naturally aspirated D 2011 w work is documented separately from turbocharged TD 2011 w and TCD 2011 w work in several places – most visibly in the charge air line, turbocharger, intake manifold and exhaust line job cards, and in the tightening specification tables where a value applies only to one variant. Exhaust gas recirculation components appear as dedicated job cards, and the manual notes that where internal exhaust gas recirculation is used, an additional camshaft cam opens the inlet valve briefly, which must not be confused with valve overlap when setting clearance. Piston overhang measurement is also split between a standard cylinder head and a recess cylinder head, with different value bands and different cylinder head gasket identification by one, two or three recesses.

Safety and Cleanliness Requirements

Because the engine uses a high-pressure fuel system and high-precision components, the manual devotes substantial space to the rules that must be followed before and during work. It sets out the waiting period after switching off the engine before opening the fuel system, the requirement to bleed the system after any work on it, the prohibition on deforming or reconnecting injection lines and high-pressure pipes incorrectly, and the protective clothing requirements for anyone working near a running engine under test. Separate instructions govern cleanliness on the open fuel system – how parts are cleaned, how openings are sealed with new stoppers and caps, how removed components are stored, and how the workshop area itself must be arranged. Anyone buying this DEUTZ D 2011 w TD 2011 w TCD 2011 w workshop manual is buying those rules along with the repair procedures.

Get the DEUTZ 2011 w Workshop Manual as a PDF

With this workshop manual on hand you can set valve clearance correctly, pull and refit the cylinder head with the right gasket for the piston overhang you measure, service the rocker arm assembly, replace injection lines and injectors, remove a stubborn injector with the correct puller, renew the turbocharger and its oil feed and return lines, work through the exhaust gas recirculation pipework, rebuild the cooling circuit from thermostat through coolant pump and thermostat housing, service the lubricating oil cooler and oil filter console, replace the oil pressure switch, set V-belt tension to the specified figure, and pull the flywheel, hydraulic pump, starter, generator and glow plugs. It also lets you verify a thermostat on the bench and take a compression reading across all cylinders to judge whether a cylinder unit needs to come apart.

Working from the correct DEUTZ procedures and torque values matters on a diesel like this one. Staged cylinder head tightening with a final rotation angle, the correct head gasket thickness for the measured piston overhang, tension-free installation of injection lines and oil return pipes, and the right V-belt tension are all things that decide whether the repair holds up or comes back. This DEUTZ D 2011 w TD 2011 w TCD 2011 w service manual puts those values in the same document as the job that needs them.

IMAGES PREVIEW

Delivery is instant. The manual is supplied as a PDF download, there is no physical book to ship and nothing to wait for, and the file can be opened on a workshop PC, laptop, tablet or phone and printed off for the bench if you prefer paper in front of you while you work.
